Starnex Self-Guard SG-100 Manual

Micro-sized, portable, wireless, covert dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

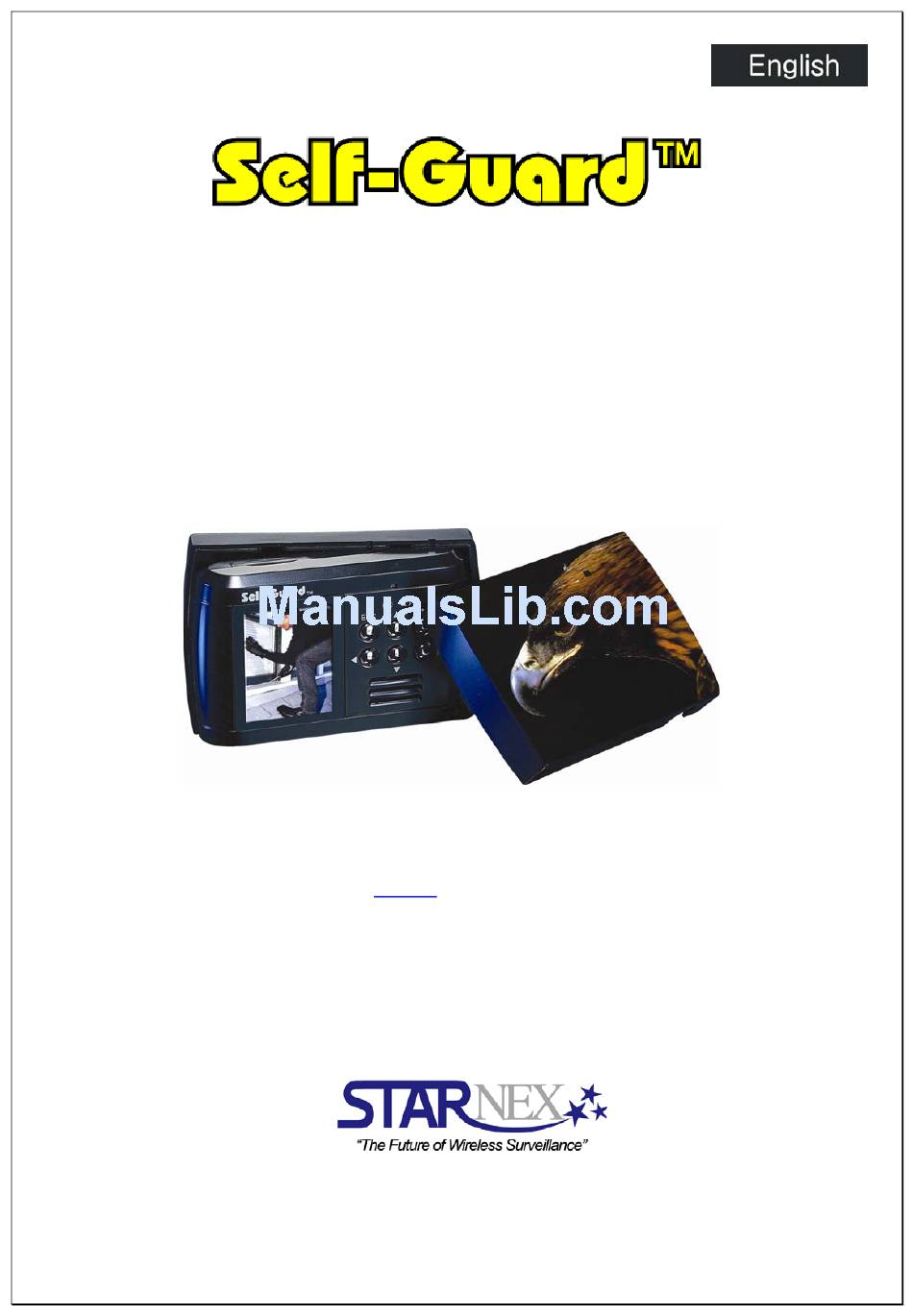

Micro-sized, Portable, Wireless, Covert DVR
General Version: SG-100/ SG-200/ SG-300
Special Version: SG-110/ SG-210/ SG-310
MANUAL
*EXCEPT FOR SECURITY PURPOSE, DO NOT USE THIS PRODUCT FOR ANY OTHER PURPOSES
WHICH MAY DISTURB PRIVATE LIFE OF OTHERS.
THIS PRODUCT IS REGISTERED WITH ELECTROMAGNETIC WAVE STANDARDS AND CAN
BE USED FOR ANY PLACE INCLUDING RESIDENTIAL AREA. BEFORE USING THIS PRODUCT,
BE SURE TO READ THE PRECAUTIONS CONTAINED IN THE MANUAL.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Self-Guard SG-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Starnex Self-Guard SG-100

Summary of Contents for Starnex Self-Guard SG-100

  • Page 1 Micro-sized, Portable, Wireless, Covert DVR General Version: SG-100/ SG-200/ SG-300 Special Version: SG-110/ SG-210/ SG-310 MANUAL *EXCEPT FOR SECURITY PURPOSE, DO NOT USE THIS PRODUCT FOR ANY OTHER PURPOSES WHICH MAY DISTURB PRIVATE LIFE OF OTHERS. THIS PRODUCT IS REGISTERED WITH ELECTROMAGNETIC WAVE STANDARDS AND CAN BE USED FOR ANY PLACE INCLUDING RESIDENTIAL AREA.
  • Page 2 Unpacking Check to make sure that all of the items shown below are included with your Self- Guard. If something is missing, contact your dealer as soon as possible. Rechargeable Battery Concealment Case Quick Start Guide (Manual & Software) A/V Input Cable (Special Ver.

  • Page 3: Table Of Contents

    – Contents – INTRODUCTION ----------------------------------------------------------------------------------- 1. Precautions --------------------------------------------------------------------------------------- 2. Features ------------------------------------------------------------------------------------------- 12 3. Specifications and Comparison of each Model ------------------------------------------ 14 4. Applications --------------------------------------------------------------------------------------- 16 QUICK START GUIDE -------------------------------------------------------------------------- 1. Charging the Battery ---------------------------------------------------------------------------- 17 2. Turning the Self-Guard On and Off --------------------------------------------------------- 17 3.
  • Page 4 4-7. Memory Set ---------------------------------------------------------------------------- 60 4-8. Others ------------------------------------------------------------------------------------- 62 4-8-1. Password Set -------------------------------------------------------------------- 62 4-8-2. Power Set ------------------------------------------------------------------------- 64 4-8-3. Alarm Set -------------------------------------------------------------------------- 68 4-8-4. SG-921 Set ------------------------------------------------------------------------- 71 4-8-5. Language -------------------------------------------------------------------------- 72 4-8-6. Upgrade --------------------------------------------------------------------------- 72 4-8-7. Default Set ------------------------------------------------------------------------- 73 4-8-8.
  • Page 5 STARNEX CO., LTD. assumes no responsibility for any damage or loss resulting from the use of this manual. STARNEX CO., LTD. assumes no responsibility for any loss or claims by third parties which may arise through the use of the Self-Guard.

  • Page 6: Introduction

    Never try to open the case of the Self-Guard or attempt your own repairs. High-voltage internal components create the risk of electric shock when exposed. Always leave maintenance and repair work up to a STARNEX authorized service center. Never look at the sun or other bright light through the LCD screen. Doing so can damage your eyesight.
  • Page 7 Next, remove the Self-Guard’s battery and/or unplug the AC/DC adaptor power cord from the power outlet, and contact your dealer or nearest STARNEX authorized service center. Never use the Self-Guard inside of an aircraft or in any other area where its use is prohibited.
  • Page 8 Station, or disconnecting the AC/DC adaptor from the Docking Station while a data communication operation is being performed. Low battery power. Other abnormal operations. Any of the above conditions can cause an error. Follow the instructions provided by this manual to eliminate the cause of the error. USB Memory Device Precautions Do not insert or remove USB memory devices from the USB port in the Self- Guard while recording or searching.
  • Page 9 the rest of the modes except for “RECORD” or “TRANSMIT”, it turns off the power completely. Set the time to 0 to deactivate “AUTO OFF” function. Caution: To maximize the life of the battery, do not turn off “AUTO OFF” function.
  • Page 10 it to a sudden change of temperatures, there is the possibility that condensation can form on the exterior or on interior components. Condensation can cause malfunction of the Self-Guard, so you should avoid exposing it to conditions that might cause condensation. To keep condensation from forming, place the Self-Guard into the Carry- Along Bag before moving it into a location that is much warmer or colder than your current location.
  • Page 11 NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 12: Features

    2. Features Self-Guard is an extremely small digital recording system, which can digitally compress, store, search, and transmit/receive information such as, image and audio captured by the camera and microphone. The Self-Guard defines all the existing technologies of the DVR/CCTV combination, as well as integrating other revolutionary security innovation: Bluetooth.
  • Page 13 Programmable Settings for the Option in the Menu – You can configure different values for every option in the menu. Snapshot Mode Built-In (128MB) Flash Memory - Free of Data Loss, Images can be recorded without using a memory card Memory Card for Memory Expansion Extensive Recording Time and Data Back-up with the External USB HDD, or USB Memory Stick...

  • Page 14: Specifications And Comparison Of Each Model

    3. Specifications and Comparison of each Model 3.1 Specifications SECTION DESCRIPTION REMARKS Built-In Flash memory: 128 MB Internal Storage Device (up to 1 GB) Micro SD Card: 128MB –Up to Memory Expansion 8GB(SDHC) Extensive Storage Device USB Memory Stick, USB HDD &...
  • Page 15 3.2 Comparison of each Model Functions SG-100 SG-200 SG-300 SG-110 SG-210 SG-310 Video Recording Audio Recording Bluetooth Wi-Fi (optional) Sensor Input/Output Network Access TV Output Audio Input Video Input Snap Shot Motion Detection Audio Detection Docking Station...

  • Page 16: Applications

    4. Applications House, Apartment (Residential Areas), Hotel, School/University Facility, Daycare Center, Kindergarten Laboratory, Hospital, Law Office, Museum, Church, Public Library, Commercial Buildings Banks. Jewelry Shop, Restaurants, Department Stores, Liquor Stores, Convenience Stores, Book Store, Gas Station Factories, Construction Site, Farm, Powerhouse, Parks, Amusement Park, Public Facility Fire Department (Fire Fighters), Security Guards, Police Units (Police Officers), Mailman, Jailor...

  • Page 17: Quick Start Guide

    QUICK START GUIDE 1. Charging the Battery Load the battery into the Self-Guard. Plug in the AC/DC adaptor directly into the Power input port of Self-Guard. Total recharging time is 3 hours for a full recharge. 2. Turning the Self-Guard On and Off Push [ENT] for 2 seconds to turn on the power.
  • Page 18 Use [△] and [▽] to select “D.DATE/TIME SET” and press [ENT]. Use [ ] and [ ] ◁ ▷ to move the cursor to month, date, year, and time. Use [△] and [▽] to change the values for each set. Use [ ] and [ ] ▷...

  • Page 19: To Record A Moving Image

    4. To record a moving image Use [△] and [▽] to select RECORD, and then press [ENT]. Then, it will appear with the sight that’s being recorded as below and the Self-Guard starts to record images. Before you start to record, be sure to check from the LCD that the camera can capture the sight where you want it to be recorded.

  • Page 20: To Playback A Moving Image

    for camera channel numbers. If it shows C1B123, then ‘C1’ indicates of camera number 1 and ‘B123’ indicates of Bluetooth channel 1, 2 and 3. 13:40:34: current time. (10): elapsed recording time (10 minutes). 39%: 39 percent of the total memory(Built-in, MICRO SD, USB) is being used for recording.
  • Page 21 COPY: To copy all the data of the selected month to the selected memory device. (If USB or MICRO SD memory device is not connected to the Self-guard, then the cursor does not move to COPY.) 1/4: First of the four pages of the list Select a Mon/Year, which includes the file you want to playback, and then press [ENT].

  • Page 22: Bluetooth (Sg-300, Sg-310 Only)

    PREV Go to the previous page First of 3 pages NEXT Go to the next page LOCK Lock from deleting file Delete selected file DELALL Delete all files for the selected date (except for ‘*.sgvx’ file) COPY Copy a selected file to the selected memory COPYALL Copy all file of the selected date to the selected memory There are three colors (blue, red, or green) for each file name to indicate which memory...
  • Page 23 Steps to set the Self-Guard as a SLAVE: 1. For the fastest transmission of the data, set the recording resolution to 128x128. 2. Set “6. BLUETOOTH” -> “2. M/S: SLAVE” 3. Check “3. MY ID” and write down the ID. 4.

  • Page 24: Getting Ready

    GETTING READY Self-Guard...
  • Page 25 Memory Card Slot: This is the place where you put in the standard MICRO SD memory card. If you need to expand the memory from the built-in, internal memory, you can get this from where you have purchased the Self-Guard. This product provides a memory card, which lacks in memory.
  • Page 26 sure that this hole is not blocked in order to record the audio. Battery Status & Charge Lamp: This lamp indicates how much of the battery is left. Lamp with the green color indicates that the battery is full. The color of this lamp changes into yellow when the battery is half full, and the red color means that the battery is almost used up.
  • Page 27 1000, SG-2000, SG-3000). Do not need in the General Version and Special Version of the Self-Guard (SG-100, SG-200, SG-300, SG-110, SG-210, SG-310). USB Port: You use this USB port when you want to save data for a long period of time or need to back up saved data in the Self-Guard to the USB memory such as, USB memory stick or USB hard disk.

  • Page 28: General Guide

    GENERAL GUIDE Power ON/OFF Push [ENT] for 2 seconds to turn on the power. To turn off the power, push [ESC] for 2 seconds and release it. Main Menu When you turn on the power of the Self-Guard, then a screen appears as below. I.
  • Page 29 Select “RECORD” with the direction buttons and then press [ENT]. Then it shows the screen that’s being recorded as below, and the Self-Guard starts to record images. When the Self-Guard goes into the “RECORD” mode, then the color of recording status LAMP changes into red from green.

  • Page 30: I-2. Camera

    Press [ ] to view the images in single mode, or in 4 channel mode. Press [ESC] to ▽ stop recording and exit from the “RECORD” mode. You can access the image and voice of the Self-Guard, or copy off the data in the Self- Guards by the wireless communication method (Bluetooth) from a remote Self-Guard (SG-300, SG-310 only).

  • Page 31: I-3. Search

    You can check on the camera’s recording location, and the operating status of it with the Self-Guard’s LCD. When using multiple cameras, you can see up to 4 images simultaneously from the LCD. Every time you press [ ] ▽ in “1.CAMERA” mode, the image from each channel, which is turned on, appears in order.
  • Page 32 All saved data are arranged according to the month and the year. The month and the year show on the screen if there exists data saved for that month Mon/Year: Indication of the data for each month and the year 04/2006: Data exists for the month of April of 2006 03/2006: Data exists for the month of March of 2006 02/2006: Data exists for the month of February of 2006...
  • Page 33 Green Colored Date: There exists saved data. • Black Colored Date: There exists no saved data. • Pink Colored Date: Cursor position • Use [ ] and [ ] ▷ to select the date you want, and then press [ENT]. Then the list of ◁...
  • Page 34 The name of the file is composed of hours, minutes, seconds and the camera’s channel numbers. For example, ‘15373501.sgv’ means that the file has recorded for 10 hours 12 minutes and 40 seconds from channel number 1. For 15224201.sgvx, ‘x’ means the file is locked to protect from deleting.
  • Page 35 >|: Go to the End of the file <<: Move backward by 30 frames >>: Move forward by 30 frames |>: Move forward by 1 frame ||, ->, => : Stop, Play, High-Speed Play; If you press the [ENT], then the status bar changes to “->...
  • Page 36 In the magnification mode, you can move to the left, right, up, and down by using the direction buttons, and press [ENT] to change the magnification ratios, and the ratios repeat x 1 → x 4 → x 16, as you press [ENT] continuously. In 480x480 and 640x480 resolutions, it is possible to magnify the images up to 16 times (width x 4 and length x 4), and the magnifying order is x 1 →...

  • Page 37: I-4. Option

    I-4. OPTION Select “OPTION” using the direction buttons, and then press [ENT]. Then the next screen appears in the LCD as below. Use [△] and [▽] to select an option and press [ENT]. Then the window displays with next options related to the previous option menu for you to change the values. To change the values, use [▷] and [◁].

  • Page 38: Camera Set

    4-1. CAMERA SET Select “1.CAMERA SET” using the direction buttons, and press [ENT]. Then the next screen appears in the LCD as below. In order to return to the previous menu, press [ESC]. Self-Guards have one built-in camera in the front, and can add one more internal camera in the back of the unit.
  • Page 39 Regardless of whether the cameras are turned on or off in the menu, if the cameras are connected to the Self-Guard, then those specific camera numbers in the menu shows with green color. Be sure to turn off the cameras that are not connected to the Self-Guard in the menu.
  • Page 40 Guard unit. If you do not turn off “BUTTON CAM” function and remove the button camera from the unit, then the Self-Guard may go into the Record or Sleep mode. When this happens, press ESC button to go into main menu. If you turn off “BUTTON CAM”...

  • Page 41: Record Set

    brightness, hue, saturation, and contrast, and then use [◁] and [▷] to change the value ranging from 1 to 20. 4-2. RECORD SET Select “2.RECORD SET” using the direction buttons, and press [ENT]. Then the next screen appears in the LCD as below. 4-2-1.
  • Page 42 4-2-1-1. VIDEO This function turns on and off recording moving images. Set it to off to record audio only (SG-200, SG-210, SG-300, SG-310 only). 4-2-1-2. QUALITY (Image Quality) There are five image quality levels (LL, L, M, H, and HH). If you set this level to “HH”, then you get more clear images than in other levels, but a larger file size will result.
  • Page 43 data that you want. In addition, the available memory left for later decreases as the file size gets bigger, and the battery fades quickly. 4-2-1-4. FPS (Recording frames per second) Recording frames per second (FPS) depends on the different values for the Image Resolution.
  • Page 44 However, if you set the level to “H” or “HH”, then the motion detection algorithm of the Self-Guard may recognize the actual small motions as noise, and does not record those small motions. So, set the level to “M” except for the special cases. 4-2-1-7.
  • Page 45 4-2-2. AUDIO SET (SG-200, SG-210, SG-300, SG-310 only) This function turns on and off audio recording function, and you can select either a built-in microphone or an external microphone. When you turn on “3.EXT MIC”, be sure that there is an external microphone connected to the external microphone input port to record audio.
  • Page 46 BUILT-IN MICRO SD Types of Built-in Flash Additional Memory Card USB Memory Stick or Memory Memory USB Hard Disk Memory Usage Sequence when “OVERWRITE” is “ON” BUILT-IN MICRO SD Memory Usage Sequence BUILT-IN → BUILT-IN BUILT-IN → MICRO SD → BUILT-IN BUILT-IN →...
  • Page 47 preset time schedule, Self-Guard exits from the Sleep mode and starts to record. If you press [ESC] or [ENT] when the Self-Guard is in the sleep mode, then the LCD will display with a message, “CHECK SCHEDULE” for 5 seconds. During this message is displayed on the LCD, if you press [ESC], then Self-Guard exits from the sleep mode and goes into the menu mode.
  • Page 48 4-2-6-3. 11-14 : OFF Recording time schedule number 2. 4-2-6-4. 14-17 : OFF Recording time schedule number 3. 4-2-6-5. 17-20 : OFF Recording time schedule number 4. 4-2-7. Timestamp Set 4-2-7-1. TIMESTAMP This function is to make the time and date information appear and overlap with the recorded image.

  • Page 49: Search Set

    4-3. SEARCH SET Select “3.SEARCH SET” using the direction buttons, and press [ENT]. Then the next screen appears in the LCD as below. 4-3-1. REPEAT: OFF If you turn on “a. REPEAT”, then it keeps repeating playback the file. When it is turned off, then the file stops from playing after its first playback.
  • Page 50 4-3-3. BT AUDIO: OFF (SG-300, SG-310 only) You can select one from the 8 options (OFF, BT1 – BT7). If you select OFF for “3. BT AUDIO“, then the Self-Guard does not play the audio recorded by the slave Self-Guard via Bluetooth.

  • Page 51: Date/Time Set

    1 frame)” after changing the channel. But, if you switch into 4-channel mode and press “-> (Play)” or “|> (Move forward by 1 frame)”, then the files are synchronized with the exact or closest time regardless of the Time Sync ON, OFF. The reason for synchronizing all the files with the time is to match the video with the audio being played.
  • Page 52 Using [ ] ◁ and [ ] ▷ , you can move the cursor to the Date, Month, Year, and the Time. Use [ ] and [ ] △ ▽ to change the variables.. There are three ways to arrange this DATE/TIME setting, and it varies in different localities.

  • Page 53: Remote Set

    4-5. REMOTE SET Select “5.REMOTE SET” using the direction buttons, and press [ENT]. Then the next screen appears in the LCD as below. To go to the previous menu, press [ESC]. 4-5-1. WLAN SET If you did not purchase the SG-970(Wireless-G Access Point), you do not need to read this part.
  • Page 54 immediate use once connected to the internet. Select 2.WLAN SET from 4.OPTION and then 5.REMOTE SET. Then the next screen appears in the LCD as below. 4-5-1-1. WLAN : OFF Before using WLAN function, turn on 1.USB (4.OPTION 6.USB SET), and then turn on WLAN function to connect to the Self-Guard from a remote place.
  • Page 55 address that the Self-Guard is using, the GATEWAY address of the “Wireless-G Access Point”, the name of the “Wireless –G Access Point - SSID, and GLOBAL IP address of the of the “Wireless-G Access Point”. The GLOBAL IP address of the “Wireless-G Access Point”...
  • Page 56 4-5-1-4. WEP/EMAIL SET Wireless LAN function of Self-Guard is encrypted with 128bit WEP Key of Hexadecimal Notation, 26 Characters-Roman alphabet. If you do not want to use WEP key, then turn off this function, however the Wireless LAN function will not be secured. When you turn off WEP KEY function, you need to change the WEB KEY of Wireless-G Access Point to “Disable”.
  • Page 57 4-5-2. USER ID When connecting to the Self-Guard from a PC, you need the ID and the password for the remote access program. The initial default IDs are from “user00” to “user07”, and the passwords are “0000”. Move the cursor to the ID that you want to change for using the [ ] and [ ], and press [ENT].

  • Page 58: Usb Set

    You must press [ENT] to save the new ID and password. If you press [ESC] after putting in the new values, then the new ID and the password cannot be saved. 4-6. USB SET Select “5.USB SET” using the direction buttons, and press [ENT]. Then the next screen appears in the LCD as below.
  • Page 59 When you remove the USB memory device from the Self-Guard, you must exit from “RECORD” or “SEARCH” mode, and select “REMOVE USB” from main menu and press [ENT] button. Cautions: Do not insert or remove USB memory devices from the USB port in the Self- Guard while recording or searching.

  • Page 60: Memory Set

    4-7. MEMORY SET Select “MEMORY SET” using the direction buttons, and press [ENT]. Then the next Screen appears in the LCD as below. 4-7-1. CAPACITY...
  • Page 61 This information lists total capacity and used memory of each memory device. 4-7-2. BUILT-IN Turn OFF this function when you want to store data to external memory devices only. When this function is OFF and there is no external memory device to record the data, Self-Guard records data onto the built-in memory.

  • Page 62: Others

    4-8. OTHERS Select “8.OTHERS” using the direction buttons, and press [ENT]. Then the next screen appears in the LCD as below. 4-8-1. PASSWORD SET...
  • Page 63 You can prohibit people without the authority from accessing the Self-Guard by creating a password for each function (BOOTING, OPTION, SEARCH, and RECORD). You can turn each function on and off in “CHANGE PWD”. Functions When each function is set with a password BOOTING Put in the password for the Self-Guard to operate when you turn it on.

  • Page 64: Power Set

    save the new password. If you press [ESC] after putting in the new values, then the password cannot be saved. 4-8-2. POWER SET 4-8-2-1. AUTO OFF: 5min The Self-Guard automatically turns off the power or goes into the power-savings mode if you don’t press any buttons for a certain amount of time (0-9 minutes).
  • Page 65 the Self-Guard wake up and check if there is a motion. If there is no motion then the Self-Guard goes into sleep-mode again, but if there is a motion then the Self-Guard start to record. This low-powering technology is very important when you are using the battery as power source for the Self-Guard.
  • Page 66 If this function is on, then the Self-Guard starts to record only if it detects audio not a movement, so the Self-Guard does not record even if there is a movement. Caution: Set it to off when using the Bluetooth. 4-8-2-5.
  • Page 67 AUDIO DET:ON YES/NO AUDIO DET:ON YES/NO AUDIO DET:CON YES/NO YES/NO When this function is set to OFF: Self-Guard is programmed to record audio when Self-Guard detects motion from the camera and audio from the microphone at the same time. Accordingly, even if there is audio, Self-Guard goes into sleep mode and does not record audio when there is no motion detected for selected time (1-9 sec., default 5 sec.) after the very last motion detection.

  • Page 68: Alarm Set

    4-8-2-9. ON/OFF INFO It shows 10 last history of power ON/OFF. The date and time is recorded for each power on and off. If the power of the Self-Guard is gone abnormally such as, detaching the battery from the Self-Guard during the operation, then the Self-Guard will not record it in the power off history.
  • Page 69 4-8-3-1. MOTION Set up for alarm functions when the Self-Guard detects motions by the camera. 4-8-3-1-1. CHANNEL SET Turns ON/OFF the alarm for each camera when the Self-Guard detects motion by the each camera. 4-8-3-1-2. TIME: 0.2 When a motion is detected by the camera then the Self-Guard generates an alarm from the internal speaker.
  • Page 70 4-8-3-1-4. VOLUME: 5 Set the volume for the alarm when a motion is detected by the camera. There are 9 different levels for the volume (1 - 9). 4-8-3-2. BLUETOOTH (SG-300, SG-310 only) Set the alarm function for each Bluetooth channel when there is a motion detected by the camera of the Self-Guards which are connected wirelessly via Bluetooth.

  • Page 71: Sg-921 Set

    NO.4 becomes wireless camera NO.2, and so on. SG-921 works only with Special Version (SG-110, SG-210, SG-310), and doesn’t work with General Version (SG-100, SG-200, SG-300). 4-8-5. LANGUAGE This is to select the language to be displayed in the menu. ENG is for the menu in...

  • Page 72: Upgrade

    4-8-6. UPGRADE “UPGRADE” is to upgrade the Self-Guard’s software to its latest version. To access this upgrade function, it should have MICRO SD memory card inserted into the unit. Self-Guard must be connected with AC/DC adaptor, and the battery lamp must be flashing with green light in order to process this UPGRADE function.

  • Page 73: Default Set

    4-8-7. DEFAULT SET This function is to change the values set in all the menus back to its default set. Select “YES” and press [ENT] to change all the values to the “DEFAULT SET”. Note that all the values changed by the user will be deleted once you change the values back to the “DEFAULT SET”.
  • Page 74 prevent this when you are backing up the data to the MICRO SD or USB memory devices, you need to make a name for each Self-Guard, and create directory names for all the Self-Guards in the USB memory in order to back up the data to the MICRO SD or USB memory under the correct Self-Guard’s name in the MICRO SD or USB memory devices.

  • Page 75: L-5. Transmit

    Select either MICRO SD or USB and press ENT button to check the SG names registered in each device. 5. TRANSMIT Use the direction buttons to select “TRANSMIT”, and press [ENT]. Then the next screen appears in the LCD as below. To go to the previous menu, press [ESC]. Using the Bluetooth (SG-300, SG-310 only), you can wirelessly access or copy the image and voice of other Self-Guards with a Self-Guard from a remote place.

  • Page 76: I-6. Bluetooth (Sg-300, Sg-310 Only)

    you want to connect a Self-Guard with other Self-Guards, you need to know the Bluetooth ID of the Self-Guard that you want to access the data of. In “TRANSMIT” mode, even if the Self-Guard was cut from the power resources (battery or the adaptor), it automatically turns on itself, and returns to “TRANSMIT”...
  • Page 77 6-1. CONNECT SET This function is to connect a master Self-Guard to seven (7) other slave Self-Guards wirelessly via Bluetooth, and “1.CONNECT SET” can only be activated when you select “ ” . Move the cursor to “1.CONNECT SET”, and press B.M/S:MASTER as MASTER [ENT], then a new window appears with seven Bluetooth Numbers (BT1-BT7) that you...
  • Page 78 6-1-1. CONNECT: ON You can turn ON or OFF the automatic connection function via Bluetooth when you go into the “RECORD” or “TRANSMIT” mode. 6-1-2. SLAVE CAM: 1 If you connect to a slave Self-Guard wirelessly via Bluetooth, then you can request a certain camera number to be transmitted from the slave Self-Guard wirelessly via Bluetooth to your Self-Guard.
  • Page 79 6-1-4. 40:02:78:0C:60:C5 This is Bluetooth ID and you can change this ID using the direction buttons. 6-2. M/S: MASTER The Self-Guard selected as a Master can be simultaneously connected to seven (7) different slave Self-Guards at the same time. Use [ ] and [ ] ▷...
  • Page 80 Bluetooth ID of the slave Self-Guard. You can confirm those Bluetooth IDs by checking from “3.MY ID” of the slave Self-Guards and then connect to the slave Self-Guards. 6-4. AUDIO: BT1 This function is to choose one Bluetooth channel to hear the audio from, once you are connected to several slave Self-Guards via Bluetooth (BT1-BT7).

  • Page 81: Data Search/Playback Program

    II. Data Search/Playback Program After installing the Program to your computer in remote places from the Self-Guards, you can connect as many as 40 other Self-Guards to your computer simultaneously by LAN. Also, 100 remote computers can simultaneously connect to a Self-Guard. Once the remote connection is completed, you can see and hear the live image and audio of the Self-Guards, and save those image and audio in your computer.

  • Page 82: Ii-1. How To Install

    You can install the program to your computer with the provided CD. II-1. How to install Insert the CD into the CD-ROM, and check the files below. To install the program, double-click SETUP icon. Then a new window appears as below, and starts installing the program.
  • Page 84 Type in the serial number and you can get this number from the back of your Self- Guard where the battery is placed in.
  • Page 86 When the processes above are finished, then the program installment is completed. Now you will see an icon for the program on the ground screen. Point the mouse to this icon, and double-click left side of the mouse, then a new window appears as below and starts the program.
  • Page 87 Of the many windows, move the mouse point to the window that you want to connect to, and click the right side of the mouse, and select one of the options from “Open Site/File”, “Change Remote Date/Time”, “Pause”, “Play”, “Close Site/File”, “Select channel”, “Title on/off”, and “Audio”.

  • Page 88: Ii-2. Data Search And Playback

    II-2. Data Search and Playback This function enables you to playback the data, which is stored in your computer. You can use the speed bar and the control buttons while you playback the data. Click “Browse” and select the folder and data that you want to playback, and then click “OK”.

  • Page 89: Ii-3. Other Functions

    II-3. Other functions a. SETUP...
  • Page 90 “Record”: You can choose to record or not to record the image and the audio which are being recorded in the Self-Guard connected to your local computer. “Sensor Alarm On/Off”: If the state of a sensor of the Self-Guard is changed, then you can choose to notify with an alarm to your local computer.
  • Page 91 When your local computer is connected to the Self-Guard by LAN, you can choose to display the “Play status”, “SelfGuard or File Name”, “SG Name”, “Date/Time”, and the “Serial Number”. b. Date/Time Shows the date and time of your computer c.
  • Page 92 d. Position bar, Speed bar The position bar is one hour long, and indicates of the current position of the whole playback time. “Speed bar” is to control the speed of the playback. e. Control buttons These control buttons are to control the following functions when you playback the data saved in your computer;...
  • Page 93 h. AVI Conversion This is to convert a file for the use of Self-Guard to a file in AVI format. Click on the “OPEN” button to select a file to be converted to AVI file format and click “CONVERT”. i. Zoom/Iris/Focus/Move (Available in the next version) This function controls of pan, tilt, and camera with a zoom function (zoom, iris, focus, move), and is reserved for later use.

  • Page 94: Others

    III. OTHERS III-1. How to use Button Camera (SG-110, SG-210, SG-310 model only) * How to connect Button Camera to the Self-Guard 1. Press ENT button for 2-3 seconds to turn on the unit. 2. Attach button camera directly to the “Connector to Docking” slot on the bottom of Self-Guard unit.

  • Page 95: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Self-Guard shuts down its power for no reason. The Self-Guard automatically turns off the power or goes into the power-savings mode if you don’t press any button for a certain amount of time (1-9 minutes). This does not indicate malfunction of the system.
  • Page 96 This happens because Self-Guard records audio when there is a motion. If you want to record audio irrespective of motion detection, then turn on “AUDIO DET”. (“OPTION → “OTHERS” → “POWER SET” → “AUDIO DET”) This may result a large file size because Self-Guard will record audio regardless of motion detection from the camera when audio detection function is turned on.
  • Page 97 Warranty Guide This product has passed through quality control and testing. If this product shows any manufacturer’s defects during normal use, then there is a 12 months warranty service period from date of purchase. Check this warranty sheet first. Please contact the distributor or dealer after checking out any problems in the product.

This manual is also suitable for:
