BASIC OPERATION INSTRUCTIONS

In-Car Charger

Table of Contents

Need help?

Do you have a question about the In-Car Charger and is the answer not in the manual?

Questions and answers

Summary of Contents for Silver Star In-Car Charger

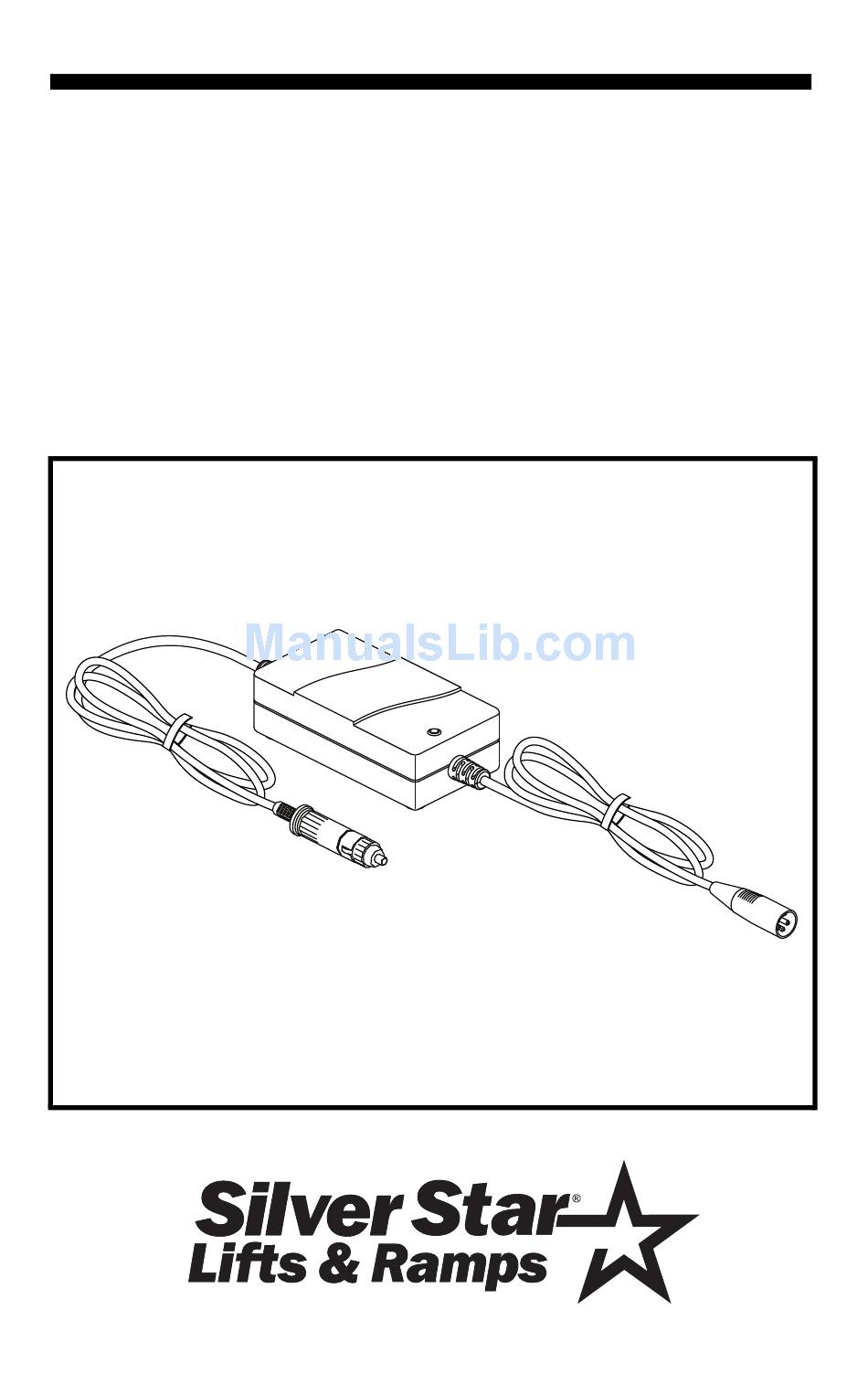

Page 1 BASIC OPERATION INSTRUCTIONS In-Car Charger...
Page 2 SAFETY GUIDELINES WARNING! A Silver Star Provider or a qualified technician must perform the initial setup of this product and must perform all of the instructions in this manual. The symbols below are used throughout this owner's manual and on the product to identify warnings and important information.
Page 3: Table Of Contents
TABLE OF CONTENTS LABEL INFORMATION ..............4 INTRODUCTION ................6 IN-CAR CHARGER OPERATION ..........8 TECHNICAL SPECIFICATIONS ..........10 LED INDICATORS ................11 TROUBLESHOOTING ..............12 LABEL LOCATION AND APPLICATION ........ 13 CARE AND MAINTENANCE ............14 WARRANTY ..................14 www.pridesilverstar.com...
Page 4: Label Information
Corrosive chemicals contained in battery. Contains Lead. Wear safety goggles. Always replace the battery with the exact same type, chemistry, and amp-hour (Ah) capacity. Refer to the specifications table in this manual for recommended type and capacities. Silver Star In-Car Charger www.pridesilverstar.com...
Page 5 LABEL INFORMATION Disposal and recycling-Contact your authorized Silver Star Provider for information on proper disposal of your Silver Star product and its packaging. Battery charger for indoor use only. www.pridesilverstar.com Silver Star In-Car Charger...
Page 6: Introduction
Silver Star to enhance or preserve the safe use of this product.
Page 7 NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and we will be glad to send you a new one immediately. My Silver Star Provider Is: Name: Address: Phone Number: Purchase Date: www.pridesilverstar.com...
Page 8: In-Car Charger Operation
Basic Operation Instructions IN-CAR CHARGER OPERATION The Silver Star In-Car Charger provides customers with the ability to top off the battery charge of a mobility device, such as a scooter or power chair equipped with an XLR-style 3-pin connector socket, while traveling. Please note that this charger is not intended for fully charging the batteries of a mobility device.
Page 9 Basic Operation Instructions WARNING! Explosive gases may be generated while charging the batteries. Keep the in-car charger away from the sources of ignition such as flames or sparks and provide adequate ventilation when charging the batteries. WARNING! You must recharge the batteries with the charger supplied as original equipment or the in-car charger.
Page 10: Technical Specifications
Basic Operation Instructions TECHNICAL SPECIFICATIONS ITEM SILVER STAR IN-CAR CHARGER Model Number DD24025 Output Current (DC) 2.5A (Max) Charging Voltage (DC) 28.8V Floating Voltage (DC) 27.6V Input Current (DC) 6A (Max) Input Voltage (DC) 12-16V Input Fuse* 10A/250V Efficiency 85% (Min) Operating Temperature 0°C-40°C...
Page 11: Led Indicators
The battery cannot be recovered and charged. RED flashing 8 times Maximum charge time exceeded (16 hours). every 2 seconds RED flashing 9 times Internal Over-temperature shutdown. The charger should turn itself back every 2 seconds on after cooling. www.pridesilverstar.com Silver Star In-Car Charger...
Page 12: Troubleshooting
If so, replace the blown fuse. Check if the mobility device battery is below 7 volts. If so, the battery’s voltage is too low to be charged. Contact your authorized Silver Star Provider. If none of the above conditions apply, the charger is likely defective.
Page 13: Label Location And Application
Basic Operation Instructions LABEL LOCATION AND APPLICATION Figure 2. Label Location and Application www.pridesilverstar.com Silver Star In-Car Charger...
Page 14: Care And Maintenance
WARRANTY For two (2) years from the date of purchase, Silver Star will repair or replace at our option to the original purchaser, free of charge, the in-car charger or any of its components found upon examination by an authorized representative of Silver Star to be defective in material and/or workmanship.
Page 15 NOTES www.pridesilverstar.com Silver Star In-Car Charger...
