Summary of Contents for JetAudio iAUDIO CW200

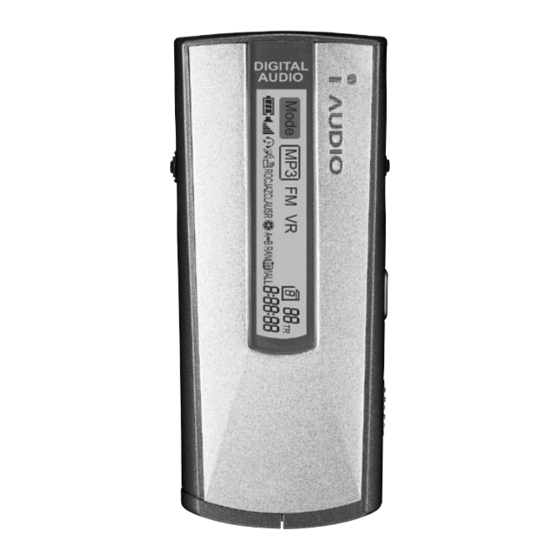

- Page 1 PORTABLE DIGITAL AUDIO PLAYER iAUDIO CW200 User’s Manual CW200 Manufactured by Distributed by CW200...
- Page 2 No part of this manual may be used or reproduced in any manner whatsoever without the prior written consent of JetAudio, Inc. Distribution or commercial usage of JetShell, JetAudio, and JetVoiceMail, and all MP3 files created by using these software is strictly prohibited without the prior written consent of COWON Systems, Inc.
-
Page 3: Limited Warranty
WARRANTY LIMITED WARRANTY JetAudio, Inc., is commited to providing you the flawless products by using the best materials and the workmanship available. Our warranty period is one year from the date of purchase. If these products prove defective during this warranty period, call Customer Support in order to obtain a Return Authorization Number. -
Page 4: Fcc Statement
FCC STATEMENT FCC STATEMENT These products have been tested and comply with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Table Of Contents
Deleting MP3 Files from iAUDIO Formatting Flash Memory Transferring Audio CD Tracks to iAUDIO File Management Using JetShell User Settings Miscellaneous Functions JetVoiceMail Installing and Using JetAudio Appendix A. Reinstalling USB driver Appendix B. Upgrading Firmware CW200 CONTENTS I. iAUDIO... -
Page 6: Iaudio
JetShell included in iAUDIO package is a software that quickly converts music tracks in CDs into MP3 files and downloads the MP3 files onto iAUDIO. Thus, you can listen to CD music through iAUDIO. JetAudio With JetAudio, a world-class integrated multimedia player software, you can either listen to music or watch videos on your PC. CW200... -
Page 7: Package Components Of Iaudio
2. iAUDIO Package Contents iAUDIO MP3 player Installation CD (JetShell & JetVoiceMail, JetAudio) Belt-clip CW200 2. iAUDIO Package Components iAUDIO (MP3 player body) Earphone Operating Instructions Manual Installation CD (JetShell & JetVoiceMail, JetAudio) Earphone Operating Instructions Manual Necklace Battery (AAA size 1 unit) - Page 8 2. . iAUDIO Package Components I. iAUDIO How to use earphone The length of the earphone, we provide, is not identical. One side is longer than the other, and the longer side goes around your neck to other side of your ear. This is for user convenience. CW200...
-
Page 9: Functions
Software : JetShell (File transfer, MP3/WAV/Audio CD playback, Audio CD ripping) JetVoiceMail (SC4 Playback/Record, Voice mail, Voice memo) JetAudio (Integrated Multimedia Player) 3. Specifications Supports MPEG1/2 – Layer 2/3 (MP3), all bit rates within 8kbps ~ 320 kbps and VBR... -
Page 10: Name Of Parts
5. Name of Parts 5. Name of Parts MENU, VOL+ VOL- button LEFT 6. Inserting Battery Make sure to power off iAUDIO, before changing the battery Microphone Earphone Jack FRONT ���������� BOTTOM PC connection port (USB) Battery cover I. iAUDIO PLAY, FF, REW Button RIGHT... -
Page 11: Lcd Window
I. iAUDIO 7. LCD Window Battery Level Volume MP3 Mode Voice Recording Mode FM Radio Mode Equalizer CW200 The battery level icon indicates how much longer the battery can be used. Level decreases as battery is used. When the battery is low, the icon starts to blink, and in about 30 minutes the power goes off automatically. -
Page 12: Using For The First Time
8. Using for the First Time 8. Using for the First Time 1. Install JetShell using the CD provided. For details, see ‘Connecting iAUDIO and Installing Driver and JetShell’ in the JetShell manual. 2. Insert battery into iAUDIO. 3. Connect the USB cable to USB port of PC and iAUDIO. (The power of iAUDIO will automatically turn on.) 4. -
Page 13: Operating Controls
I. iAUDIO 9. Operating Controls MP3 Mode Button Key Action Play current track Turn power off Move to next track Automatically move to next track continuously Move to previous track Automatically move to next track continuously Enter menu Volume up Volume down Move to next album FM Radio Mode... -
Page 14: Voice Recorder Mode
9. Operating the Controls Voice Recorder Mode Button Key Action Play current track Turn power off Move to next track Automatically move to next track continuously Move to previous track Automatically move to next track continuously Enter menu Volume up Volume down Start recording * You cannot enter into the menu mode during recording. -
Page 15: Detailed Controls
I. iAUDIO 10. Detailed Controls Turning Power On Press the PLAY button to turn on power. If HOLD is ON, PLAY button will not work. Release the HOLD before you start play. Turning Power Off If the PLAY button is pressed for more than 2 seconds, the power will be turned off. If the player is set up as Sleep or Auto Off mode, the player will be automatically turned off after the specified time. -
Page 16: Selecting Tracks
10. Detailed Controls I. iAUDIO Selecting Tracks While playing, press the FF button to move to the next track. If is pressed after 3 seconds of track time, the playback will start from the beginning of current track. If the button is pressed before 3 seconds of track time, the playback will sart from the beginning of previous track. -
Page 17: Voice Recording
I. iAUDIO Hold Placing the HOLD latch to ‘ON’ makes all buttons inoperative and thus prevents the player from accidental pressing of buttons. While HOLD is ‘ON’, the power cannot be turned on. Make sure that HOLD is ‘OFF’ before turning power on. Voice Recording First, switch to Voice Recording Mode and press again. -
Page 18: Menu Table
11. Menu Table 11. Menu Table MP3 Mode Menu Mode Alb Rpt Eq Scrl Time Backlit AutoOff Sleep Conrtast C D E Mode Mode MP3 : Switch to MP3 Mode FM : Switch to FM Radio Mode VR : Switch to Voice Recording Mode Select album Nor : Play all tracks in the selected album in order and then stop. - Page 19 I. iAUDIO Bass = adjust bass sound (-20 ~ +20) Treble = adjust treble sound (-20 ~ +20) Loudness = adjust loudness (0 ~ +40) Dynamic Bass = boost low-end frequency (0 ~ +40) O.K = save setting, exit EQ mode Scrl Scrl Turn off scrolling or change scrolling speed of track information (0 ~ 7).
- Page 20 11. Menu Table FM Radio Mode Menu Mode Preset FM Mode Mode Preset FM Mode RecMode ※ EQ, Contrast, Backlit, and Sleep menu is same as MP3 Mode RecMode Contrast Backlit Sleep Mode MP3 : Switch to MP3 Mode FM : Switch to FM Radio Mode VR : Switch to Voice Recording Mode Preset Station = 1...
- Page 21 I. iAUDIO Voice Recorder Mode Menu Mode Erase Rpt V.Act Mic Time Backlit AutoOff Sleep B C D E Mode MP3 : Switch to MP3 Mode FM : Switch to FM Radio Mode VR : Switch to Voice Recording Mode Erase All : Delete all files in iAUDIO 1,2,3,4 : Delete files in album 1, 2, 3, or 4.
- Page 22 12. Precautions 12. Precautions Do not drop player or apply impact. Shock is the major cause of malfunction. Keep away from highly humid places. Only use a soft dry cloth to wipe the player. S/W serial number will be required when you register the product.
-
Page 23: Precautions
If you insert a battery in the opposite direction, it may cause breakdown/damage to the computer or devices. 8. When applying for the warranty service, make sure to back up all the data. JetAudio bears no responsibility over the lost data. CW200... -
Page 24: Troubleshooting
13. Troubleshooting 13. Troubleshooting Symptom Actions to be Taken iAUDIO doesn’t work. Check that the battery’s polarity is (No sound is heard after correct. pressing the PLAY button) Replace the battery with new one. Take out the battery for a short while and reinsert. Turn off the HOLD first. - Page 25 I. iAUDIO Symptom Actions to be Taken Cannot change FM frequency Check if FM preset mode is turned on. with REW/FF button. Press Play/Pause button to release FM preset mode. How to reset iAUDIO to factory Turn the power on using the PLAY default settings.
- Page 26 Glossary I. iAUDIO Glossary What is DB (Dynamic Bass)? Boosts the low-end frequency. Provides deeper, tighter bass sound. What is a Voice Active function? The Voice Active function saves the recording memory. iAUDIO automatically enters into the PAUSE mode when there is no audible sound while recording. Recording will be resumed automatically when audible sound is detected.
-
Page 27: Jetshell
II. JetShell II. JetShell 1. What is JetShell ? JetShell is a program that allows users to download MP3 files in PCs to iAUDIO or play/convert MP3 files. It is the manager program for iAUDIO, offering functions for managing voice and FM radio recording files (SC4 files) in iAUDIO. -
Page 28: Installing Usb Driver And Jetshell
2. Installing USB Driver and JetShell 2. Installing USB Driver and JetShell NOTE : The following screen images are based on Windows 98. Other Windows versions may display different message, but the installation process is almost same. Installation program automatically runs when iAUDIO installation CD is inserted in the CD-ROM drive. If the installation program does not start automatically, run ‘x:\setup.exe’... - Page 29 II. JetShell Click ‘Search for the best driver for your driver (Recommended)’, and click ‘Next’. USB driver file is found. Click ‘Next’. NOTE : Windows XP may display the following message during the installation process. iAUDIO fully supports Windows XP, so just ignore and proceed by clicking "Continue Anyway" button. When JetShell cannot find iAUDIO, check whether iAUDIO’s power is turned on, whether the USB driver is properly installed in PC, and whether the connection of the cable has been properly established.
-
Page 30: Configuration Of Jetshell
3. Configuration of JetShell 3. Configuration of JetShell View of JetShell Playback and MP3 management section File management section Flash memory management section MP3, WAV, CD Playback and MP3 Encoding Double-click MP3, WAV, Audio CD Tracks or drag-and-drop files onto the window above to play music files. You can also select a file and click PLAY. - Page 31 II. JetShell MP3 File Management JetShell’s file management window looks very similar to Windows Explorer. In the left window, hard drives and CD-ROM drives attached to PC and the folders contained in them are displayed. In the right window, the files that are contained in the selected folder are displayed. iAUDIO Flash Memory Management The lower window of JetShell is for managing the flash memory and download list.
- Page 32 3. Configuration of JetShell The following are the description of buttons Button Function Print Refresh Delete Move File Down Move File Up Download onto Flash Memory Upload onto PC You cannot upload the MP3 file because of the copyright issues. Similar to managing PC with folders, the memory of iAUDIO can be divided into 5 albums and played based on these albums.
-
Page 33: Spectrum Screen And Sound Effects
II. JetShell 4. Spectrum Screen and Sound Effects JetShell displays a fancy spectrum on the screen. Default is as the picture below, but if you left-click this spectrum screen, you can change it into a variety of shapes. Users can change this spectrum screen to fit his/her preferences. The following are some examples. Along with these spectrum screens, there are also a wide variety of equalizer and sound effects you can utilize to enjoy music in a more powerful and richer environment. -
Page 34: Downloading Mp3 Files Onto Iaudio
5. Downloading MP3 Files onto iAUDIO 5. Downloading MP3 files onto iAUDIO Downloading MP3 files onto iAUDIO is a very simple process. As mentioned previously, select the MP3 files you want to download and select an album from drop the file onto the flash memory management window or click ‘Download to Flash Memory’ memory management section. - Page 35 II. JetShell The MP3 files have been downloaded onto flash memory. Through this process, MP3 files can be easily downloaded onto flash memory. After downloading is completed, the status indicator bar in the lowest end of JetShell shows the size of files and usage of memory.
-
Page 36: Deleting Mp3 Files From Iaudio
6. Deleting MP3 Files from iAUDIO 6. Deleting MP3 files from iAUDIO The process of deleting MP3 files stored in the flash memory of iAUDIO is similar to deleting files in Windows Explorer. Select a file stored in flash memory and press ‘Delete’ Through the following process, you can delete MP3 files stored in flash memory. - Page 37 6. Deleting MP3 Files from iAUDIO II. JetShell After a moment, the file is deleted from the flash memory of iAUDIO. If you select and right-click a file in the flash memory management window, a popup menu appears. You can delete and download files with this menu, too. CW200...
-
Page 38: Formatting Flash Memory
7. Formatting Flash Memory 7. Formatting Flash Memory Similar to formatting a hard drive, the flash memory of iAUDIO can be formatted. If the flash memory is formatted, all data stored within is lost. In the menu of JetShell, select ‘File-Format Flash Memory’. If you select an empty space in the flash memory management window and right-click, a popup menu appears. -
Page 39: Transferring Audio Cd Tracks To Iaudio
II. JetShell 8. Transferring Audio CD Tracks to iAUDIO Using JetShell, you can convert music from audio CDs to MP3 files easily. Then, you can download these MP3 files onto the flash memory of iAUDIO. All these processes can be done with a simple press of the MP3 conversion button in JetShell. From the left window of the file management section, select the CD-ROM drive in which the audio CD is inserted, and in the file management window select the audio tracks that will be downloaded onto iAUDIO. - Page 40 8. Transferring Audio CD Tacks to iAUDIO Type in the file name and location to save MP3 file in. You can also use the default value. The audio CD track is being converted into an MP3 file. Settings for bit rate, channel, and sound quality can be changed in ‘Options - MP3 Encoder Options...’...
- Page 41 II. JetShell All processes have been completed. Click ‘Close’ to close the MP3 conversion window. After MP3 conversion has been completed, the folder where the MP3 files have been created in opens automatically. Now, select these files and click ‘Download onto flash memory’ You can directly download audio CD tracks onto iAUDIO.
- Page 42 8. Transferring Audio CD Tracks to iAUDIO II. JetShell The MP3 files created from audio CD are being downloaded onto the flash memory of iAUDIO. MP3 files created from audio CD has been successfully download onto the flash memory of iAUDIO. You can use ‘MP3 Bitrate Conversion’...
-
Page 43: File Management Using Jetshell
II. JetShell 9. File Management using JetShell You can manage MP3 files very conveniently using JetShell. You can create a folder at the location you desire, and copy onto the folder MP3 files you listen to frequently. Also, for unnecessary MP3 files, you can use the ‘Delete’ button to remove the files from the hard disk. The following is an example of copying some MP3 files from one folder to another and storing the files there. -
Page 44: User Settings
10. User Settings 10. User Settings You can set and transfer the logo image file, LCD display options, EQ settings or FM radio presets. LCD Display options Check the item to display on iAUDIO LCD. When you transfer the MP3 file after change setting of LCD display, it will be applied to the transferred MP3 file only. - Page 45 10. User Settings II. JetShell LCD Font You can change the LCD font. It will be applied only to the transferred MP3 files after changing font. Device Settings Sets Bass, Treble, Loudness and Dynamic Base value for Rock, Jazz, Classic and User. FM Radio Sets the FM radio preset frequency.
-
Page 46: Miscellaneous Functions
11. Miscellaneous Functions 11. Miscellaneous Functions File Transfer between Albums You can move MP3 file in iAUDIO to another album. Select the file(s) to move and press the right mouse button to select the target album. Then, the selected file will be moved to the selected album. ID3 Tag Editing Select the MP3 file and Tools (T) ->... -
Page 47: Jetvoicemail
II. JetShell 12. JetVoiceMail Main Features SC4 File Playback/Record VoiceMail : Attach voice file automatically through mail program Self-player Creator : Voice file + Player -> .exe SC4 File Editor : Delete front and rear, insert recordings 16 Voice Effects JetVoiceMail is a program that plays iAUDIO’s own voice recording files (SC4 files). - Page 48 12. JetVoiceMail Convenient Use Voice file is automatically attached to selected mail program. Click the ‘Record’ button. Record message by talking. Click the ‘Stop’ button. Click the ‘Send’ button, then a mail window with the voice file attached appears. To record voice messages accurately, the volume must be properly adjusted. Adjust microphone volume of Windows to control recording volume.
- Page 49 II. JetShell Drag & Drop Drag & Drop can be used to attach a voice file onto other mail programs or communication software that are not supported by JetVoiceMail. Left-click the Drag & Drop icon and drag the icon over to the other program to add voice file.
- Page 50 12. JetVoiceMail Global Hotkeys JetVoiceMail supports the following global hotkeys. They can be used to control JetVoiceMail while using other programs. Ctrl+Shift+F2 : Play Ctrl+Shift+F3 : Rewind Ctrl+Shift+F4 : Fast Forward Ctrl+Shift+F5 : Pause/Stop II. JetShell CW200...
-
Page 51: Installing And Using Jetaudio
II. JetShell 13. Installing and Using JetAudio iAUDIO installation CD includes JetAudio, which is an integrated multimedia player software recognized worldwide. To install JetAudio, run ‘x\JetAudio\Setup.exe’. (where x is the letter of your CD-ROM drive) CW200 13. Installing and Using JetAudio... -
Page 52: Appendix A. Reinstalling Usb Driver
Appendix A. Reinstalling USB driver Appendix A. Reinstalling USB driver 1. Shut down JetShell if it is running. 2. Using the provided USB cable, connect the USB port of iAUDIO to the USB port of PC. (Before connecting, insert the battery into iAUDIO.) 3. - Page 53 ‘Hardware Update Wizard’ window will be displayed. Then, proceed the driver installation steps. (Refer to page 28 'Installing USB Driver and JetShell') CW200 Appendix A. Reinstalling USB driver CW200 will appear under ‘Other Devices’ as unrecognized hardware. Click ‘USB Device’ and then click ‘Properties’ button.
-
Page 54: Appendix B. Upgrading Firmware
Appendix B. Upgrading Firmware Appendix B. Upgrading Firmware What is firmware? Firmware is a program in the hardware and activates various hardware functions. By upgrading firmware, the product performance can be greatly enhanced and bugs can be corrected. Do not disconnect USB cable during upgrading of firmware. If this happens, iAUDIO will not work properly. -
Page 55: Cw200
Run isp.exe in the directory you unzipped. Then press the [Start] button. Wait until the "firmware upgrade successful" message appears on the LCD. (Normally it takes approximately 35 to 50 seconds to finish upgrading) When you press "Start" button, "Erase Flash" message appears, then "Firmware Upgrade"... - Page 56 7th FL, STX Bldg., Dogok-Dong, Gangnam-Gu, Seoul, Korea Tel : 82-2- 3460-8282 Homepage : www.cowon.com Distributed by JetAudio Customer Service Center Address : 18004 Skypark Circle Suite 105, Irvine, CA 92614 Tel : 1-888-453-8283 (1-888-4JETAUD) Homepage : www.jetaudio.com Email : iaudio@jetaudio.com...
