Emergency Power Supply for

the OMEGA ACTIVE-System

Operating Instructions

Table of Contents

Need help?

Do you have a question about the Emergency Power Supply and is the answer not in the manual?

Questions and answers

Summary of Contents for CES Emergency Power Supply

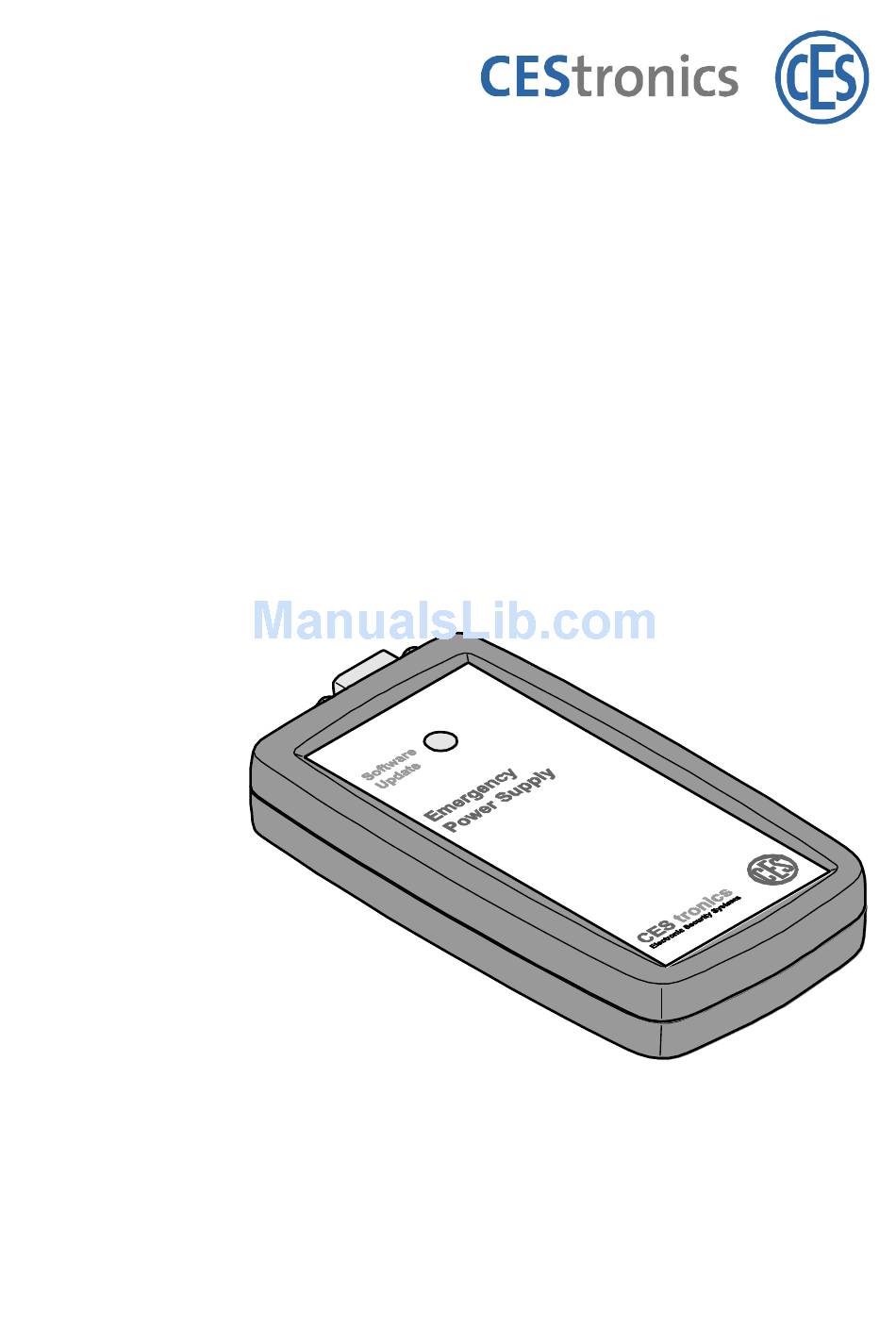

Page 1 Emergency Power Supply for the OMEGA ACTIVE-System Operating Instructions...
Page 2: Preface
Any person who  operates or  disposes of the Emergency Power Supply must have read and understood the entire contents of these Operating Instructions and other required user manuals, operating and assembly instructions. Depending on the configuration of your locking system, you may require other user manuals, operating or fitting instructions for an overall understanding of the system.
Page 3: Table Of Contents
Performing the emergency opening ....... 11 Updating the firmware ..........15 Service and maintenance ..........19 Trouble shooting ............19 Disposal ................ 21 Technical data ..............22 Glossary ................ 23 Notes on the manufacturer's warranty ......24 OMEGA ACTIVE Emergency power supply...
Page 4: For Your Safety
 Live parts of the system components may cause an explosion. Do not use any components of the system in potentially explosive atmospheres.  The batteries of the Emergency Power Supply may get overheated if charged and may explode. Never charge the batteries.
Page 5  Only use accessories and spare parts recommended by CEStronics.  Do not drop the Emergency Power Supply on the floor, on hard surfaces or on hard objects.  Protect the electronic parts of your system components against water and other liquids.
Page 6: Notes On The Handling Of Batteries
 Always remove leaked batteries immediately from the device. Clean the terminals before inserting new batteries. There is a danger of acid burns through battery acid!  Remove flat batteries from the device. OMEGA ACTIVE Emergency power supply...
Page 7: Explanation Of The Safety Notes
ATTENTION notes warn against possible property or environmental damage. Intended use The Emergency Power Supply is intended for the emergency opening of locking cylinders of the OMEGA ACTIVE system. Any other use is considered to be improper and may result in property damage or even personal injury.
Page 8: Description
For the emergency opening, the outside knob of the locking cylinder is opened slightly and the Emergency Power Supply is connected with the interface. The green LEDs of the locking cylinder will light up green to signal the connection with the Emergency Power Supply.
Page 9: Scope Of Delivery
Before fitting and commissioning, please check the contents  of the package and the scope of delivery. Check new devices for transport damage and inform your  dealer promptly if any damage is found. Emergency Power Supply 4 batteries, type AA OMEGA ACTIVE Emergency power supply...
Page 10: Operation
Emergency Power Supply. For this purpose, remove the cover of the battery  compartment on the rear of the Emergency Power Supply. Insert the four batteries into the battery compartment.  Make sure that you insert them with the correct polarity.
Page 11: Performing The Emergency Opening
When the module is pulled out of the outside knob, the connection cable attached to the reader may be damaged. Always pull the module out of the outside knob slowly and  carefully and for no more than ten centimetres. OMEGA ACTIVE Emergency power supply...
Page 12 For an emergency opening of your locking cylinder, proceed as follows: Release the two opposite screws on the outside knob with  the combination tool (three-square screwdriver). These screws cannot be completely screwed out but will always be held in the outside knob. OMEGA ACTIVE Emergency power supply...
Page 13 Pull the reader module out of the outside knob until you feel  the stop (1.). Connect the Emergency Power Supply with the interface (2.)  at the reader module. The LEDs in the reader module light up green to signal the connection with the Emergency Power Supply.
Page 14 Push the reader module back into the sleeve of the outside  knob. To fasten the reader module, hand-tighten the two opposite  screws with the combination tool (three-square screwdriver). This completes the emergency opening. OMEGA ACTIVE Emergency power supply...
Page 15: Updating The Firmware
Make sure that the connection between the locking cylinder  and the Emergency Power Supply is not interrupted. Satisfy yourself that the batteries in the Emergency Power  Supply still have sufficient capacity.
Page 16 Operation To transmit firmware updates with "OMEGA ACTIVE Firmware- Update" into the locking cylinder, proceed as follows: Connect the Emergency Power Supply with a free COM port of your PC. Start the "OMEGA ACTIVE Firmware-Update" software on  your PC, by selecting: - Start >...
Page 17 After the update has been transmitted successfully, the following message appears: Separate the connection between the locking cylinder and  the Emergency Power Supply. Separate the connection between the Emergency Power  Supply and your PC. OMEGA ACTIVE Emergency power supply...
Page 18  Push the reader module of the locking cylinder back into the  sleeve of the outside knob. Hand-tighten the two opposite screws with the combination  tool (three-square screwdriver). This completes the firmware update. OMEGA ACTIVE Emergency power supply...
Page 19: Service And Maintenance
Service and maintenance Service and maintenance Have the Emergency Power Supply serviced and its perfect  functioning verified every six months by CEStronics or a CEStronics partner. Replace the batteries in line with a defined maintenance  schedule for the Emergency Power Supply.
Page 20 Check the batteries of the Emergency  Power Supply. Your COM port does not work properly. Verify the functioning of your COM  port. If the trouble still cannot be eliminated, please contact your CEStronics partner. OMEGA ACTIVE Emergency power supply...
Page 21: Disposal
Disposal Disposal  Neither the Emergency Power Supply nor any of its components may be discarded with the normal household waste. Ask your local authorities about recycling and/or proper disposal in line with environmental regulations. Our packaging is made of environmentally friendly, reusable materials.
Page 22: Technical Data
4  1.5 V AA type batteries Ports: - 1  plug for connection with the locking cylinder - 1  RS 232 for connection with COM port (SUB-D, 9-pole) Length of connection cable: Approx. 40 cm OMEGA ACTIVE Emergency power supply...
Page 23: Glossary
To benefit from further developments in the firmware, an occasional update of the firmware is recommended. SYSTEM-MASTER The optional SYSTEM-MASTER is used to define the allocation to a locking system. The SYSTEM-MASTER grants all highest-level authorizations. OMEGA ACTIVE Emergency power supply...
Page 24: Notes On The Manufacturer's Warranty
 damage as a consequence of external events or influence  damage as a consequence of improper operation  damage as a consequence of excess voltage  damage as a consequence of fire, water or smoke  batteries. OMEGA ACTIVE Emergency power supply...
Page 25 Without the express written permission by CEStronics, no part of this document may be copied or transmitted for any purpose. © 2008 CEStronics, Velbert November 2008 BRO 2214-001, V 1.2, 09/2012 CEStronics GmbH Friedrichstr. 243 42551 Velbert, GERMANY Phone: +49 2051-204-0 Fax: +49 2051-204-229 www.ces.eu...
