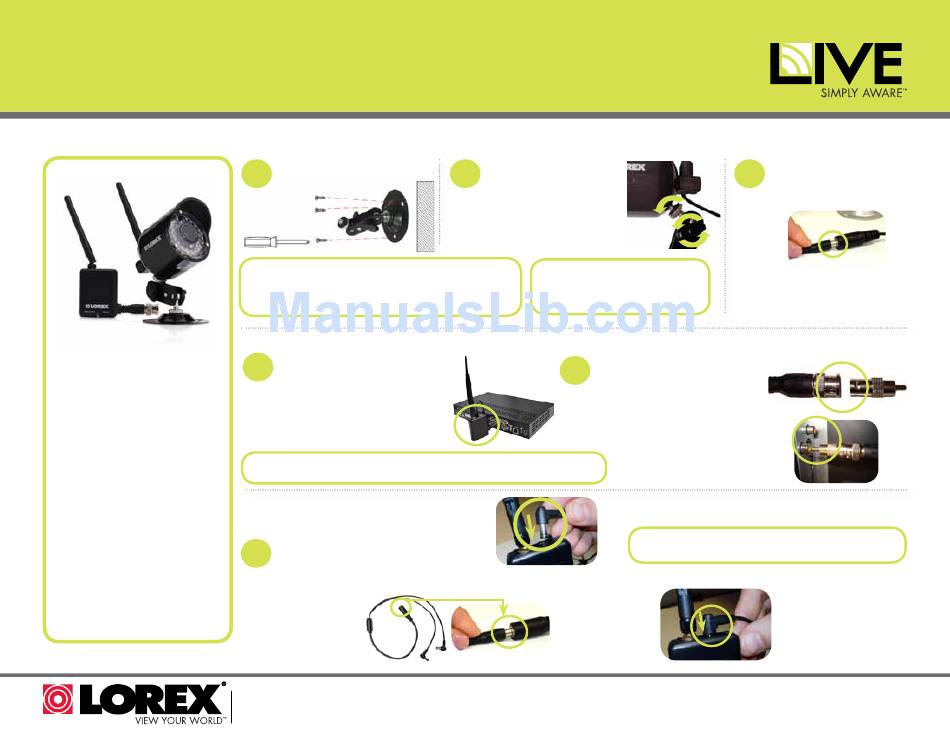

Live LW2175R Series Quick Start Manual

WIRE LE SS D IG ITAL S ECUR ITY CAMER A
LW2175R SERIES
QUICk START GUIDE
Getting Started
*
This Wireless Digital Security
Camera System comes with the
following components:
• Digital Wireless Color Camera*
• Camera Stand*
• Wireless Receiver*
• Power Adaptors for camera*
and receiver*
• BNC/RCA Adapter*
• 3ft BNC extension cable
• Mounting Hardware*
• Instruction Manual
• 2-way Power Splitter
(LW2175RPK2B only)
* Number of items may
vary by model. Check your
package for specific content
information.
A. Camera Setup
Mount camera stand to the wall.
1
NOTE: Before you install a camera, carefully plan where and how it
will be positioned, and where you will route the cable that connects the
camera to the power adaptor. Before starting permanent installation,
verify its performance by observing the image on a monitor when the
camera is positioned where it will be permanently installed.

B. Receiver Setup

1 Connection Options:
a.
Surveillance Recorder (DVR)
with BNC inputs:
Attach the BNC connector of the
receiver directly to a video input of the
DVR.
NOTE: If the receiver is not able to directly attach to your TV or DVR because of space constraints
or blockage of wireless signal, use the included BNC extension cable to reposition the receiver.

C. Powering a Single Receiver

Connect one end of the Power Adaptor to the
receiver and the other end to an electrical outlet.
OR

Powering Multiple Receivers (LW2175RPk2B only)

a.
Connect the
power adapter
to the power
splitter cable as
shown.
www.lorextechnology.com
Secure Camera to the mounting
2
stand. Adjust the angle of the
camera until the desired view is
set (1). Tighten the thumbscrews
to secure the desired camera
position (2).
NOTE: Avoid installing in a location which
requires the wireless signal to pass through
cement, concrete and metal structures. This will
reduce the transmission range.
OR
b.
TV with RCA Inputs:
1. Attach the included BNC/RCA
adapter to the BNC cconnector on
the receiver.
2. Attach the receiver to a composite
video input of the TV.
ATTENTION: Make sure to first connect and power on the camera before
powering on the receiver; this will ensure a proper connection.
b.
Connect the ends
of the power
splitter Cable to
the receiver.
Connect one end of the camera
3
Power Adapter to the camera
and the other end to an
electrical outlet.
1
2
Connect power adaptor to local
120V AC power outlet
NOTE: Wireless cameras require a power
source to operate.
c.
Connect power adaptor
to local 120V AC power
outlet.
LW2175R Series QSG_EN_R2 Page 1
