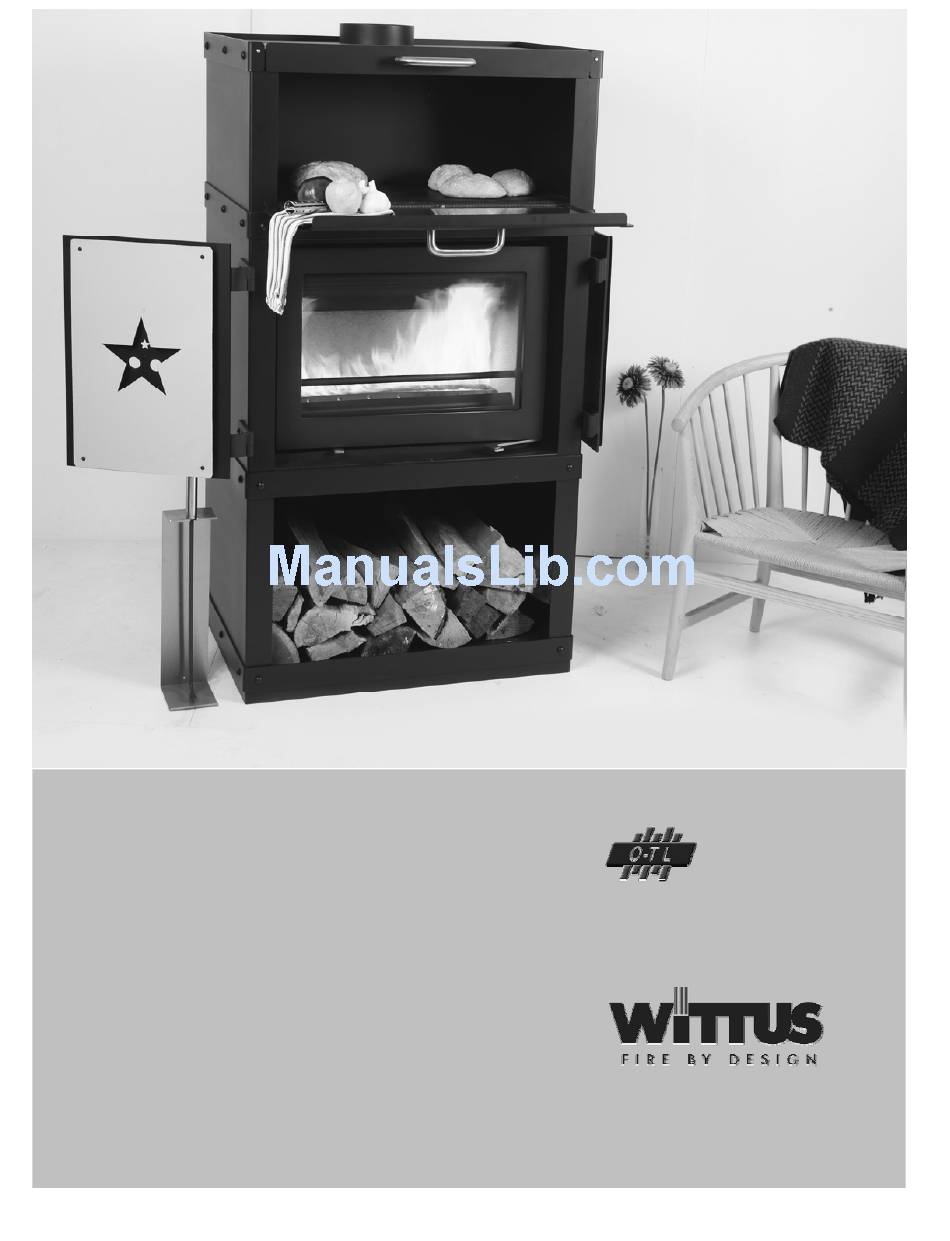

- Page 1 Please read this manual carefully and save the instructions Tested and Listed by: Portland Installation and user manual Oregon USA OMNI-Test Laboratories, Inc. Manufactured by: KLASSIC PO Box 120 Pound Ridge NY T.914.764.5679 F.914.764.0465 www.wittus.com Version: 10/09...
-
Page 2: Table Of Contents
7. WARRANTY....................14 8. SPARE PARTS LIST ................14 1. INTRODUCTION Congratulations on your new KLASSIC wood burning stove/fireplace. As a product of superior quality and efficiency, we wish you many years of warmth and pleasure. We are asking you to:... -
Page 3: Safety And Environmental Testing
Oregon and is listed to UL 1482 and ULC S628. It is also EPA certified. Features and Items Included Your KLASSIC has a built-in convection system, so it creates air circulation in the room to spread the heat faster and more evenly. -
Page 4: Specifications
Specifications UL 1777 Listed chimney liner (with a 6” (15cm) diameter) up through the block off plate of an existing masonry chimney, a zero-clearance chimney, or Class A, UL-103 HT, 6” (15cm) diameter chimney Dimensions (h x w x d) – 60” x 32” x 22” (152cm x 81cm x 56cm) Firebox Dimensions (h x w x d) –... -
Page 5: Chimney
Chimney The Klassic must be installed using a Class A UL 103 HT approved factory-built chimney system or a code-approved masonry chimney with a flue liner. In Canada, the installation must conform to NFPA 211 or CAN/CSA-B365. The chimney must extend through the roof at least 3’ (1 m), and 2’ (6 m) above any structure within 10’... - Page 6 This prevents any amount of condensed or liquid creosote from running down the outside of the pipe or the stove top. All joints, including the flue collar connection must be secured with three sheet metal screws to ensure that the sections do not separate. For the best performance the chimney connector should be as short and direct as possible, with no more than two 90°...
- Page 7 Chimney Connector Systems and Clearances from Combustible Walls for Residential Heating Appliances Version: 10/09 Page 7...
- Page 8 Heat generation and distribution The Klassic is really two stoves in one. Inside is the actual stove, produced from strong steel plates, and on the outside a covering of steel. There are two major types of heat: radiant heat and convection heat.
-
Page 9: Sensible Wood Burning
3. SENSIBLE WOOD BURNING Proper wood burning When dry wood is burned in a wood-burning stove the following process occurs (over a period of approx. 1 hour): - After lighting the log starts to dry and heats up. - After drying the temperature of wood rises to approx. 300–400°F (150-200°C) and is converted into combustible gases/charcoal. -
Page 10: Types Of Fuel And Heating Values
Types of fuel and heating values Combustion involves conversion of the fuel from solid form into gases, water vapor and charcoal. The heating value is an expression of the content of combustible gases - stated in kcal/kg. All wood has roughly the same heating value per kilogram. -
Page 11: Operating Instructions
4. OPERATING INSTRUCTIONS First Fire Once your Klassic stove is installed and all instructions have been read, the first fire can be started. However, please take careful note of the following: - Your new stove should be broken in gently for top performance and to prevent paint damage, cracks in the vermiculite or firebox lining, and excessive wear and tear. -
Page 12: Troubleshooting
5. TROUBLESHOOTING Combustion problems can arise if the combustion conditions are not optimal. This can be corrected by following the advice given below. Lighting and burning problems are usually due to wet wood or insufficient draft. Version: 10/09 Page 12... -
Page 13: Maintenance
6. MAINTENANCE Gaskets and vermiculite panels are parts which need to be replaced from time to time – depending on how much you use your stove. In some cases, you may need to replace them every year, while in others, replacement every second or third year will suffice. -
Page 14: Warranty
Any claims during the warranty period should be directed to the dealer who sold the stove. All stoves from Wittus come with their own individual serial number on the type plate on the top of the firebox. Record this number and keep it in a safe place. Provide the stove model and serial number to your dealer in connection with service tasks.
