Summary of Contents for Balboa bba

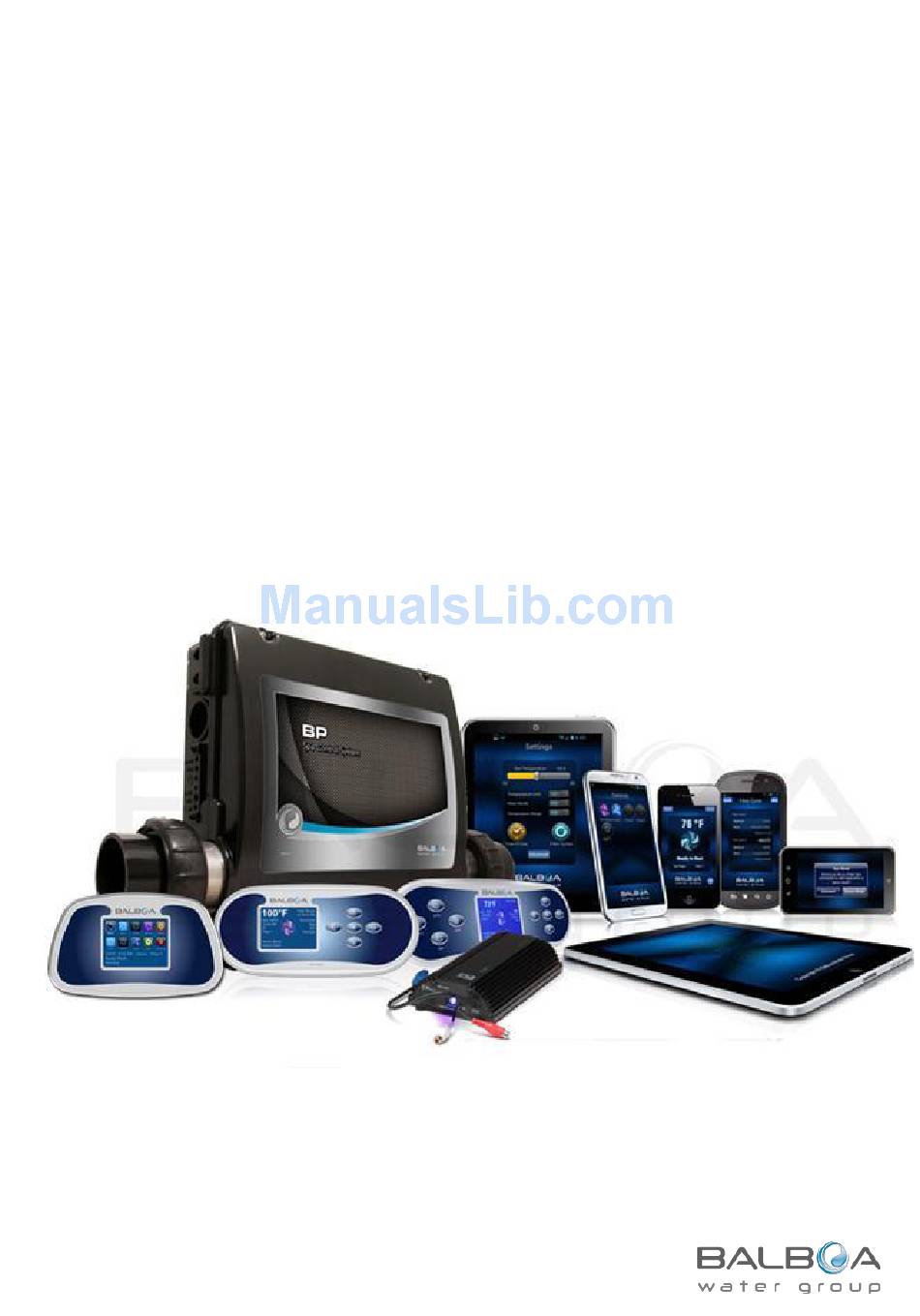

- Page 1 - Balboa Bluetooth Audio (AMP) Installation & User Guide...

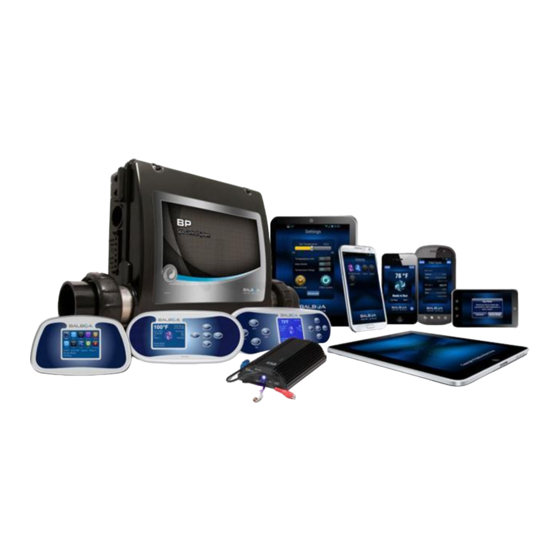

- Page 2 Introduction: The bba™ is a four channel, 120 Watts RMS Bluetooth wireless audio amplifier, capable of delivering up to 30W RMS per channel. It has a compact, water resistant design that allows for flexible mounting possibilities. It is integrated into the BP systems and can be controlled via your smart device or a TP800 / TP900 / spaTouch™...
-
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS Mounting the Amplifier: 1) Choose a mounting location that is well ventilated. The Amplifier generates significant heat when operating at high power levels. 2) It is preferable to mount the unit such that the ventilation fins are vertical or facing upward. - Page 4 Wiring Details: Use the wired plug end (Pigtail) provided to make power and speaker connections according to the diagram below. Using this connector will make it easy to disconnect the amplifier for adding additional features or service. Removing the factory plug end will void warranty. Wire Color Function 1 B+ (+12VDC)
- Page 5 Power Wire Specifications: Red Wire and Blue Wire - Connect these two wires to a +12V power supply. Black Wire - Connect this wire to the negative or other good power ground. Notes: Use the included plug/wire bundle to connect to the power source and speakers.
-
Page 6: Input Connections
Input connections: 59019 – bba™ - Balboa Bluetooth Audio Amp Standalone PWR/ ON/OFF BASS GAIN TRIM Adaptor cable KEYPAD CONTROL In standalone mode Line input cannot be selected and is Line input unavailable. White = Left Red = Right On/Off Control... - Page 7 Input connections: 59019 – bba™ - Balboa Bluetooth Audio Amp Integrated PWR/ ON/OFF BASS GAIN TRIM Adaptor cable KEYPAD CONTROL Line input White = Left Red = Right Optional Line Input TV, MP3, Sat Radio or BP Series Control other audio sources spaTouch™...
- Page 8 Switch & Gain Settings: 1) The switches and gain settings are secure behind a water resistant rubber seal. Be sure to replace the cover when finished with adjustments. 2) The low Pass Filter switch allows the user to optimize bass performance in the case a subwoofer is connected to channels 3 and 4.
-
Page 9: Bluetooth Connection
BLUETOOTH CONNECTION: 1) Turn on the amplifier, 2) Turn on Bluetooth function of your mobile or music device 3) On your music device, click search for Bluetooth device. Make sure you are close enough to the amplifier. 4) Select “PPGME60” from the pairing list. 5) Enter “60BT”... - Page 10 The system and panel version numbers can be found using any of these panels by going to Settings -> Information. bba™ Specifications: Speaker Impedance ……………………….… 2 – 8 ohms Output Power (2 ohm load) ………………… 30 W RMS per channel (4 ohm load) …………………...
- Page 11 Intellectual Property Advisement All Intellectual property, as defined below, owned by or which is otherwise the property of Balboa Water Group or its respective suppliers relating to the Balboa Water Group including but not limited to, accessories, parts, or software relating thereto bba™...
