Summary of Contents for Datavideo MP-6000

  • Page 1: Quick Reference Guide

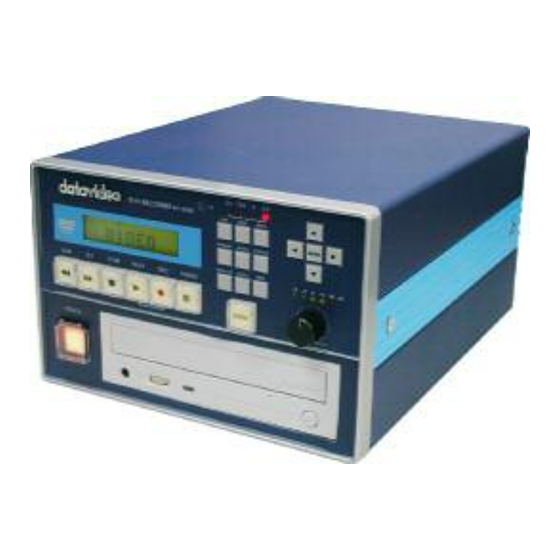

    Professional DVD Recorder MP-6000 Quick Reference Guide http://www.datavideo-tek.com...

  • Page 2: Table Of Contents

    Table of contents Warnings and Precautions --------------------------------------------------------------- 2 Warranty and Tech support -------------------------------------------------------------- 3 Introduction ---------------------------------------------------------------------------------- 4 Features -------------------------------------------------------------------------------------- 5 Functions ------------------------------------------------------------------------------------- 6 Front Panel ---------------------------------------------------------------------------- 6 Rear Panel ---------------------------------------------------------------------------- 9 Dip Switches for Mode settings -------------------------------------------------11 System Setting ---------------------------------------------------------------------------- 12 SETUP and Configuration ------------------------------------------------------- 12 EDIT a Clip -------------------------------------------------------------------------- 18 Specifications ----------------------------------------------------------------------------- 21...

  • Page 3: Warnings And Precautions

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 4: Warranty And Tech Support

    Datavideo warrants that the equipment it manufactures shall be free from defects in material and workmanship for a period of 12 months from the date of product purchased. If equipment fails due to such defects, Datavideo will, at its option, repair or provide a replacement for the defective part or product.

  • Page 5: Introduction

    Introduction About DVD-R / DVD-RW Discs The MP-6000 is a DVD+R/RW drive based high quality digital audio and video recorder. It integrates a high performance MPEG-2 Codec for Real-Time Recording of live audio/video material from camcorders, analog VCRs, or other a/v sources on to DVD+R/RW disc in real time.

  • Page 6: Features

    Features Multi-format video inputs interface of DV, YUV (RGB), Y/C and Composite video. IEEE-1394 6-pin FireWire (iLink) input port with 12V bus power. Available in DV25 NTSC 4:1:1 / PAL 4:2:0 formats. Component YUV (or RGB selectable), Y/C, Composite video inputs and outputs with selectable NTSC/PAL video system.

  • Page 7: Functions

    Functions: Front Panel Legend Function Description Fast Rewind Movie at 2X,4X,8X,16X,32X,64X speed Fast Forward Movie at 2X,4X,8X,16X,32X,64X speed Stop Play a Title/Track Record. Push and hold on this button and press on the “ ” button to start recording a clip. Pause/Play a Title/Track...
  • Page 8 Open/Close Disc Tray Move Cursor to UP, Down, Left, Right Confirm Select Option Jump to Previous track Enter/Exit system Setup Mode for: 1. Video Color correction 2. GPI function: Record/Pause or Play/Pause 3. Video system: NTSC or PAL system Erase Disc (DVD+RW only) Jump to Next track Finalize a DVD+R Disc (DVD+RW does not need finalize)
  • Page 9 Select a recording video format of HQ, SP, LP, EP or SLP. Input Source Select of DV, S, CV, or YUV Please note, system will take about 2-3 seconds to initial a new video source Select video output source from Disc playback or bypass the input video.

  • Page 10: Rear Panel

    Functions: Rear Panel...
  • Page 11 ON/OFF GPI trigger interface • For external wire remote MP-6000 “Record-Pause” function. • Switch to select by Level Trigger of Pulse Trigger. RS-232 Remote Control interface • 9-pin serial port standard RS-232 interface • With additional PC remote software to remote control MP-6000.
  • Page 12 Dip Switch setting for Mode select: Set the DIP Switches to select an operation mode. *. Note: Reboot the MP-6000 if you have changed a DIP Switch S1. For selecting a NTSC or PAL video system. (PAL-ON, NTSC-OFF) S2. For selecting DV-25 4:2:0 for PAL video and the video setup level for NTSC.

  • Page 13: System Setting

    ON Windows XP and Windows ME (Factory default) OFF S4 OFF Camera Mode S6. Factory setting (OFF), please do not change. System Setting: Using a remote controller to configure MP-6000: Press on “SETUP” to pop up a system setup block on TV...
  • Page 14 1. Select language for OSD, Menu, Audio and Subtitles. -. Select language for OSD SET UP Language Video Setup LANGUAGE System Info English Disc Media Menu Espanol Recording Audio Francais Schedule Subtitles <SET UP> Exit <UP/DOWN> Select <ENTER> Confirm selection -.
  • Page 15 -. Video setup of Aspect ratio SET UP Language Video Setup System Info VIDEO SETUP ASPECT RATIO Disc Media Aspect ratio 16:9 wide Recording Video Output 4:3 letter box Schedule TV Standard 4: 3 Pan scan -. Video setup of output format SET UP Language Video Setup...
  • Page 16 Date and Time Video Setup Version System Info Ratings Disc Media Screen Saver VERSION Recording Password MP-6000 V1.03-179p7-421801 Schedule Factory reset <SET UP> Exit Setup <LEFT> Return -. Set rating SET UP SYSTEM INFO Language Date and Time Video Setup...
  • Page 17 SET UP SYSTEM INFO Language Date and Time Video Setup Version System Info Ratings Disc Media Screen Saver Recording Password ENTER PASSWORD Schedule --- --- --- --- --- Factory reset <SET UP> Exit Setup <O-9> Input password <LEFT> Return <ENTER> Save password -.
  • Page 18 Recording Auto Chapter Schedule <SET UP> Exit Setup <UP/DOWN> Select <LEFT> Return <ENTER> Confirm selection MP-6000 DVD+R/RW Disc recording spec: DVD+R/RW Recording mode Video resolution by H-Pixels x V-Lines ETA Recording time on a 4.7GB DVD+R/RW Disc Items Mode Bit rate...
  • Page 19 SET UP Entry Freq Start Stop Source Speed Language ---/---/--- ---:--- ---:--- ---------- --------- Video Setup ---/---/--- ---:--- ---:--- ---------- --------- System Info ---/---/--- ---:--- ---:--- ---------- --------- Disc Media ---/---/--- ---:--- ---:--- ---------- --------- Recording ---/---/--- ---:--- ---:--- ---------- --------- Schedule ---/---/---...

  • Page 20: Edit A Clip

    Edit a Clip on DVD+RW DISC: Press on the “EDIT” Key on the remote to edit a clip on DVD+RW Disc Please note the EDIT function is only available for using a DVD+RW disc Erase a Title: DVDRW EDIT Erase Title Play Full Title ERASE TITLE Make Compatible...
  • Page 21 Make Compatible: DVDRW EDIT Erase Title Play Full Title Make Compatible Make Compatible Confirm Cancel <EDIT> Exit EDIT <UP/DOWN> Select <LEFT> Return <ENTER> Confirm selection On Line editing a chapter Press on the “EDIT” button on a playing clip from DVD+R/RW Disc to edit a clip function. -.

  • Page 22: Specifications

    -. Hide chapter: Press on Enter to hide chapter from the clip. EDIT Insert chapter Remove chapter Hide Chapter Show Chapter New Picture <EDIT> Exit EDIT <UP/DOWN> Select <LEFT> Return <ENTER> Confirm selection -. Show chapter: Press on Enter to show all chapters. EDIT Insert chapter Remove chapter...
  • Page 23 Supports Disc. Selectable Video Standards NTSC/PAL DV Input Three 6-PIN IEEE1394 Fire Wire Ports with DC12V Bus Power supported Supports DV25, NTSC 4:1:1, PAL 4:2:0 Analog Video Input/Output Composite (CVBS): 1.0 Vp-p 75 ohm BNC. S-Video(Y/C): 4-pin 75 ohm DIN Plug Y: 1Vpp, 75 ohm C: 0.286Vpp, 75 ohm Component YUV: Betacam standard, Y, Cr, Cb...
  • Page 24 All the trademarks are the properties of their respective owners. Datavideo Technologies Co., Ltd. All rights reserved 2005 P/N: 082060355E1...
