American Fibertek SM24p-PoE Instruction Manual

20-port 10/100/1000base-t plus 4 rj-45/100/1000 sfp combo port managed poe switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

SM24p-PoE
20-Port 10/100/1000Base-T plus
4 RJ-45/100/1000 SFP Combo Port
Managed PoE Switch

Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM24p-PoE and is the answer not in the manual?

Questions and answers

Related Manuals for American Fibertek SM24p-PoE

Summary of Contents for American Fibertek SM24p-PoE

  • Page 1: Instruction Manual

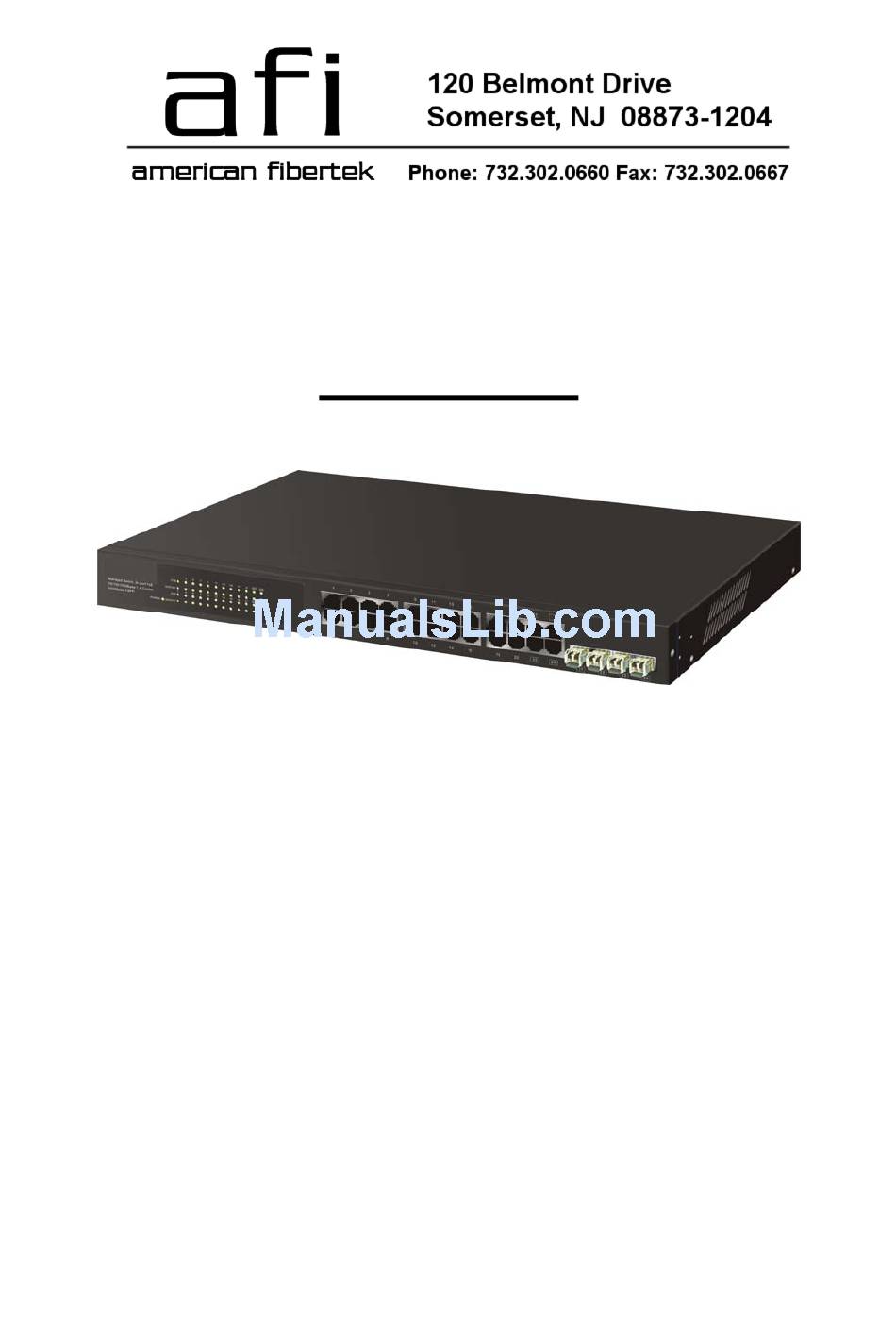

    SM24p-PoE 20-Port 10/100/1000Base-T plus 4 RJ-45/100/1000 SFP Combo Port Managed PoE Switch Instruction Manual...
  • Page 3 Regulatory Approval - FCC Class A - UL 1950 - CSA C22.2 No. 950 - EN60950 - CE - EN55022 Class A - EN55024 Canadian EMI Notice This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

  • Page 4: Table Of Contents

    Table of Contents INTRODUCTION....................... 2 1-1. O SM24P-POE.................. 2 VERVIEW OF THE 1-2. C ........................4 HECKLIST 1-3. F ........................4 EATURES 1-4. V 24-P ........... 6 IEW OF IGABIT ANAGED WITCH 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) ......6 1-4-2.
  • Page 5 4-3-5. Ping Status...................... 103 4-4. M ......................105 AINTENANCE 4-4-1. Warm Restart ....................106 4-4-2. Factory Default ....................107 4-4-3. Software Upgrade................... 108 4-4-4. Configuration File Transfer................109 4-4-5. Logout......................110 5. MAINTENANCE......................111 5-1. R ................111 ESOLVING ONDITION 5-2. Q&A ........................111 APPENDIX A TECHNICAL SPECIFICATIONS............112 APPENDIX B MIB SPECIFICATIONS .................115 Rev.A1...

  • Page 6: Revision History

    Revision History Date Revision 2011/03/11 2012/07/26 Rev.A1 7-July-12...
  • Page 7 Warning: • Self-demolition on Product is strictly prohibited. Damage caused by self- demolition will be charged for repairing fees. • Do not place product at outdoor or sandstorm. • Before installation, please make sure input power supply and product specifications are compatible to each other. •...

  • Page 9: User Manual

    User Manual About this user’s manual This user’s manual provides instructions on how to install your Managed Switch. This guide also covers management options and detailed explanation about hardware and software functions. Overview of this user’s manual Chapter 1 “Introduction” describes the features of 24 Gigabit Managed Switch Chapter 2 “Installation”...

  • Page 10: Introduction

    1. Introduction 1-1. Overview of the SM24P-POE The SM24P-POE which is a 24-port Gigabit Managed PoE Switch, it is a standard switch that meets all IEEE 802.3/u/x/z Gigabit and Fast Ethernet specifications. The switch has 20 10/100/1000Mbps TP ports and 4 Gigabit TP/ (100/1000M) SFP slots, It supports Web GUI and SNMP interface for switch management.
  • Page 11 User Manual • Key Features in the Device QoS: offers powerful QoS function. This function supports 802.1p switch VLAN tag priority and DSCP on Layer 3 of network framework. VLAN: Supports Port-based VLAN, IEEE802.1Q Tag VLAN. And supports 24 active VLANs and VLAN ID 1~4094.

  • Page 12: Checklist

    • 4 10/100/1000Mbps TP or 100/1000Mbps SFP Fiber dual media auto sense • 500KB on-chip frame buffer • In SM24P-POE, it supports 185 watts for PoE Power and up to 15.4 watts for 12 ports or 7.7 watts for 24 ports ;...
  • Page 13 User Manual • Management • Supports concisely the status of port and easily port configuration • Supports per port traffic monitoring counters • Supports a snapshot of the system Information when you login • Supports port mirror function • Supports the static trunk function •...

  • Page 14: View Of 24-Port Gigabit Managed Poe Switch

    User Manual 1-4. View of 24-Port Gigabit Managed PoE Switch Fig. 1-1 Full View of SM24P-POE MANAGED PoE SWITCH 1-4- 1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 24 TP Gigabit Ethernet PoE ports and 4 (100/1000M) SFP fiber ports for optional removable modules on the front panel of the switch.

  • Page 15: User Interfaces On The Rear Panel

    SFP(LINK/ACT) Lit Amber when 100Mbps SFP connection with Amber remote device is good Blinks when any traffic is present Table1-1 1-4-2. User Interfaces on the Rear Panel AC Line 100-240V 50/60 Hz Fig. 1-3 Rear View of SM24P-POE Rev.A1 1-Mar-11...
  • Page 16 User Manual Rev.A1 1-Mar-11...

  • Page 17: Installation

    User Manual 2. Installation 2-1. Starting 24-Port Gigabit Managed PoE Switch This section will give users a quick start for: Hardware and Cable Installation - Management Station Installation - Software booting and configuration 2-1-1. Hardware and Cable Installation First of all: ⇒...

  • Page 18: Cabling Requirements

    User Manual • TP Port and Cable Installation ⇒ In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP; 1, 2, 3, 4, 5, 6, 7, 8 to 1, 2, 3, 4, 5, 6, 7, 8 in Gigabit TP) and crossed-over (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 3, 6, 1, 2) can be used.

  • Page 19: Cabling Requirements For Tp Ports

    User Manual 2-1-2-1. Cabling Requirements for TP Ports ⇒ For Fast Ethernet TP network connection ⎯ The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of 100 meters. ⇒ Gigabit Ethernet TP network connection ⎯...
  • Page 20 User Manual Case1: All switch ports are in the same local area network. Every port can access each other (See Fig. 2-2). Fig. 2-2 No VLAN Configuration Diagram If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.
  • Page 21 User Manual Case 2b: Port-based VLAN (See Fig.2-4). Fig. 2-4 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members. VLAN3 members could not access VLAN1, VLAN2 and VLAN4.

  • Page 22: Configuring Management Agent Of 24-Port Gigabit Managed Poe Switch Through Ethernet Port

    Ethernet port. They are Web browser and SNMP manager. We just introduce the first type of management interface. Web-based UI for the switch is an interface in a highly friendly way. SM24P-POE Default IP Setting: IP = 192.168.1.77 Subnet Mask = 255.255.255.0 Default Gateway = 192.168.1.254...

  • Page 23: Ip Address Assignment

    User Manual 2. Run web browser and follow the menu. Please refer to Chapter 4. Fig. 2-7 the Login Screen for Web 2-1-4. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS. IP address: The address of the network device in the network is used for internetworking communication.
  • Page 24 User Manual Network address Host address Class B: IP address range between 128.0.0.0 and 191.255.255.255. Each class B network has a 16-bit network prefix followed 16-bit host address. There are 16,384 (2^14)/16 networks able to be defined with a maximum of 65534 (2^16 –2) hosts per network.
  • Page 25 User Manual default, in which the first two bytes is with all 1s. This means more than 60 thousands of nodes in flat IP address will be at the same network. It’s too large to manage practically. Now if we divide it into smaller network by extending network prefix from 16 bits to, say 24 bits, that’s using its third byte to subnet this class B network.
  • Page 26 User Manual 4096 4094 8192 8190 16384 16382 32768 32766 65536 65534 Table 2-3 According to the scheme above, a subnet mask 255.255.255.0 will partition a network with the class C. It means there will have a maximum of 254 effective nodes existed in this sub-netted network and is considered a physical network in an autonomous network.

  • Page 27: Typical Applications

    User Manual Fig. 2-9 First, IP Address: as shown in the Fig. 2-9, enter “192.168.1.77”, for instance. For sure, an IP address such as 192.168.1.x must be set on your PC. Second, Subnet Mask: as shown in the Fig. 2-9, enter “255.255.255.0”. Any subnet mask such as 255.255.255.x is allowable in this case.
  • Page 28 User Manual demonstrates how the switch connects with other network devices and hosts. Fig. 2-11 Peer-to-peer Network Connection Fig. 2-12 Office Network Connection Rev.A1 1-Mar-11...

  • Page 29: Basic Concept And Management

    User Manual 3. Basic Concept and Management This chapter will tell you the basic concept of features to manage this switch and how they work. 3-1. what’s the Ethernet Ethernet originated and was implemented at Xerox in Palo Alto, CA in 1973 and was successfully commercialized by Digital Equipment Corporation (DEC), Intel and Xerox (DIX) in 1980.
  • Page 30 User Manual IEEE 802.2 Data Link Laye IEEE802.3 CSMA/CD MAC IEEE 802.3 PLS Physica Layer ANSI X3T9.5 IEEE 802.3 Fiber Coaxial/STP/UTP This above diagram shows the Ethernet architecture, LLC sub-layer and MAC sub-layer, which are responded to the Data Link layer, and transceivers, which are responded to the Physical layer in OSI model.
  • Page 31 User Manual comprises four fields, DSAP, SSAP, Control and Information. The DSAP address field identifies the one or more service access points, in which the I/G bit indicates it is individual or group address. If all bit of DSAP is 1s, it’s a global address. The SSAP address field identifies the specific services indicated by C/R bit (command or response).

  • Page 32: Media Access Control (Mac)

    User Manual 3-2. Media Access Control (MAC) MAC Addressing Because LAN is composed of many nodes, for the data exchanged among these nodes, each node must have its own unique address to identify who should send the data or should receive the data. In OSI model, each layer provides its own mean to identify the unique address in some form, for example, IP address in network layer.
  • Page 33 User Manual Type/Length Data Pad bit if any 46-1500 Fig. 3-3 Ethernet frame structure Preamble (PRE) —The PRE is 7-byte long with alternating pattern of ones and zeros used to tell the receiving node that a frame is coming, and to synchronize the physical receiver with the incoming bit stream.
  • Page 34 User Manual redundancy check (CRC) value, and is a check sum computed with DA, SA, through the end of the data field with the following polynomial. It is created by the sending MAC and recalculated by the receiving MAC to check if the packet is damaged or not.
  • Page 35 User Manual Ethernet MAC transmits frames in half-duplex and full-duplex ways. In half- duplex operation mode, the MAC can either transmit or receive frame at a moment, but cannot do both jobs at the same time. As the transmission of a MAC frame with the half-duplex operation exists only in the same collision domain, the carrier signal needs to spend time to travel to reach the targeted device.
  • Page 36 User Manual Parameter 10Base 100Base 1000Base value/LAN Max. collision 100 meters for UTP 100 meters for UTP 100 meters domain DTE to 412 meters for fiber 316 meters for fiber Max. collision 2500 meters 205 meters 200 meters domain with repeater 512 bit times 512 bit times...

  • Page 37: Flow Control

    User Manual 3-3. Flow Control Flow control is a mechanism to tell the source device stopping sending frame for a specified period of time designated by target device until the PAUSE time expires. This is accomplished by sending a PAUSE frame from target device to source device.
  • Page 38 User Manual Frame Reception In essence, the frame reception is the same in both operations of half duplex and full duplex, except that full-duplex operation uses two buffers to transmit and receive the frame independently. The receiving node always “listens” if there is traffic running over the medium when it is not receiving a frame.
  • Page 39 User Manual (TCI) used to provide user priority and VLAN ID, which are explained respectively in the following table. User Priority 7-0, 0 is lowest priority Bits 15-13 CFI (Canonical Format Indicator) 1: RIF field is present in the tag header Bit 12 0: No RIF field is present VID (VLAN Identifier)

  • Page 40: How Does A Switch Work

    User Manual 3-4. How does a switch work? The switch is a layer 2 Ethernet Switch equipped with 24 Fast Ethernet ports and 2 optional modules which support Gigabit Ethernet or 100M Ethernet. Each port on it is an independent LAN segment and thus has 26 LAN segments and 26 collision domains, contrast to the traditional shared Ethernet HUB in which all ports share the same media and use the same collision domain and thus limit the bandwidth utilization.
  • Page 41 User Manual Fig.3-5 Collision Domain Extended Distance Limitations: The diameter of a half-duplex LAN segment is determined by its maximum propagation delay time. For example, in 10M LAN, the most distance of a LAN segment using yellow cable is 2500 meters and 185 meters when using coaxial cable.
  • Page 42 User Manual Fig. 3-6 How does a switch operate? A Layer 2 switch uses some features of the Data Link layer in OSI model to forward the packet to the destination port(s). Here we introduce some important features of a switch and how they work. MAC address table When a packet is received on a port of switch, the switch first checks if the packet good or bad and extracts the source MAC address (SA) and destination...
  • Page 43 User Manual Strictly Priority: All High before Low. Weighted Round Robin: Set a weight figure to the packet with a priority level, say 5-7, and next, set another weight to the packet with a priority level, say 2-4 and so on. The WRR will transmit the packet with the weight.

  • Page 44: Virtual Lan

    User Manual 3-5. Virtual LAN What is a VLAN? It is a subset of a LAN. Before we discuss VLAN, we must understand what LAN is. In general, a LAN is composed of different physical network segments bridged by switches or bridges which attach to end stations in the same broadcast domain.
  • Page 45 User Manual Fig. 3-8 Now we apply VLAN technology to configure the system shown as the figure above. We can partition the users into the different logical networks which have their own broadcast domain. The traffic will not disturb among these logical networks.
  • Page 46 User Manual A frame, carrying a tag field following the source MAC address, is four bytes long and contains VLAN protocol ID and tag control information composed of user priority, Canonical Format Indicator (CFI) and optional VLAN identifier (VID). Normally, the maximal length of a tagged frame is 1522 bytes. 802.1Q VLAN-tagged Ethernet frame VLAN Protocol Tag Control...
  • Page 47 User Manual VLAN identifier of a port. It also can be referred to as PVID. When an untagged frame or a priority-tagged frame is received, the frame will be inserted the PVID of that port in the VLAN tag field. The frame with VID assigned by a port is called PVID.
  • Page 48 User Manual It specifies the mode how to learn MAC address. For a specified VLAN, it will use an independent filtering database (FID) to learn or look up the membership information of the VLAN and decide where to go. Shared VLAN Learning (SVL): It specifies the mode how to learn MAC address.
  • Page 49 User Manual Name Port Members Marketing 1,2,3,4,5 Service 6,7,20,21,22 Sales 8,9,10,11,12,13,14,15,16 Administration 17,18,19,23,24 Table 3-6 Next, assigns IP address to each VLAN. Usually, we use 10.x.x.x as internal IP block. Because there are total four VLANs in the network, we must assign 4 IP blocks to each of them.

  • Page 50: Link Aggregation

    User Manual 3-6. Link Aggregation Basically, Link Aggregation is to aggregate the bandwidth of more than one port to an assigned logical link. This highly increases total bandwidth to the targeted device. There is more than one Link Aggregation technology in many vendors’ switch products already, which may cause the problem of interoperability.
  • Page 51 User Manual Terminology Link Aggregation: It is a method to have multiple physical links with the same media and speed bundled to be a logical link forming a Link Aggregation Group with a group ID. With the viewpoint of MAC client, each Link Aggregation Group is an independent link. There are three cases of link used in the network, which are switch to switch, switch to station and station to station.

  • Page 52: Operation Of Web-Based Management

    User Manual 4. Operation of Web-based Management This chapter Managed Switch would introduce how to manage your and how to 10/100/1000Mbps TP Ports and Gigabit TP/(100/1000M) SFP Fiber configure the dual media ports on the switch via web user interfaces. Managed Switch provides 20 fixed Gigabit Ethernet TP ports and 4 optional Gigabit dual media ports.

  • Page 53: Web Management Home Overview

    User Manual 4-1. Web Management Home Overview After login, System Information would be displayed as Fig. 4-2 illustrated. This page lists default values and shows you the basic information of the switch, including “System Information”, “Ports”, “VLANs”, “PoE”, “Aggregation”, “LACP”, “RSTP”, “802.1X”, “IGMP Snooping”, “Mirror”, “QoS”, “Filter”, “Rate Limit”, “Storm Control”, “SNMP”, “Monitoring”...
  • Page 54 User Manual Root Configuration Monitoring Maintenance Rev.A1 1-Mar-11...

  • Page 55: Configuration

    User Manual 4-2. Configuration Configuration includes the following functions: System Configuration, Ports Configuration, VLANs Configuration, PoE Configuration, Aggregation, LACP, RSTP, 802.1X, IGMP Snooping, Mirror, QoS, Filter, Rate Limit, Storm Control and SNMP. Configuration System Configuration Ports VLANs Aggregation LACP RSTP 802.1X IGMP Snooping Mirror...

  • Page 56: System Configuration

    User Manual 4-2-1. System Configuration System configuration is one of the most important functions. Without a proper setting, network administrator would not be able to manage the device. The switch supports manual IP address setting. Fig. 4-3 Function name: System Configuration Function description: Show system description, firmware version, hardware version, MAC address, serial number, active IP address, active subnet mask, active gateway, DHCP...
  • Page 57 User Manual Parameter description: System Description: The simple description of this switch. Firmware Version: The firmware version of this switch. Hardware Version: The hardware version of this switch. MAC Address: It is the Ethernet MAC address of the management agent in this switch. Serial Number: The serial number is assigned by the manufacturer.
  • Page 58 User Manual and C are all too large to fit for almost all networks, hence, subnet mask is introduced to solve this problem. Subnet mask uses some bits from host address and makes an IP address looked Network address, Subnet mask number and host address.

  • Page 59: Ports

    User Manual 4-2-2. Ports Function name: Port Configuration Function description: Port Configuration is applied for the settings of the ports on the switch. By this function, you can set or reset the values for Mode and Flow Control. Others you could set the power saving mode for switch power consumption. Fig.
  • Page 60 User Manual Parameter description: Enable Jumbo Frames: This function support jumbo frames of up to 12.2KB, Just tick the check box ( ) to enable it. Default: disable Perfect Reach/Power Saving Mode: This function supports Power Saving and perfect Reach, Just select with the Full/ Link-up/ Link-down/ Disable Default: disable Power Saving:...
  • Page 61 User Manual Port Description: To type the port description for port identity and purpose Rev.A1 1-Mar-11...

  • Page 62: Vlan Mode Configuration

    User Manual 4-2-3. VLAN Mode Configuration Managed Switch supports Port-based VLAN and Tag-based VLAN (802.1q). Its VLAN mode supports 24 active VLANs and the available VLAN ID range is from 1~4094. VLAN configuration is used to divide a LAN into smaller ones. With proper configuration, you can gain not only improved security and increased performance, but also save a lot of VLAN management effort.
  • Page 63 User Manual Parameter description: VLAN Mode: Port-based: Port-based VLAN is defined by port. Any packet coming in or outgoing from any one port of a port-based VLAN will be accepted. No filtering criterion applies in port-based VLAN. The only criterion is the physical port you connect to.
  • Page 64 User Manual Function name: VLAN Port Configuration (Tag based VLAN mode) Function description: In VLAN Tag Rule Setting, user can input VID number to each port. The range of VID number is from 1 to 4094. User also can choose ingress filtering rules to each port.
  • Page 65 User Manual Parameter description: Port 1-24: Port number. Ingress Filtering Enabled: Discard other VLAN group packets, only forward this port joined VLAN group packets. Packet Type: All: Forward all tagged and untagged packets. Tagged Only: Forward tagged packets only and discard untagged packets. Tag Out Enabled: It means the outgoing packets in this port must carry VLAN tag header.

  • Page 66: Vlan Group Configuration

    User Manual 4-2-4. VLAN Group Configuration Function name: VLAN Group Configuration Function description: It shows the information of VLAN Groups, and allows administrators to maintain them by modifying and deleting each VLAN group. User also can add a new VLAN group by inputting a new VLAN name and VLAN ID. If you are in port-based VLAN, it will just show the ID、Member of the existed port-based VLAN group.
  • Page 67 User Manual of the new added VLAN, “Enable” means it is a member of the VLAN. Just tick the check box ( ) beside the port x to enable it. Add Group: Create a new port-based VLAN or tag-based VLAN, which depends on the VLAN mode you choose in VLAN mode function.

  • Page 68: Poe

    User Manual 4-2-5. PoE Power Over Ethernet (PoE) technology allows IP telephones, wireless LAN access points, and other powered devices (PDs) to receive power and transfer data over existing LAN cabling. Function name: PoE Configuration Function description: In PoE Port Management function, user can configure the settings about PoE. The switch complies with IEEE 802.3af protocol and be capable of detecting automatically that whether the device linked to the port on the switch is PD (Powered Device) or not.
  • Page 69 User Manual Parameter description: Status: Include “Normal” or “Active” two kinds of status. The former means the port is ready to link and supply the power to the PD at any time. The latter means the port is in the condition of supplying the power. State: “Enable”...
  • Page 70 User Manual Function name: PoE Status Function description: Display the information about the PoE status. Fig. 3-15 Parameter description: Vmain: The volt is supplied by the PoE. Imain: The sum of the current that every port supplies. Pconsume: The sum of the power that every port supplies. Power Limit: The maximal power that the switch can supply (Read Only).
  • Page 71 User Manual DC Disconnect Port Off: Port is turned off due to the DC Disconnect function. Overload Port Off: The switch will stop supplying the power to the port due to the power required by the PD that is linked to the port on the switch excesses the Class setting of the PD.
  • Page 72 User Manual Function name: PoE Auto Checking Function description: The function is using for PD auto checking. It can allow user to control the PoE function by using the ping command, in order to turn on or off any PD which connect with port assign.
  • Page 73 User Manual Parameter description: Ping Check: To scroll and select the Enable or Disable Ping Check function. Port No.: To display the Port Index, the maximum is 24. Ping IP Address: To set up the PD’s IP address which you need to check it is alive. Interval Time: To set up the spacing interval time to do ping check, the default value is 30 seconds.
  • Page 74 User Manual Function name: PoE Scheduling Function description: The function provides user to appoint date and time, Enable or Disable PoE function, switch can with according to the time when is set up, carry on the designated movements. Managed Switch NTP only supports IP address for NTP server, no support domain name for NTP server.
  • Page 75 User Manual Parameter description: Schedule on: It provide user to set which port will action the PoE Scheduling function. Schedule mode: To set the schedule mode with Enable or Disable. The default is Disable. Select all: To select all date and time to enable the PoE function. Hour/ Day: To evoke what time to enable the PoE function.

  • Page 76: Aggregation

    User Manual 4-2-6. Aggregation The Aggregation (Port Trunking) Configuration is used to configure the settings of Link Aggregation. You can bundle ports by same speed, MAC, and full duplex to be a single logical port, thus the logical port can aggregate the bandwidth of these ports.

  • Page 77: Lacp

    User Manual 4-2-7. LACP Smart Web Switch supports link aggregation IEEE802.3ad standard. The standard describes Link Aggregate Control Protocol (LACP) which dynamically creates and manages trunk groups. hen you enable LACP link aggregation on a port, the port can automatically negotiate with the ports at the remote end of a link to establish trunk groups.
  • Page 78 User Manual Fig. 4-11 LACP Port Configuration Parameter description: Protocol Enabled: Just tick the check box ( to enable LACP protocol then press the <Apply> button to apply. Key Value: It’s key for an aggregation. This must be an integer value between 1 and 255 or auto select by switch.

  • Page 79: Rstp

    User Manual 4-2-8. RSTP RSTP detects and resolves network loops, and provides backup links between switches, bridges and routers. The protocol allows a switch to communicate with other RSTP compliant switches, and to ensure only one path existing between two stations in your network environment. The switch allows you to create multiple STP configurations and assign ports to a specific tree.
  • Page 80 User Manual Max Age: This is the maximum time a switch can wait without receiving a BPDU before attempting to reconfigure. The allowed range is 6 to 40 seconds. Default: 20 Forward Delay: This is the maximum time (in seconds) a switch will wait before changing states.
  • Page 81 User Manual Function name: RSTP Port Configuration Function description: nable or disable RSTP protocol on the ports that are selected and set path cost. Fig. 4-12-2 RSTP Configuration arameter description: Rev.A1 1-Mar-11...
  • Page 82 User Manual Protocol Enabled: Just tick the check box ( beside the port x to enable RSTP protocol, then press the <Apply> button to apply. Edge: Just tick the check box ( beside the port x to enable edge function. ath Cost: ath cost is the cost of transmitting a frame on to a LAN through that port.
  • Page 83 User Manual 4-2-9. 802.1X 802.1x port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1x-enabled port without authentication. If a user wishes to touch the network through a port under 802.1x control, he (she) must firstly input his (her) account name for authentication and waits for gaining authorization before sending or receiving any packets from a 802.1x-enabled port.
  • Page 84 User Manual by Extensible Authentication Protocol over LAN (EAPOL), are exchanged between an authenticator PAE and a supplicant PAE. The Authenticator exchanges message authentication server using encapsulation. Before successfully authenticating, the supplicant can only touch the authenticator to perform authentication message exchange or access the network from the uncontrolled port.
  • Page 85 User Manual At the initial stage, the supplicant A is unauthenticated and a port on switch acting as an authenticator is in unauthorized state. So the access is blocked in this stage. Initiating a session. Either authenticator or supplicant can initiate the message exchange.
  • Page 86 User Manual unauthorized. Fig. 4-15 The 802.1X “Enabled” is the type of authentication supported in the switch. In this mode, for the devices connected to this port, once a supplicant is authorized, the devices connected to this port can access the network resource through this port.
  • Page 87 User Manual ---------------- continue ----------------- Fig. 4-16 802.1X Configuration Parameter description: Mode: Enable or disable 802.1X function. RADIUS IP: RADIUS server IP address for authentication. Default: 0.0.0.0 RADIUS UDP Port: The port number to communicate with RADIUS server for the authentication service.
  • Page 88 User Manual This is used to set the operation mode of authorization. There are three type of operation mode supported, Force Unauthorized, Force Authorized, Auto. Force Unauthorized: The controlled port is forced to hold in the unauthorized state. Force Authorized: The controlled port is forced to hold in the authorized state.
  • Page 89 User Manual Statistics: Choose the port which you want to show of 802.1X statistics, the screen include Authenticator counters, backend Authenticator counters, dot1x MIB counters and Other statistics. Press the <Refresh> button will fresh the screen and see the newer counters.
  • Page 90 User Manual Reauthentication Enabled: Choose whether regular authentication will take place in this port. Default: disable Reauthentication Period (1-65535 s): A non-zero number seconds between the periodic re-authentication of the supplicant. Default: 3600 EAP timeout ((1-255 s): A timeout condition in the exchange between the authenticator and the supplicant.

  • Page 91: Igmp Snooping

    User Manual 4-2-10 IGMP Snooping Function name: IGMP Snooping Configuration Function description: IGMP Snooping lets administrators configure a switch to constrain multicast traffic by listening to (IGMP). After finishing the Internet Group Management Protocol settings, please press <Apply> button to start up the function. Fig.

  • Page 92: Mirror Configuration

    User Manual 4-2-11. Mirror Configuration Function name: Mirror Configuration Function description: Mirror Configuration is provided to monitor the traffic in the network. This switch supports one-port mirror multi-ports. For example, we assume that Port A and Port B are Source Ports, and Port C is Mirror Port respectively, thus, the traffic passing through Port A and Port B will be copied to Port C for monitor purpose.

  • Page 93: Qos(Quality Of Service) Configuration

    User Manual 4-2-12. QoS(Quality of Service) Configuration offers powerful QoS function. This function supports VLAN-tagged switch priority that can make precedence of 8 priorities, and DSCP(Differentiated Services Code Point) on Layer 3 of network framework. Function name: QoS Configuration Function description: While setting QoS function, please select QoS Mode in drop-down menu at first.
  • Page 94 User Manual Each Priority can select any of Queue. In Default, Priority 0 is mapping to Queue normal, Priority 1 is mapping to Queue low, Priority 2 is mapping to Queue low, Priority 3 is mapping to Queue normal, Priority 4 is mapping to Queue medium, Priority 5 is mapping to Queue medium, Priority 6 is mapping to Queue high, and Priority 0 is mapping to Queue high.
  • Page 95 User Manual When Custom is selected for Prioritize Traffic, you may assign specific Port Number for DSCP Configuration. DSCP Configuration: 64 kinds of priority traffic as mentioned above, user can set up any of Queue (low, normal, medium, high). In default, Priority 0~63 are mapping to Queue high.

  • Page 96: Filter

    User Manual 4-2-13. Filter Function name: Filter Configuration Function description: This function lets administrators easily set management source IP addresses to the ports on the switch. After completing the settings, please press <Apply> button to make this function take effect. Fig.
  • Page 97 User Manual IP Address: Setting up the IP Address, it can be one IP Address or a LAN. IP Mask: Setting up the IP Subnet Mask related with the IP Address. DHCP Server Allowed: Just tick the check box ( under the port x to allow the DHCP Server on this port and valid port is Port 1~24.

  • Page 98: Rate Limit

    User Manual 4-2-14. Rate Limit Function name: Ingress and Egress Bandwidth Setting Function description: Ingress and Egress Bandwidth Setting function are used to set up the limit of Ingress or Egress bandwidth for each port. ----------------Continue-------------- Fig. 4-25 Rate Limit Configuration Rev A1 1-Mar-11...
  • Page 99 User Manual Parameter description: Ingress: Set up the limit of Ingress bandwidth (Range: 128Kb, 512Kb, 1M, 10M and 32M) for the port you choose. Incoming traffic will be discarded if the rate exceeds the value you set up in Data Rate field. Pause frames are also generated if flow control is enabled.

  • Page 100: Storm Control

    User Manual 4-2-15. Storm Control Function name: Storm Control Function description: Storm Control is used to block unnecessary multicast and broadcast frames that reduce switch’s performance. When the function is enabled and Storm Control rate settings are detected as exceeded, the unnecessary frames would be dropped.

  • Page 101: Snmp

    User Manual 4-2-16. SNMP Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices. It is a protocol used to govern the transfer of information between SNMP manager and agent and traverses the Object Identity (OID) of the management Information Base (MIB), described in the form of SMI syntax.
  • Page 102 User Manual group. If they both don’t have the same community name, they don’t belong to the same group. Hence, the requesting network management unit can not access the device with different community name via SNMP protocol; If they both have the same community name, they can talk each other.

  • Page 103: Monitoring

    User Manual 4-3. Monitoring There are six functions contained in the monitoring function. Monitoring Detailed Statistics LACP Status RSTP Status IGMP Status Ping Rev.A1 1-Mar-11...

  • Page 104: Detailed Statistics

    User Manual 4-3-1. Detailed Statistics Function name: Detailed Statistics Function description: Display the detailed counting number of each port’s traffic. In the Fig. 4-26, the window can show all counter information each port at one time. Fig. 4-29 Detailed Statistics for each port Parameter description: Rx Packets: The counting number of the packet received.
  • Page 105 User Manual Tx Packets: The counting number of the packet transmitted. TX Octets: Total transmitted bytes. Tx High Priority Packets: Number of Tx packets classified as high priority. Tx Low Priority Packets: Number of Tx packets classified as low priority. Tx Broadcast: Show the counting number of the transmitted broadcast packet.
  • Page 106 User Manual Number of 256 ~ 511-byte frames in good and bad packets transmitted. Tx 512-1023 Bytes: Number of 512 ~ 1023-byte frames in good and bad packets transmitted. Tx 1024-Bytes: Number of 1024-max_length-byte frames in good and bad packets transmitted.

  • Page 107: Lacp Status

    User Manual 4-3-2. LACP Status Function name: LACP Status Function description: Display LACP status. Fig. 4-30 illustrates that LACP Status window can show LACP information and status for all ports in the same time. Fig. 4-30 LACP Status Parameter description: LACP Aggregation Overview: Show the group/port status.

  • Page 108: Rstp Status

    User Manual 4-3-3. RSTP Status Function name: RSTP Status Function description: Display RSTP status. Fig. 4-28 shows you that RSTP window can present VLAN bridge information and the status of all ports. Fig. 4-31 RSTP Status Parameter description: RSTP VLAN Bridge Overview: VLAN Id: Show the VLAN Id.

  • Page 109: Igmp Status

    User Manual 4-3-4. IGMP Status Function name: IGMP Status Function description: Display IGMP status. In Fig. 4-29, the window shows VLAN ID for each multicast group. Fig. 4-32 IGMP Status Parameter description: VLAN Id: Show VLAN Id for each multicast group. Querier: Show the group membership queries status.
  • Page 110 User Manual When a host receives a group membership query, it identifies the groups associated with the query and determines to which groups it belongs. The host then sets a timer, with a value less than the Max Response Time field in the query, for each group to which it belongs. It Calculate the number of times of IGMPV2 report.

  • Page 111: Ping Status

    User Manual 4-3-5. Ping Status Function name: Ping Status Function description: To set up target IP address for ping function and display ping status. In Fig. 4- 30, the window shows the ping information. Fig. 4-33 Ping Parameter description: Ping Parameters: Target IP address: Set up a Target IP address to ping.
  • Page 112 User Manual Target IP address: Show the active target IP address. Status: Show the result of the ping status. Received replies: Show the received replies number of times. Request timeouts: Show the timeout of request. Average Response times (In ms): Show the average response time in milliseconds.

  • Page 113: Maintenance

    User Manual 4-4. Maintenance There are five functions contained in the maintenance function. Maintenance Warm Restart Factory Default Software Upgrade Configuration File Transfer Logout Rev.A1 1-Mar-11...

  • Page 114: Warm Restart

    User Manual 4-4-1. Warm Restart Managed Switch offers many approaches to reboot your switch, such as: power up, hardware reset and software reset. You can press RESET button in the front panel of your switch to reset the device and to .

  • Page 115: Factory Default

    User Manual 4-4-2. Factory Default Function name: Factory Default Function description: Factory Default provides the function to retrieve default settings and replace current configuration. Except the IP address setting, all settings will be restored to the factory default values when “Factory Default” function is performed.

  • Page 116: Software Upgrade

    User Manual 4-4-3. Software Upgrade Function name: Software Upgrade Function description: You can just click Browse button to retrieve the file you want in your system to upgrade your switch. Fig. 4-36 Software Upgrade Rev A1 1-Mar-11...

  • Page 117: Configuration File Transfer

    User Manual 4-4-4. Configuration File Transfer Function name: Configuration File Transfer Function description: You can backup your switch’s configuration file into your computer folder in case accident happens. In addition, uploading backup configuration file into a new or a crashed switch can save much time and avoid mistakes. Fig.

  • Page 118: Logout

    User Manual 4-4-5. Logout In addition to auto logout function we just mentioned in system configuration section, the switch also allows administrators to logout manually by Logout function. Function name: Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission.

  • Page 119: Maintenance

    User Manual 5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on The cable may not be the correct type or is faulty The installed building premise cable is faulty The port may be faulty 5-2.

  • Page 120: Appendix A Technical Specifications

    User Manual Appendix A Technical Specifications Features • 20 (10/100/1000Mbps) Gigabit Ethernet (TP) switching ports are compliant with IEEE802.3, 802.3u, 802.3z, 802.3ab and 802.3af. • 4 Gigabit TP/(100/1000M) SFP fiber are dual media ports with auto detected function. • Non-blocking store-and-forward shared-memory Web-Smart switched. •...
  • Page 121 User Manual Hardware Specifications Standard Compliance: IEEE802.3/802.3ab / 802.3z / 802.3u / 802.3x/ 802.3af Network Interface: Configuration Mode Connector Port 10/100/1000Mbps Gigabit TP 1 - 24 NWay TP (RJ-45) 21,22,23,24 1000 FDX *SFP 1000Base-SX Gigabit Fiber (Option) 21,22,23,24 1000 FDX *SFP 1000Base-LX Gigabit Fiber (Option)
  • Page 122 User Manual Diagnostic LED: System LED : Power Per Port LED: 10/100/1000M TP Port 1 to 24 : LINK/ACT, 10/100/1000Mbps PoE Port 1 to 24 : PoE 100/1000M SFP Fiber Port 21to24 : SFP(LINK/ACT) AC Line Power Requirements Voltage 100∼240 VAC Frequency 50∼60 Hz Consumption...

  • Page 123: Appendix Bmib Specifications

    User Manual Appendix B MIB Specifications MIB II Enterprise MIB brief description is listed as below. For technical support or the latest version of MIB download, please visit our web site www.transition.com PRIVATE-GS1224L-MIB DEFINITIONS ::= BEGIN IMPORTS mib-2, DisplayString,ifIndex FROM RFC1213-MIB enterprises,Counter, TimeTicks, Gauge,IpAddress FROM RFC1155-SMI OBJECT-TYPE...
