Summary of Contents for Systemline S6

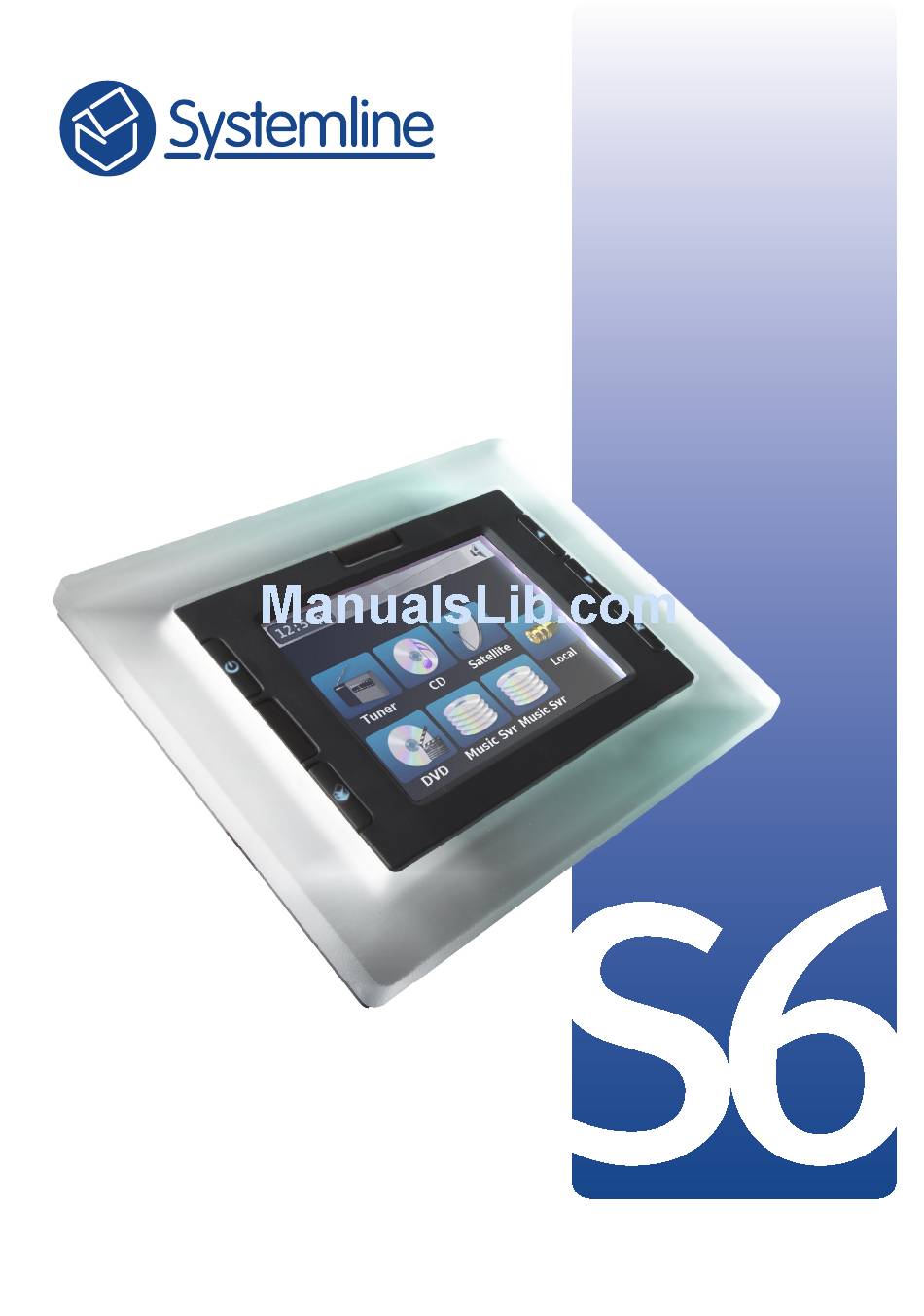

- Page 1 User Guide...
- Page 2 9. Protect the power cord from being walked on or pinched, Declaration Of Conformity particularly at plugs, convenience receptacles and the point at which The Systemline S6 Multi- they exit from the apparatus. room Controller has been 10. Only use attachments/accessories designed and independently specified by the manufacturer.
- Page 3 • If you use a chemical saturated cloth to clean the unit, follow that product’s instructions. • When shipping the Systemline S6 Controller product, always use the original shipping carton and packing materials. For maximum Notes on Moisture protection, repack the unit as it was Condensation originally packed at the factory.
-
Page 4: Table Of Contents
Contents CAPABILITIES LOCATION SWITCHES AND DISPLAY Power Switch Front Panel Display Front Panel Standby Button Resetting the S6 Controller to Factory Default Conditions USING THE S6 CONTROLLER Selecting Audio Sources Volume Controls Treble and Bass Controls Party Feature Switch All Zones Off TOUCHSCREEN OPERATION Switching the system on From the touchscreen... -
Page 5: Capabilities
CAPABILItIes The S6 Controller allows selection of up to 6 audio sources (such as CD players, tuners etc) to any of 8 Zones. Remote control handsets or wall-mounted keypads are used to select and control sources from within each Zone. -
Page 6: Resetting The S6 Controller To Factory Default Conditions
• Touch screen keypads will still be able to control lighting systems, if these are installed When the LED is green or flashing green, the S6 Controller is fully operational • A short press of the STANDBY button will place the S6 Controller into standby and will mute all Zone pre-amplifier outputs and all Zones. -
Page 7: Switch All Zones Off
To switch off (set to standby) all Zones at once, press and hold down (for at least 2 seconds) the Standby button on the LRN7 handset from within any Zone. All zones can also be switched off by pressing the standby switch on the front panel of the S6 Controller. Page ... -
Page 8: Touchscreen Operation
toUCHsCReen oPeRAtIon switching the system on from the touchscreen Standby Screen ➊ Press the “power” button (hard button on top left hand side of screen) and it will switch the zone on and select input 1 which is normally a radio tuner – so by doing this, you will always hear something. -
Page 9: Radio Play Screen
Radio play screen 12.56pm DAB Tuner BBC Radio 1 Newsbeat - all the latest news Email - newsbeat@bbc.co.uk Presets Home screen (Sources available vary according to installation requirements). Page ... -
Page 10: Navigating The System
12.56pm BBC Radio 1 BBC Radio 2 nAVIGAtInG tHe sYstem BBC Radio 3 The starting point is the Home Screen. If you are not on the Home BBC Radio 4 >> Screen, simply press the Home button ( ) until the Home Back Screen appears (the Home button is also a back button, so you may need to click on this more than once). - Page 11 Server play screen To select and navigate to your music selection, click on “Select Music” button. This will take you to the Server Navigation screen. Other “buttons” are for play, stop, pause, skip forward/back etc. Certain buttons are two-way and will highlight orange when activated.
-
Page 12: Music Selection Screen
Server navigation screen music selection screen You can choose music by either Album, Artist or playlists. Playlists are selections of favourite tracks and/or albums usually with a theme, such as “Pete’s favourite rock music”. Selecting by album or playlist will take you straight to the Play screen. -
Page 13: Selecting Tuner From The Home Screen
seLeCtInG tUneR FRom tHe Home sCReen 12.56pm Home Tuner Satellite Local MUSIC MUSIC SERVER SERVER 12.56pm DAB Tuner BBC Radio 1 Newsbeat - all the latest news Email - newsbeat@bbc.co.uk Presets Brings up tuner play screen Page 1... -
Page 14: The Tuner Pre-Sets Screen
The Tuner consists of two screens. The first is the play screen which will display the details of the selected radio station. This will normally consist of the actual station name followed by its genre and often some accompanying text. The text can consist of up to 120 characters. - Page 15 12.56pm BBC Radio 1 BBC Radio 2 BBC Radio 3 BBC Radio 4 >> Back To escape from this screen, either select a pre-set and this station will appear (after a short delay) on the play screen. Alternatively click on the back button (bottom left), or press the Home button to return to the play screen.
-
Page 16: Basic Controls
Depending on the source you have selected, you will either be presented with a “play” screen for 2-way devices like the Arcam DAB/FM tuner or Systemline Music Server, or a screen of “soft” buttons to control one-way devices such as CD players, satelite boxes etc. -
Page 17: Alarm Feature
ALARm FeAtURe An alarm can only be set from the standby screen, so it is first necessary to put the Zone into standby. By clicking on the bell icon you will enter the alarm screen the Alarm screen Tuner MUSIC MUSIC Satellite SERVER SERVER The alarm screen permits you to set an alarm time and to select the source you want to be awakened by. -
Page 18: Cancelling The Alarm
Select AM or PM Select the source Click Set Alarm The system will then revert to the standby screen. The standby screen now displays a small bell symbol to the right of the time display. Cancelling the Alarm To unset the alarm, just click on the large bell symbol on the Standby Screen and click the “unset”... -
Page 19: Installation Details
InstALLAtIon DetAILs InstALLeR Address: Contact Name: Contact Number: S6 Controller Serial No.: Zones SOURCE SELECTABLE ZONE ROOM OR AREA SOURCES LOCATED IN ZONE FROM OTHER ZONES? YES/NO YES/NO YES/NO YES/NO YES/NO YES/NO soURCes LRN7 SOURCE SOURCE PRODUCT DESCRIPTION LOCATED LABEL IN ZONE TUNER DISC SATELLITE VIDEO... - Page 20 w w w . s y s t e m l i n e . c o . u k Stortford Hall Industrial Park, Dunmow Road, Bishops Stortford, Hertfordshire CM23 5GZ United Kingdom www.armourhe.co.uk Our policy is one of continuous product improvement, we reserve the right to change the designs and specifications without notice.
