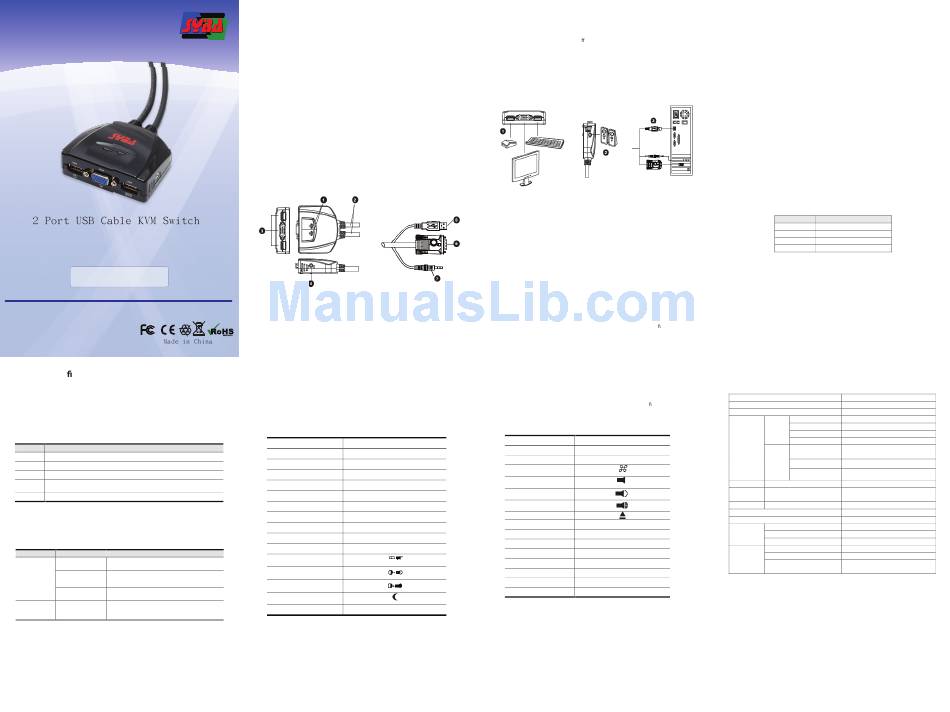

Syba SY-KVM20050 User Manual

SY-KVM20050

User Guide

Specifications and products are subject to
change without prior notice
All trade name referenced are the registered
trademark of their respective owners
Hotkey Con guration
Invoking Hotkey Mode [Ctrl] + [F12] . There are 3 Steps:
1. Press and hold down the [Ctrl]
2. Press and release [12]
3. Release the [Ctrl]
After invoking Hotkey Mode, key in one of the following keys to perform the
corresponding function:
Key Function
F1 Sets the PC Compatible keyboard operating platform.
F2 Sets the Mac keyboard operating platform.
F3 Sets the Sun keyboard operating platform.
[ESC] or
Cancel operation platform setting
[Space]
R [Enter] Resets the Hotkey settings to their default status.

Troubleshooting

Symptom Possible Cause Action
Keyboard Keyboard / Mouse Unplug the keyboard / mouse from the Console
and/or needs to be reset. Keyboard Port, then plug it back in.
Mouse Not
Hotkey sequence
Resend the Hotkey command - press and
Responding input incorrectly.
release each key in the sequence individually.
Switch needs to be Turn off the computers; wait 5 seconds; turn the
reset. computers back on.
Video Resolution and/or
Problems Refresh rate set too Select a lower resolution and/or bandwidth.
high.

Package Contents

TM
1 SY-KVM20050 USB KVM Switch with Attached Cables
1 User Guide

Hardware Requirements

Console
·
A VGA, SVGA, or Multisync monitor
·
A USB Keyboard
·
A USB Mouse
Computers
The following equipment must be installed on each computer that is to be connected
to the system:
·
A VGA, SVGA or Multisync video port
·
A USB Type A port

Hardware Review

1. Port LEDs
2. KVM Cables
3. Console Ports
4. Speaker Jack
5. USB keyboard/Mouse connector
6. Video Connector
7. Speaker Plug
Keyboard Emulation Mapping
The USB 101/104 key keyboard can emulate the functions of the Sun or Mac
keyboard. The corresponding functions are shown in the table below.
Sun Keyboard
Note: When using [Ctrl] combinations, press and release the Ctrl key, then
press and release the activation key.
Sun Keyboard
PC Keyboard
[Ctrl] [T] Stop
[Ctrl] [F2] Again
[Ctrl] [F3] Props
[Ctrl] [F4] Undo
[Ctrl] [F5] Front
[Ctrl] [F6] Copy
[Ctrl] [F7] Open
[Ctrl] [F8] Paste
[Ctrl] [F9] Find
[Ctrl] [F10] Cut
[Ctrl] [1]
[Ctrl] [2]
[Ctrl] [3]
[Ctrl] [4]
[Ctrl] [H] Help

Hardware Installation

· Before beginning the installation procedure, ensure that all equipment to
be connected is powered o .
· Unplug power cords of any computers that have the 'Keyboard Power On'
function. Otherwise, the switch will receive power from the computer
· To prevent damage to your equipment, make sure that all the devices are
properly grounded
Installing your new SY-KVM20050 involves the following steps:
1. Plug your keyboard, monitor, and mouse into their ports on the SY-KVM20050. The
keyboard and mouse ports are labeled with an icon to distinguish them.
Note: When using a wireless composite keyboard and mouse, its
USB cable must plug into the SY-KVM20050 keyboard port for the
Hotkeys to function.
2. Plug your speakers into the SY-KVM20050's speaker jack.
Note: This step is optional
3. Plug the USB, video, and speaker connectors of the attached KVM cables into their
respective ports on the computers you are installing.
4. Turn on the power to the computers.
Note: The SY-KVM20050's Power On default is to link to the rst
computer you turn on.
Mac Keyboard
Note: When using key combinations, press and release the rst key, then press
and release the second key.
PC Keyboard
Mac Keyboard
[Shift] Shift
[Ctrl] Ctrl
[Win]
[Ctrl] [1]
[Ctrl] [2]
[Ctrl] [3]
[Ctrl] [4]
[Alt] L Alt/Option
[Prt_Sc] F13
[Scroll Lock] F14
[Desktop Menu] =
[Enter] Return
[Back Space] Delete
[Ins] Help
[Ctrl] [Win] F15

Operation

Hotkey Port Selection

All hotkey port switches begin with tapping the Crtl key twice.
[Crtl] [Crtl]

Invokes Auto Scan Mode

Starts Auto Scan. Press and release the [Left shift] key, and then press the
[Right shift] key.
[Left shift] [Right shift]

Cancel Auto Scan Mode

Press and release the [ESC] or [Space] key
Scan Interval
Sets the Auto Scan interval to n second intervals - where n is a number from
1 – 4.
[Left shift] [Right shift] [n]
Note: The n stands for the number of seconds that the focus dwells
on a port before switching to the other one. Replace the n with a
number between 1 and 4 when entering this hotkey combination.
(See the table, below.)
Scan Interval Table
n Secs.
1 3 secs.
2 5 secs.(Default)
3 10 secs.
4 20 secs.

Specifications

SY-KVM20050
Function
Computer Connections 2
Port Selection Hotkey
Keyboard 1 x USB Type A Female (Black)
Console Video 1 x HDB-15 Female (Blue)
Ports Mouse 1 x USB Type A Female (Black)
Speaker 1 x Mini Stereo Jack Female (Green)
Connectors
Keyboard/ Mouse 2 x USB Type A Male (Black)
KVM
2 x HDB-15 Male (Blue)
Video
Ports
Speaker 2 x Mini Stereo Plug Male (Green)
LEDs Selected 2 (Green)
Cable
Computers 4 ft (1.2 m)
Length
Emulation Keyboard/ Mouse USB
Video 2048 x 1536; DDC2B
Scan Interval 5 Seconds
Operating Temp. 32 ~ 122°F (0 ~ 50°C)
Environment -4 ~ 140°F (-20 ~ 60°C)
Storage Temp.
Humidity 0-80% RH, Non-condensing
Housing Plastic
Physical Weight 0.86 lb (0.39 kg)
Properties Dimensions 3.11 x 2.60 x 1.02 in
(L x W x H) (7.90 x 6.60 x 2.60 cm)
