Tornado 24 Volt Automatic Battery Charger Operating Instructions Manual
24 volt automatic battery charger
Hide thumbs
Also See for 24 Volt
Automatic
Battery Charger:
- Manual (8 pages) ,
- Preventive maintenance and troubleshooting manual (22 pages)
Advertisement
Mfd. Exclusively for
L1618 FOR COMMERCIAL USE ONLY; CATALOG NO. 99522, 99622
B/T 10/94
www.tornadovac.com
Tornado
24 Volt
Automatic
Battery Charger
5
1
1 2
Tornado
U L
TESTED TO CANADIAN AND
U.S. STANDARDS FOR
SAFETY BY UNDERWRITERS
LABORATORIES, INC.
(708) 867-5100 FAX (708) 867-6968
U.S. PAT. NO. 3,794,905
GR. BR. PAT. NO. 1,414,359
FR. PAT. NO. 2,203,199
W. GR. PAT. NO. 2,351,559
3
JAPAN PAT. NO. 33133/1978
R
Corp., Chicago, IL, USA
U L
C
1
34094A
TORNADO© CORP.
7401 W. LAWRENCE AVENUE
CHICAGO, IL 60656-3489
R
34094A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tornado 24 Volt Automatic Battery Charger
Summary of Contents for Tornado 24 Volt Automatic Battery Charger
-
Page 1: Battery Charger

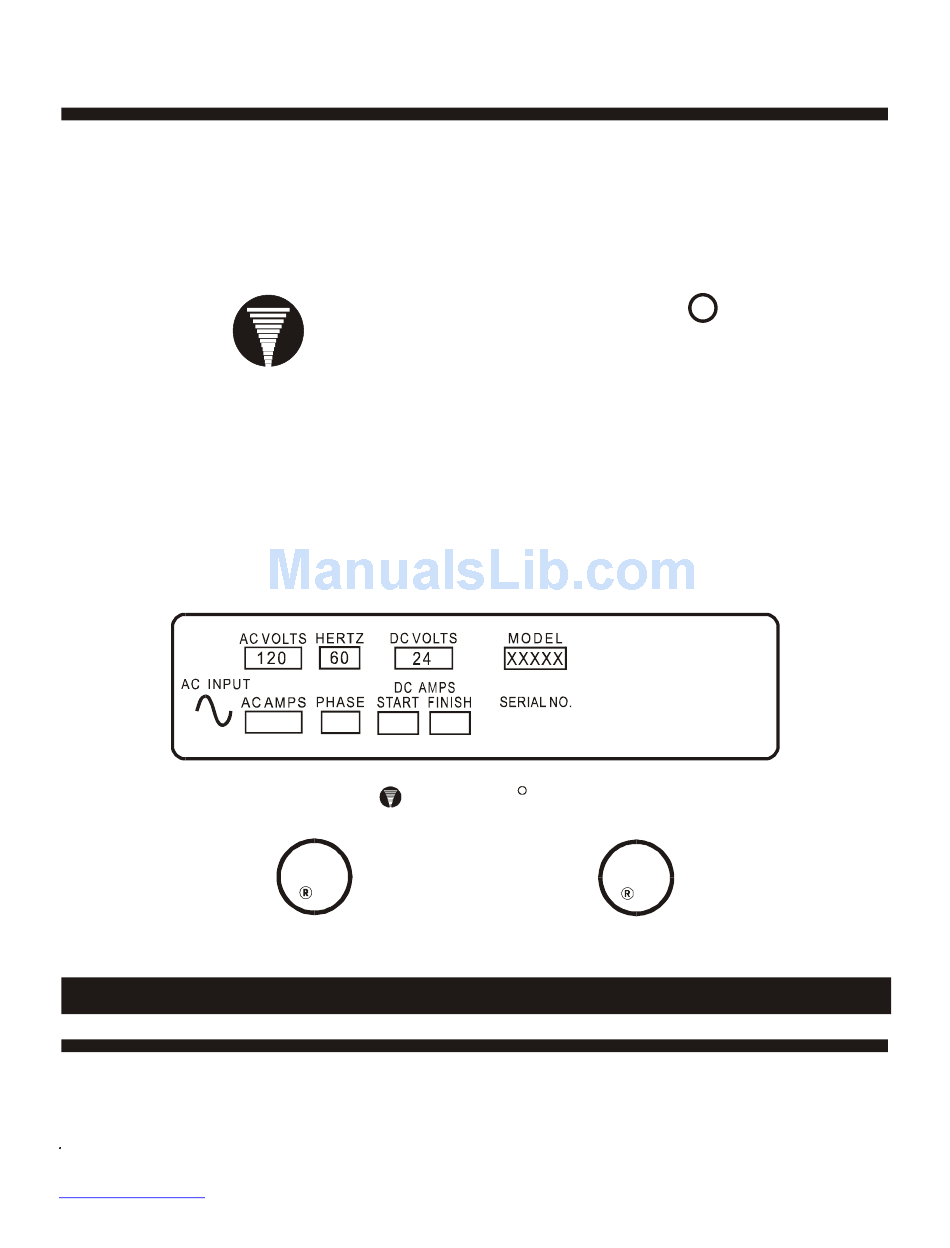

34094A TORNADO© CORP. 7401 W. LAWRENCE AVENUE CHICAGO, IL 60656-3489 (708) 867-5100 FAX (708) 867-6968 Tornado 24 Volt Automatic Battery Charger U.S. PAT. NO. 3,794,905 GR. BR. PAT. NO. 1,414,359 FR. PAT. NO. 2,203,199 W. GR. PAT. NO. 2,351,559 JAPAN PAT. NO. 33133/1978 Tornado Mfd. - Page 2 For repairs made at other than the service centers, Tornado Corp. will provide only the replacement parts. If the unit or parts are found in the reasonable judgment of Tornado Corp. to be defective in material or workmanship, repair, or replacement will be made by Tornado Corp. without charge for parts or labor. Repair or replacement will be at the discretion of the service center or factory with replacements being made using current models or parts performing the equivalent function.
- Page 3 Tornado PLEASE SAVE THESE IMPORTANT SAFETY AND OPERATING INSTRUCTIONS For correct operation of the equipment, it is important to read and be familiar with this entire manual before installing and operating the charger. DO NOT DISCARD THIS MANUAL AFTER READING.
- Page 4 cord are the same number, size, and shape as that PROPER OUTLET INSTALLED BY A QUALIFIED of the plug on the battery charger. Locate all cords ELECTRICIAN. IMPROPER CONNECTION CAN so that they will not be stepped on, tripped over, or RESULT IN A RISK OF AN ELECTRIC SHOCK.
- Page 5 on the battery case to determine the type battery 5. Move the power switch to "ON" and the RED you have. If the information panel is missing or not and GREEN lights will come on steady for a few legible, do not use the battery. Refer to your dealer seconds to test the lights.
-
Page 6: Proper Care Of Deep-Cycle Motive Power Batteries
charge, the GREEN light will fast blink (eight first, then disconnect the DC output cord from times per second), the charge rate will have the equipment charging receptacle. decreased as determined by the "BATTERY TYPE" switch setting and the condition of the CAUTION: TO AVOID DAMAGE TO THE batteries. -
Page 7: Troubleshooting Guide
BATTERY DANGEROUS. BATTERIES immediately with soap and water. If acid enters GENERATE EXPLOSIVE GASES DURING eye, immediately flood eye with running cold NORMAL BATTERY OPERATION. IT IS VERY water for at least 10 minutes and get medical IMPORTANT THAT YOU READ THIS MANUAL attention immediately. - Page 8 d. A fault has occurred in the equipment wiring. The equipment charging circuit has high resistance, or corroded, loose connections, loose or worn charging receptacle, or loose, GREEN worn fuseholders. FUNCTION LIGHT LIGHT 4. A decrease in equipment range where it loses No AC power or No battery connected power faster and faster indicates one of the Steady...
- Page 9 b. There are failed cells in the batteries being d. Several failed cells in the batteries that do charged. This cell failure prevents the not allow the charge rate to taper below 4 battery voltage to rise above 18 volts. amps.
