Marksman M3 Installation Manual

Installation Manual
For Technical Assistance (800) 638-3600

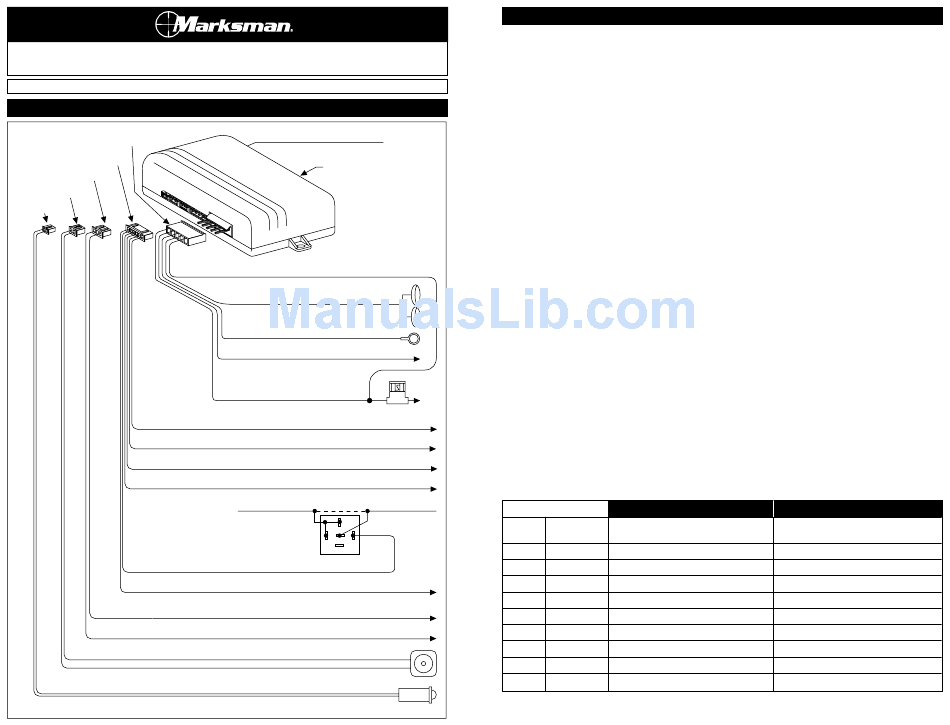

Step 1: Wiring Diagram
5-Pin White
6-Pin White
3-Pin Black
2-Pin Blue
2-Pin White
Model: M3
Black Wire Antenna (Do Not Ground)
Sensor Port
(White)
Red Wire with White Stripe Parking Light Relay Input
White Wire Parking Light Relay Output
Black Wire Ground to Vehicle Frame
Brown Wire Positive Output to Siren
Red Wire To Battery +12V
Violet Wire Positive Door Pin Switch Input
Blue Wire Instant Trigger Ground Input
Green Wire Negative Door Pin Switch Input
Yellow Wire To Ignition Switched +12V
Cut
From ignition switch To start solenoid
30
87A
85
86
87
Orange Wire 200mA Grounded when Armed
Gray Wire (-) 200mA Channel 2 / Pager Output
Red Wire (-) Negative Door Lock Output
Black Wire (-) Negative Door Unlock Output
Valet Switch
LED
Step 2: Programming
A. Programming the Transmitters
The security system has 2 transmitter programming modes. Up to 4 transmitters can be programmed.
1. "Combined" button, (Button 1 is Arm/Disarm).
2. "Dedicated" buttons, (Button 1 is Arm, Button 2 is Disarm).(Factory default setting)
To program the transmitters:
1. Turn ignition to "on" position.
2A. Push the valet switch 3 times to enter "combined button mode".
There will be 1 long chirp and 1 short chirp of confirmation of entering combined button mode.
2B. Push the valet switch 6 times to enter "dedicated button mode".
There will be 2 long chirps and 1 short chirp of confirmation of entering dedicated button mode.
3. Press any button on 1st transmitter, 1 short chirp to confirm code is learned.
4. Press any button on 2nd transmitter, 2 short chirps to confirm code is learned.
5. Press any button on 3rd transmitter, 3 short chirps to confirm code is learned.
6. Press any button on 4th transmitter, 4 short chirps to confirm code is learned.
7. Exit transmitter programming by turning "off" the ignition key or after 15 seconds the
security system will automatically exit transmitter programming and chirp 3 times.
Note: If more than 4 transmitters programmed, the system only keeps the last 4 transmitter codes.
B. Programming System Features (Factory preset all features to "on" position, except car-jacking)
To enter feature programming:
1. Turn the ignition "on" then "off".
2. Within 10 seconds push the valet switch 3 times. (A long chirp).
3. Again push the valet switch 3 times. (A long chirp again to confirm in feature programming mode).
To program a feature:
4. Push the valet switch the same number of times as the feature number (see chart below).
5. Turn ignition switch from "off" to "on" to set the feature.
Example:
1. Push valet switch 2 times, (it's on Active/Passive Arming section. The siren will chirp 2 times, LED
flash 2 times to confirm enter this feature.
2. Select Active Arming, turn ignition from "off" to "on", 1 chirp for confirmation.
3. Select Passive Arming, turn ignition from "on" to "off", 2 chirps for confirmation
4. If you want to program Auto Rearm (5th feature) when the system is on Active/Passive Arming,
push valet switch 3 times again. (Siren chirps 5 times, LED flashes 5 times). The system will add on
the previous valet switch pushing.
To exit feature programming:
6. During programming, if you don't respond to previous step in 15 seconds or any time press the ARM
button on the transmitter it will exit feature programming. 3 long chirps will indicate you have exited
feature programming.
Turn ignition from "off" to "on"
Feature Chirp/LED Feature "on"
Number Confirmation (
Factory Default Setting)
1 1 Chirp "on"
2 2 Active Arming
3 3 Passive arming with door locks
4 4 Ignition on/off with door lock/unlock
5 5 Auto Rearm "on"
6 6 2- Pulse Unlock "on"
7 7 Door Lock Time 0.9 seconds
8 8 Car-Jacking "off"
9 9 Channel 2 (Trunk) Output
© Copyright 2001
Magnadyne Corporation
Turn ignition from "on" to "off"
Feature "off"
Chirp "off"
Passive Arming
Passive arming without door locks
Ignition on/off without door lock/unlock
Auto Rearm "off"
2- Pulse Unlock "off"
Door Lock Time 3 seconds
Car-Jacking "on"
Pager Output
M3INS
Rev. B 4-17-01
