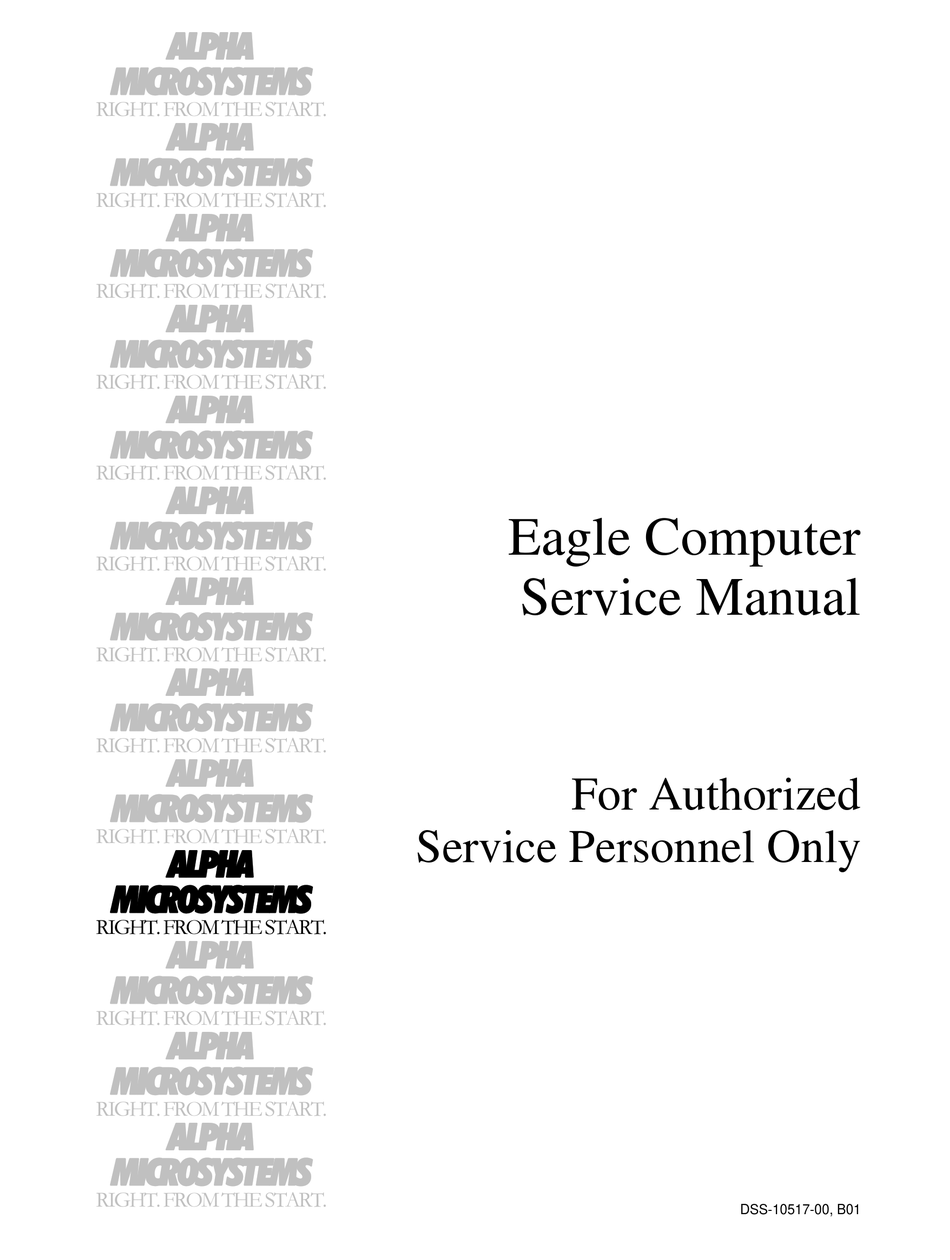

- Page 1 Eagle Computer Service Manual For Authorized Service Personnel Only ...
- Page 2 © 1998 ALPHA MICROSYSTEMS FIRST EDITION: July 1998 To re-order this document, request part number DSS-10517-00. FCC Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Roadrunner AM-172 Board Configuration Roadrunner AM-174 Board Configuration ACCESSING YOUR ROADRUNNER BOARD UPGRADING ROADRUNNER ON-BOARD MEMORY Installing Memory PERIPHERAL MOUNTING Eagle 100-500 Rear Panel Screws Eagle 550 Rear Panel Screws Side Mounting Bracket Removal - All Eagles X-Bus Cable Routing DSS-10517-00, Rev. B01... -
Page 4: Introduction
Eagle 300 computer. Here’s a brief introduction to the Eagle series lineup: Eagle 100 A single board computer based on a main electronics board called the AM-137. The AM-137 board includes all the circuitry found on Alpha Micro’s AM-172 Roadrunner board. -
Page 5: Accessing Your Computer
Page 2 Eagle Series Computer Service Manual ACCESSING YOUR COMPUTER For hardware information on the AM-990 chassis consult the AM-990 SBC Service Manual, part number DSS-10524-00. When adding additional equipment or servicing your computer, you need to remove your computer’s top cover. -
Page 6: Electronic Equipment Handling Precautions
Eagle Series Computer Service Manual Page 3 Eagle Top Cover Removal Electronic Equipment Handling Precautions With the AC power cord unplugged and the top cover removed, the components inside your computer are vulnerable to damage caused by static discharge. Your body and clothing are capable of storing an electrical charge that can damage or destroy unprotected electronic components. -
Page 7: Hardware Configurable Options
The next few sections contain configuration information for the following boards: AM-137 The Eagle 100 is a single board computer based on a main electronics board called the AM-137. The AM-137 board includes all the circuitry found on Alpha Micro’s AM-172 Roadrunner board; it also... -
Page 8: Am-137 Board Configuration
Eagle Series Computer Service Manual Page 5 AM-319(-00) The AM-319(-00) board is used with either an AM-172 or AM-174 Roadrunner board in the Eagle 300- 500 computers. The AM-319 board supports all the I/O ports used to communicate with printers, terminals, networks, etc. - Page 9 Page 6 Eagle Series Computer Service Manual BOOT CONFIGURATION PARALLEL PORT SWITCH W2 "IN" = REMOTE RESET ENABLED W2 "OUT" = REMOTE RESET DISABLED (DEFAULT) RESET SWITCH FOUR ON-BOARD (4-7) RS232 SERIAL PORTS POWER CONNECTOR FOUR ON-BOARD (0-3) RS232 SERIAL PORTS PIN-1 OSCILLATOR JUMPERS DO NOT REMOVE...
-
Page 10: Am-319(-00) Board Configuration
= ETHERNET 10Base-T CONNECTOR ENABLED REMOTE RESET JUMPER = REMOTE RESET DISABLED SPEAKER CONNECTOR = REMOTE RESET ENABLED AM-314 / 318 / 318-10 SERIAL I/O EXPANSION ALPHA MICROSYSTEMS PARALLEL PORT 1 PARALLEL PORT 0 ETHERNET 15-PIN A.U.I. PORT CHIP OSCILLATOR JUMPERS... -
Page 11: Am-319(-10) Board Configuration
CONNECTOR FOR AM-219 DISKETTE CONTROLLER The J7 I/O expansion slot will also support the AM-366 Ethernet board. RESET BUTTON AM-314 / 318 / 318-10 SERIAL I/O EXPANSION ALPHA MICROSYSTEMS AM-319 (-10) PARALLEL PORT IDE INTERFACE CONNECTOR OSCILLATOR JUMPERS (DO NOT REMOVE) -
Page 12: Am-319(-20) Board Configuration
Eagle Series Computer Service Manual Page 9 AM-319(-20) Board Configuration The illustration below shows the AM-319(-20) board configured as shipped by Alpha Micro. There is only one-user configurable jumper on this board, the JP7 Remote Reset jumper. All other jumpers should be left in their factory-configured positions. -
Page 13: Remote Reset Capability
You can also enable remote reset by using the remote reset cable, DWB-10323-00, available from Alpha Microsystems. This works even if port 0 is on an AM-314 or AM-318-10 board, which do not support remote reset through port 0, as described above. See PDI-10323-00, Remote Reset Adapter, for details. - Page 14 Eagle Series Computer Service Manual Page 11 AM-319(-20) Battery Replacement The AM-319(-20) board uses two three-volt lithium batteries (part #BR1225). The batteries are slightly smaller than a dime, and are secured side-by-side in a plastic holder. When the batteries need replacement, you must replace both batteries at the same time.
-
Page 15: Ssd Chip And Boot Prom Handling
Page 12 Eagle Series Computer Service Manual The battery backup on the AM-319(-20) also maintains the boot routine data stored in its on- board CMOS chip. After you install the new batteries and boot the system, the front panel may display a blinking “CE”... -
Page 16: Roadrunner Am-172 Board Configuration
Eagle Series Computer Service Manual Page 13 Roadrunner AM-172 Board Configuration The illustration below shows the AM-172 board configured as shipped by Alpha Micro. The only user- configurable jumpers on this board are the JP5 and JP6 memory configuration jumpers. These jumpers only need to be reconfigured if you change the amount of memory installed in your computer. -
Page 17: Roadrunner Am-174 Board Configuration
ALPHA MICROSYSTEMS N C R PIN-1 INDICATOR 50-PIN SCSI CONNECTOR X-BUS CONNECTORS BOOT PROM ALPHA MICROSYSTEMS AM-174 FACTORY USE ONLY, NO JUMPERS INSTALLED MEMORY CONFIGURATION JUMPERS OSCILLATOR JUMPERS 16MB 32MB 64MB (DO NOT REMOVE OR RECONFIGURE) X-BUS ACTIVE TERMINATION IN = ENABLED (FACTORY DEFAULT) -
Page 18: Accessing Your Roadrunner Board
Roadrunner board in place. The Eagle 100 has the Roadrunner AM-172 “030” board circuitry incorporated into its AM-137 CPU board. To upgrade the Eagle 100 to a Roadrunner “040”, you will need an AM-987 upgrade kit. - Page 19 X-Bus connectors, the 50-pin SCSI cable, and the 4-pin power cable. After unplugging the cables, simply remove the four screws shown above and you can remove the Roadrunner board from the assembly. Roadrunner Installation (Early Models & Eagle 100 Upgrades) DSS-10517-00, Rev. B01...
- Page 20 Eagle Series Computer Service Manual Page 17 6-32 PHILLIPS-HEAD SCREW In this configuration, the Roadrunner board is mounted on top of four standoffs which are attached directly to the screen on the bottom of the chassis. Roadrunner Installation (Late Model Eagle Computers) DSS-10517-00, Rev.
-
Page 21: Upgrading Roadrunner On-Board Memory
Page 18 Eagle Series Computer Service Manual UPGRADING ROADRUNNER ON-BOARD MEMORY The Roadrunner has one on-board SIMM (single inline memory module) expansion slot. SIMM memory is available in five sizes: 4, 8, 16, 32, and 64 megabytes. Installing Memory Special care must be taken when installing a SIMM module. The illustration below shows how the curve in the SIMM module must align with pin-1 on the SIMM connector. -
Page 22: Peripheral Mounting
There are two basic types of Eagle system rear panels: the Eagle 100-500 rear panel, and the Eagle 550 rear panel. The two types of rear panels require a different method of unfastening the main electronics board. - Page 23 Page 20 Eagle Series Computer Service Manual These two half-height 5.25" mounting positions support hard disk drives. Peripherals mounted in either of these locations cannot be accessed via the computer's front panel. These four half-height 5.25" mounting positions are designed for peripherals that use removeable media, like diskette and tape drives.
-
Page 24: Eagle 100-500 Rear Panel Screws
SCSI connector to the rear panel. Then, push the SCSI connector back into the chassis so it is no longer protruding through the rear panel. 3. On Eagle 100 systems, disconnect the 50-pin SCSI cable from the connector on the main electronics board (the AM-137 CPU board). -
Page 25: Eagle 550 Rear Panel Screws
Page 22 Eagle Series Computer Service Manual Eagle 550 Rear Panel Screws Refer to the following steps and illustration to unfasten the main electronics board from the “Super Eagle” (Eagle 550) rear panel. 1. Remove the three Phillips-head screws where indicated in the illustration. The three screws hold the AM-319(-20) I/O mounting bracket to the chassis rear panel. -
Page 26: Side Mounting Bracket Removal - All Eagles
Eagle Series Computer Service Manual Page 23 Side Mounting Bracket Removal - All Eagles Refer to the following steps and illustration to unfasten the main electronics board side mounting bracket from the Eagle chassis. This procedure is exactly the same for both the standard and Super Eagle chassis. 1. -
Page 27: X-Bus Cable Routing
Page 24 Eagle Series Computer Service Manual 3. There are a ribbon cable and a number of small wires extending between the front panel and the display connector on the main electronics board. Do not disconnect any of these wires; they are long enough to allow you to lay the main electronics board assembly on your work surface without having to disconnect them. - Page 28 Eagle Series Computer Service Manual Page 25 DWB-00319-00 TO DWB-00172-00 X-BUS CABLING (for Rev. C00 and later of DWB-00319-00; for earlier revisions connect J5 to J5 and J6 to J6!) AM-319 AM-172 DWB-00319-00 TO DWB-00174-00 AND -02 X-BUS CABLING (for Rev. C00 and later of DWB-00319-00; for earlier revisions connect J5 to J3 and J6 to J2!) AM-319 AM-174-XX DWB-00319-10 TO DWB-00172-00 X-BUS CABLING...
