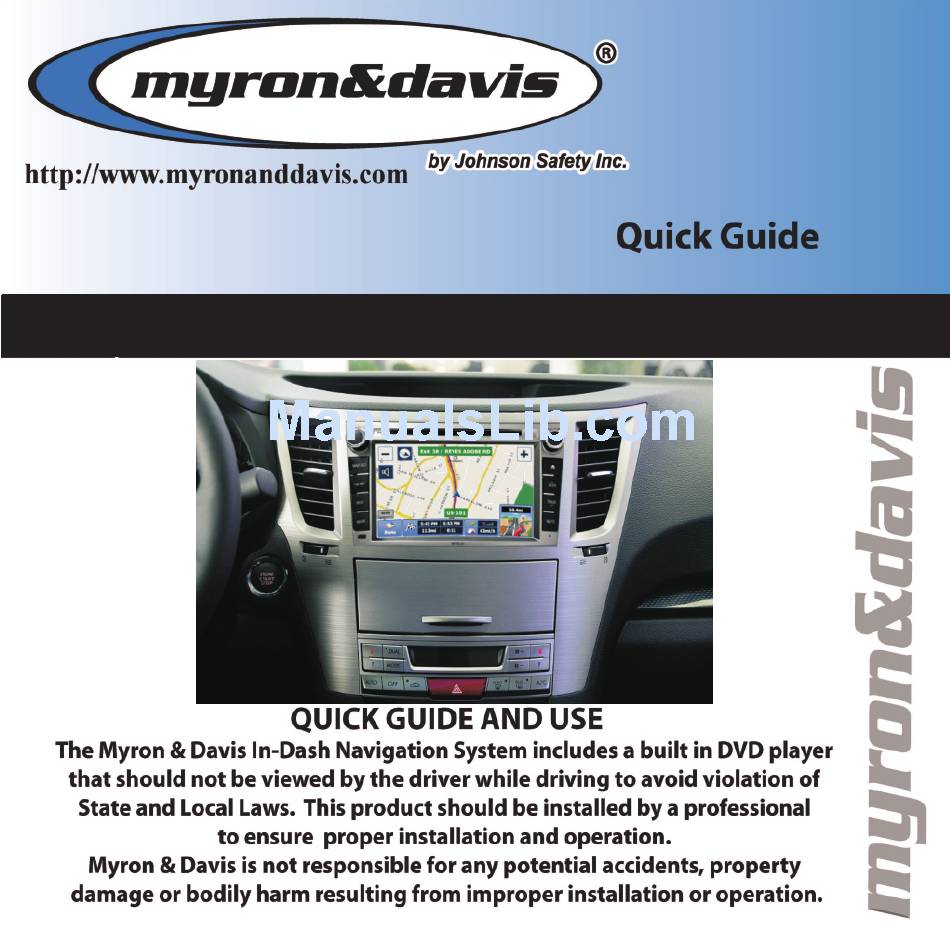

- Page 1 SUBARU LEGACY NV7SLG1...
- Page 3 Pre cautions To ensure the traffic safety and avoid contravening the traffic regulations, do not watch any program or operate the system while driving. For safety and correct operation of the product, the product shall be installed by professional. Do not disassemble or repair the product by yourself, to avoid an accident or damage to the product.
- Page 4 NOTE In order to use the product correctly and safely; please read this manual carefully. Specification and design due to technical improvement are subject to variation without notice! Please read this manual carefully before using this product and keep the manual for future use.
- Page 5 Introduction Thank you for purchasing the Myron and Davis Subaru Legacy In Dash Multi Media Entertainment System. Please read this manual carefully for safe and proper operation. Retain the manual for future reference. This system is a multi-functional Audio / Video entertainment system with a user friendly GUI, which is designed for ease of operation by the end user.
- Page 6 SD Card Port: Built-in RADIO, DVD player, Navigation, Bluetooth hands-free, LCD display and high power amplifier. Supports virtual CDC function, capable of storing songs from the CD in the Mp3 format. Storage space capable of 5 Cd’s or up to 60 songs.
- Page 7 Touch Screen Input With Navigation While in Navigation Mode characters can be entered by touching the screen thus allowing the user to quickly enter a route Back Up Camera (Optional) Allows the user to have a visual from behind the vehicle Back Up Sensor (Optional) Allows the user to determine the distance to objects behind the vehicle...
- Page 8 To insure the system functions properly, connect the wires according to the wiring diagram In order to prevent a short circuit, cover the insulated casings of the audio/video connectors. Give priority to port “A”, when this port is connected to the TV tuner, please connect to port “D”.
- Page 11 MAP-SD MAIN MAP-SD MAIN...
- Page 12 MAP-SD MAIN When in radio mode, turn the knob to manually While on, press once to enter night mode. Press tune the station. again to enter black screen mode. Press and hold When in DVD mode, turn the knob to select to enter standby state.
- Page 13 Mutes the audio. Bluetooth Handsfree Microphone Insert a paperclip into this hole and press the button inside the hole.The system will be reset to the factory settings.
- Page 14 Main Menu For detailed information of these functions, please refer to our “User's Manual”. Notes: because of the complex environment of NAV system, it susceptible to strong electromagnetic interference from outside (for example: there is no image, can not enter into map). In case of this situation, press NAV button on the panel to exit from NAV state Restart interface...
- Page 16 Packing List With Bulid-in NAV Module Standard Accessories Qty. Model 1pcs Power loudspeaker wire 5.1 AV output wire 1pcs AV output wire 1pcs 1copy User's manual Quick guide 1copy NAV receiving antenna 1pcs Writing pen 1pcs Optional Accessories AV input wire 1pcs 1pcs...
