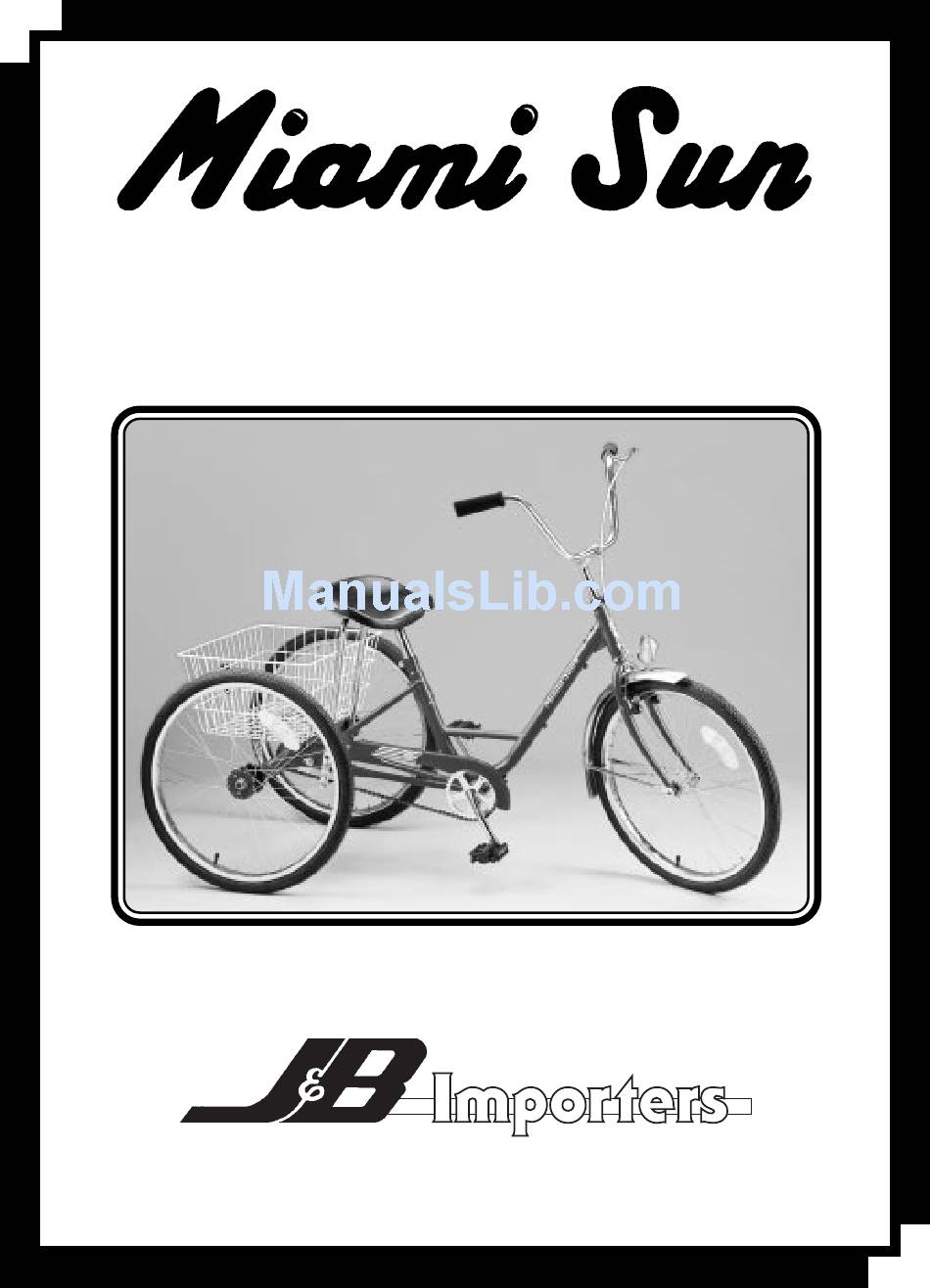

- Page 1 Trike Assembly Manual Revised 3-98...
- Page 2 Zip_____________________________ For customer's use Miami Sun Limited Warranty The Miami Sun frame, purchased from an authorized dealer is warranted to be free from defects in materials provided the trike is owned by the original buyer. The original fork and rear unit is warranted to be free from defects for a period of 90 days from date of purchase.
- Page 3 A trike is not a bicycle and this manual contains specific information and warnings that will let you enjoy your Miami Sun in comfort and safety. Tricycling is a sport and a mode of transportation. With it comes the risk of an accident that could result in injury and even death.
- Page 4 CHECKLIST BEFORE RIDING 1. Check your tires for proper air pressure. If you need to inflate them do not inflate over the recommended air pressure on the side wall. 2. Test your front brake and make sure it stops the trike. If you have any doubts do not ride and see your dealer.
- Page 5 “Miami Sun” Parts Description Miami Sun Parts List and Description 1. Frame 15. Chainguard 2. Fork 16. One Piece Crank 6"x1/2" with 3. Headset Chainring 36T 4. Front Cantilever Brake w/ Locking Lever 17. Pedals 1/2" 5. Front Fender with Braces 18.
- Page 6 "Miami Sun" Trike Parts List & Description 670262 Miami Sun frame blue (13) 6702180 Basket trike white vinyl coated 670260 Miami Sun frame red 6702181 Basket fittings 670261 Atlas frame yellow (16) 6702067 Crank one piece 6" 6702291 Fork w/pivots chrome 24"...
- Page 7 "Miami Sun" Trike Assembly Instructions* (Fig. 1) Step 1) Steering Head Adjustment A. Place trike in an upright position on floor, loosen head lock nut and the adjusting cone. B. Re-tighten adjusting cone finger-tight. Turn the fork from side to side. Fork should turn with no rocking or free play.
- Page 8 Step 2) ContÕd C. Make sure that safety fork washer devices remain hooked into fork end tips. “Warning: Do not ride without safety fork washers.Ó (Fig. 3) Step 3) Free Wheel Rear Unit Assembly (Fig. 4A) A. Thread the free wheel adapter into the plain side of free wheel and tighten until free wheel and adapter are flush with each other.
- Page 9 Step 4) Attaching Free Wheel Rear Unit To Frame Installing unit to frame is a simple matter of attaching two pairs of long and short carriage bolts. Please proceed in the following sequence: A. Install loosely the two large carriage bolts with their nuts and washers, to the two holes in the end of the trike frame stay.
- Page 10 Step 6) Attaching Pedal A. Each pedal axle is marked with "R" (right) or "L" (left). Install them in their correct position. Note that the left pedal tightens by turning counter clockwise and that the right tightens clockwise.The right side is the chain wheel side. (Fig.
- Page 11 Step 8) ContÕd B. Now put the second wheel on left side . This wheel is the idler. First slip on the spacer, then the wheel, followed by a washer and the locking nut until it touches the bearing. Again Do Not Over Tighten. Leave Some Play.
- Page 12 Step 10) Attaching Vinyl Basket A. With the reflector bracket on basket facing rear, place and center the basket onto the unit basket support bars. B. Align the two holes of unit basket support bar with the holes of the basket attaching brace.
- Page 13 Step 13) Attaching Reflector Kit The white reflector is bolted to reflector bracket on fork. The red reflector is bolted to reflector bracket on rear of basket. The wheel reflectors are installed opposite valve stems on rims. For mag wheel the reflectors are installed on wheel tabs. Step 14) Installation of Cantilever Brakes A.
- Page 14 Trike Coaster Brake & 3-Speed Coaster Brake Conversion Instruction (Optional) Step 1-A) Helpful Hint: Prepare CB hub unit by attaching The trike CB & 3-spd. C.B. sprocket with concave side facing outward from hub. Concave hub units are adjusted & sprocket faces in for the 3-spd.
- Page 15 Step 3-A) Place CB or 3-spd. C.B. hub unit into special frame conversion slot brackets located on top of rear bottom frame stays, attach nuts. ( Fig.14) TOWARD FRONT (Fig. 14) Step 6-A) Step 4-A) urn chainwheel and note chain Attach chain (84 Links) to chainwheel condition, chain must run smoothly with no and outer CB or 3-spd.
- Page 16 (Fig. 15) 3. Align the first most forward holes on unit legs with rear frame slot. Attach the two smaller carriage bolts and finger tighten. Note that the heads are outside the frame. 4. Make sure that the axle flange on unit is to the right side of unit & frame. Also unit must be installed with support bars up so that the basket can rest on them.
