TABLE OF CONTENTS:
IMPORTANT INFORMATION
Typical Wiring (Schematics) ..............................................................................
Parts List
TROUBLESHOOTING GUIDE ..............................................................................
WARRANTY
WARRANTY REGISTRATION ..............................................................................
SAVE THIS MANUAL FOR FUTURE REFERENCE

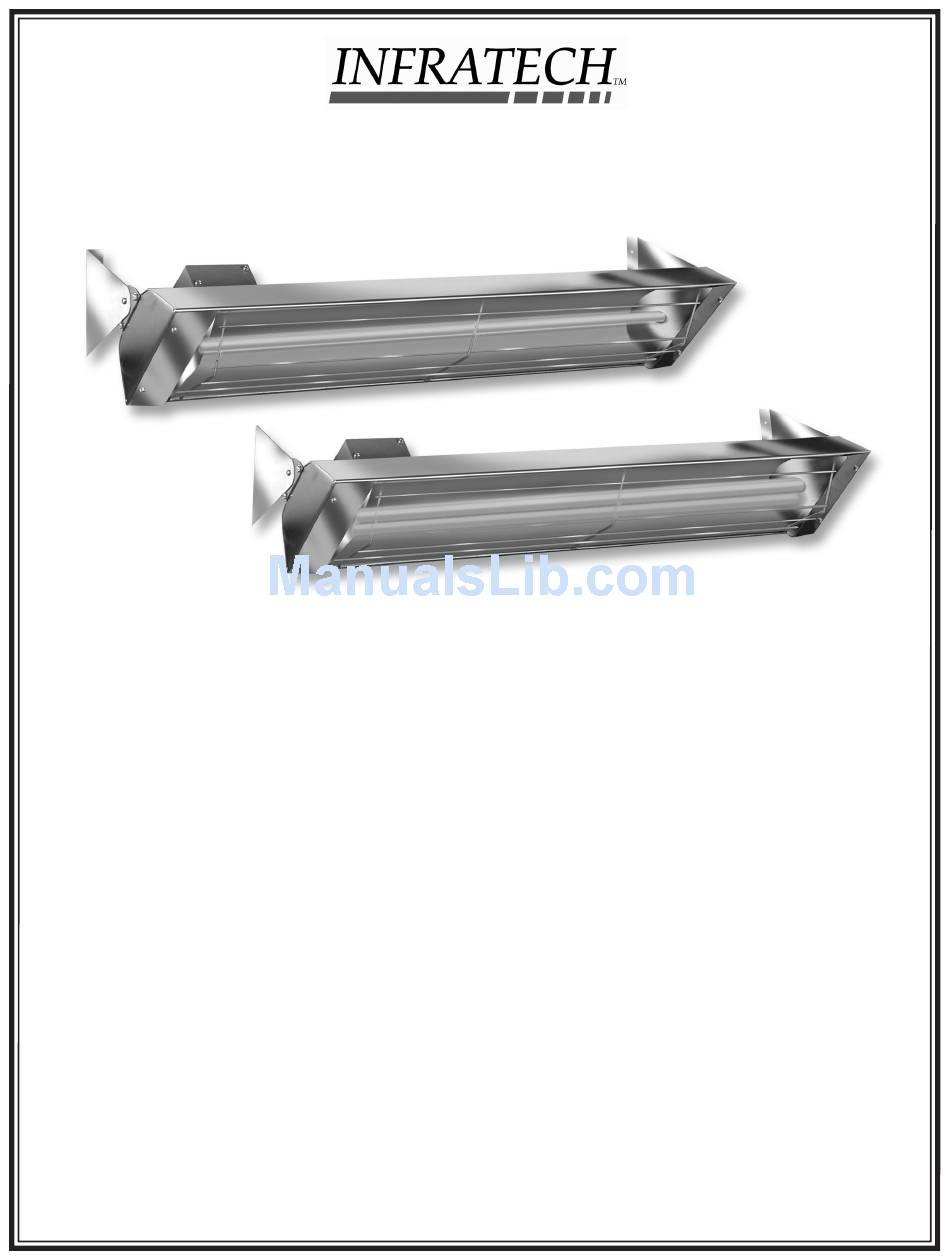

Innovative Infrared Technology
ALL WEATHER QUARTZ TUBE
ELECTRIC HEATER
INSTALLATION USE & CARE MANUAL
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
3
3
4
5
4
5
6
6
7
8
8
9
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Infratech ALL WEATHER QUARTZ TUBE ELECTRIC HEATER
Summary of Contents for Infratech ALL WEATHER QUARTZ TUBE ELECTRIC HEATER
- Page 1 Innovative Infrared Technology ALL WEATHER QUARTZ TUBE ELECTRIC HEATER INSTALLATION USE & CARE MANUAL TABLE OF CONTENTS: IMPORTANT INFORMATION Assembly Instructions …………………………………………………………………… Wiring Instructions …………………………………………………………………… Outdoor Installation …………………………………………………………………… Electrical WARNING …………………………………………………………………… APPLICATION INFORMATION Application Information …………………………………………………………………… Typical Wiring (Schematics) …………………………………………………………………… General Notes ……………………………………………………………………...
- Page 2 ASSEMBLY INSTRUCTIONS – ELECTRIC HEATER NOTE: To prevent breakage, unit is shipped without the element installed. 1. Check UL/CE label on Heater for proper voltage 2. Remove end plates. 3. Open element clips at each end of the Heater and carefully install the quartz tube. Re move one nut from end of element.
-
Page 3: Mounting Instructions
The following information is designed to help you apply and install INFRATECH QUARTZ TUBE ELECTRIC HEATERS in a variety of locations. INFRATECH heaters are one of the most economi- cal of all radiant heaters to buy, and can be some of the least costly to operate. They may also be the most economical to install, depending on the location of electrical power adequate to operate the heater(s) properly. - Page 4 NOTE: Heater must be installed with the quartz tube horizontally level. For maximum tube life, use a “carpenters level tool” find the optimum level position for the heaters’ body. LEVEL HERE Always maintain the below minimum clearances from the heater body to any combust materials. Connect power with flexible conduit or appropriate cord to allow heater to be swiveled.
- Page 5 GENERAL NOTES: 1. INFRATECH QUARTZ TUBE ELECTRIC HEATERS are furnished with wall/ ceiling mount swivel brackets. These brackets may be discarded when the heater is hung with chains or other special bracketing. 2. See sales literature and price list for full listing of models, descriptions, amperages, and voltages.
- Page 6 LOCATION SUGGESTIONS NOT RECOMMENDED RECOMMENDED Unless heaters are installed over 12 ft. high, it is generally recommended that all radiant heaters be mounted on an 30° to 60° from horizontal angle to assure that radiant warmth is face down. Best angle distributed from the sides rather than approx.
- Page 7 REPLACEMENT PARTS LIST – ELECTRIC HEATER Part Number Part Description 13-1210 End Reflector Set (2 pcs) 13-1202 W 10 Body Reflector 13-1200 W 20 Body Reflector 13-1205 W 30 Body Reflector set (2 pcs) 13-1242 W 10 safety grill 13-1240 W 20 safety grill 13-1245 W 30safety grill...
- Page 8 (i.e. cleaning products improperly applied). Warrantor is not responsible for consequential or incidental damages. Under no circumstances shall INFRATECH or any of its representatives be held liable for injury to any person or damage to any property, however arising. Important: Please retain original proof of purchase to establish warranty period.
