HUBBELL LIGHTING LXKEYILP Installation Instructions

LX Keyed Switch Station - LXKEYILP

Installation Instructions

Hubbell Building Automation, Inc.
9601 Dessau Road • Building One • Suite 100
Austin, Texas 78754
512-450-1100 • 512-450-1215 Fax
www.hubbell-automation.com

Overview

These instructions provide guidelines for setting up, installing, and
programming the LX Keyed Switch Station.

Precautions

• RISK OF ELECTRICAL SHOCK. Turn power off at service panel
before beginning installation. Never wire energized electrical compo-
nents.
• For installation by a licensed electrician in accordance with National
and/or local Electrical Codes and the following instructions.
• Indoor use only.
• Read and understand all instructions before beginning installation.
• USE COPPER CONDUCTOR ONLY.
• NOTICE: Do not install if product appears damaged.
Installation
1. Prepare the installation site as necessary. Rough-in wall switch
boxes and route LON Network leads as necessary. Reference Open
System Architecture Communication Network Section for additional
information on the communication network requirements.
2. Assign Network Address as described in the Assigning Switch Sta-
tion Network Address Section.
3. With the Link Power supply off, connect LON Network leads to the
Switch Station as shown in the Wiring Diagram, Figure 1.
4. Attach wire connector from key switch on switch station cover to
the connector on the circuit board as shown in Figure 2. The connec-
tor is not polarized and can be inserted in either direction.
5. Use the supplied screws to attach the stainless steel cover and the
device in the wall switch box at the same time.
6. Apply Link Power to the system and verify that the Switch Station
is powered. The green LED will light when the key is turned to the
ON position.
7. Program Switch Station button controls and lighting system func-
tionality as described in the Programming Switch Station Functions
Section.

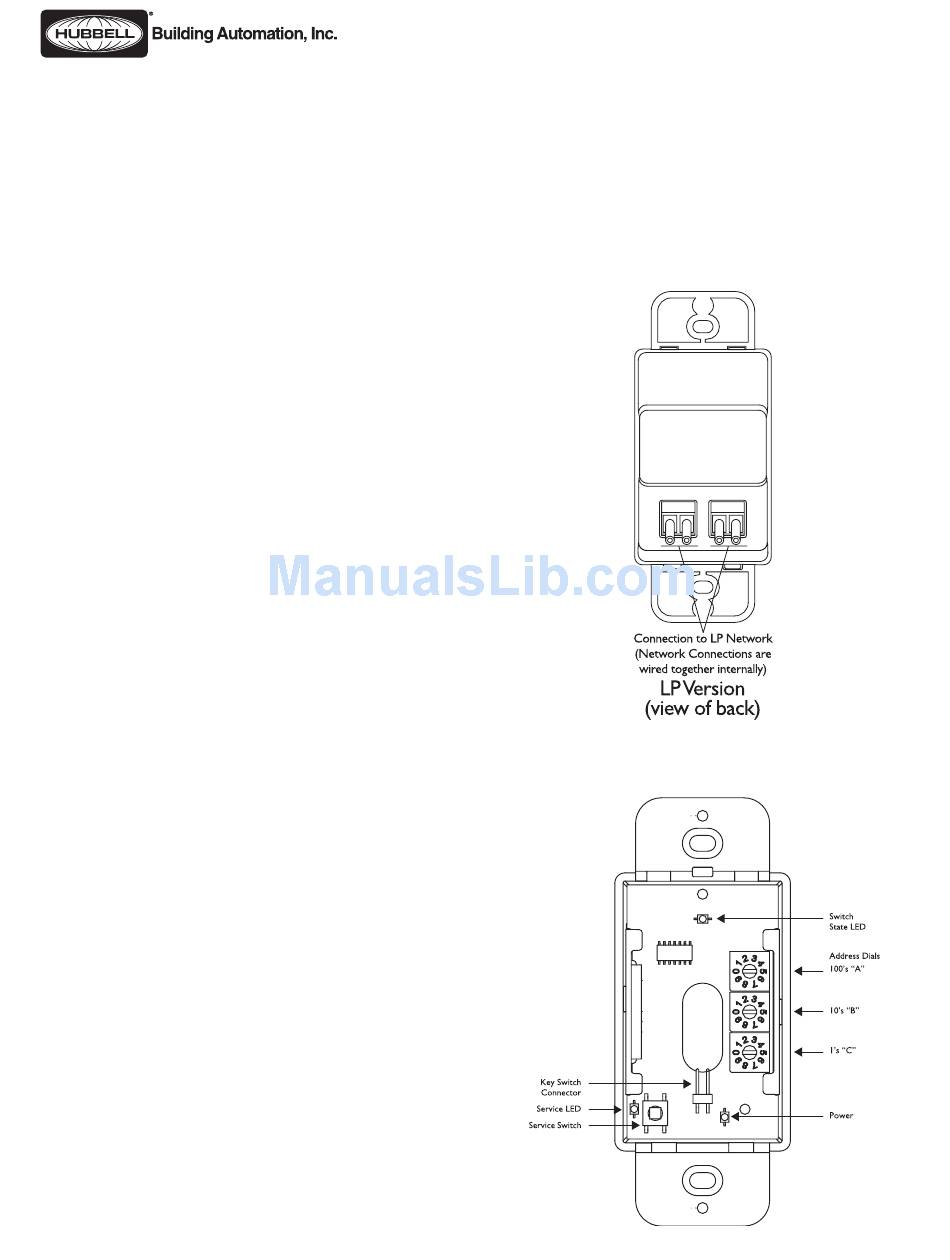

Figure 1: Wiring Diagram
Figure 2: Keyed Switch Station Controls Diagram
