Summary of Contents for Zeux 3 inches Bluetooth Portable thermal printer
-
Page 1: User Manual

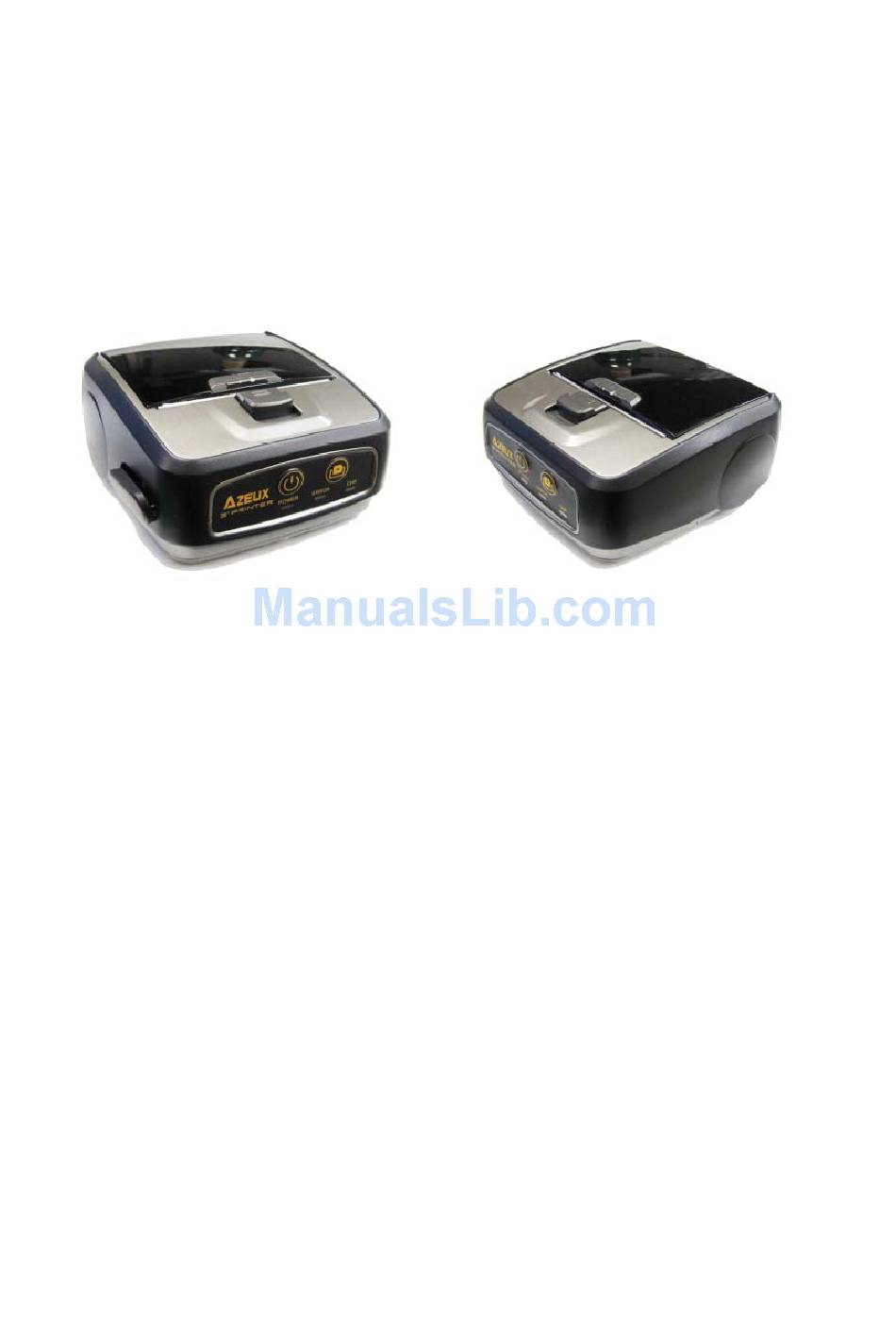

User Manual V1.0 Date: 2010.01.10 3 inches Bluetooth Portable thermal printer User Manual Version 1.0... - Page 2 1. Packing contents 3” Bluetooth thermal printer x 1 (include one battery) Portable black cloth bag x 1 Battery charger x 1 User manual x 1 CD-ROM x 1 Car charger (Option) RS-232 cable (Option) (1.1) (1.2) (1.3) (1.5) (1.4) Warning! Please read the warning before you use the printer.
- Page 3 Dot pitch (Vertical) 0.125 mm (8 dots/mm) line feed pitch Effective Printing area 72mm Number of Columns ANK 48 columns/line (maximum 12x24 dot font) Paper width 80mm Paper thickness 60 to 100 um: some paper in this range may not be used because of paper characteristics Printing Speed Maximum 80mm/sec (640 dot line/sec)
- Page 4 3.2. Starting to Print (1) Press and hold down the power button. Wait for the green PWR/CHR LED indicator to light then let go. (2) When the BT LED light is flashing, there is still no Bluetooth device connected to the printer yet. (3) To let the paper come out, just press the paper feed key.
- Page 5 (2) Avoid making any alteration to the DIP switch settings unless you are extremely knowledgeable about this kind of switch. 4.2 RS232 Connection (The cable is option) RS-232 setup: Baud rate: 115,200bps None parity 8 bit 1 stop bit 5. Trouble shooting Problem Possible Reasons 1.
- Page 6 Figure 2: Left Side Figure 3: Bottom Figure 4: Inside of the Flip cover...
- Page 7 Figure 5: Battery Compartment Federal Communications Commission (FCC) Statement RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
