Guardian Telecom AS-VR16 Installation & Operation Instructions

Digital voice recorder

Advertisement

Quick Links

Industrial Communications Worldwide
Digital Voice Recorder
Model AS-VR16
Installation & Operation
P006771 Rev. B 070608 6/12/2007 10:28 AM
7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1
Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-VR16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Guardian Telecom AS-VR16

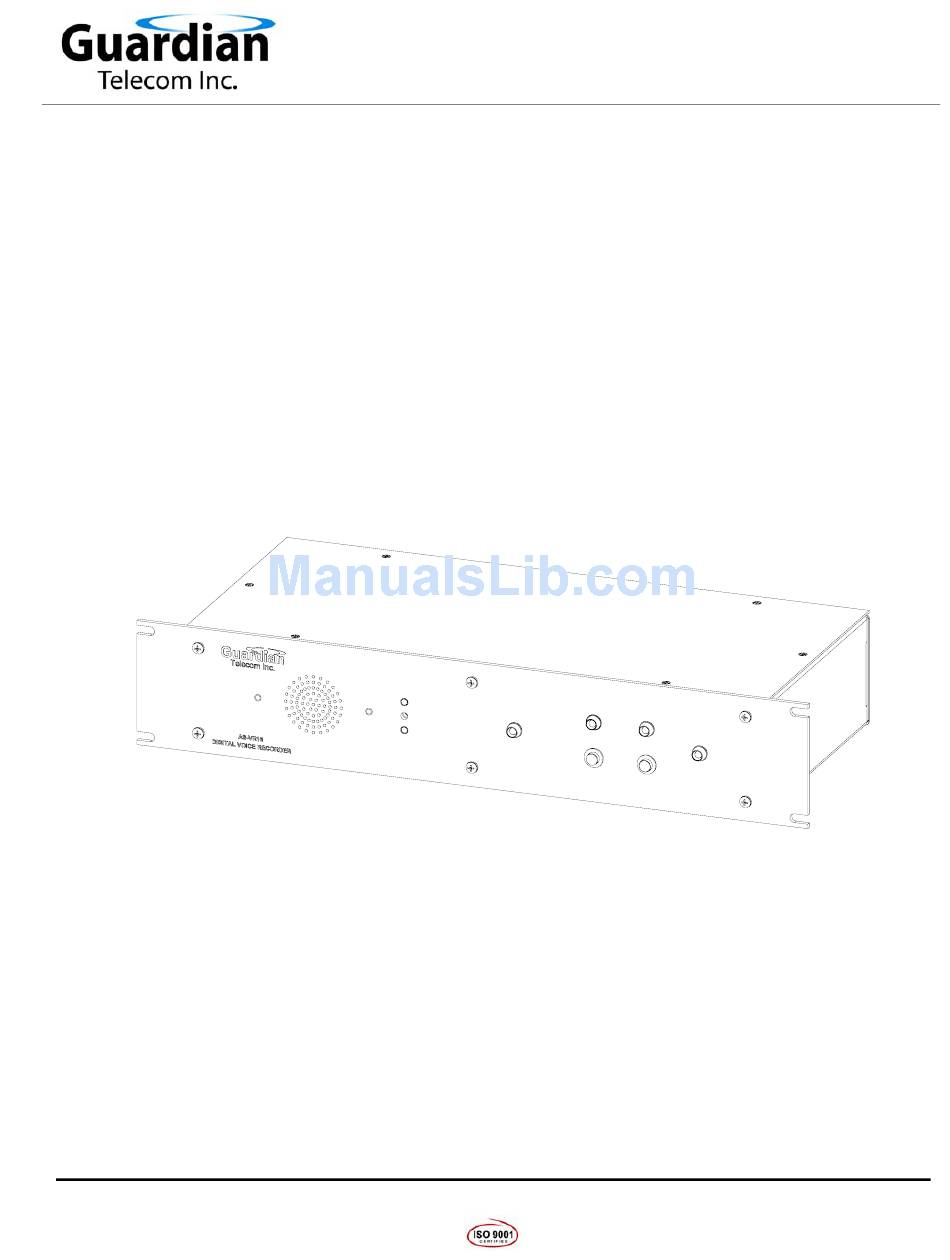

  • Page 1 Industrial Communications Worldwide Digital Voice Recorder Model AS-VR16 Installation & Operation P006771 Rev. B 070608 6/12/2007 10:28 AM 7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1 Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com...
  • Page 2: Table Of Contents

    Service Number ..................9 Feedback ....................9 Guardian Product Return ..............10 Table of Figures Figure 1 - Dimensions ................4 Figure 2 - Front Plate ................5 Figure 3 - Back Plate................5 Package Contents (1) AS-VR16 Digital Voice Recorder (1) Installation & Operation Manual Page 2...
  • Page 3: Overview

    Overview AS-VR16 Digital Voice Recorder The AS-VR16 Digital Voice Recorder allows recording of a specified audio source (with related logic triggering) and playback through a conventional telephone system. This unit records new incoming messages over previously recorded messages automatically. The AS-VR16 is used to record emergency PA announcements, not general page messages.
  • Page 4: Figure 1 - Dimensions

    Guardian Telecom Inc. Installation and Operation Model AS-VR16 TOP VIEW FRONT VIEW Guardian Telecom Inc. MICROPHONE POWER PLAY RECORD ANSWER AS-VR16 DIGITAL VOICE RECORDER Figure 1 - Dimensions Page 4...
  • Page 5: Figure 2 - Front Plate

    Guardian Telecom Inc. Installation and Operation Model AS-VR16 Guardian Telecom Inc. MICROPHONE POWER PLAY RECORD ANSWER AS-VR16 DIGITAL VOICE RECORDER Figure 2 - Front Plate Monitor Speaker Test Microphone Power on Pilot Light Playback Button Playback Mode Indicator Light Record Button...
  • Page 6: Installing The As-Vr16

    Once the Record Enable + on the back panel terminal is connected to Record Enable – (contact closure), the AS-VR16 will start to record the audio signal sent to the Page Audio +/- input. While recording, the front panel record LED and a remote Control Console LED (if equipped) will be on.
  • Page 7: Field Repairs & Adjustments

    Guardian Telecom Inc. Installation and Operation Model AS-VR16 Field Repairs & Adjustments Field repairs and adjustments may only be carried out by qualified technicians. See: Figure 3 - Back Plate This device has no user serviceable internal components. The only maintenance possible is the replacement of the fuse –...
  • Page 8: Engineering Specifications

    Guardian Telecom Inc. Installation and Operation Model AS-VR16 Engineering Specifications LECTRICAL 230 VAC OWER UPPLY OLTAGE ½ A UDIO NPUTS 250 H 4 KH REQUENCY ANGE Z TO 600 O MPEDANCE Phone Line Output 250 H 4 KH REQUENCY ANGE...
  • Page 9: Warranty

    Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty free of charge. This warranty is null and void if any non-authorized modifications have been made to this product, or if it has been subjected to misuse, neglect, or accident.
  • Page 10: Guardian Product Return

    Model AS-VR16 Guardian Product Return Guardian products have been quality tested and are in full working order when shipped from the factory, given the rugged nature of these products shipping is not expected to damage a unit. In the unlikely event of a malfunction Guardian follows the three step procedure below.
  • Page 11 Guardian Telecom Inc. Installation and Operation Model AS-VR16 Notes: Model No. Part No. Serial No. Date of Purchase Page 11...
  • Page 12 Guardian Telecom Inc. 7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1 Toll-free 1-800-363-8010 Ph. (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: mailto:sales@guardiantelecom.com (Click to open message box) Industrial Communications Worldwide © Guardian Telecom Inc. 2007...
