ELECTRONIC REVISION
"Un r ivaled Custo m er S at i sfac t i o n"
CONTROLLED
Optional Universal Remote
Model Number: 0500-025
www.rosenaviation.com
1020 Owen Loop South
© 2007—2012 Rosen Aviation, LLC
Model 0604-00 x series
Eugene, OR 97402
Part Number: 100870 Rev C
1-888-668-4955
Artwork per P/N 100974 Rev A
Fax: 541-342-4912
Advertisement
Table of Contents
Related Manuals for Rosen Aviation 0604-00x series
Summary of Contents for Rosen Aviation 0604-00x series

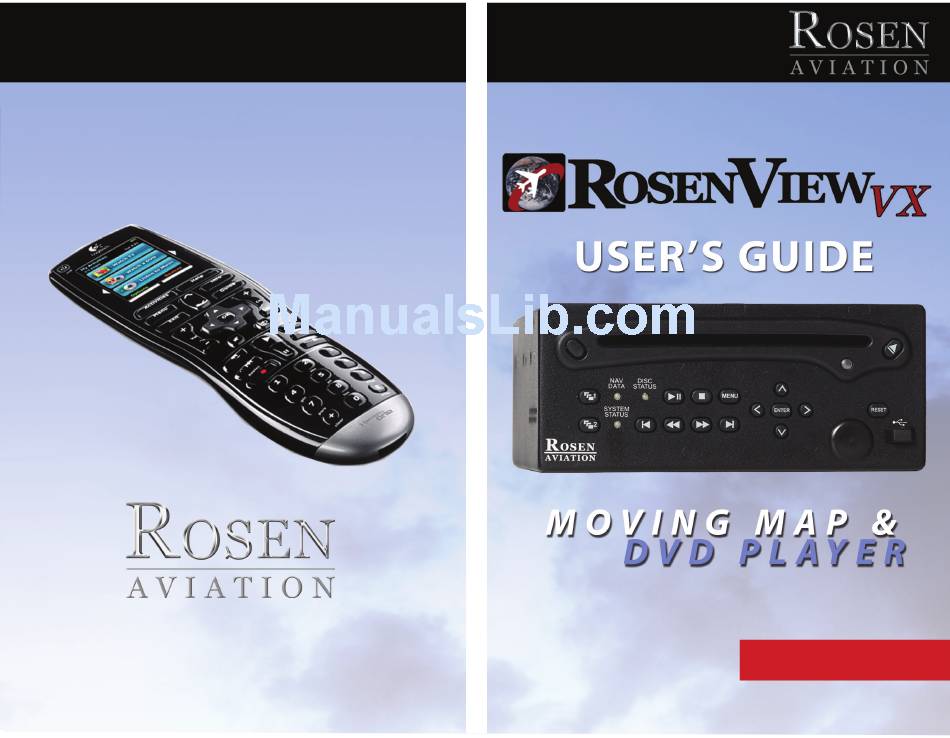

- Page 1 “Un r ivaled Custo m er S at i sfac t i o n” CONTROLLED Optional Universal Remote Model Number: 0500-025 www.rosenaviation.com 1020 Owen Loop South © 2007—2012 Rosen Aviation, LLC Model 0604-00 x series Eugene, OR 97402 Part Number: 100870 Rev C 1-888-668-4955 Artwork per P/N 100974 Rev A...
- Page 2 User’s Guide Moving Map and DVD Player Model 0604-00 x series Interior 100870 Rev C.indd 1 Interior 100870 Rev C.indd 1 9/20/2012 5:26:16 PM 9/20/2012 5:26:16 PM...
- Page 3 User’s Guide Use this guide to operate the RosenView VX’s cabin entertainment system features with a Universal Remote control. You can control the RosenView VX DVD player from the front panel controls; however, you can control the moving map only with a remote control.
- Page 4 VX Map Screen – Remote Button How it Works Mode Opens a menu to select map viewing options. Pans the map view north, south, west, or east. Centers the map view on the aircraft’s location. Zooms in on a map view. (Zoom times out after a pre-set time.) Zooms out on a map view.
- Page 5 RosenView VX Moving Map Options In fl ight, the RosenView VX displays a moving map that automatically cycles between aircraft location and fl ight information data. Press Mode on the remote to select a specifi c map view or status page to view. Allow the Mode menu to time out and close. Press + to zoom down to street-level detail in the U.S.
- Page 6 Mode Menu Options The RosenView VX moving map can be set to show one of these modes: Map Low – Displays low-altitude map detail (street-level) Map Medium – Medium-altitude map detail Map High – High-altitude map detail (country-region level) Location Status – Current aircraft location only Conditions Status –...
- Page 7 VX System Buttons Control How it Works Source Select 1 switches the output on display 1— map, DVD, or auxiliary device. Source Select 2 switches the output on display 2— map, DVD, or auxiliary device. Reset Resets the map processor and the DVD player, but it does not change the source select button settings.
- Page 8 Notes: Interior 100870 Rev C.indd 8 Interior 100870 Rev C.indd 8 9/20/2012 5:26:21 PM 9/20/2012 5:26:21 PM...
