Assembly, Servicing & User Instructions
APPLIANCE IDENTIFICATION
Material group:
11.02 Radiant heater
Manufacturer:
Hotspot
Trade name:
Hotspot
Type:
Bullet, Evolution and Terrace
Category and
DK, FI, NL, NO, SE
country of
AT, DE
destination
BE, ES, FR, GB, GR, IE, IT, LU, PT

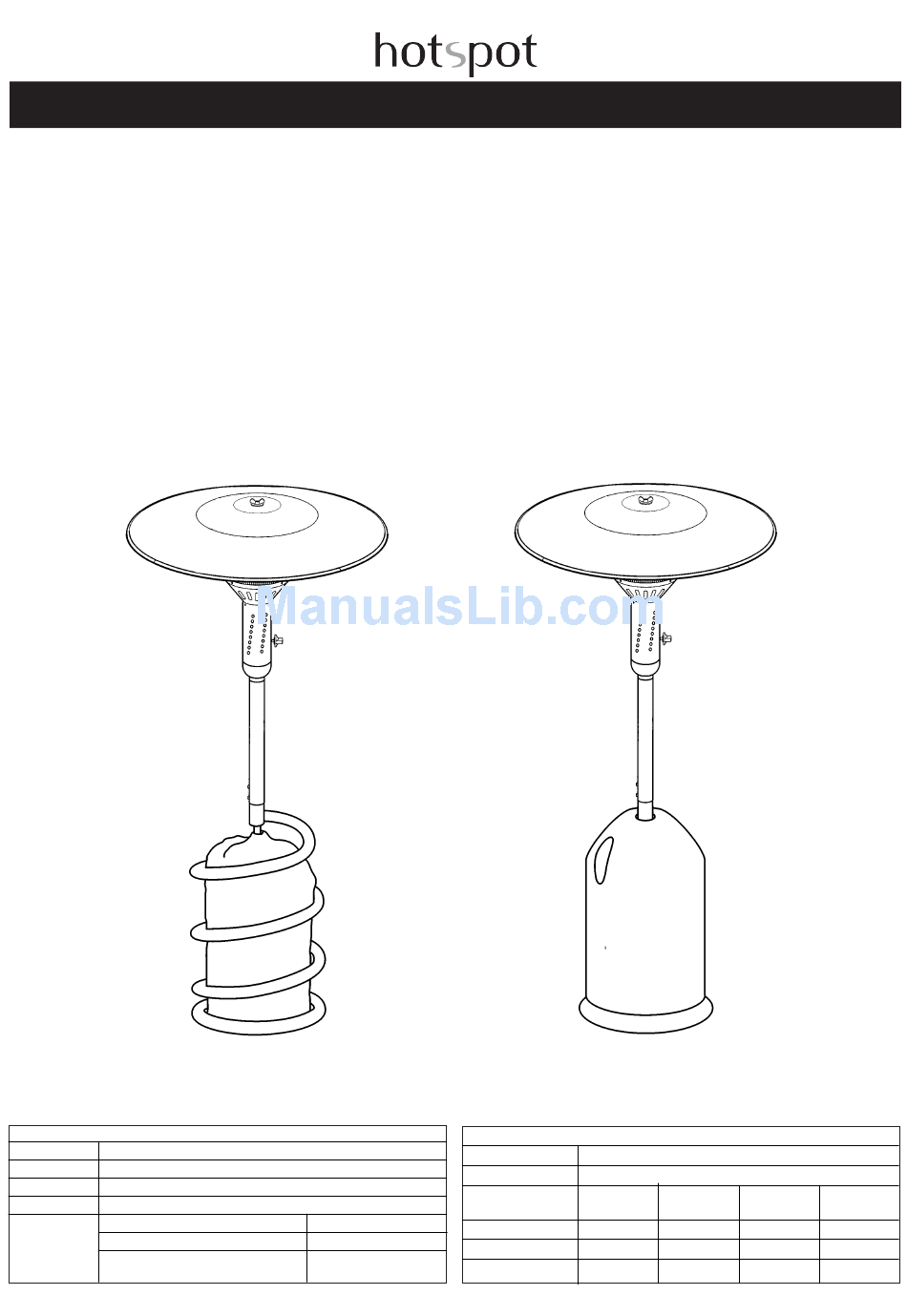

The Hotspot Patio Heater Range
Warning: Only for outdoor use
Spiral
For UK use 37 mbar regulator with Propane Gas
I3B/P – 30 mbar
I3B/P – 50 mbar
I3+ – 28 / 37 mbar
Appliance Pin Number: 048BM - 0022 (conical)
Bullet
TECHNICAL DATA
Heat input
14kw (50) 11kw (37)
Gas consumption
0.9 kg/h
Category:
Main injector Injector
size
I3B/P
1.95mm
I3B/P
1.65mm
I3+
1.95mm
048BM - 0018 (straight)
Pilot injector
Inlet pressure
identification
size
0.25mm
30mbar
0.25mm
50mbar
0.25mm
28/37mbar
