Summary of Contents for AIRIS M201

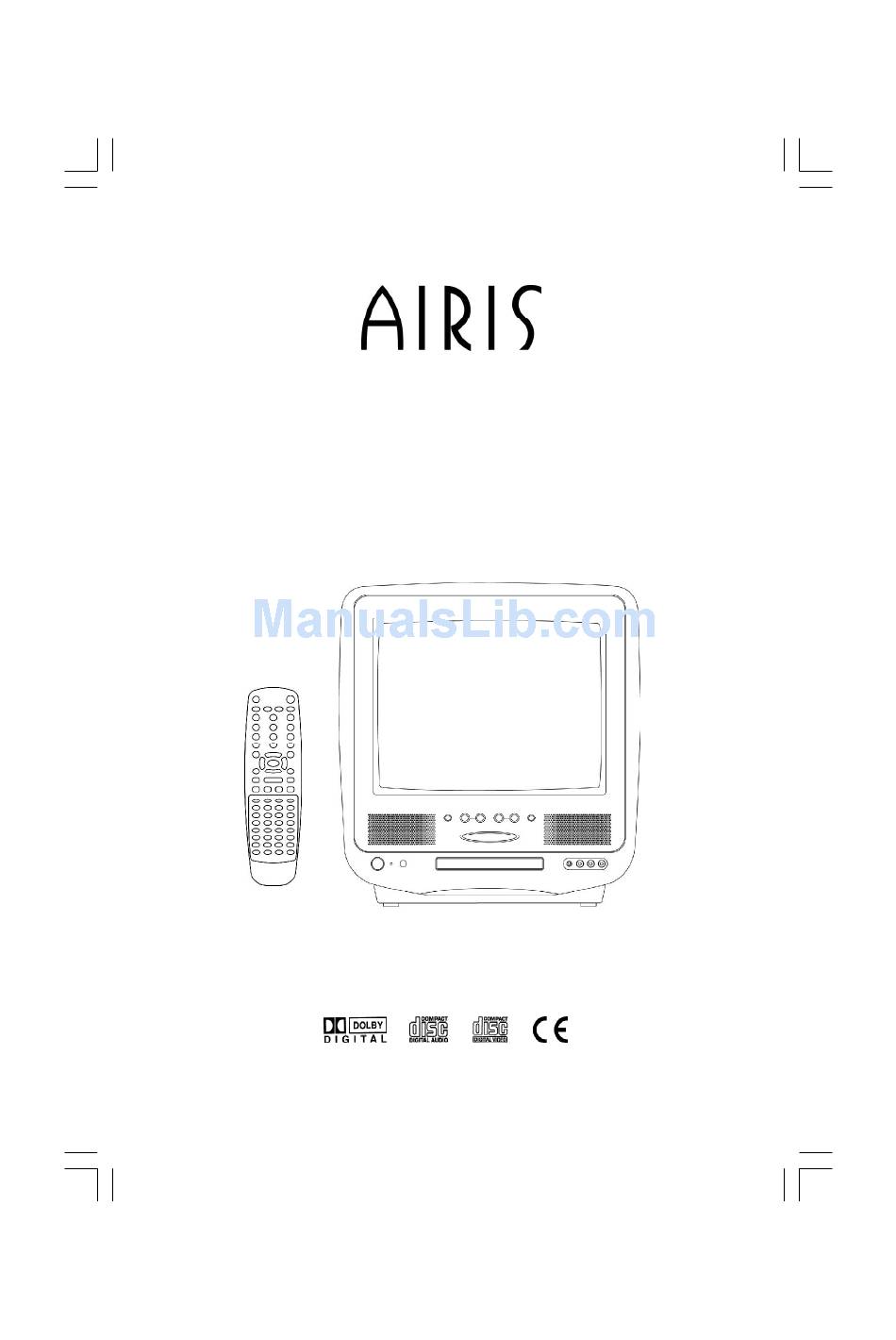

- Page 1 M201 14" (34cm) COLOUR TELEVISION WITH DVD PLAYER OPERATION MANUAL GB-1 P1450BGVD1(UOC+8281S)Eng ib 1221.p65 2006/1/6, ¤U¤È 12:33...
- Page 2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSON- NEL. The graphic symbols on the back cover of the set mean the following: The lightning flash with arrowhead symbol within an equilateral triangle is in- tended to alert the user to the presence of uninsulated "...
- Page 3 CAUTION Never tamper with any components inside your set, or any other adjustment controls not mentioned in this manual. All television receivers are high voltage instruments. Your PICTURE TUBE is highly evacuated. If broken, glass fragments will be violently expelled. Scratching, shipping or undue pressure is dangerous and should be avoided.
- Page 4 This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.”...
- Page 5 LOCATION OF CONTROL 1. Speaker 2. Power Button 3. Remote Sensor 4. TV/AV/DVD Button 5. Channel Buttons 6. DVD Open/ Play/Stop Button 7. DVD Loader 8. Volume Buttons 9. MENU Button 10. Earphone Jack 11. Front Video Input (AV 2) 12.
-
Page 6: Remote Control Unit
REMOTE CONTROL UNIT Open/Close Button Sleep button PP Button Numeric Buttons P+ Buttons Program button Menu Button Volume - Button Display Button 10. Play Buttons 11. Stop Button 12. Fast Forward Button 13. Fast Backward Button 14. Direction Buttons( Up Down Left Right... - Page 7 OPERATING THE TELEVISION RECEIVER Connect your TV aerial to the aerial input socket located on the back of the TV. Push the Main Power Switch, Power Indicator will be illuminated. After a few seconds the TV screen will light up. Should white dots appear on the screen the TV will require tuning into the available TV stations in your area.
- Page 8 OPERATING THE TELEVISION TUNE SEARCH(Manual) AUTO SEARCH 1) Press the “P+/P-” button to select the PROGRAM. SEARCH then press the “V+/V-”button or numeric button to BAND VHF-L select the desired Program number. FINE TUNE COLOUR AUTO SOUND 2) Press the “P+/P-”button to select the BAND. then SKIP press the “V+/V-”...
- Page 9 OPERATING THE TELEVISION 2. PICTURE • Press the MENU button to select the PICTURE mode as show in FIG.6. PICTURE • Press the “P+/P-” button to select the BRIGHTNESS/ BRIGHTNESS COLOUR COLOUR/CONTRAST/SHARPNESS/HUE CONTRAST • Press the “V+/V-” button to adjust the desired level, SHARPNESS The steps can be adjust from 0~63.
- Page 10 OPERATING THE TELEVISION RECEIVER 5. PROG.EXCHANGE After stored TV stations by AUTO SEARCH or MANUAL SEARCH, the position of TV program can be exchange by the following method: • Press the MENU button five times to select the PROG. PROG. EXCHANGE EXCHANG mode as shown in FIG.9 PROG.
- Page 11 OPERATING WITH REMOTE CONTROL TO SELECT TV STATION USING THE PROGRAM NUMBERS: • Program Number Up and Down Press the " P+ " or " P- " button to select a higher or lower program number. • 0 - 9 Digital Button To select TV stations using program numbers 0 - 9, selecting program number will be shown in the right corner of the top of screen in green colour.
- Page 12 SLEEP Button • Press the SLEEP button to select a predetermined time the TV will turn off,the sleep time can be set to count down from 15 to 240 minutes. RECALL Button • Press the RECALL button,on screen will show the program number, press again to cancel. TV/AV Button •...
- Page 13 OPERATION WITH REMOTE CONTROL TELETEXT FUNCTION CONTROL Teletext - is an information system that displays text on your TV screen. Using the Teletext information system you can select a page of information on a subject that is available in its list of contents (index).
- Page 14 OPERATION WITH REMOTE CONTROL TELETEXT FUNCTION CONTROL Cancel Button ( x ) (System) To switch between Teletext and TV programme. • Press button " x " the TV programme appears. • Press once again to return to the Teletext page. Conceal Button ( ? ) Sometimes a Teletext page contains concealed information, for example, in a quiz or puzzle.
-
Page 15: Dvd Player Operation
DVD PLAYER OPERATION Basic Operation 1. Switch the unit out of standby by pressing the STANDBY button then press the “ TV/AV/DVD ” button on the unit or press the DVD MODE direct key on the remote handset to turn DVD mode to "ON". - Page 16 SYSTEM SETUP In stop mode, press SETUP button and highlight SYSTEM setup then press ENTER button to confirm. To select the desired item by using the direction buttons ( ), then press ENTER button to confirm the selected item. SYSTE M SETUP •...
- Page 17 LANGUAGE SETUP In stop mode, press SETUP button and press direction buttons to highlight LANGUAGE setup then press ENTER button to confirm. OSD LANGUAGE LANGUAGE SET UP OSD LA NGUAGE 4 E NGLISH Press direction / button to highlight the OSD LANGUAGE AUDIO LA NG G ER M AN...
- Page 18 VIDEO SETUP In stop mode, press SETUP button and press direction buttons to highlight VIDEO setup then press ENTER button to confirm. BRIGHTNESS VIDEO S ETUP BRI G HT NESS - - - - - - - - - - Using direction button to move the scroll and adjust the CO N TR AST...
- Page 19 DIGITAL SETUP In stop mode, press SETUP button and highlight DIGITAL SETUP then press ENTER button to confirm. DOWN MIX : DIG ITAL SETUP LT / RT DO W N M IX 4 LT / RT AUD IO OUT STE REO STEREO (default) DY NA M IC RANGE LT/RT...
- Page 20 DVD Menu Play The DVD Menu Play function is only applicable for DVD movie. User can access the Casting informationm, Production History, Movie Introduction etc. directly through this function. 1. Press the DVD MENU button on the remote control to enter the Root Menu. 2.
- Page 21 Angle Some discs may have multiple viewing angles during production. The ANGLE button is to select the viewing angle shown on the screen. Note : The number of Angle of View depends on the disc. Search The user can access a specific location or a specific track by keying in the targent time or the track number.
- Page 22 3. After assigning the playback sequence,move the PROG highlight cursor to the PLAY option by using the 1 0001 5 - - - - 9 - - - - 13 - - - - 2 0003 6 - - - - 10 - - - - 14 - - - - Navigation Arrows.
- Page 23 Place a MP3 / JPEG disc into the tray, and the player will auto search the directories saved MP3 / JPEG files. After searching, it will auto go to the first directory saved MP3 files (to the disc containing both mp3 and jpeg files; To the disc containing single type of files, it will auto go to the first directory) and play the first song in the directory (“01:”...
- Page 24 SPECIFICATION TV SECTION Receiving Channels CH 2 - 4 CH 5 - 12 CH 21- 69 Tuner Type 250 Channel ,VS TUNING DVD SECTION Laser Wave length 655nm Laser power : Class 1 Signal System PAL / NTSC output Digital audio output Coaxial digital output;...
