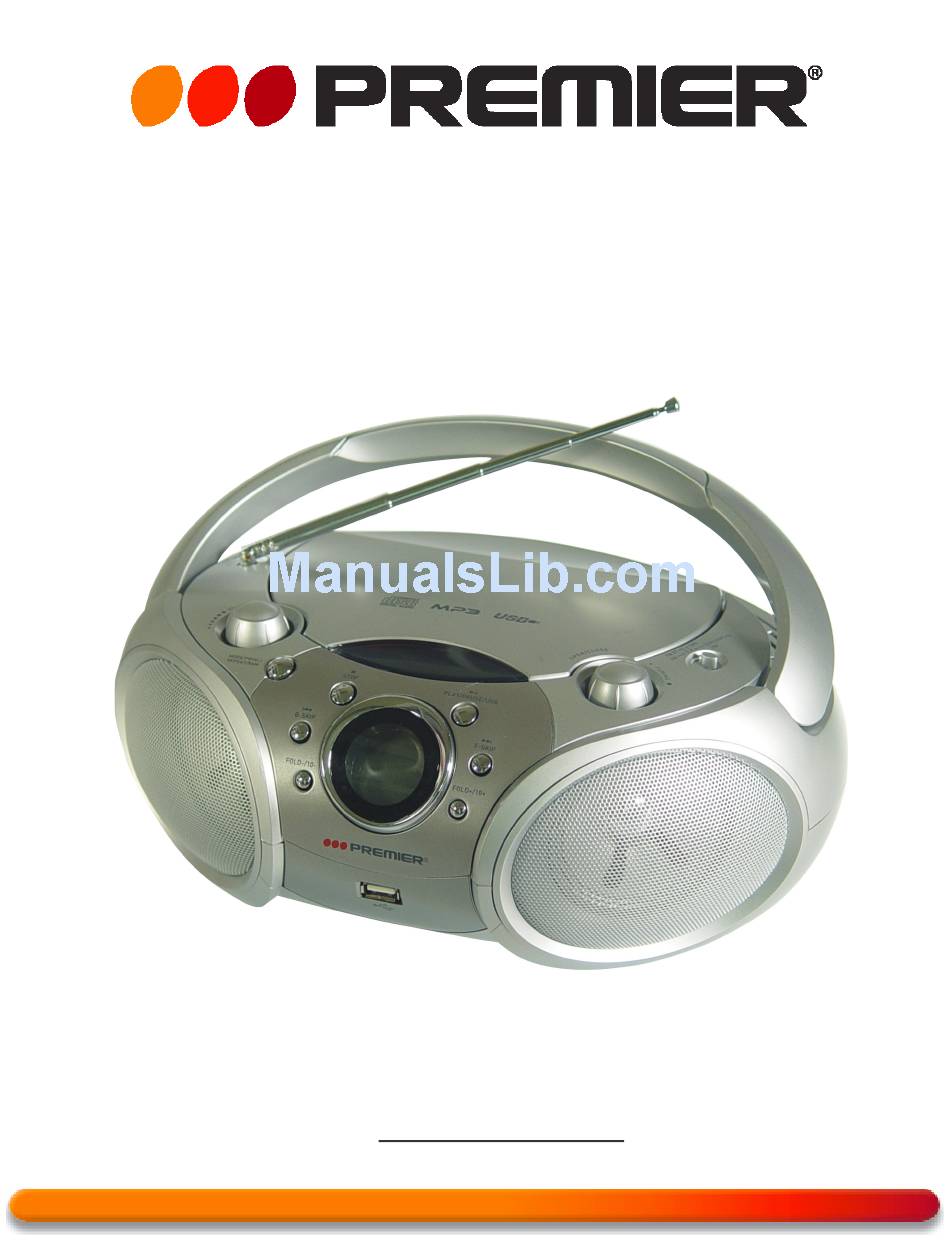

- Page 1 INSTRUCTION MANUAL PORTABLE AM/FM CD/MP3 WITH USB BOOMBOX PLAYER SX-3209MU DEAR CUSTOMER Congratulations for your purchase! Please read this manual carefully, and keep it for future reference. If you need extra support, please write to info@premiermundo.com...
- Page 2 This sign means that there are important instructions of operation and handling in the manual that comes with this device. PREMIER CUSTOMER SERVICE Venezuela: 0800 – ELECTRIC (353-2874) Colombia:...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Getting Started a. Introduction …………………………………………………………………………………… 3 b. Location of Controls (top, speaker, right, left) ……………………………………………. c. AC Operation …..……………………………………………………………………………. d. Battery Operation ………………………………...…………………………………………. e. Antenna ………………………………………………………………………………………. 2. Operational Instructions a. Listening to the Radio……….………………………..…….......………………. b. Listening to CDs and MP3 Playback ……………………………………………………… c. -
Page 4: Getting Started
GETTING STARTED Thank you for purchasing the CD/MP3 Boombox Player. Unpack the unit and make sure to put aside all accessories so they will not be lost. We recommend that you retain the original carton and packaging materials for future use, should you transport or ship the unit in the future. Portable stereo audio system •... -
Page 5: Location Of Controls (Top, Speaker, Right, Left)
GETTING STARTED Location of Controls 5 6 7 8 9 10 11 12 13... -
Page 6: Ac Operation
GETTING STARTED Location of Controls-continued 1. HANDLE 9. LCD SCREEN 2. SPEAKERS 10. PLAY / PAUSE / USB BUTTON 3. FM ANTENNA 11. FOLD+/10+ BUTTON 4. VOLUME CONTROL KNOB 12. F-SKIP BUTTON 5. MODE/PROG./REPEAT/RAM BUTTON 13. TUNING KNOB 6. B-SKIP BUTTON 14. -
Page 7: Listening To The Radio
OPERATING INSTRUCTIONS LISTENING TO THE RADIO Slide the FUNCTION SWITCH to the AM or FM position. Turn the TUNING KNOB to your desired radio station. Adjust the sound level by rotating the VOLUME CONTROL KNOB. To turn off the radio, simply slide the FUNCTION SWITCH to OFF position. -
Page 8: Play/Pause Mode
LCD SCREEN and will enter Stop mode. The MP3 indicator will always show on the LCD SCREEN when the SX-3209MU is in MP3 mode. 2. If there has no disc inside, the LCD SCREEN will show “... -
Page 9: Skip And Search Mode
OPERATING INSTRUCTIONS AUDIO CD PLAYBACK Skip and Search Mode 1. In play or pause mode, when CD F-SKIP or CD B-SKIP BUTTON is pressed once, the player will advance to the next track or return to the beginning of the track. 2. -
Page 10: Random Play Mode
OPERATING INSTRUCTIONS AUDIO MP3 PLAYBACK-CONTINUED REPEAT MODE-CONTINUED Repeat Album: When the MP3 play mode, press the MODE/PROG./REPEAT/RAM BUTTON twice, the REP. ALBUM indicator will show on the LCD SCREEN. The whole folder of the MP3 music will be played continuously. 4. - Page 11 OPERATING INSTRUCTIONS Audio MP3 Playback-continued Program Mode(CD)-Continued 4. To check the program you have stored after complete programming during CD stop mode, then press the CD F-SKIP BUTTON once, The LCD SCREEN will show the first programmed track number. Repeat above procedure to read all the programmed memory. 5.
-
Page 12: Playing Other Audio Devices
CD/MP3 mode will automatically change to the USB mode. Playing Other Audio Devices The SX-3209MU features an AUX/MP3-IN jack to facilitate playback from other audio devices (MP3 players, computers) through 3.5mm plug. 1. Insert a 3.5mm plug and cable (not included) into the AUX/MP3-IN jack in the back of the unit. -
Page 13: Troubleshooting Guide
When the instructions in this manual are followed, this unit should function properly. However, if any of the following difficulties occur and cannot be corrected by the user or if a problem arises that is not mentioned here, please contact PREMIER Customer Service or a qualified service technician. Unit Does Not Play Unit may be disconnected from power source (No AC connection or batteries). - Page 14 CIRCUIT DIAGRAM P-13...
- Page 15 P-14...
- Page 16 P-15...
