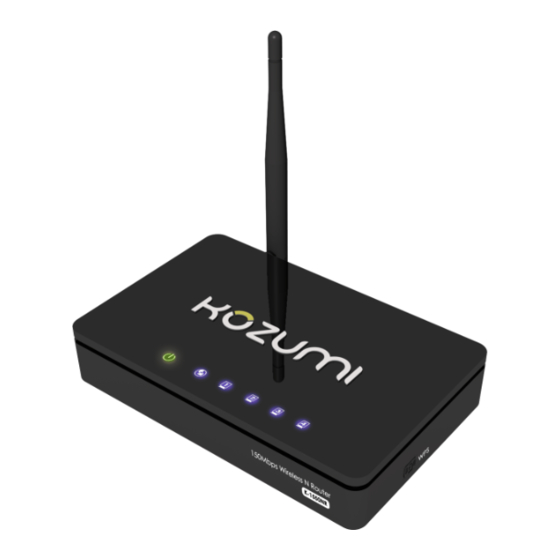

150Mbps Wireless N Router
User Manual
K-1550NR
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-1550NR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kozumi K-1550NR

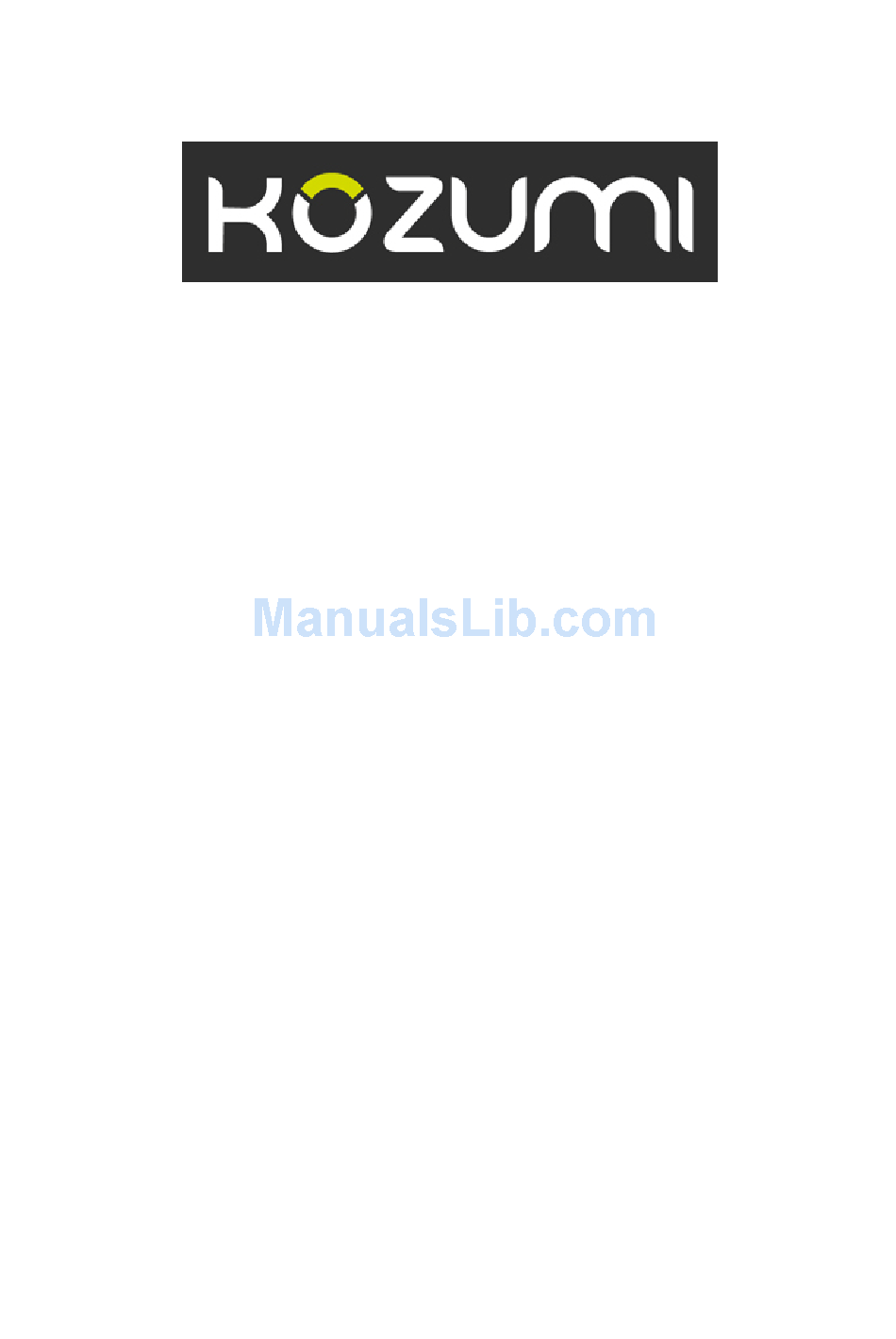

  • Page 1 150Mbps Wireless N Router User Manual K-1550NR V1.0...
  • Page 2 150Mbps Wireless N Router Package Contents The following items should be found in your package: One Wireless N Router   One DC 9V power adapter One QIG  One Resource CD  Please make sure that the package contains the above items, if any of the listed items are damaged or missing, please contact with your distributor.

  • Page 3: Table Of Contents

    150Mbps Wireless N Router Contents INTRODUCTION ............................ 4 1.1....................................4 RODUCT VERVIEW 1.2......................................4 EATURES 1.3............................4 UPPORTING TANDARD AND ROTOCOL 1.4..................................5 ORKING NVIRONMENT HARDWARE INSTALLATION ......................... 6 2.1..................................... 6 YSTEM EQUIREMENT 2.2..........................................6 ANEL 2.3.
  • Page 4 150Mbps Wireless N Router 4.5.2. Security ................................... 34 4.5.3. Host Filter ..................................36 4.5.4. Host List ..................................37 4.5.5. WPS ....................................37 4.5.6. Advanced ..................................42 4.6....................................... 43 ECURITY SETUP 4.6.1. MAC Filter ..................................44 4.6.2. Internet Access Control ............................45 4.6.3.

  • Page 5: Introduction

    1. Introduction 1.1. Product Overview The Kozumi Wireless N Router is a cost-effective IP Sharing Router that enables multiple users to share the Internet through an ADSL or cable modem. The Wireless N Router is embedded with a IEEE 802.11b/g/n access point that allows you to build up a wireless LAN. With the support of new emerged 802.11n standard, the access point provides data transfer of up to...

  • Page 6: Working Environment

    150Mbps Wireless N Router 1.4. Working Environment Temperature 0° to 50° C (operating),  -40° to 70° C (storage)  Humidity 10% to 90 % non-condensing (operating),  5% to 90% non-condensing (storage)  Power DC 9V ...

  • Page 7: Hardware Installation

    150Mbps Wireless N Router 2. Hardware Installation 2.1. System Requirement Broadband Internet Access Service(DSL/Cable/Ethernet)  10/100Base-T Ethernet card and TCP/IP protocol installed for each PC  Internet Explorer 5.0 or higher for Web configuration  802.11n , 802.11g or 802.11b compliant wireless adapters (for wireless connection) ...

  • Page 8: Restore To Factory Configuration

    150Mbps Wireless N Router WAN Connection abnormal LAN Connection normal Flashing Data transmitting LAN Connection abnormal Rear panel Figure 2-2 Description Function Connect to Power adapter, please don’t use the unknown DC9V power adapter, otherwise your device may be damaged. LAN port Connect with computer NIC or Ethernet device WAN port...

  • Page 9: Hardware Installation Procedures

    150Mbps Wireless N Router 2.4. Hardware Installation Procedures The procedures to install the Wireless N Router please refer to the following picture Figure 2-3  Step 1 connecting your computer to the LAN port. Attach one end of the Ethernet cable with RJ-45 connector to your hub, switch or a computer’s Ethernet port, and the other end to one of the LAN ports of your Wireless N Router.

  • Page 10: Login

    150Mbps Wireless N Router 3. Login You can manage the Wireless N Router through the Web browser-based configuration utility. To configure the device via Web browser, at least one properly configured computer must be connected to the device via Ethernet or wireless network. The Wireless N Router is configured with the default IP address of 192.168.1.1 and subnet mask of 255.255.255.0 and its DHCP server is enabled by default.
  • Page 11 150Mbps Wireless N Router Figure 3-1 2. Double click the icon Network and Dial-up Connections 3. Highlight the icon Local Area Connection, right click your mouse, and click Properties Figure 3-2 4. Highlight Internet Protocol (TCP/IP), and then press Properties button...
  • Page 12 150Mbps Wireless N Router Figure 3-3 5. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to close the Internet Protocol (TCP/IP) Properties window Figure 3-4 6. Press OK to close the Local Area Connection Properties window...

  • Page 13: Windows Xp

    150Mbps Wireless N Router Figure 3-5 3.1.3. Windows XP Please follow the steps below to setup your computer: 1. Go to Start  Settings  Control Panel 2. Click Network and Internet Connections Figure 3-6...
  • Page 14 150Mbps Wireless N Router 3. Click Network Connections Figure 3-7 4. Highlight the icon Local Area Connection, right click your mouse, and click Properties Figure 3-8 5. Highlight Internet Protocol (TCP/IP), and then press Properties button...
  • Page 15 150Mbps Wireless N Router Figure 3-9 6. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to close the Internet Protocol (TCP/IP) Properties window Figure 3-10 7. Press OK to close the Local Area Connection Properties window...

  • Page 16: Windows Vista

    150Mbps Wireless N Router Figure 3-11 3.1.4. Windows Vista Please follow the steps below to setup your computer: 1. Go to Start  Settings  Control Panel 2. Click Network and Sharing Center Figure 3-12 3. Click Manage Network Connections...
  • Page 17 150Mbps Wireless N Router Figure 3-13 4. Highlight the icon Local Area Connection, right click your mouse, and click Properties Figure 3-14 5. Highlight Internet Protocol Version 4 (TCP/IP) and then press Properties button...
  • Page 18 150Mbps Wireless N Router Figure 3-15 6. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to close the Internet Protocol (TCP/IP) Properties window...
  • Page 19 150Mbps Wireless N Router Figure 3-16 7. Press OK to close the Local Area Connection Properties window...

  • Page 20: Checking Pc' Sip And Connection With The Router

    150Mbps Wireless N Router Figure 3-17 3.2. Checking PC’s IP and Connection with the Router After configuring the TCP/IP protocol, use the ping command to verify if the computer can communicate with the Router. To execute the ping command, open the DOS window and Ping the IP address of the Wireless N Router at the DOS prompt: For Windows 98/Me: Start ->...

  • Page 21: Login

    150Mbps Wireless N Router Reply from 192.168.1.1: bytes=32 time=1ms TTL=64 Reply from 192.168.1.1: bytes=32 time=1ms TTL=64 Reply from 192.168.1.1: bytes=32 time=1ms TTL=64 Ping statistics for 192.168.1.1: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 1ms, Maximum = 1ms, Average = 1ms Then the connection between the router and your computer has been successfully established.
  • Page 22 150Mbps Wireless N Router Figure 3-18 2. You will enter the user name and password. The default user name is guest, password is guest, too. You can’t modify you user name but can modify your password. You need modify your password when you successfully login, incase anyone else may invade your Internet illegally.
  • Page 23 150Mbps Wireless N Router Figure 3-20...

  • Page 24: System Configuration

    150Mbps Wireless N Router 4. System configuration 4.1. Convenient Setup Providing you the convenient and simplest method for configure the router, the purpose of this item is to provide an easy way for you to use it and configure your router to access the Internet quickly;...

  • Page 25: Pppoe User (Adsl)

    150Mbps Wireless N Router PPPoE user (ADSL) 4.1.2. Figure 4-2 If your ISP provides you the PPPoE service (all ISP with DSL transaction will supply this service, such as the most popular ADSL technique), please select this item. In the “Convenient configuration”...

  • Page 26: Static User

    150Mbps Wireless N Router Static User 4.1.3. Figure 4-3 This item should only be used when users use a static IP address to access Internet, you should input your “WAN IP address”, ”subnet mask”, ” default gateway” and “DNS server (domain name server) IP address”...

  • Page 27: System Information

    150Mbps Wireless N Router is case-sensitive and must not exceed 32 characters. 4.2. System information This page indicate current status of the router, including “Internet Access Info”, ”LAN Info” , ” Primary AP Info”, “System Info” and “statistics info” about the bits router send and received .This item is used for monitor the current status of router for administrator, and also supplies help information about judge working situation of router Internet Access Info...

  • Page 28: Lan Info

    150Mbps Wireless N Router Primary DNS: The DNS server translates domain or website names into IP address, input  the most common DNS server address you used or provided by your ISP. Secondary DNS: Input IP address of a backup DNS server or you can leave this field blank ...

  • Page 29: System Info

    150Mbps Wireless N Router This item provides current running information of Primary AP Wireless status: Display wireless interface status is enabled or not  Number of Wireless Client: Display the current number of wireless stations associated with  router Wireless Mode: Current wireless mode of wireless router ...

  • Page 30: System Log

    150Mbps Wireless N Router 4.3. System log System Log 4.3.1. Figure 4-9 Examine system log, there are most ten logs can be showed in one Page Connection Logs 4.3.2. Figure 4-10 Display connection logs. You can configure items show in every single page, the default is 10...

  • Page 31: Internet Setup

    150Mbps Wireless N Router 4.4. Internet Setup The purpose of this item is to provide an easy way for you to use it and configure your router to access the Internet quickly DHCP User (Cable Modem) 4.4.1. After select this item, you will obtain an IP address from your ISP automatically, those ISP who supply Cable modem always use DHCP Figure 4-11 Clone MAC address: The WAN port of router has a unique MAC address assigned by...

  • Page 32: Pppoe User (Adsl)

    150Mbps Wireless N Router PPPoE user (ADSL) 4.4.2. Figure 4-12 If your ISP provides you the PPPoE service (all ISP with DSL transaction will supply this service, such as the most popular ADSL technique), please select this item. In the “Convenient Setup” You can input your PPPoE username and password to access the Internet PPPoE username: Input PPPoE username provided by ISP ...

  • Page 33: Static User

    150Mbps Wireless N Router Static user 4.4.3. Figure 4-13 This should be used only you are connecting through a static IP address. You should input your “WAN IP address”, ”subnet mask”, ” default gateway” and “DNS server (domain name server) IP address”...

  • Page 34: Wireless Management

    150Mbps Wireless N Router at least one DNS IP address, input IP address of your DNS server in this field Secondary DNS: Input IP address of backup DNS server, or you can leave this field blank.  4.5. Wireless management It contains the following parts: wireless basic, security, host filter, Host List, WPS, advanced Wireless Basic 4.5.1.

  • Page 35: Security

    150Mbps Wireless N Router mode you can get low bandwidth, little interference and slow rate. 40MHz: In this mode you can get high bandwidth, high interference and rapid rate. Use only when you have a pure router, draft 802.11n wireless network ...
  • Page 36 150Mbps Wireless N Router bits. Then choose the format of password; it should be HEX or ASCII. The valid character for HEX format should be numbers from 0 to 9 or letters from A to F. HEX doesn’t support mixed letter and number mode.

  • Page 37: Host Filter

    150Mbps Wireless N Router Figure 4-19 This item mixed WPA-PSK and WPA2-PSK mode, which provides higher security level; you can configure it according with WPA-PSK or WPA2-PSK Host Filter 4.5.3. Figure 4-20 Wireless Access Control Status: the default is disable. To disable “Wireless Access Control ...

  • Page 38: Host List

    150Mbps Wireless N Router Host List 4.5.4. Display current status of the wireless client associate with AP 4.5.5. Wi-Fi Protect Setup (WPS) function can let you create a safety network easily. You can through ‘PIN Input Config (PIN)’ or ’Push Button (PBC)’to encrypt your network. This router also provides WPS button, you only need to push the WPS button in this router and the wireless network card which support WPS function, then the router will be encrypted to WPA2-AES mode automatically...
  • Page 39 150Mbps Wireless N Router Wireless Host PIN Code: input the PIN of wireless network card that support WPS function.  Click connect, when it connect successfully, it will be encrypted to WPA2-PSK WPS PBC settings: Click connect, when it connect successfully, it will be encrypted to ...
  • Page 40 150Mbps Wireless N Router Figure 4-23 3. The next is the safe connection between the adapter and the router, please wait 4. The connection between the adapter and the router is success, and the SYS LED of the router is on all the time for a few seconds and then off Method 3: 1.
  • Page 41 150Mbps Wireless N Router Figure 4-27 4. Please wait until the following window appears, the connection between the adapter and the router will connect automatically. When the connection is succeed, the SYS LED of the router is on all the time for a few seconds and then off Figure 4-28 Method 4: 1.
  • Page 42 150Mbps Wireless N Router Figure 4-30 3. The next is the safe connection between the adapter and the router, please wait 4. The connection between the adapter and the router is success, and the SYS LED of the router is on all the time for a few seconds and then off Method 5: 1.

  • Page 43: Advanced

    150Mbps Wireless N Router router will connect automatically. When the connection is succeed, the SYS LED of the router is on all the time for a few seconds and then off Figure 4-33 Remark If there is more than one AP in the PBC mode when you use the method 1/2/4, there will be session overlap.

  • Page 44: Security Setup

    150Mbps Wireless N Router change will have on your AP Authentications type: The default is set to “Auto”, which allows “Open System” or “Shared  Key” authentication to be used. Select “Shared Key” if you only want to use “Shared Key” authentication (the sender and recipient use a WEP key for authentication) Beacon Interval: The interval time of this Wireless N Router broadcast a beacon.

  • Page 45: Mac Filter

    150Mbps Wireless N Router MAC Filter 4.6.1. Figure 4-35 MAC Filter Status: the default is disable. You can filter wired users by enabling this function;  thus unauthorized users can not access the network Description: describe MAC Filter list to tell from different MAC Filter lists ...

  • Page 46: Internet Access Control

    150Mbps Wireless N Router Internet Access Control 4.6.2. Figure 4-36 IP Firewall Status: the default is disable. The rules of “Internet access control” based on  source IP, port number and protocol  Description: describe IP Firewall list to tell from different IP Firewall lists Rule: you can select permit or deny.

  • Page 47: Dns Filter

    150Mbps Wireless N Router 4. If you want to delete certain item on the list, select appropriate item on the list, click “delete” to delete it DNS Filter 4.6.3. Figure 4-37 DNS Filter Status: the default is disable. “DNS filter” is able to filter certain domain name ...

  • Page 48: Lan Ip Address

    150Mbps Wireless N Router address of LAN port by using this item, after changing IP address of LAN port, the router will restarted automatically. You can also choose enable or disable of the DHCP server, set the range of DHCP address pools LAN IP address 4.7.1.

  • Page 49: Dhcp Client Info

    150Mbps Wireless N Router DHCP IP Address Reserving: reserve IP address for designed physical address host. If you  want to configure a fixed IP address for some host, please input physical address and IP address, then click add DHCP Client Info 4.7.3.

  • Page 50: Dmz Setting

    150Mbps Wireless N Router Some games, servers, and applications (such as BT, QQ video, Edunkey, Web server) are no longer effect when behind the NAT router, so this item provides function of port mapping from LAN to WAN.  Description: Describe current virtual server item Internal Host IP Address: The “Internal Host IP Address”...

  • Page 51: Port Trigger

    150Mbps Wireless N Router Port Trigger 4.8.4. Figure 4-44 Port trigger module dynamically registers virtual server rules when any IP host generates the packet from the specified trigger protocol and port. Port trigger module use forward protocol type and port number and use the IP address of host that generates the trigger packet when it registers a rule.

  • Page 52: Ddns

    150Mbps Wireless N Router L2TP Pass-through: L2TP means the “Layer 2 Tunneling Protocol”, you can select “enable” to  allow L2TP pass-through the router IPSEC Pass-through: IPSEC (Internet Protocol Security) is a suite of protocols used to  implement secure exchange; you can select “enable” to allow IPSEC pass-through the router 4.10.

  • Page 53: System Management

    150Mbps Wireless N Router Figure 4-47  Destination Network or IP Address: Specify a certain destination Network or IP address which static route forward to Subnet Mask: Subnet mask is used for distinguish Network portion and Host portion for  an IP address Next-hop IP Address: This is an IP address of the next-hop device (and also is the gateway ...

  • Page 54: Web Setup

    150Mbps Wireless N Router 4.12.2. Web Setup Figure 4-49 WEB Management Status: the default is disable. Router can be accessed on the remote site using “Web setup”. Check the “Management Port” and enter the port number and then press “save” button to enable web management 4.12.3.

  • Page 55: Wol

    150Mbps Wireless N Router Click "Restore" button, the Router will erase all of your settings and replace them with the factory defaults, make sure you have backup current settings before click this button 4.12.6. WOL Figure 4-53 Input host MAC address, and then click button of "Wake up" to wake up the target host which in the LAN 4.12.7.

  • Page 56: Faq

    150Mbps Wireless N Router 5. FAQ 1. I cannot access the Web-based Configuration Utility from the Ethernet computer used to configure the router. Check that the LAN LED is on. If the LED is not on, verify that the cable for the LAN ...
  • Page 57 150Mbps Wireless N Router address. Make sure you are using the correction method (Dynamic IP Address, PPPoE, or Static IP)  as required by the ISP. Also ensure you have entered the correct settings provided by the ISP. For cable users, if your ISP requires a registered Ethernet card MAC address, make sure you ...
