ZOpid HA-WS507 User Manual

2.4 ghz wireless speakers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

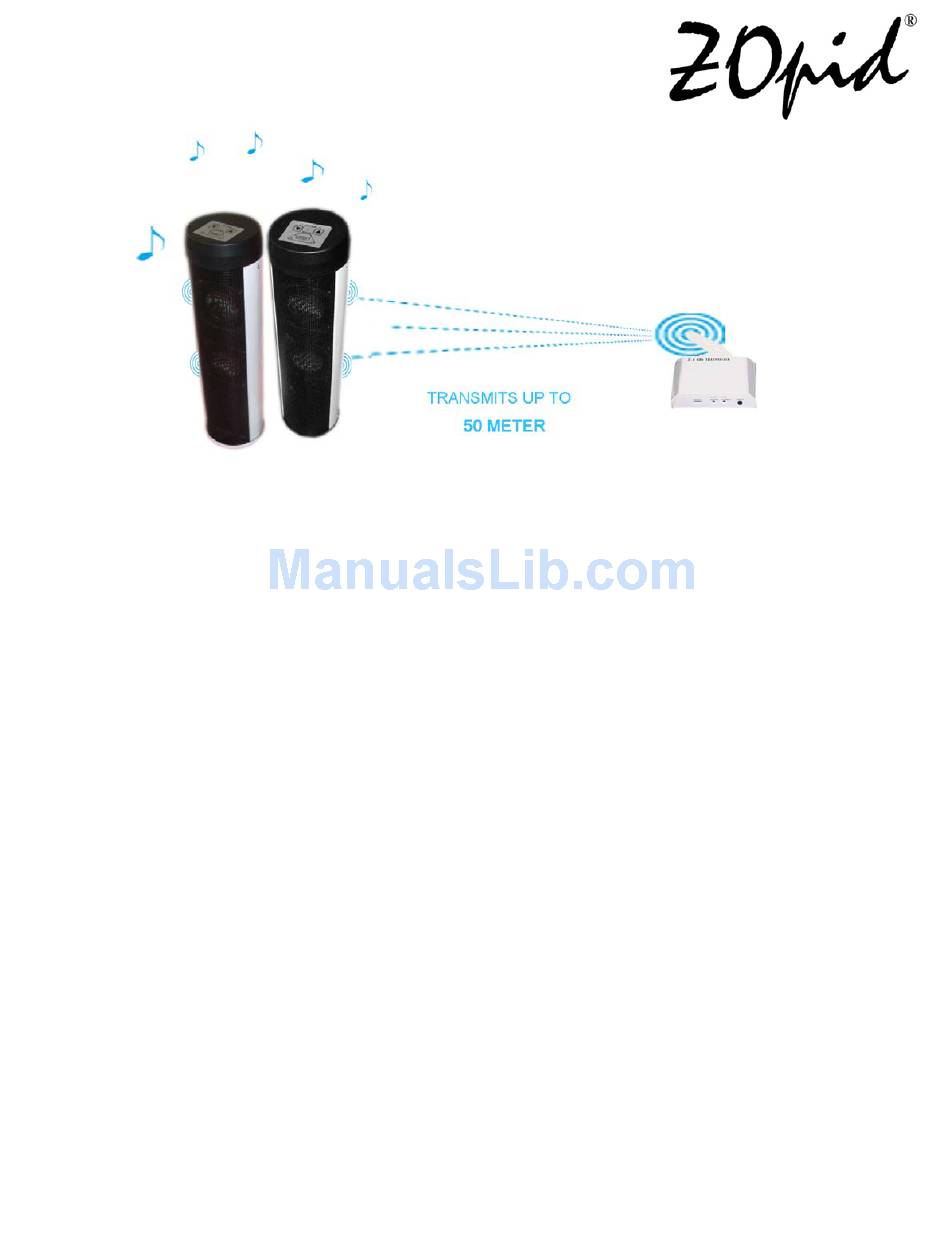

2.4 GHz Wireless Speakers
Model: HA-WS507

User Manual

Thank you very much for purchasing this product. For proper setup and use,
please read this user guide carefully before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HA-WS507 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZOpid HA-WS507

  • Page 1: User Manual

    2.4 GHz Wireless Speakers Model: HA-WS507 User Manual Thank you very much for purchasing this product. For proper setup and use, please read this user guide carefully before using this product.

  • Page 2: Safety And General Information

    SAFETY AND GENERAL INFORMATION IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION OF THIS PRODUCT. READ THIS INFORMATION BEFORE USING THIS PRODUCT. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 3 Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. FCC Notice to Users This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 water sources to avoid damage to the speakers.  Use only A/C adapters provided with the devices to avoid any damage – match power specifications on the A/C adapters to the power specifications on the devices.  Connect A/C adapters to the right power source, according to the power specifications listed on the AC adapter, to avoid damage to the devices or A/C adapters ...

  • Page 5: Included In The Package

     Use the unit within a temperature range of +10℃- +65℃  Please unplug the unit before moving it  Do not use alcohol to clean the unit. If the unit is very dirty please use dry cloth or damp-dry cloth. ...
  • Page 6 PRODUCT COMPONENTS DIAGRAM Top Cover of Speaker Speaker cabinet Speaker Net Speaker Bottom Waterproof Cover DC Power Jack - 5 -...
  • Page 7 PRODUCT COMPONENTS DIAGRAM MONO Indicator Light Volume Down Button Volume Up Button Power on/off & Mode switch Left channel indicator light Right channel indicator light Wireless transmitter Power on/off & volume control button 3.5mm audio in jack Power indicator light - 6 -...

  • Page 8: Connecting The Devices

    PRODUCT COMPONENTS DIAGRAM Antenna of transmitter DC 5V power jack Right channel signal jack Left channel signal jack CONNECTING THE DEVICES ● Transmitter Connection 1. Connect one end of the audio wire to an audio source like MP3 player, audio receiver, etc. and other end to the transmitter 2.

  • Page 9: Technical Specifications

    ● Wireless Speakers Connection And Play Music Connect AC adapters to the wireless speakers Press “MODE” button once to turn on the power The mode light (MONO, R or L) will illuminate, depending on the what mode was being used when the speaker was last turned off e.g.
  • Page 10 MEASUREMENT MEASURING ITEMS UNIT NOMINAL CONDITIONS Supply Voltage RX Module 4.5～5 Supply Current RX Module Supply Voltage TX Module 2.7～3.3 Supply Current TX Module 2400～ RF IC Frequency 2524 RF IC Channels 125Channels Modulation GFSK Frequency Stability ±156 RX Sensitivity Module used Frequency 2400～2480 range...
  • Page 11 TX Power Output Power RL=32Ω RL=16Ω 20Hz～ Audio Frequency Response 20KHz(-3dB) S/N ratio 1KHz Dynamic Range Channel Separation 1KHz MEASUREMENT MEASURING ITEMS UNIT NOMINAL CONDITIONS Distortion At Max Volume 1KHz 1KHz Max Output Power 1KHz 10%THD Output Power 1KHz S/N Ratio 1KHz 30Hz Frequency Response...
  • Page 12 10KHz 18KHz 1KHz Channel Separation 1KHz L/R Channel Balance Supply Voltage 8～9 1000～ Supply Current 1500 Charge Time GAURANTEE REQUIREMENTS If you followed operating instructions in this manual and a fault develops, contact an authorized service center or the seller to obtain return merchandise authorization number and the shipping address to return the product for repairs You will be charged for repairs under the following conditions: ...

  • Page 13: Limited 1-Year Warranty

     The problem was caused by an accident e.g. dropping the product.  The problem was caused by a natural disaster i.e. fire, earthquake, storm, thunder, power surge etc.  If proper proof of purchase is not provided indicating date and place of purchase. LIMITED 1-YEAR WARRANTY Coverage: Hi-Tech Trading (USA), Inc.
  • Page 14 ZOpid and the Stylized Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners.
