Summary of Contents for Systemline ARC7
-

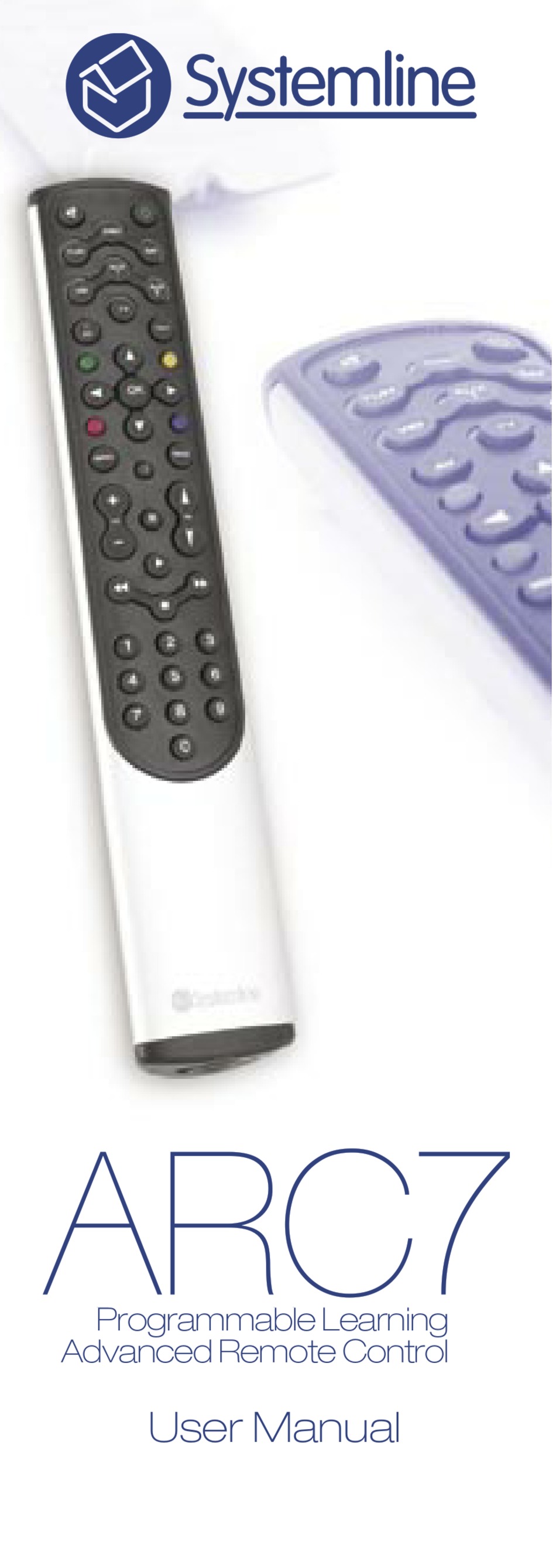

Page 1: User Manual
������������ �������� ������������ �������� Programmable Learning ������ ������� ������ ������� Advanced Remote Control User Manual... -
Page 2: Table Of Contents
Contents 1. Features 2. Basic Operation 3. Learning an Infra-red Command 4. Child Lock 5. User Setup Mode • Infra-red Lockout • Key Sound • LED Brightness 7. Battery Replacement 8. USB PC Connection... -
Page 3: Features
Features USB Interface • High speed link with PC • Infra-red code library • Backup facility • Remote configuration by PC • Re-programmable firmware Macro Support • 8 commands per key per device • Programmable delays • Extensive infra-red support –... - Page 4 ARC7 Device Selection Keys...
-
Page 5: Basic Operation
Basic Operation Your Learning Remote Control features 7 programmable devices and each device is capable of supporting 35 programmable keys. The 7 programmable devices are illustrated on the preceding page. Select the required device by pressing one of the programmable device keys. -
Page 6: Learning An Infra-Red Command
Learning an Infra- red Command The following describes how to learn an infra-red command from another remote control into the ARC7 Learning Remote Control: Entering Learn Mode 1. Press and hold the ‘Standby’ and ‘OK’ keys for approximately 5 seconds. - Page 7 Press and hold the key on the device remote control until the Learning Remote Control makes a sound. Repeat the procedure from step 3 until all keys are learnt for the selected device. If you want to learn codes for another device then wait for approximately 30 seconds (all of the device selection LED’s will be...
-
Page 8: Child Lock
Child Lock This feature allows you to lock the Learning Remote Control from unwanted access. When the child lock has been enabled the remote control will not output any infra-red commands. To enable or disable the child lock, press and hold the ‘Standby’ and ‘Info’... -
Page 9: User Setup Mode
User Setup Mode This mode allows you to configure your preferences for the Learning Remote Control. In this mode you are able to select your preferences for LED bright- ness, key sound, infra-red lockout. To enter User Setup Mode, press and hold the ‘Standby’... -
Page 10: Key Sound
If the infra-red lockout is disabled then the Tuner, Disc and Satellite LED’s will not be illuminated. To select infra-red lockout being enabled or disabled then press either the ‘Up’ or ‘Down’ arrow key. Press the ‘OK’ key to confinfra- redm the selection, or press the ‘Menu’... - Page 11 To select the LED brightness option press the ‘Blue’ key. Cycle through the available bright- ness levels using the ‘Up’ ‘Down’ arrow keys, and the LED brightness will be shown. Press the ‘OK’ key to confirm the selection, or press the ‘Menu’ key to cancel.
-
Page 12: Battery Replacement
Battery Replacement The ARC7 remote remote control needs 3 1.5V AAA batteries (UM-4/LR-03) to operate (supplied). -
Page 13: Usb Pc Connection
USB PC Connection The ARC7 can be connected to a PC via the supplied USB cable and easily programmed using the software supplied on the CD-Rom IMPORTANT Please refer to the Driver Installation guide on the CD-ROM before connecting the remote control to your PC. - Page 14 All information is given in good faith. The manufacturer accepts no responsibility for errors, omissions or incorrect assumptions. Armour Home Electronics 2005. Windows is a registered trademark of Microsoft Corporation. ARC7–ISS1–060905...
