AUXILIARY INPUT
BATTERY
-
Connect the yellow wire to the battery
or 12 volt power source that is always
live. This wire MUST be connected
for the radio to work.
CHASSIS GROUND
Connect the black wire to the factory ground wire. If a
factory ground wire is not provided, locate a clean,
unpainted metal part of the dash and secure the ground
wire with a "ring" terminal and a sheet metal screw.
AMP
AMP

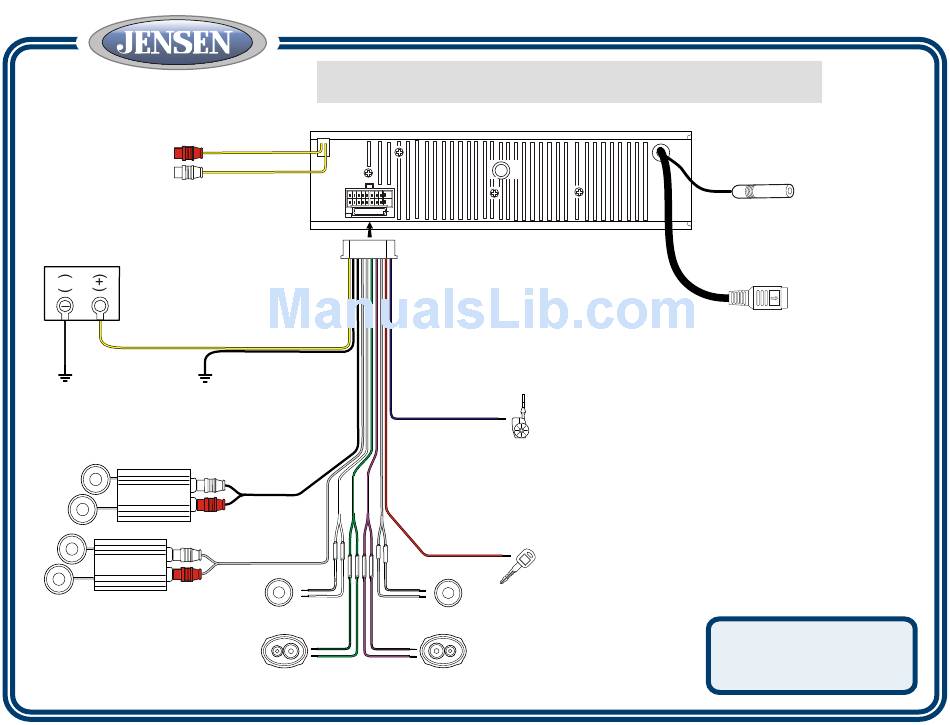

MP6610 Receiver Quick Start Guide
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring
instructions carefully, or have the installation handled by an experienced technician.
10A
RCA OUTPUT
Connect to an
optional amplifier.
Left Front
Right Front
Left Rear
Right Rear
SPEAKERS
POWER ANTENNA/
REMOTE AMP TURN ON LEAD
Positive (+) 12VDC output when the head
unit is turned on. Connect the blue wire to
a motorized antenna or to an amplifier.
ACCESSORY
Connect the red wire to the factory
Accessory or Ignition wire, which
receives power when the key is
turned on.
ANTENNA JACK
Connect to the factory or aftermarket
antenna lead. (Optional extensions or
adapters may be necessary depending
on the type of vehicle you have)
CD CHANGER
CONNECTOR
Need help?
For technical assistance, call
the Jensen customer
support line at 1-800-323-4815.
