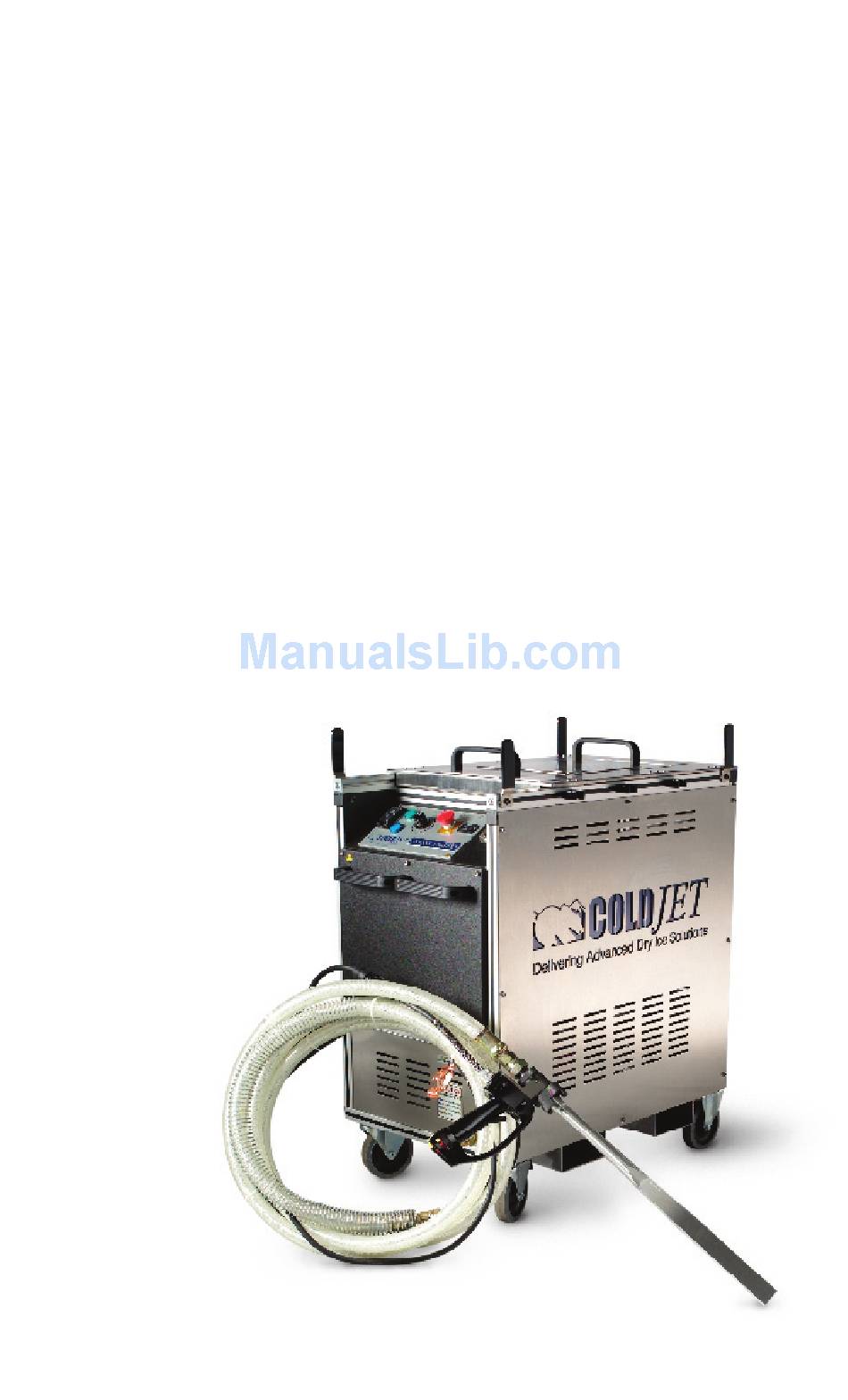

Page 1: Operator Manual
Operator Manual AeRO 75 Series... - Page 2 Voltage: 100-130 Volts AC Voltage: 100-130 Volts AC Model No.: AeRO 75 Model No.: AeRO 75-DX Control No./ Control No./ 2A0148-G1 2A0148-G2 Diagram: Diagram: Voltage: 200-240 Volts AC Voltage: 200-240 Volts AC Model No.: AeRO 75 Model No.: AeRO 75-DX Control No./...
-
Page 3: Table Of Contents
Electrostatic Discharge ................7 Carbon Dioxide ..................8 Blast Hose Safety Precautions ..............9 Finger Guard Precautions ..............10 Component Guide Introducing the Cold Jet AeRO 75 & AeRO 75-DX ........15 Front View .....................16 Back View .....................18 Control Panel ..................20 Hopper ....................21 Regulator Configuration .................25 Coalescing/Particulate Air Filter ............27... -
Page 5: Safety
Safety... -
Page 6: General Safety Precautions
General Safety Precautions • NEVER OPERATE the unit without first reading the Operator Manual. • NEVER EXPOSE bare skin to CO ice. • ALWAYS WEAR safety glasses, gloves, 32+NRR ear plugs & ear muffs. • EVERYONE in the blast area must comply with all safety requirements. •... -
Page 7: Electrostatic Discharge
Electrostatic Discharge Safety Precautions Electrostatic discharge can be hazardous to the operator and the equipment. The static charge of CO varies with the amount of ice and humidity present. Follow these instructions to assure safe operation while blasting. The power outlet must have a good ground This is critical for electrostatic dissipation. -
Page 8: Carbon Dioxide
Carbon Dioxide Safety Precautions Carbon Dioxide (CO ) is a naturally occurring gas and a normal by-product of breathing. However caution MUST be exercised! • This unit utilizes Carbon Dioxide (Dry Ice) as a blast media. • Dry Ice is very cold -110°F (-79°C) and may freeze skin instantly. •... -
Page 9: Blast Hose Safety Precautions
NEVER USE hoses above the recommended working pressure. (see table) Part Number Description Working Machine Pressure 2N0177 3/4" Urebrade Hose 140 psi AeRO 75 (9.65 bar) AeRO 75-DX (Low Pressure) 2N0178 1" Urebrade Hose 140 psi AeRO 75 (9.65 bar) 2N0179 1-1/4"... -
Page 10: Finger Guard Precautions
Finger Guard Precautions Finger Guard The finger guard on the Cold Jet AeRO 75 series protects from a potential personal injury site located inside the machine. The guard, over the air exhaust port, must remain installed at all times to serve its function. - Page 11 • At EVERY blasting start-up ALWAYS purge the Cold Jet AeRO 75 & 75-DX with compressed air before adding pellets to the hopper. • ALWAYS shut the fill lid to avoid foreign objects falling in.
-
Page 13: Component Guide
Component Guide... -

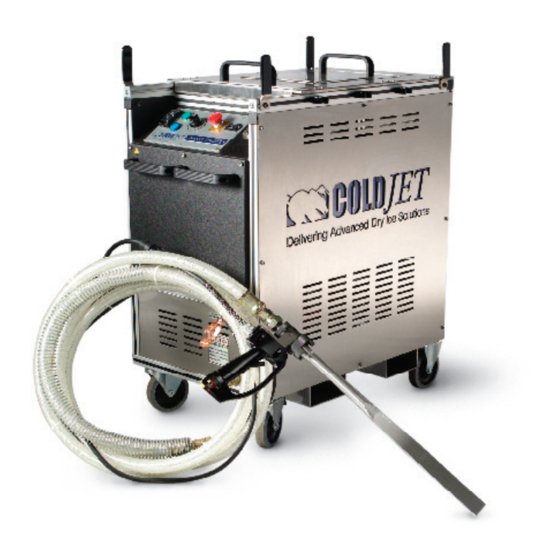

Page 15: Introducing The Cold Jet Aero 75 & Aero 75-Dx
The delivery is variable from 0 - 7 lbs/min (0 - 3.2 kg/min). • The Cold Jet AeRO 75 can blast from 30 - 140 psi (2 - 9.66 bar) and the AeRO 75-DX can blast from 30 - 300 psi (2 - 20 bar). Below 60... -
Page 16: Front View
AeRO 75 Front View Nozzle Hangers Control Panel Electrical Enclosure (SERVICE ONLY) Fork-Lift Static Ground Blast Cable Blast Hose Tubes Cable Connector Connector... - Page 17 AeRO 75-DX Front View Control Panel Nozzle Hangers Electrical Enclosure (SERVICE ONLY) Static Ground Blast Cable Blast Hose Fork-Lift Cable Connector Connector Tubes...
-
Page 18: Back View
AeRO 75 Back View Hose Hangers Power Cord Hanger AC Power Cord Bleed Whip Air Supply Hose Valve Check Connect... - Page 19 AeRO 75-DX Back View Hopper Release Handle Hose Hangers Power Cord Hanger AC Power Cord Bleed Whip Air Supply Hose Valve Check Connect...
-
Page 20: Control Panel
Control Panel Power Power Hour Feed Rate Switch Indicator Meter Machine Active light - When light is on machine is ready to blast (the hopper access door being open Pressure is an example of the light being off). E-Stop Gauge... -
Page 21: Hopper
Hopper Hopper Access Door - Used for accessing hopper for ice or debris removal. Unit will not operate when door is open. - Page 22 Slide Out Hopper (AeRO 75-DX Only) 1. Rotate release handle counter-clockwise. 2. Slide out hopper.
- Page 23 Fill Lid. Used for adding ice. Metal Grate - Prevents large debris from entering the hopper.
- Page 24 Inside (Standard Configuration) Hopper Assembly - Safety Switch - Includes two Vibrators and a Disables the system Pneumatic Thumper. when the door is open. Airflow Actuator & Blast Valve Air Filter Regulator Control (Pneumatic Feeder (Pneumatic Controls) Valves Controls)
-
Page 25: Regulator Configuration
Inside (Optional Regulator Configuration) Air Pressure Knob - Used to set the blast air pressure to the desired value by turning the knob prior to blasting. Optional Inline Pressure Regulator - Used for precise blast air pressure control. -
Page 27: Coalescing/Particulate Air Filter
Optional (Coalescing/Particulate Air Filter) Differential pressure gauge ndicates if the filter needs changing. Air Filter Used to extract moisture and dirt from the supply air. Drain Valve - U sed to drain excess water. -
Page 28: Blast Applicator
Single Feed Blast Applicator (AeRO 75 Only) Blast Cable JICM Rotation Stop Retention Protects blast cable from Connector Connector Collar damage Trigger Also breaks up ice if pressed rapidly Safety Switch Safety ON Safety OFF... - Page 29 Tri-Mode Blast Applicator (AeRO 75-DX Only) Blast Cable JICM Rotation Stop Retention Protects blast cable from Connector Connector Collar damage Trigger Also breaks up ice if pressed rapidly Safety Switch Tri-Mode Speed Control Up - Sets speed to 2/3 of Max...
- Page 31 Operation...
-
Page 32: Starting Up
Starting Up Make sure the Power Switch and bleed valve are in the OFF (O) position. Attach the blast hose and the control cable to the machine. Securely attach the applicator to the blast hose and control cable. Make sure the Rotation Stop is facing UP. Verify that a nozzle is locked into the Blast Applicator. - Page 33 Make sure the hopper is dry, clean, and free of debris. Connect the Static Ground Cable to the material to be cleaned or to an electrically conductive supporting structure of the material. Turn on the air compressor, and allow the air supply hose to pressurize. Check for leaks.
-
Page 34: Blasting
Close the Fill Lid. IMPORTANT LETTING THE SYSTEM RUN UNTIL IT EMPTIES KEEPS THE UNIT IN IDEAL CONDITION. Squeeze the Applicator trigger to blast. If desired push the speed switch up to increase the feed rate to clean tough spots (AeRO 75-DX ONLY). -
Page 35: Shutting Down
For the AeRO 75 slide open the hopper access door and scoop out the remaining dry ice from the hopper. For the AeRO 75- DX, just slide the hopper out to empty any remaining ice. Turn OFF the compressed air supply. -
Page 37: Maintenance
Maintenance... -
Page 38: Troubleshooting
Troubleshooting Problem Check This Solution Is the unit plugged in? If NO...Plug Unit in. Machine will Is the power switch in the If NO...Push power not start ON (I) position? switch to I. GREEN light is It still will not start up? Call Cold Jet for support. -
Page 39: Daily/Weekly Maintenance
Daily Maintenance Make sure the gauge is in the GREEN. If not then change the filter element to avoid damage to the machine Drain the water out of the optional Coalescing filter by opening the drain valve at the bottom of the filter. Drain water out of the air filter before using the machine. -
Page 40: Weekly Maintenance
Weekly Maintenance Look through the hopper to check the rotor for nicks or gouges. (Use a flashlight). Make sure the nozzle airflow exit end is not deformed or burred. -
Page 41: Monthly/Biannual Maintenance
Monthly Maintenance Check the thumper for worn or damaged parts and also check for loose fittings. Check the Vibrators for vibration. Also check the two mounting bolts, on each vibrator, to verify they are secure. Check the Air Filter by unscrewing the base a 1/4 turn clockwise. - Page 42 Biannual Maintenance If you are not an authorized Cold Jet Service Technician, please call to schedule service. +1-800-777-9101 or +1-513-576-8981 or email: service@coldjet.com (Europe: 32 (0) 13 53 94 47, Office Hours: GMT +1.00 or email: service.eu@coldjet.com) Check pads and rotor...
-
Page 43: Appendix
Appendix... -
Page 44: Specifications
Specifications AeRO 75 AeRO 75-DX 295 lbs. 315 lbs. Weight (empty): (134 kg.) (143 kg.) 75 lbs. 75 lbs. Pellet Capacity: (34 kg.) (34 kg.) Variable From: Variable From: Pellet Delivery 0 - 7.1 lbs/min 0 - 7.1 lbs/min Rate: (0 - 3.2 kg/min) -
Page 45: Tips
Tips Blasting Techniques • POSITION the blast hose for maximum maneuverability BEFORE blasting. • DO NOT kink the blast hose. • HOLD nozzles PERPENDICULAR to the surface for fastest cleaning (recommended for most applications). • OPTIMUM STAND OFF DISTANCE is 2 in (5 cm) for most nozzles. -
Page 46: Blast Air Quality
After Cooler and a 2-stage coalescing filter assembly downstream of the receiver tank. Hot metal pipes are an indication this is needed. To verify that the plant air system is adequate for the AeRO 75 (75-DX) the air compressor needs to produce an air volume 10% greater than the blast machine's maximum air volume...in addition to the air volume consumed by... - Page 47 (dew point). Desiccant dryers produce a dew point of -40°F (-40°C), resulting in a dew point low enough for continuous blasting. To verify the compressor is of adequate size for the AeRO 75 (75-DX) the air compressor needs to produce an air volume 10% greater than the blast machine's maximum permissable air volume.
-
Page 48: Cold Jet Services
• Pellets are made using FOOD GRADE QUALITY dry ice. Manufacturers of dry ice are located throughout the world for • the recommended manufacturer in your area call +1-800-777-9101 (Europe: 32 (0) 13 53 47) or e-mail service@coldjet.com (Europe: service.eu@coldjet.com) -
Page 49: Machine Symbols
Machine Symbols General mandatory action General danger Wear ear protection Standby Skin puncture from pressurized air jet Read operator manual Wear eye protection Electrical shock Ready or electrocution Read service manual Emergency stop Loud noise Wear safety gloves Applicator ready to blast Lock out in De-energized state... -
Page 51: Warranty
Warranty Information Cold Jet ® LLC (“CJ”) warrants its products (“Equipment”) provided under this Agreement to be free from defects in materials and workmanship for a period of 12 months, under normal use, maintenance and service as stipulated in the Operator’s Manual. - Page 52 +1-800-337-9423 +1-513-831-3211...
