Summary of Contents for Audio Pole CDR 5

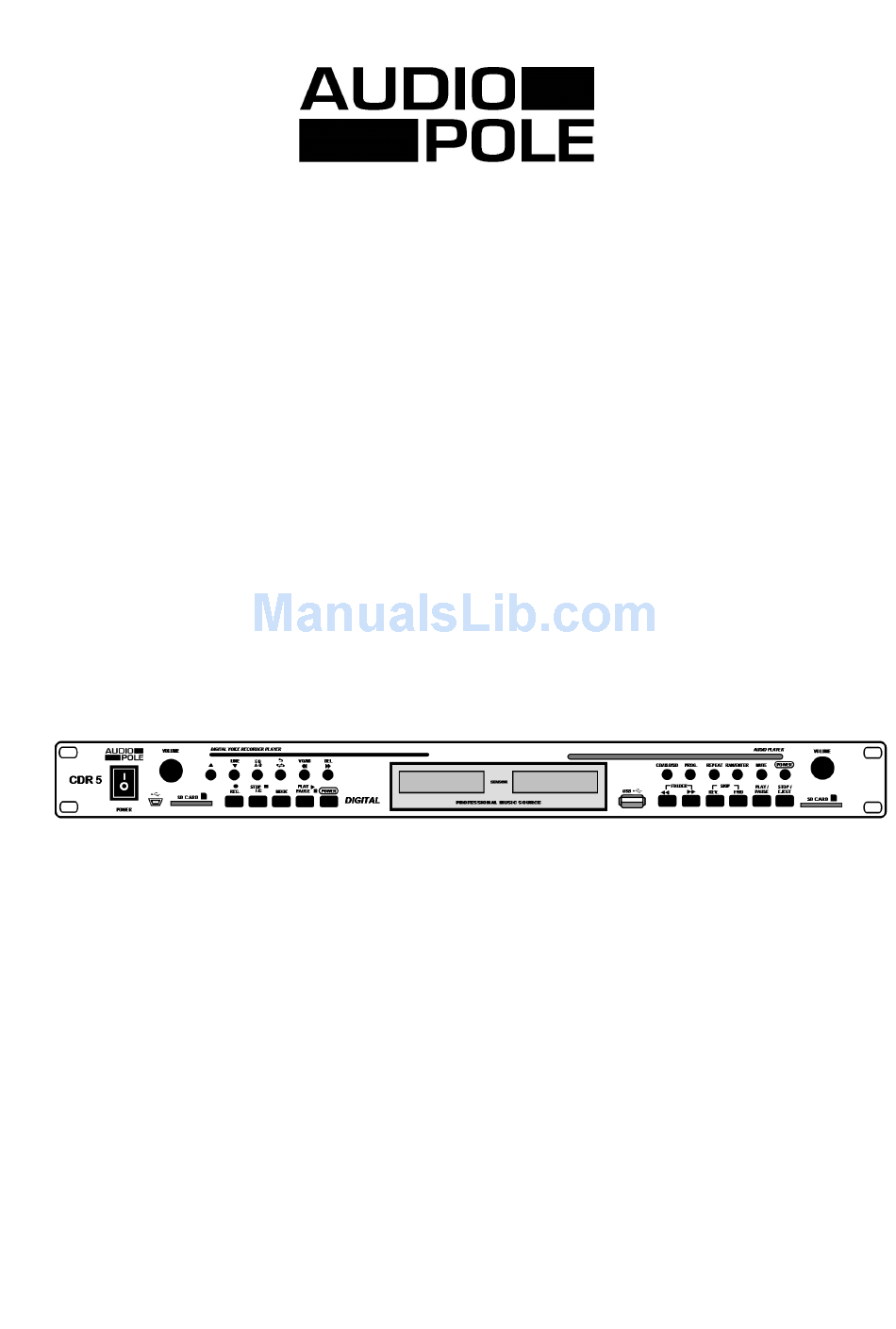

- Page 1 CDR 5 RECORDER – CD/SD PLAYER USER’S MANUAL...
-
Page 2: Important Safety Instructions
Important Safety Instructions This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you to important operating and maintenance instructions. POWER SUPPLY Ensure that the insource voltage (AC outlet) matches the voltage rating of the product. -
Page 3: Table Of Contents
Index 1 - Introduction …………………………………………………………………………….. 4 2 - Features …………………………………………………….…………….….………… 4 3 - Controls ……………………………………………………………………….….…….. 5 A - Recorder …………………………………...……………….…………….. 5 a - Play …………………………………...……………………..…. 5 b - Record……………………………...……..……………..…….. 6 c - File Transfer from a computer …………………….………..6 B - CD, USB, SD Player …………………………...……………….……….. 7 a - Functions …………………………...……………………..….. -
Page 4: Introduction
Introduction Thank you for purchasing the Audiopole CDR 5. The device is a compact multi-format audio player and a recorder designed for fixed installations. It is the ideal solution to record messages and music from few seconds to several hours. -
Page 5: Controls
Selection of the playback format CDR 5 memorizes and reads MP3 and VOC audio formats. Every format has is own memory bank from 1 to 99. To select the format press MODE then VO/M3. The display shows “VOC” or “PM3”. -
Page 6: B - Record
Recording mode Le CDR 5 only uses VOC format for recording, it is therefore necessary to select this mode using the procedure described in the previous chapter. Then press the REC button The display will show a blinking dot that flashes after a few seconds, indicating the effective start of the recording. -
Page 7: B - Cd, Usb, Sd Player
Controls Track number In MP3 mode, only the memories containing a file get a track number. The display shows “F no F” if all memories are empty. The track no. is automatic and sequential. It is modified when a new file is deleted or loaded from the computer. - Page 8 Controls PROG CD format: Press the key to program 10 preset memories. The display shows PROGRAM, the tracks to store are selected by SKIP REV and SKIP F.WD keys. Then confirm the selection by pressing ENTER for each track. The device starts to play when the PLAY key is activated, the display indicates MEMORY.
-
Page 9: B - Display
Controls b - Display Source with MP3 or WMA files Source with CD Play is activated Pause is activated REPEAT 1 Repeat one single file REPEAT ALL Repeat all files REPEAT FOLDER Repeat the content of one folder SHUFFLE Random play PROGRAM Program memories MEMORY... -
Page 10: D - Remote Control
Controls D - Remote CD eject EJECT EJECT Memories programming PROG PROG Random PROG PROG Repeat Folder FOLDER FOLDER Play / Pause Stop FOLDER FOLDER Previous Next USB/SD USB/SD Fast back Fast forward Source USB/SD USB/SD Mute Enter For optimal operation, the remote must be pointed in the direction of the device. The maximum operating distance is about 3 meters. -
Page 11: Technical Specifications
Technical specifications Warranty This device is warranted parts and labor against any manufacturing defects for a period of two years from the date of purchase by the first user. Conditions The unit has been installed and implemented by observing the safety instructions in this operating manual. The device was not diverted from its destination, either voluntary or accidental, and suffered no deterioration or modification other than those described here or explicitly authorized by AUDIOPOLE.
