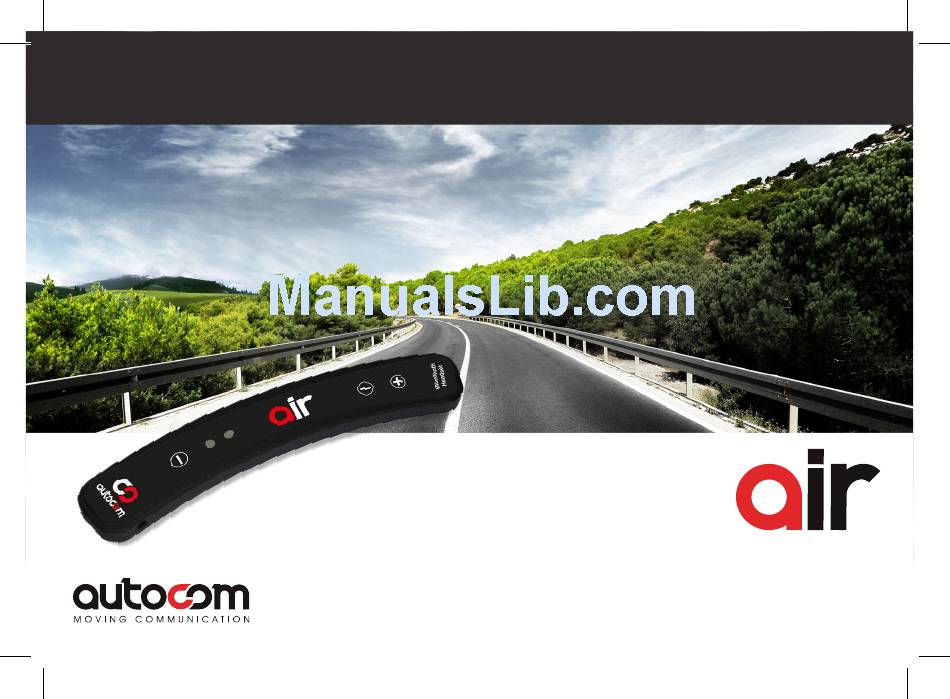

- Page 1 A better ride, in every sense. Air Instruction Manual The ultimate motorcycle audio / communication system...

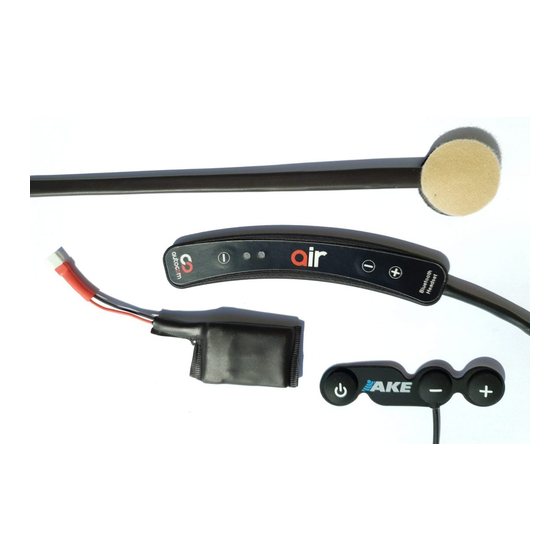

- Page 3 Autocom Air System Overview 1) Speakers 2) Autocom Air 3) Battery 4) Microphone 5) Multifunction Button 6) Blue/Red LEDs 7) Volume Controls 8) Charging Socket...
- Page 4 • Two Autocom Air units can be paired to form a Rider to Passenger or Bike to Bike intercom while retaining a connection to your Bluetooth enabled devices such as mobile phone, satellite navigation system or MP3 player.
- Page 5 Typical Helmet Installation External Control Button (5) Autocom Air Unit (2) - Hidden in neck collar Multifunction Button. Battery (3) - Hidden in internal padding Internal Wiring Colour coding: Yellow = Speakers Blue = Microphone = Battery Black = External Switch Microphone (4) - Boom microphone.
- Page 6 Remove the protective paper from the back of the Velcro fixing pads and place them below your markings in the helmet and apply pressure. Now place the speakers on the Velcro pads. Route the speaker cables to the Air unit cable and connect to the YELLOW plug marked “R” and “L”.
- Page 7 If a battery has not been charged for a long time, the charging system may not start immediately. The Air will regenerate the battery and the charging control light will flash until the battery is conditioned. Never wear the helmet when charging the battery.
- Page 8 On your mobile device, select the Bluetooth settings and scan for devices. You will see “AKE Stealth-HS-NG v3.00” listed as an available Bluetooth device, now connect to this device. If asked for a code word, please enter 0000. (This may happen in future when the Air unit requests to connect to your mobile device).
- Page 9 Delete Existing Pairings If stored pairings that are no longer needed on the Autocom Air or are faulty it is possible to delete them. This will erase all pairings and all required devices must be repaired. Enter pairing mode on the Air unit (indicator LEDs flash RED and Blue alternately) then hold down the Multifunction Button (5) button for 10 seconds (Count 10 times RED LED flash).
- Page 10 Some mobile phones will ask for a confirmation (code 0000). • The Autocom Air is a low power (Class 2) device and can provide a range of up to 250m (terrain and environment dependant) for bike to bike communication. •...
- Page 11 Multifunction Button (5), and the music will be interrupted. • Do not pair the same mobile device or satellite navigation system to two Air units that are simultaneously active as operation problems will occur. As an example, two Air units cannot both listen to the same satellite navigation system.
- Page 12 Technical Data Bluetooth system - Version: 2.0+EDR. - Profile: Hands-free, headset and A2DP. - Range: Low Power Class 2, free field up to 250m. Battery and Charger - Power supply (charger) 5V DC, 300mA. - Battery Li-Ion/Polymer 3.75 V 240mAh. - Charge time 2 - 3 hours.
- Page 13 AUTOCOM DEALERS. European CE Notice Your Autocom Air (the “Product”) is in conformity with the following essential requirements of Council Directive 1999/5/ EC (referred to as R&TTE Directive): Articles 3.1a, 3.1.b and 3.2. The Product is manufactured in accordance with Annex II of the above directive.
- Page 14 Autocom advises you to take all necessary precautions and remain alert to the traffic, weather and all road conditions. It is best to stop away from traffic prior to activating or deactivating the Product or initiating or receiving any calls.
- Page 15 Please retain the retail sales receipt and your registration data for proof of purchase. Subject to the aforementioned, Autocom hereby represents that this Product is warranted to be free from defects in materials or workmanship (proof of purchase and registration required). Within the subject period, Autocom will, at its sole option, repair or replace any components that fail in normal use.
- Page 16 Autocom assumes no responsibility resulting from the use of non-Autocom components or products in conjunction with its Products, and specifically the use of third party chargers or Bluetooth® devices. Furthermore, Autocom is not responsible for any damage to any part of the Product resulting from the use of ancillary equipment not furnished by Autocom which is attached to or used in connection with the Product.
- Page 17 By using the Product, you are irrevocably releasing, indemnifying from any liability, loss, claim and expense (including solicitors fees) and holding Autocom harmless for any bodily injuries, harm or death as well as losses or damages in goods, to any vehicles including your own, or to any property or asset that belong to you or to third parties, any of which may result from using the Product under any circumstances or conditions and irrespective of jurisdiction.
- Page 18 Autocom. 5. By using the Product, you confirm that you have read this release of liability and fully understand and accept its terms and conditions.
- Page 19 Other Autocom products Autocom Logic and Autocom Spa Logic Instructor System...
- Page 20 Bike to Bike Rider/Passenger Smartphone (Subject to terrain) Intercom (Dual kit required) The ultimate motorcycle audio / communication system...
