Summary of Contents for 21PRO camera

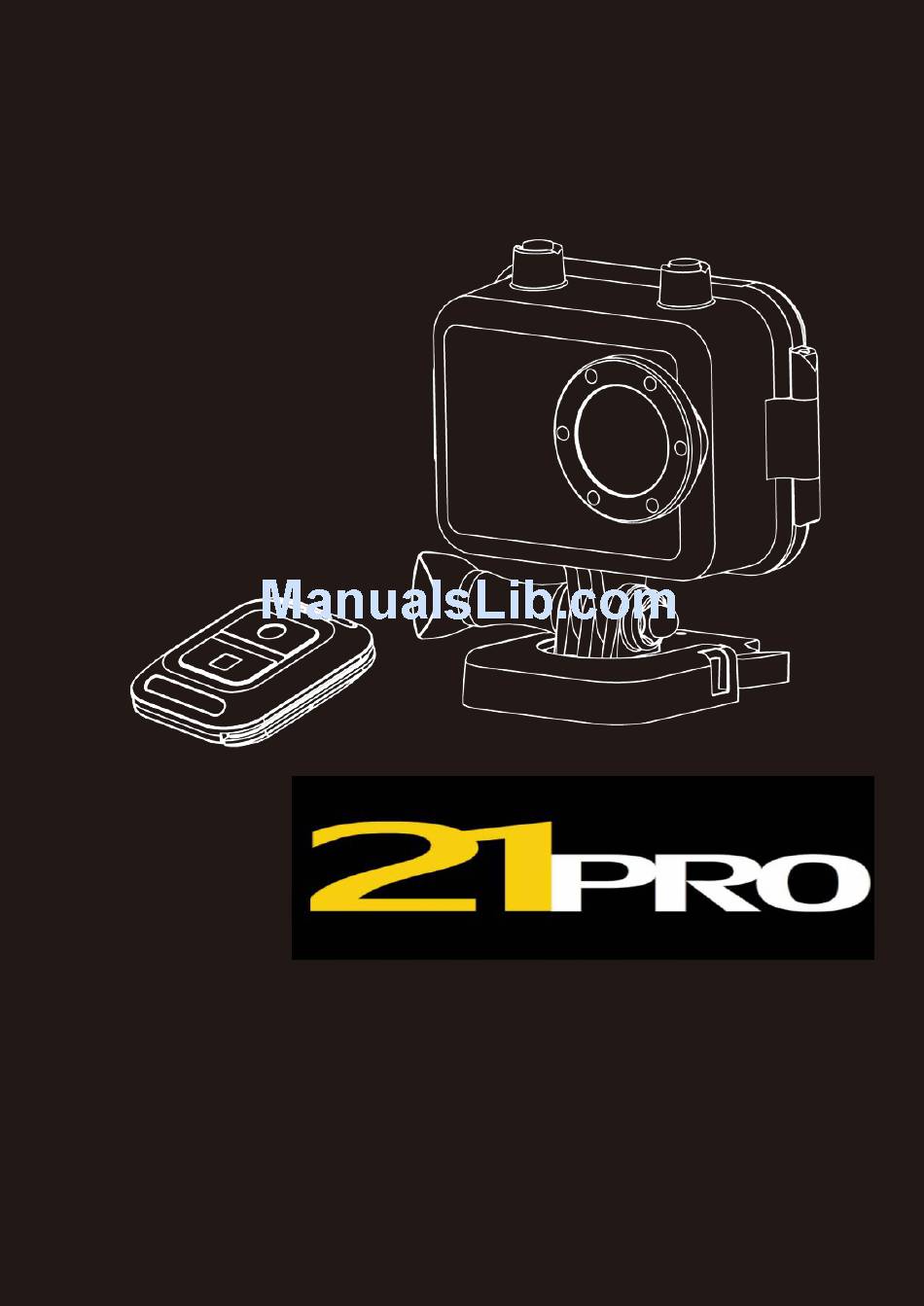

- Page 1 User Manual ~ 1 ~...
-
Page 2: Table Of Contents
—————————— —————————— Table of Conten Main Feature ............................ 4 Install and Use ..........................5 Camera body buttons ........................5 Remote controller ........................6 Install Battery ..........................7 Close back cover......................... 7 Install Memory Card ........................8 Install waterproof housing ......................9 Install the Mounts ........................ - Page 3 Light Frequency ........................38 Auto Power OFF ........................39 Auto Screen OFF........................40 Volume ............................ 41 Format ............................ 42 Reset............................44 Firmware Update ........................45 Version ............................ 47 Specifications ..........................48 Wall Charger ........................... 50 Accessories ............................. 52 在使用前详细阅读说明书，以避免错误操作，本说明书本非全面或最近，有任何疑问请联系我们 ~ 3 ~ www.21pro.co.uk...
-
Page 4: Main Feature
3200 x 2400 2592 x 1944 Video & Picture playback Support 1GB~32GB High speed TF (Micro-SD) memory card High speed USB2.0 interface for Power charge and Data transfer HDMI、USB and RCA output optional ~ 4 ~ www.21pro.co.uk... -
Page 5: Install And Use
Install and Use Camera body buttons 1.Video Record Indicator (red) 8.UP & Zoom+ 2.Power Indicator (red) & Power charge Indicator 9.Menu button (green) 10.Down & Zoom- / Remote Pair 3.MIC 11.Power ON & Picture Capture 4.Tripod screw hole 12.USB Port 5.Audio output... -
Page 6: Remote Controller
Remote controller Start video record Remote to start video record only under Camera Powered ON, not valid if camera is OFF. Stop video record Remote to power OFF directly or stop video record and then power OFF. Remote Pair with Camera Hold the “<”... -
Page 7: Install Battery
Install Battery Please install the battery according to the graphic: Open the battery cover Install the battery ( Note: label side face up) Close back cover ~ 7 ~ www.21pro.co.uk... -
Page 8: Install Memory Card
Please use the original SD card for good using experience. Bad or phony SD card would happen the problem like "can not read" or "file damaged". Please format the SD card in this camera before use it the first time. -
Page 9: Install Waterproof Housing
As arrowhead showed in graphic below, pull "A" locker, "B" locker will slack off at same time automatically Put the camera into the waterproof housing as graphic below: Close the cover Close the locker "B" first, and then press the "A" locker to locked-in. -
Page 10: Install The Mounts
Waterproof Housing buttons instruction: Note： Waterproof housing max depth is 20 Meters ( 60 Feet) A pot of fog or water globule would glue to the inside cover, it is allowed and won't effect the camera working. ~ 10 ~... -
Page 11: Video Record And Capture
Video record and Capture 1.Press POWER button turn on the camera, press REC button to start the video record, a red icon will flash on the screen during this time. Press " <" and " >" button to zoom, press REC again to stop the video record and video will be saved at the same time. -
Page 12: Video Playback
Video Playback Press MENU button to enter the main menu of camera, use " < " and ">" to choose the video folder, the quantity of video clips will display on the corner. Press REC button to enter the folder, video clip thumbnail will showed like below: Press "<"... -
Page 13: Browse Pictures
Press REC button to enter the picture folder, picture thumbnail will show like below: Press "<" and ">" to select picture for browsing, press REC to confirm, use "<" and ">" to browse other pictures. Delete files - Please read page 14 for more details. ~ 13 ~ www.21pro.co.uk... -
Page 14: Delete Files
Yes：confirm current operation and quite ALL：confirm delete all files in the folder Press REC button to confirm operation Attention： The files will not be recover after deleted, recommend to make copy in the computer before make this operation. ~ 14 ~ www.21pro.co.uk... -
Page 15: Connect To Television
Connect to Television 1.USB-RCA cable connect with TV ( output) Find out the USB-RCA cable in standard accessories, USB side insert to camera, RCA side insert to TV ( Yellow for Video, White for Audio) 2. HDMI cable connect with TV (output) Please insert the A type connector to the TV , insert C type connector to camera Note：... - Page 16 Start playing back video clip or browse pictures a. Turn the TV to AV or HDMI input channel, power on the camera b. Press MENU button to enter main menu, press " < " and ">" to select video or picture folder, press REC button to enter c.
-
Page 17: Connect With Computer
Connect the camera with computer via USB cable, available for data transfer, power charge and firmware update. Power on the camera after connect it with the computer by USB cable, and the screen will display “ USB connected” like graphic below, means successfully connected. -
Page 18: Battery Power Charge
Install the battery ( Note: label side face up) Charge by computer Note: Power charge by computer, please make sure the camera is POWER OFF state. The green charging indicator will flash, indicator will turn off after full charged. ~ 18 ~... -
Page 19: Charge By Wall Charger
Charge by Wall charger Charge by Cigar lighter charger Attention: Only original power charger that offered in standard accessories available. ~ 19 ~ www.21pro.co.uk... - Page 20 电池充电 —————————— —————————— d，Charge power via the charger， ~ 20 ~ www.21pro.co.uk...
-
Page 21: Full Charge Time And Using Time
ATTENTION: a . Please uninstall the battery when camera is free b . Please do not exhaust the battery completely before power charge c . Full charge the battery in the first time will extend the battery life. -
Page 22: System Menu
Booting picture & screen instuction Icon on Screen 1920x1080 Video resolution Video record 28000M Available rest memory Picture capture Rest time of video record Continuous capture 15：33：24 in memory 2010/09/21 Year/Month/Date Memory card System time Battery 04：27：48 ~ 22 ~ www.21pro.co.uk... -
Page 23: Main Menu
Main Menu Video folder Picture folder If here has video clip or picture in the folder, on the corner of icon will display the quantity number like graphic below: Video setting System setting ~ 23 ~ www.21pro.co.uk... -
Page 24: Record Setting
Video record setting menu will display as below: a. Normal REC : Means the camera will start the video record after press the REC button normally under real-time preview state, press REC button again to stop video record and save the video clip. - Page 25 Motion detect: Means the camera will start the video record only when the lens detected movement, camera will not stop video record until here without movement in the picture. Note： The movement detect will start after 10 second only when first time setting did.
- Page 26 2011: Year, 03: Month, 28:Date, 18:Hour, 08:Minute, 25: How long time of this record The whole line will be green if setting finished, will be white if the setting time is the past, mean the setting is not valid. The longest video clip time is 99 minutes. ~ 26 ~ www.21pro.co.uk...
- Page 27 After the “ Auto REC” option selected, then still need to set a time under “ Auto REC time” as below: OFF：Not activated 10 Seconds：Camera will start video record in 10 Seconds after power ON ( start the vehicle). 20 Seconds：Camera will start video record in 20 Seconds after power ON ( start the vehicle).
-
Page 28: Loop Record
Loop Record The camera will delete the earliest video clip for newest video clip if memory is not enough. Select the “ Loop Setting” and press “ REC” button to enter the time setting. OFF：Loop record is not activated 1 Minute: 1 minute per video clip. -
Page 29: Video Resolution
Choose suitable resolution for different purpose, lower resolution will save power and memory for longer time record. Resolution Frame Rate Ratio 1920x1080 Full HD 1080P 30FPS 16：9 1440x1080 Full HD1080P 30FPS 4：3 1280x720 HD 720P 60FPS 16：9 1280x720 HD 720P 30FPS 16：9 848x480 QVGA 60FPS 4：3 ~ 29 ~ www.21pro.co.uk... -
Page 30: Record Content
Record Content A setting option for “ Audio and Video” (video clip with sound) or “ Video “ (video clip without sound) only. Press REC button to confirm setting and quit. ~ 30 ~ www.21pro.co.uk... -
Page 31: Time Stamp
Time Stamp Date and Time will display on the video clip if “ Enable” this feature. ~ 31 ~ www.21pro.co.uk... -
Page 32: Photo Size
Photo Size A setting option of the picture resolution when take a picture. ~ 32 ~ www.21pro.co.uk... -
Page 33: Continuous Shot
Press MENU to enter the main menu, use < > button to select “ Continuous shot” menu, press REC to confirm and choose the quantity of one shot. Self-Timer Press POWER button to active this feature, camera will take pictures in every 10 seconds if no other operation during this. Note：... -
Page 34: System Setting
System Setting Press MENU to enter the main menu, System setting icon showed as below, select and press REC button to enter. Language Setting Select the language and press REC button to confirm. ~ 34 ~ www.21pro.co.uk... -
Page 35: Date & Time Setting
Enter date setting, press REC to select the option, and press REC again to next option 2011：Year option, Red color means changeable 10：Month option, press REC to select and use “<” or “>” to change 15：Date option, press REC to select and use “<” or “>” to change ~ 35 ~ www.21pro.co.uk... - Page 36 2. Time Setting 03: Hour 15: Minute Same operation as date setting. ~ 36 ~ www.21pro.co.uk...
-
Page 37: Image Flip
Image Flip Active this function when you need to install the camera at upside down position, to make right video recorded. The recorded image will flip 180° . ~ 37 ~ www.21pro.co.uk... -
Page 38: Light Frequency
Light Frequency Please choose the correct frequency according to your country or area, picture would flash if incorrect frequency set. CHINA: 50Hz USA: 50Hz 60Hz ~ 38 ~ www.21pro.co.uk... -
Page 39: Auto Power Off
Auto Power OFF If you want the camera power off automatically after some time, then active this function and set a time. Press REC button to enter and confirm setting. OFF：Not actived 5 Mins：Camera will power OFF after 5 minutes whatever state 10 Mins：Camera will power OFF after 10 minutes whatever state... -
Page 40: Auto Screen Off
For power saving or other purpose, we would need to turn off the screen. Press REC button to enter and confirm the setting. OFF：Not actived 1Minute：Camera will turn off the screen automatically whatever state 5Minutes：Camera will turn off the screen automatically whatever state Recommend to turn on this function for longer time working. -
Page 41: Volume
Volume Volume option for Button press and speaker. ~ 41 ~ www.21pro.co.uk... -
Page 42: Format
Format Note： Date can not recover after formatted, please make copy before this operation. ~ 42 ~ www.21pro.co.uk... - Page 43 Memory Info To show the used memory and rest available memory of SD card. ~ 43 ~ www.21pro.co.uk...
-
Page 44: Reset
Reset The system will reset to the factory-set if do this operation. Note： If the user updated the firmware, would need to reset the system once to make the software work normally. ~ 44 ~ www.21pro.co.uk... -
Page 45: Firmware Update
Download the firmware package from official website or local distributers website, the package as below: After released: Copy the firmware “EGOHD1080P-V1.00.bin” to the root directory of SD card (Do not modify the file name) Install the SD card ~ 45 ~ www.21pro.co.uk... - Page 46 Firmware Update Select “ Start” and press REC button to confirm the update operation, camera will reboot automatically after finished, if here without correct firmware in the SD card, system will notice on screen. ~ 46 ~ www.21pro.co.uk...
-
Page 47: Version
Version To check the version of current running software. ( Model No. – Version ) ~ 47 ~ www.21pro.co.uk... -
Page 48: Specifications
DC charger DC 5V, 1200mA Main unit dimension 58.6x31.2x44.8mm Main unit weight With battery spec Waterproof housing dimension 75.3x37.9x58.5mm Motion detection Timing record Auto record Loop record Other Continuous capture function Self-timer Zoom focus Time stamp ~ 48 ~ www.21pro.co.uk... - Page 49 2 x 3 Martix Full HD 1920x1080 HD 1280x720 Support Full HD1440x1080 Play WVGA: 848x480 back HD 1280x720 Video Frame rates 30 FPS 60 FPS File format FULL HD MP4 H.264/MPEG4 Playing speed Optional X1, X2,X 4,X 8 ~ 49 ~ www.21pro.co.uk...
-
Page 50: Wall Charger
Wall Charger 1，Battery charger ( Standard accessory) 2，Direct Charger ( Optional accessory)： ~ 50 ~ www.21pro.co.uk... - Page 51 3，Optional Adaptor： SAA: USA: ~ 51 ~ www.21pro.co.uk...
-
Page 52: Accessories
—————————— ————————— Accessories Disc Manual Li-ion Battery Remote controller USB cable Battery charger Mount Protector Lens Protector Tripod attachment Curved Adhesive Mount Bar Mount Flat Adhesive Mounts ~ 52 ~ www.21pro.co.uk... - Page 53 —————————— ———————— Accessories Short right angle attachment Short straight attachment Long right angle attachment Standard mount Offset mount Tripod Mount Attachment ~ 53 ~ www.21pro.co.uk...
- Page 54 Please Recycle. 、、、、、、、、、、、、、、、、、、、、、 ~ 54 ~...
