Summary of Contents for TED 1001

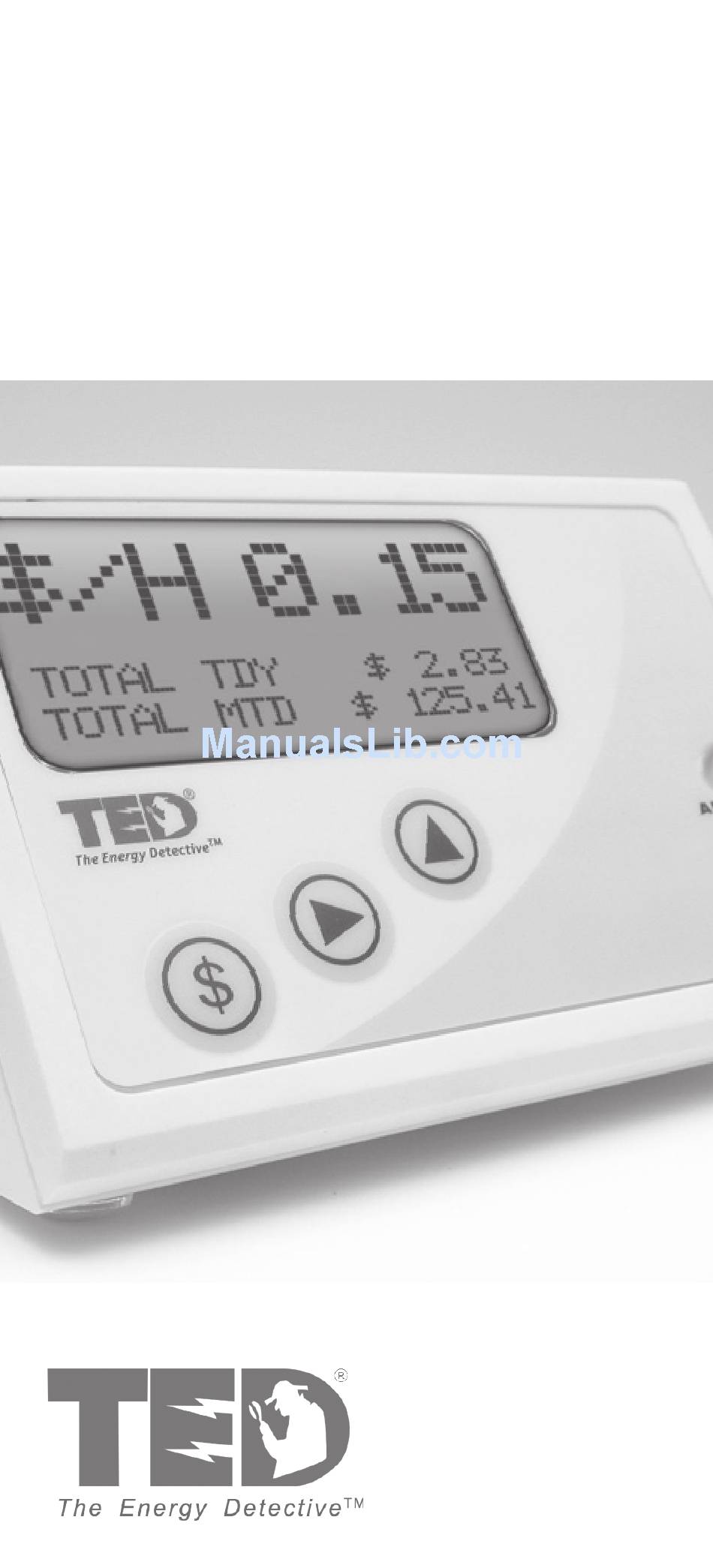

- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n s M a n u a l...
- Page 2 • TED Model 1001 is only suitable for use on 120/240V single-phase 60Hz services • TED Model 1001 is only suitable for services of 200 AMPS or less. (For 400 amp service, see website for details on TED Model 1002) •...
-
Page 3: Table Of Contents
(For Electricians and Professional Installers ONLY) Programming TED ......Page 12 PART IV Day-to-Day Operation . -
Page 4: Part I Introduction
Until the development of TED, you would only find out the actual cost of the electricity purchased after the bill arrived in the mail...far too late to do anything about it. - Page 5 Page Unpacking Unpack TED and insure that all parts are included in the package. a) One (1) Model 1001 Receiving Display Unit (RDU) - The unit comes with the angled stabilizing stand attached, so it will sit in a viewable position on any counter top;...
-
Page 6: Part Ii Safety
P A R T I I – S A F E T Y Every effort has been made in providing for the safe, secure installation of TED. The instal- lation of TED requires the cover of the main electrical circuit breaker panel to be removed. - Page 7 ALL OTHERS SHOULD FOLLOW THE DETAILED INSTRUCTIONS IN APPENDIX A. This model of TED is suitable for installation on a single 120/240V single phase 60Hz ser- vice, normally found in North America (USA, Canada, Mexico and portions of the Carib- bean).
- Page 8 Page 8 Inc oming Power Lines 120/240V MAX 200A Main Circuit Breaker CT’s MAX 200A Phase A Phase B Neutral Neutral Connector White Black 15 or 20A Circuit Breaker Fig. 3 Installing MTU Typical Combination Circuit Breaker Panel © 2008 Energy, Inc. www.theenergydetective.com...
-
Page 9: Quick Start Installation
• Suggestion: the kitchen counter or other convenient location B) The RDU should be displaying all zeroes and the LED should not be flashing. If not, another TED may be trans- mitting on the line. Refer to Troubleshooting Section. • If the RDU is in $ display-mode, press ‘$’ Key to change to KW display mode. - Page 10 Section in Appendix B. STEP 4 - SETTING THE HOUSE CODE NOTE: TED’s display unit can possibly receive data from other TED MTU’s con- nected to the secondary side of the same utility transformer. To guard against reading your neighbor’s electricity use, each MTU has a House Code from 000 to 255.
- Page 11 (VL) and the current in each Phase (IA and IB). The kW display should read very close to kW = VL x (IA +IB)/1001. If the reading is much lower than this, check that the CT’s have been installed with the red dots facing the same direction.
-
Page 12: Part Iv Programming Ted
PROGRAM TED AFTER THE PREVIOUS INSTALLATION PROCEDURES ARE COMPLETE. TED is designed so that the SETUP MODE need only be accessed upon initial setup, or when the Utility has a rate change, or when the user wants to modify any of the opera- tional information –... - Page 13 There are more than 4,000 electric utilities across the US and Canada; most tariff schedules will be accommodated by TED, however, in the event your utility uses a tariff calculation that is not found during this setup procedure, please use one that most nearly resembles your utility’s tariff schedule.
- Page 14 Setup Routine again by holding the $ and ▲ key simul- taneously and pressing MODE until you reach the field you wish to modify. Once the MODE key is pressed, Setup will be complete and TED will automatically return to the Primary Display screen. SUMMER/WINTER RATES Some Utilities have Summer/Winter rate programs.
- Page 15 MODE to move to the End of Summer. Use the ►and ▲ keys to change the End date of Summer. TED views the dates outside of the Summer dates you have entered to be Winter. Summer/Winter rates will appear differently in the Tiered Rates as well as the Time of Use rates.
- Page 16 TED will allow up to 5 TOU rates, with 2 time-periods per rate. “Off-Peak” rate does NOT count as a “rate peak.” If, on your bill for example, you have 3 TOU rates, the lowest is usually termed ”Off Peak.”...
-
Page 17: Part V Day-To-Day Operation
MTU indicating that the power is on and that it is operating normally. 2. If the LED flashes green intermittently, TED 1001 may have a poor communication link and is probably missing data packets sent by the MTU – see Appendix B – Troubleshoot- ing Guide for help. - Page 18 Therefore, TED will never likely match your electricity bill exactly. • If you enter the METER READ DATE as 31, then TED will display values for the calendar month. Energy, Inc. • 3297 Pacific Street • Charleston, South Carolina 29407 • (843) 766-9800...
- Page 19 • You may notice some fluctuations for the first couple days of the billing cycle, until TED can get a handle on your energy use KW PEAK TODAY 16.51 This is the peak power in kilowatts (KW) consumed so far today.
- Page 20 This is an estimate of what your electricity bill will be this bill- ing period. • TED is very aware of your usage pattern, and projects what your electricity bill is going to be. • Since you have 8 days left in the billing cycle, and if your budget is $300, it is time to start conserving.
-
Page 21: Part Vi Viewing Historical Data
P A R T V I - H I S T O R I C A L D A T A TED will begin accumulating data immediately upon the completion of Setup. You can not manually input historical data. To view the Historical Data, hold down the u and MODE keys simultaneously for 2 seconds. -
Page 22: Part Vii Setting Alarms
Depressing the MODE Key will advance from one alarm to the next. We recommend that you operate TED for a substantial length of time to determine which, if any, alarms you want to use based on observation of your typical readings. - Page 23 Audible Alarm, the LED Alarm indicator on the face of TED will change to red if any alarm condition is met. Once the MODE Key is pressed, TED will return to the Primary Display. © 2008 Energy, Inc. www.theenergydetective.com...
-
Page 24: Special Functions
Page 24 SPECIAL FUNCTIONS Some of the following functions can cause significant changes in TED. Please be sure to understand each screen fully before changing any of the default values. In order to access these screens, hold down the 3 buttons on the left side of the display simultaneously ($ ►... -
Page 25: Detailed Installation Instructions
Typical System Voltage for residential electrical services in North America is 120/240V Single Phase 3 Wire 60 Hz. Some small businesses will use this voltage as well. This is nominal voltage and will fluctuate ± 10%. TED is designed to work on volt- ages from 100/200V to 130/260V. - Page 26 TED is not designed to transmit all this way. It may work, but for consistent, reliable operation you need to insure that they are both on the same phase.
- Page 27 Page 27 A P P E N D I X A D E T A I L E D I N S T A L L A T I O N I N S T R U C T I O N S (Continued) will be Phase B, Circuit 5 will be Phase A, etc.
- Page 28 Page 28 A P P E N D I X A D E T A I L E D I N S T A L L A T I O N I N S T R U C T I O N S (Continued) Single-Phase High Voltage Line...
- Page 29 Meter Elec tric Panel Top-Feed Service With Two Main Circuit Breakers and Two Panels Combination Circuit Breaker Panel TED Model 1000 WILL NOT w ork for this installation TED Model 1002 may be used in this Fig A-2 configuration. Typical Service Configuration...
- Page 30 Page 30 A P P E N D I X A D E T A I L E D I N S T A L L A T I O N I N S T R U C T I O N S (Continued) (Blac k) Red or Blac k...
- Page 31 SYMPTOM POSSIBLE CAUSE SOLUTION I plugged the RDU in and Insure that RDU House the LED began to flash, There is another TED on Code matches the MTU even before the MTU was the line. House Code. installed. Circuit breaker not turned...
- Page 32 Date, will display the minimum monthly charge minimum charge until the during setup. minimum is exceeded. The I just installed TED and daily total does not reflect TED is displaying $0.03 the minimum charge today but $15.03 for the month to date.
-
Page 33: Troubleshooting Guide
± 1%. However, the differences can if you set the meter read date as not be explained by the the 10th of the month, then TED differences in read dates. computes your monthly total If the difference is larger... -
Page 34: No Spare Circuit Breaker
Page 34 A P P E N D I X C N O S P A R E C I R C U I T B R E A K E R • If there are no spare circuit breakers and the existing circuit breakers are approved for use with more than one conductor, (most 15 and 20-amp circuit breakers are), then the black conductor may be connected to one of the existing circuit breakers. -
Page 35: Understanding Your Electricity Bill
As an example, lets assume your utility uses a two-tiered rate structure (TED will accept up to three tiers) where the rate for the first 500 kWh is $0.1001 per kWh and for any over this is $ 0.1500 per kWh. The PUC has allowed your utility an energy surcharge of $5 because of high natural gas prices, you pay a fixed charge of $10.00 per month for street lighting and... - Page 36 Q. What is the port on the side of TED1001 used for? A. Currently the port is used to program TED during manufacture. Please see our website for details and information on the future activation of this port.
- Page 37 Page 37 Energy, Inc. Limited Warranty for the United States and Canada Energy, Inc. warrants its electricity monitoring devices, TED-branded Products, and certified TED-branded accessories (“Accessories”) and Energy, Inc. software contained on CD- ROMs or other tangible media (“Software”) and sold for use with these Products to be free from defects in materials and workmanship under normal consumer usage for a period of one year from the date of purchase.
- Page 38 Page 38 3297 Pacific Street Charleston, South Carolina 29418 (843) 766-9800 (800) 99-833 www.theenergydetective.com © 2008 Energy, Inc. www.theenergydetective.com...
