Summary of Contents for De Sisti LEONARDO

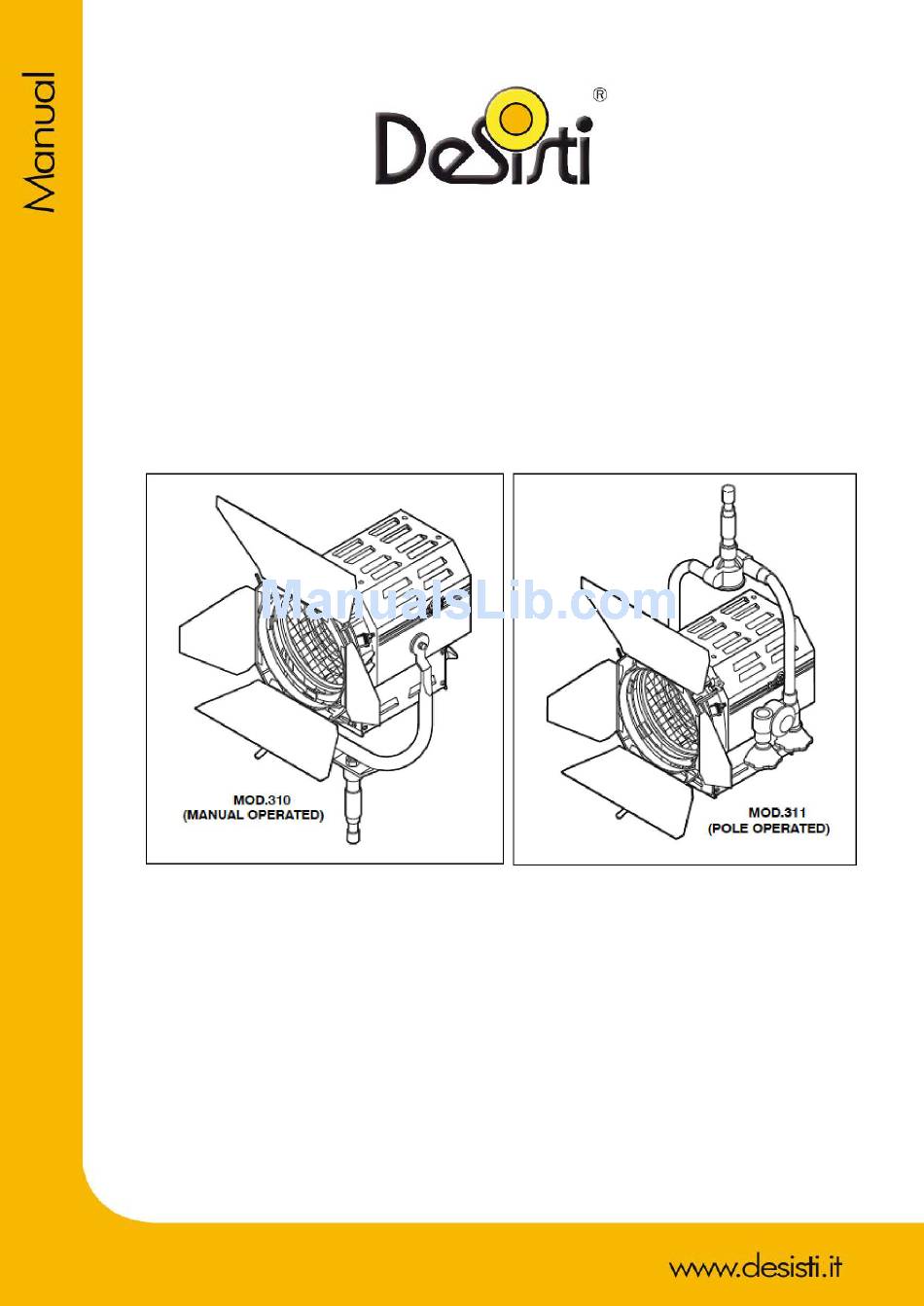

- Page 1 LEONARDO 1000 W Quartz-Halogen Fresnel SPORTLIGHT INSTRUCTION MANUAL...
- Page 2 1. INTRODUCTION Congratulations on your purchase of Leonardo 1kW lighting fixture from De Sisti. Our commitment to total customer satisfaction and our consolidated experience and leadership in design innovation and manufacturing of lighting products for the professional entertainment industry menas you can depend upon the quality of this product.
-
Page 3: Safety Instructions
C. Before hanging the luminaire ensure that the suspension point (or the stand) is properly rated to accept the luminaire weight. D. In case of pole operated use, fit only a P.O. stirrup from De Sisti Lighting. E. A suitable secondary safety suspension device (safety cable, chain or equivalent) must be fitted between the suspension point and the eyelet at the front of the body . -
Page 4: Lamp Installation And Replacement
D. The front safety shields against the lamp explosion are present and in a good condition They consist of Fresnel lens plus wire guard. The Fresnel lens is made by borosilicate untoughened glass D = 150 mm. thickness = 5 mm. typ (3 min), compliant to DIN 15560. The wire guard is a mesh 25 mm. x 25 mm. - Page 5 6. CHARACTERISTICS AND PERFORMANCE DATA DESCRIPTION VALUE - Amperage Europe – 230V America 120 V 5,3 A (1200 W) 8.4 A (1000 W) - Power Supply Europe America 230 V – 0-60 Hz 120 V / 0-60 Hz - Switch on line M.O.
-
Page 6: Periodic Inspection
500 working hours and at least once a year. This frequency may need to be increased if rough or unknown (eg. Rental) treatment is incurred. Replace only with original De Sisti spare parts. Non-original cables may not withstand the thermal and mechanical conditions of use B.
