MANUAL MP-500
V E R S I O N 1 . 2

Advertisement

Table of Contents
loading

Related Manuals for Jens of Sweden MP-500V

Summary of Contents for Jens of Sweden MP-500V

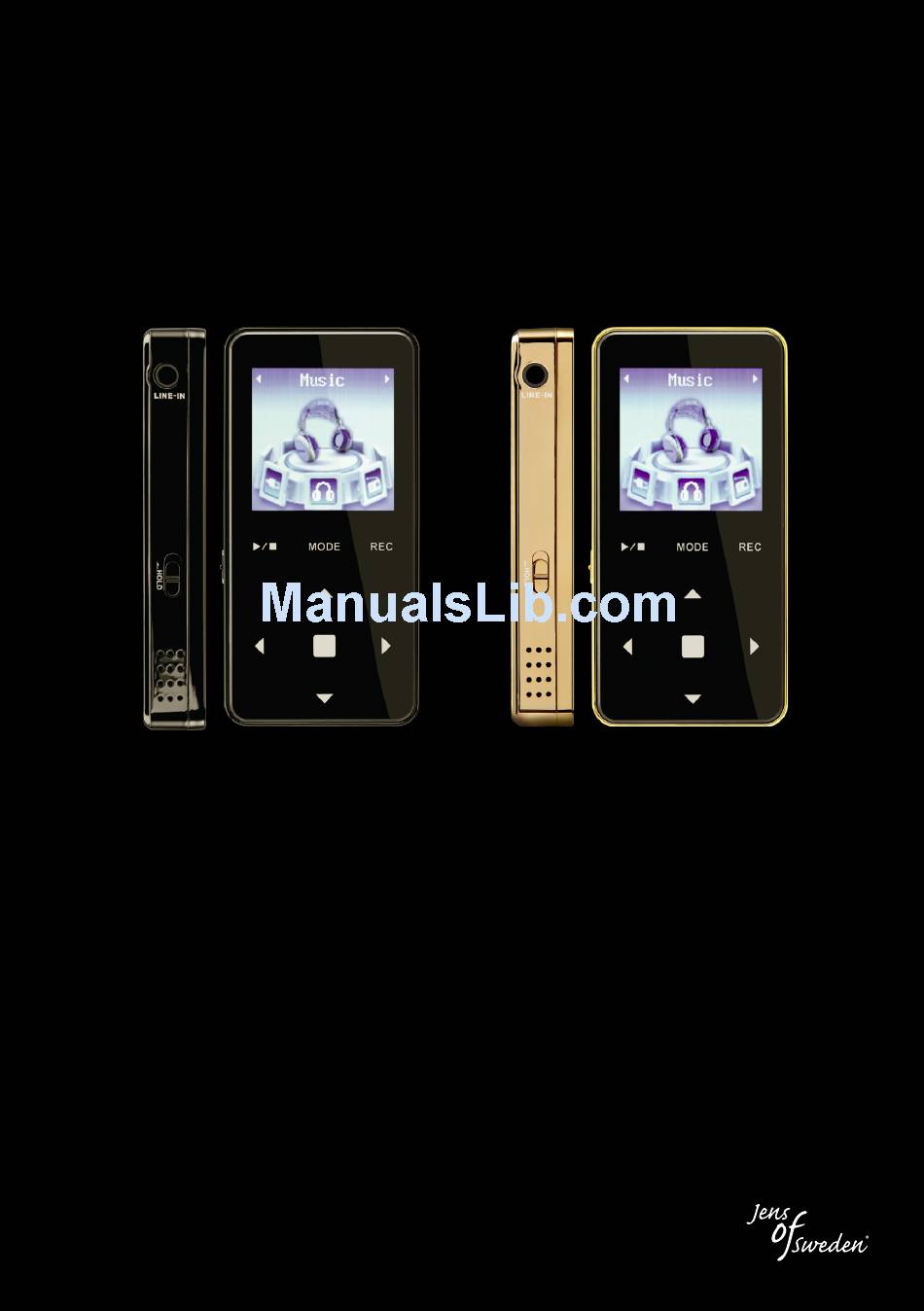

  • Page 1 MANUAL MP-500 V E R S I O N 1 . 2...

  • Page 2: Table Of Contents

    ENGLISH BASIC USE Before You Start ...35 Getting Started ...36 Different File Formats ...37 PRODUCT SPECIFICATIONS Product Specifications...38 Buttons and Connections...39 The Display...40 Music Mode...40 Radio Mode...40 Record Mode ...41 Multimedia Mode...41 THE PLAYER’S DIFFERENT MODES Player Modes...42 Folder Navigation View and the Settings Menu ...43 Navi Mode...43 1.

  • Page 3: Before You Start

    BEFORE YOU START PRECAUTIONS Read the following instructions thoroughly before you start using the product. JoS AB is not responsible for any problems due to incorrect use of the product before you read these instruction. - Don’t use the product in other ways than described in this manual. - Don’t subject the player to any kind of force or shocks, this can seriously damage the player.

  • Page 4: Getting Started

    USB 1.1 HOST LINE-IN GETTING STARTED POWER ON Press and hold the PLAY / PAUSE-button for more then 2 seconds. POWER OFF Make sure the player is set to Pause. Then press and hold the PLAY / PAUSE button for more then 2 seconds. HOLD When Hold is activated the player will not respond when a button is pressed until Hold is deactivated.

  • Page 5: Different File Formats

    CHANGE THE LANGUAGE SETTING The players default language is set to swedish, to change language follow the instructions below. 1. Turn on the player by holding down the PLAY / PAUSE button. 2. Press and hold the MENU button to enter the SETTINGS MENU. 3.

  • Page 6: Product Specifications

    PRODUCT SPECIFICATIONS PLAYER Memory: 1GB, 2GB Size: 81 x 40 x 13 mm Weight: 51 gram Speakers: Built-in speakers Microphone: Built-in microphone DISPLAY Size: 1.6 inches Type: Color TFT LCD Colors: 260 000 colors Resolution: 128 x 128 SOUND Sound Enhancement: SRS/TRUBASS/WOW Equalizer: Normal, Classic, Jazz, Pop, Rock and 5 User EQs ID3: V1, V2...

  • Page 7: Buttons And Connections

    USB 1.1 HOST LINE-IN BUTTONS AND CONNECTIONS 1. Play / Pause 2. MODE 3. REC 4. Navigate Up 5. Navigate Left 6. MENU 7. Navigate Right 8. Navigate Down 9. Built-in microphone 10. USB Host Jack 11. USB Jack 12. Headphones Jack 13.

  • Page 8: The Display

    THE DISPLAY MUSIC MODE A. Clock B. Volume Level Indicator C. Alarm D. Battery Level Indicator E. Play Time F. Section Repeat / Bookmark G. File Number / Total Selected Files H. Quality measured in kbps (Kilobits per second) I. Play / Pause J.

  • Page 9: Record Mode

    RECORD MODE A. Clock B. Volume Level Indicator C. Battery Level Indicator D. Remaining Memory E. Recording Quality in kbps (Kilobits per second) F. Frequency in kHz G. Recording File Format H. Record Mode I. Date J. Recording Source K. Filename MULTIMEDIA MODE A.

  • Page 10: Player Modes

    PLAYER MODES There are seven different modes. These are Music, Radio, Record, Multimedia, Picture, Text and USB Host. To switch mode the player must first be set to Pause. When this is done you can access the MODE MENU by pressing MODE for 2 seconds. Switch between the different modes by using NAVIGATE RIGHT and LEFT buttons.

  • Page 11: Folder Navigation View And The Settings Menu

    FOLDER NAVIGATION VIEW AND THE SETTINGS MENU The navigation buttons have the same functions in all folder navigation views and settings menus. 1. NAVIGATE UP selects previous file or list. 2. NAVIGATE DOWN selects next file or list. 3. NAVIGATE LEFT move one step up in the folder structure. 4.

  • Page 12: Music Mode

    1. MUSIC MODE PLAY / PAUSE 1. Choose MUSIC mode. 2. Choose track and confirm your choice by pressing the PLAY / PAUSE button. 3. Press the PLAY / PAUSE button a second time to pause the track. REWIND / FAST FORWARD 1.

  • Page 13: Bookmarks

    BOOKMARKS The player allows you to bookmark long files (for example MP3 books) to make it easier to start where you left of. 1. Press and hold the REC button during playback of a music file. 2. Press and hold the PLAY / PAUSE button during payback to skip to the bookmark.

  • Page 14: Karaoke / Lyrics

    KARAOKE / LYRICS The player supports lyrics of the .lrc format and can therefor function as a small karaoke machine. The .lrc format contains text and time marks which states when the text should be shown. There are a large number of applica- tions available on the internet as freeware / shareware for creating, viewing and/or downloading these files to your computer.

  • Page 15: Radio Mode

    2. RADIO MODE MANUAL TUNING AND PRESETS There are two ways to tune in the desired frequency you can either use presets or manual tuning. To switch between these two modes press the MODE button. It’s not possible to switch between these two modes until there is a saved preset available.

  • Page 16: Fm Radio Recording

    FM RADIO RECORDING 1. Press and hold REC until the recording starts. 2. Press and hold the REC button to stop the recording The recorded file will be stored in the RECORD / FM folder and can be played in the music mode. NOTE! Your headphones are used as an antenna.

  • Page 17: Record Mode

    3. RECORD MODE TURN RECORDING ON / OFF 1. Use the NAVIGATE buttons to choose source and recording quality (Bitrate) 2. Confirm the setting and start the recording by pressing the REC button. 3. Stop the recording by pressing the REC button a second time. 4.

  • Page 18: Record Settings

    RECORD SETTINGS The following settings can be made in the settings menu which you’ll find by holding down the MENU button, then use the NAVIGATE buttons to select Record. Once you have entered the Record menu select which recording mode you wish to change settings for by pressing NAVIGATE RIGHT.

  • Page 19: Multimedia Mode

    4. MULTIMEDIA MODE PLAY 1. Press PLAY / PAUSE to play the selected file. 2. Press PLAY / PAUSE to pause the selected file. The equalizer and the MODE button are disabled during playback of video clips. CHANGE THE VOLUME 1.

  • Page 20: Picture Mode

    5. PICTURE MODE VIEW JPEG FILES 1. Choose PICTURE mode in the Main Menu. 2. Press the PLAY / PAUSE button to show the select image. 3. Press the PLAY / PAUSE button a second time to return to the file browser. VIEW NEXT / PREVIOUS IMAGE Press on the NAVIGATE LEFT or RIGHT button to see the next or previous image.

  • Page 21: Text Mode

    6. TEXT MODE READ A TEXT FILE 1. Press the PLAY / PAUSE button to show selected file in the file browser view. 2. Press the PLAY / PAUSE button a second time to return to the file browser view. SCROLL THE TEXT Scroll vertically by using the NAVIGATE UP and DOWN buttons.

  • Page 22: Usb Host Mode

    7. USB HOST MODE The USB Host mode lets you transfer data to your player from any portable USB device. CONNECT THE DEVICES 1. Connect the USB Host Cable (not included) to the USB Host port. 2. Connect the other end of the cable to the device you wish to transfer data from.

  • Page 23: Settings Menu Overview

    SETTINGS MENU OVERVIEW 1. Press and hold the MENU button to enter the SETTINGS MENU. 2. Use NAVIGATE LEFT and RIGHT to choose settings category. 3. Confirm your choice by pressing the MENU button. 4. Press the REC button to exit the SETTINGS MENU. GENERAL DISPLAY Skip Length...

  • Page 24: General

    GENERAL Skip Length: Determines how big steps the player will fast forward / rewind. Scan Speed: Set the scan speed in a music file Play Speed: Set the play speed of a music file Resume: If the player should start playing where it left of when it was turned off.

  • Page 25: Display

    DISPLAY Playback Time: Show elapsed or remaining time. Scroll Speed: How fast the track title should scroll. Song Title: Choose between showing the file name or the ID3 tag information. Light Time: Choose for how long the display should be lit after a buttons is pressed (NOTE! The screen consumes a lot of power, if you are experiencing short battery times, try decreasing the Light Time.) Contrast: Adjust the screen contrast.

  • Page 26: Timer

    TIMER Auto Off: Set the number of minutes before the player automatically turns of if no buttons are pressed and no files are playing. Sleep: Turn On / Off the automatic power off function. Date / Time: Set the date and time. Alarm: Set the time the alarm should start, if it should be a daily alarm as well as which song should be played.

  • Page 27: Mode

    MODE Boundary: Select if you wish to play one file, all files or all files in a folder. Repeat: Repeat the files within the selected boundary. Shuffle: Play songs in random order. KEY TO THE DIFFERENT ICONS IN PLAY MODE Normal One: Playback is stopped after one files has played.

  • Page 28: Sound

    SOUND EQ / SRS: Adjust the players twelve different equalizer modes. Bass Boost: Adjust the bass. Treble Boost: Adjust the treble. Fade in: Fades in a song after the player has been turned off to avoid unexpected high volumes. Set in seconds.

  • Page 29: Record

    RECORD FM Radio: Set the volume level and quality (bitrate) in kbps for FM Radio recordings. Line-In: Set the volume level and quality (bitrate) in kbps for Line In recordings. Built-In Microphone: Set the volume level and quality (bitrate) in kbps for recordings through the internal microphone.

  • Page 30: System

    SYSTEM Information: Shows total memory size, available memory and current firmware version number. Format: Formats the player memory. NOTE! All data on the player will be erased when formatting! Check the battery level before a format is initiated. If the battery runs out during formatting of the memory an unrecoverable error can occur.

  • Page 31: Troubleshooting

    TROUBLESHOOTING If the player behaves abnormal (for example doesn’t start even if the battery is fully charged or the player can’t be found by the computer) there are a few different simple measure that you can take to restore the player listen below (the listed measures come in no particular order): 1.

  • Page 32: Copyright

    COPYRIGHT 1. JOS AB reserves the right to the content of this publication and the players firmware. All reproduction, copying or translation of this publication as a whole or in parts without the written permission from JoS AB will be prosecuted. 2.

  • Page 33: Limited Consumer Guarantee

    LIMITED CONSUMER GUARANTEE This limited guarantee applies to purchasers of products from JOS AB. If any party who resells this product after it has left the ownership of JOS AB issues any guarantee other than this one then the guarantee that was issued most recently will apply. JOS guarantees that the product is free from defects in materials, design and workmanship at the time of delivery to the purchaser.
  • Page 34 www.jensofsweden.com...
