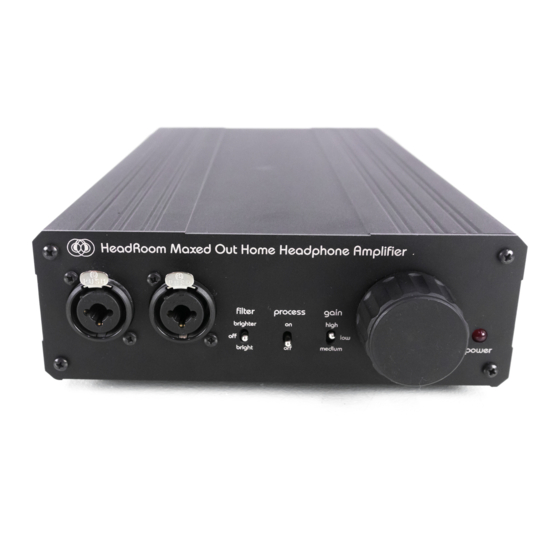

Maxed out home headroom headphone amplifier and processor

Advertisement

Quick Links

The Maxed Out Home Owner's Manual
Congratulations on your purchase of the wonderful Maxed Out
Home HeadRoom headphone amplifier and processor. The
Maxed Out Home represents a solid balance between price and
performance and is guaranteed to provide a truly satisfying
musical experience. You will hear a welcomed improvement in a
high-quality headphone's ability to resolve musical detail,
deliver deep, tight bass, present a more natural stereo image,
and most importantly, express the emotion of the music. All of
our amps are hand-built in Bozeman, Montana with high-
quality components and plenty of TLC.
www.headphone.com
obsessed headphone geeks at your service.
Headphone Amplifier
HeadRoom Corporation
The Home Owner's Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Maxed Out Home HeadRoom and is the answer not in the manual?

Questions and answers

Summary of Contents for HeadRoom Maxed Out Home HeadRoom

  • Page 1 Headphone Amplifier HeadRoom Corporation Congratulations on your purchase of the wonderful Maxed Out Home HeadRoom headphone amplifier and processor. The Maxed Out Home represents a solid balance between price and performance and is guaranteed to provide a truly satisfying musical experience. You will hear a welcomed improvement in a high-quality headphone’s ability to resolve musical detail,...
  • Page 2 A Tour of Your Maxed Out Home HeadRoom Amp 1. Headphone Jacks 5. Volume Control 2. Filter Switch 4. Gain 3. Processor Switch Switch www.headphone.com 800.828.8184...
  • Page 3 Image Processor is engaged for normal stereo headphone listening. In the OFF position, the Processor is bypassed for listening to mono or binaural recordings. (This switch should be in the OFF position when using the headphone amp as a preamp. This is further explained later in the manual.) The Gain Switch.
  • Page 4: Input Select

    This is where you would plug in a second source. Input Selector Switch. This switch chooses Input One or Input Two. Input One. Your primary source gets hooked up here. Line Out. If you are using The Maxed Home as a pre-amplifier, plug your cables in here. www.headphone.com 800.828.8184...
  • Page 5 This feature allows you to use the record output of a preamp as the source for the headphone amp (which is really the best way to do it), and use the loop output as the source for a tape recorder.
  • Page 6 The left channel connector is usually either black or white..To a Portable Player HeadRoom Amp Portable Player ...To a Player HeadRoom Amp Player ...As a PreAmp PreAmplifier HeadRoom Amp Player www.headphone.com 800.828.8184...
  • Page 7 ...To a PreAmp PreAmplifier HeadRoom Amp ...To a Home Theater Source HeadRoom Amp Audio Video ...To a Television Television HeadRoom Amp ...To a Computer Computer HeadRoom Amp The Home Owner’s Manual...
  • Page 8 The Processor switch engages and disengages the headphone audio image processing circuit. Headphone audio imaging is not very good; typically the image is a blob on the left, a blob on the right, and a blob in the middle. The HeadRoom audio image processor provides the natural acoustic cross-feed normally heard from the left speaker to the right ear, and from the right speaker to the left ear.
  • Page 9 Without HeadRoom With HeadRoom The image processor itself is a two-stage active filter with all-pass delay and frequency response characteristics that model those normally heard when listening to speakers. It amounts to about a 300 uSec delay and a relatively flat frequency response out to about 2 kHz.
  • Page 10 The Maxed Home amplifier carries a five-year parts and labor product warranty. If you have any problems with your headphone listening system, please first call us at 1-800-828-8184. We will try to diagnose the problem over the phone, which can save both of us considerable time, effort and money.
  • Page 11 We do not refund shipping charges. · If you are experiencing trouble with a headphone amp or a headphone system, please email Sales at sales@headphone.com to troubleshoot the problem. This can save all of us considerable time, effort, and money.
  • Page 12 Contacting HeadRoom HeadRoom Corporation 2020 Gilkerson Drive Bozeman, MT 59715 toll free 800-828-8184 or 1+ 406-587-9466 fax: 406-587-9484 drop us an email at sales@headphone.com or info@headphone.com www.headphone.com obsessed headphone geeks at your service. www.headphone.com 800.828.8184...
