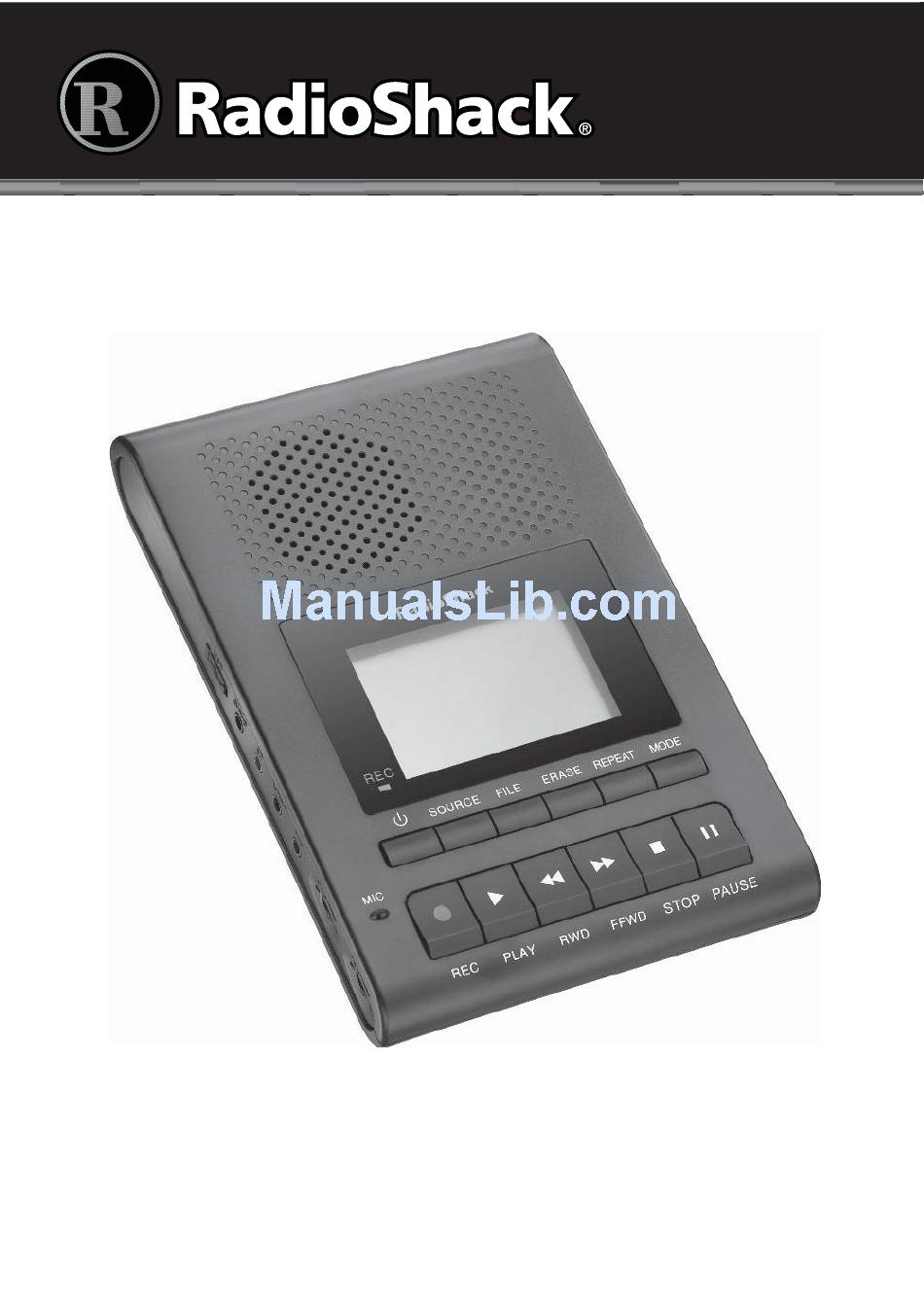

- Page 1 1400214 User’s Guide Desktop Digital Recorder Thank you for purchasing your Desktop Digital Recorder from RadioShack. Please read this user’s guide before setting up and using your new recorder.
-
Page 2: Package Contents
Package Contents • Desktop Digital Recorder • AC Adapter • Zipper Pouch • USB Cable • User’s Guide Features • Voice activation mode (VOX) records when the internal or external mic picks up sound • Built-in 4GB memory • Analog to digital conversion •... - Page 3 Connects to PC for data transfer using the supplied USB cable. DC 6V Connect AC power adapter (supplied) or DC 6V adapter (not included). (Earphone) Insert earphones (not supplied) for private listening. The speaker is deactivated. AUX-IN Connect an audio source using a patch cord with a 1/8-inch (3.5 mm) plug (neither included).
- Page 4 SD Card Storage Slots (4) HOLD OFF/LOCK Slide to LOCK to lock all the buttons. VOX ON/OFF Slide to ON to enable VOX recording (refer to “Make a Recording” on page 8). SD Card Slot (Power) – Press and hold to turn on/off. SOURCE –...
-
Page 5: Powering The Recorder
Powering the Recorder You can power the recorder through AC, DC, or battery power. AC Power DC Power (Vehicle) Battery Plug the Plug a 6V, 600mA Open the battery supplied AC DC adapter (not compartment on the back adapter into included) into the of the recorder and install DC 6V... -
Page 6: Setting The Recorder
Setting the Recorder Press and hold MODE until SE E appears. In this mode, you can perform the following actions. Set Recording Quality 1. If necessary, press PLAY repeatedly until SP, MP, HP appear. 2. Press RWD or FFWD to select your voice recording mode: SP, MP, HP (the selected option fl... -
Page 7: Set Date And Time
Use an SD or SDHC Card 1. Insert an SD or SDHC card into the SD card slot. 2. Press PLAY repeatedly until the SD card icon ( ) fl ashes. 3. Press RWD or FFWD to switch between on (automatically save messages to the SD card) and oFF (do not use SD card), then press PLAY to confi... -
Page 8: Operating The Recorder
Operating the Recorder Make a Recording 1. Prepare the recording source: • Built-in microphone — Place the recorder within 4 inches (10cm) of the sound source. • External microphone — Insert a microphone plug into the MIC jack. • Audio source — Connect an audio source to the AUX-IN jack (refer to “Make an AUX Recording”... - Page 9 Note: • In voice mode, if no button is pressed for one minute, the recorder goes to standby mode. In standby mode, if no button is pressed for 3 minutes, the recorder powers off. • If you try to make a recording when the battery power is low, Lo Bat appears and the recorder turns off soon.
-
Page 10: Erase Files
Erase Files To erase a fi le In voice or AUX mode, choose the fi le, then press ERASE. The fi le is played and dEL appears. Press ERASE again to confi rm. To erase all the fi les in a folder Enter the folder, press and hold ERASE until dELALL and YES or No appear. -
Page 11: Important Safety Instructions
WARNING: To reduce the risk of fi re or shock hazard, do not expose this product to rain or moisture. CAUTION CAUTION This symbol is This symbol is RISK OF ELECTRIC SHOCK intended to alert you to the intended to inform you DO NOT OPEN presence of uninsulated that important operating... - Page 12 attention to cords at plugs, outlets, and the point where they exit from the device. Non-use Periods — The device’s power cord should be unplugged from the outlet when it is to be left unused for a long period of time. Overloading —...
-
Page 13: Fcc Information
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Desktop Digital Recorder Model 1400214 RadioShack Responsible Party 300 RadioShack Circle, Fort Worth, TX 76102 Phone... - Page 14 You may contact RadioShack at: RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/08 www.RadioShack.com ©2013. RadioShack Corporation. All rights reserved. RadioShack is a Printed 03A13 trademark used by RadioShack Corporation. in China 1400214...
