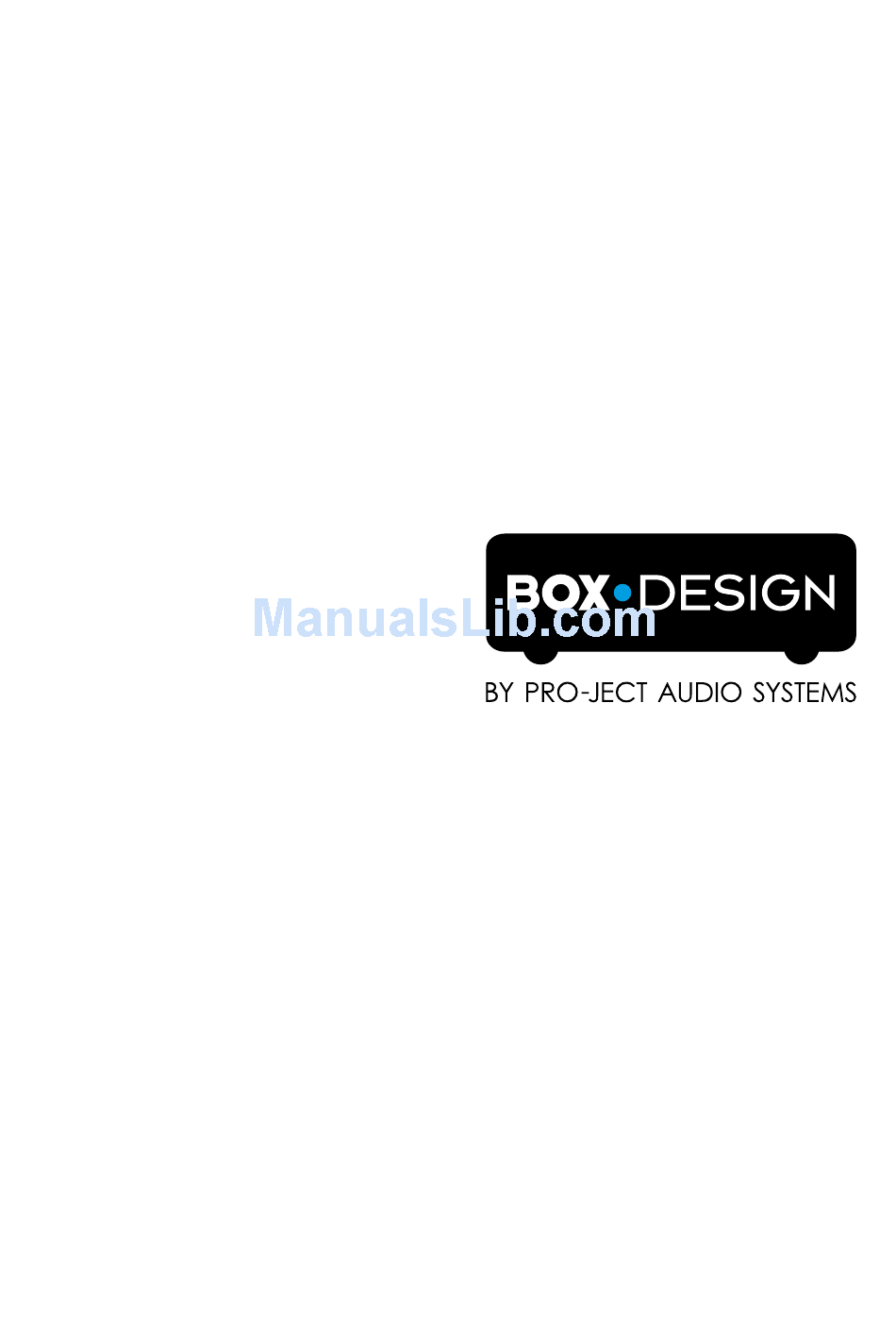

- Page 1 InSTRucTIon mAnuAl Pro-Ject Stream Box RS © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012...
-
Page 2: Table Of Contents
Contents Connections ................3 connection to an amplifier/stereo system ...........3 connection to an external D/A converter ............3 connection to an external music source unit ..........3 connection to your home network via cable ..........3 Wireless connection to your home network ..........4 uSB connections ..................4 Adjustment of output level .................4 mains power connection ................4 Front Panel .................5... -
Page 3: Connections
Optical serve for connections with digital outputs of a source units via respective coaxial or optical cables. Connection to your home network via cable connect the Ethernet socket with your home network using a RJ45 cable. © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012... -
Page 4: Wireless Connection To Your Home Network
Audio signals into the Stream Box RS analog input are amplified with 12 dB to adapt lower levels from units like Phono preamps to the higher levels of the digital sources in a way that the audible differences at source switching will be not too big. With very high level sources however the output voltage can reach values up to 16V. -
Page 5: Front Panel
With music playback from servers or uSB: previous track. With picture playback: previous picture. With Internet radio: Previous station in list. In menus, a push on this button moves the selection mark to the first menu item. © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012... - Page 6 switches from title/picture/Internet radio playback display to the menu the title/picture/Radio station was started from. A second push switches back to the playback display. Even if you have navigated to a different menu, the display changes back to playback. The audio will not be interrupted during display changes. switches from title/picture/Internet radio playback display to the root menu (the menu the units shows after switching it on).
-
Page 7: Stream Box Rs Setup
In the next menu please navigate to Network and confirm with OK. In the next menu please go to Network Setup and confirm with OK. © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012... -
Page 8: Wired Network Configuration
Wired network configuration make sure that your Stream Box RS is connected with your home network via Ethernet cable (RJ45 connector). In the menu that shows up after confirming Network Setup please go to Wired and confirm. If the Stream Box RS was in wireless network mode before, the unit informs you now, that it has to reset for a change to cable connection mode and asks, if you want it to do that. -
Page 9: Wireless Network Configuration (Wlan)
SmS. All letters are printed on the remote control above the numeric keys. You have to push the particular key several times, until the desired character is displayed. First you will see the © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012... - Page 10 lower case characters, then the respective cipher and finally the upper case characters. E.g. with the key 3 the characters d, e, f, 3, D, E, F will be displayed successively. If you push the key again, this sequence will start anew.
-
Page 11: Playing Music From A Media Server
If you haven’t selected a default media server in the Settings menu, you now see all available servers in your home network one below the other. Select the desired server with the keys and confirm with OK. © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012... - Page 12 now you see the menu shown on the right side. Go to Music with the keys and confirm with OK. If you have selected a default media server in the Settings menu, the selection menu for Music and Photos is shown right after you select Media Server in the root menu.
-
Page 13: Alphanumeric Search On Media Servers
The menu operation is similar – including the search function – to what is described in the chapter „Playing music from a media server“. © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012... -
Page 14: Playing Music From Usb Flashdisk Or Usb Harddisk
Playing music from USB flashdisk or USB harddisk To play music from a uSB flashdisk or uSB harddisk, connect it (the latter with an appropriate cable) to one of the two uSB connectors on the front or back of the Stream Box RS. Then go to the root menu with a push on the and there into USB 1 for the front connector or USB 2 for the connector on the back. - Page 15 (it’s completely free of charge). Follow the instructions on the website for registering and compiling of the list. © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012...
-
Page 16: Playback Of External Sources Via Analog And Digital Inputs
After your favorites list is finished, you will find a new menu item on the first position in the menu Internet Radio: My Favorites. Here you will find all the stations you compiled in the internet. Playback of external sources via analog and digital inputs In the root menu, go with the buttons to them menu item of the ... -
Page 17: Software Update
If the unit finds a new version, it will install the software immediately. Is no new version available, the unit will show this information on the display. © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012... -
Page 18: Specifications
Specifications Tubes: 2 x E88cc (6922) working as output drivers for symmetrical and asymmetrical output uSB Input: High-Speed 2.0, 24/96. 2 x type A socket. Power supply for 2,5” hard drives (5V Dc / max. 500 mA) via uSB uSB Flashdisk and uSB Harddisk: FAT 16 or FAT 32 (nTFS not supported) High-level output: 1 pair RcA/Phono sockets, 1 pair XlR (symmetrical) sockets... -
Page 19: Integrated Codecs
Do not dispose the batteries as ordinary domestic refuse. Please dispose your exhausted batteries at the appropriate collection sites - usually located at supermarkets and drugstores. © Audio Trade GmbH · Pro-Ject Stream Box RS · Version: September 1st, 2012... -
Page 20: Service
Service Should you encounter a problem which you are not able to alleviate or identify, please contact your dealer for further advice. only when the problem cannot be resolved there should the unit be sent to the responsible distributor in your country. Warranty The manufacturer accepts no responsibility for damage caused by not adhering to these instruction manual.
