Ramsond SunRay 3000 User Manual

Intelligent dc to ac power inverters (pure sine wave)
Hide thumbs

Advertisement

Quick Links

Download this manual
Intelligent DC to AC Power Inverters
(Pure Sine Wave)

Instruction Manual

IMPORTANT
It is important that you carefully study this instruction manual
and follow the instructions contained herein. Failure to follow
the guidelines, instructions, cautions and warnings contained in
this manual may lead to improper operation of the inverter and
may lead to injury and/or death.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SunRay 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Ramsond SunRay 3000

Summary of Contents for Ramsond SunRay 3000

  • Page 1: Instruction Manual

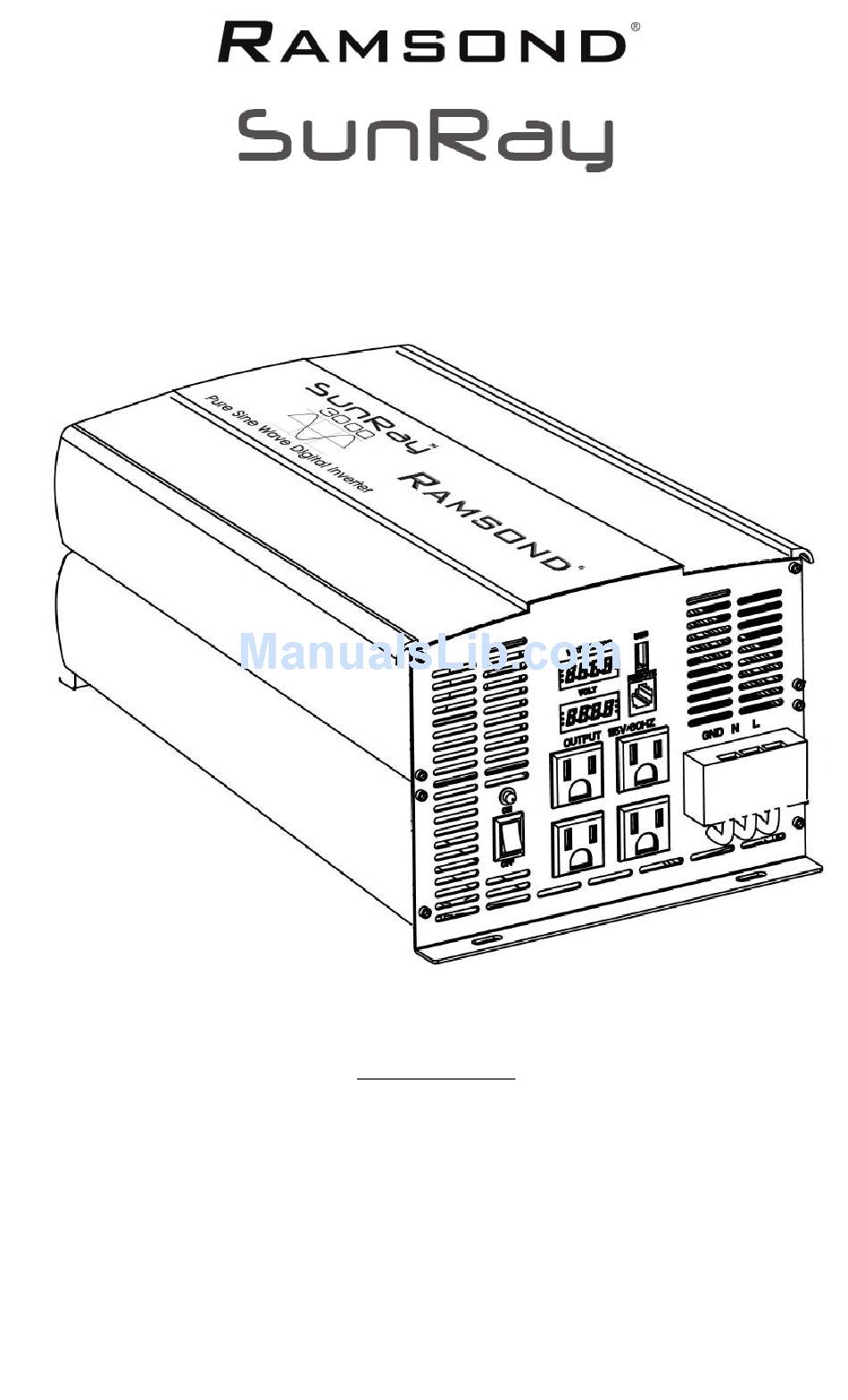

    Intelligent DC to AC Power Inverters (Pure Sine Wave) Instruction Manual IMPORTANT It is important that you carefully study this instruction manual and follow the instructions contained herein. Failure to follow the guidelines, instructions, cautions and warnings contained in this manual may lead to improper operation of the inverter and may lead to injury and/or death.
  • Page 2 Instruction Manual (v. 34411) Introduction Thank you for your purchase of the Ramsond SunRay power inverter. With minimal care and proper treatment, this inverter will provide years of reliable service. Carefully read, understand and comply with all instructions before use. Keep this manual for future reference.
  • Page 3 Mobile Water Purification Systems  Telecommunication, Surveillance Towers  Oil Platforms, Research Sites,  Defense and Military Applications  Exhibition Booths, Concessions Stands  © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 2.
  • Page 4 Jewelry may cause a short circuit creating very high temperatures which can melt metal items and cause severe burns. © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 3.
  • Page 5 Ramsond SunRay 1500 and 3000 Inverters Instruction Manual (v. 34411) Technical Details – SunRay 1500 © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 4.
  • Page 6 Ramsond SunRay 1500 and 3000 Inverters Instruction Manual (v. 34411) Technical Details – SunRay 3000 © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 5.
  • Page 7 Ramsond SunRay 1500 and 3000 Inverters Instruction Manual (v. 34411) Mechanical Drawings (SunRay 1500) © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 6.
  • Page 8 Ramsond SunRay 1500 and 3000 Inverters Instruction Manual (v. 34411) Mechanical Drawings (SunRay 3000) © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 7.
  • Page 9 Remote starter system. Front Panel – SunRay 3000 The front panel of SunRay 3000 contains the inverter’s ON/OFF Switch, LED displays, direct wiring High Current Terminal, four (4) AC outlets, USB charging port and a Remote switch connector for connecting an optional Remote starter system.
  • Page 10 The display on the right shows the current load on the inverter LED Displays - SunRay 3000 SunRay 3000 is equipped with two LED displays. © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 9.
  • Page 11 SunRay inverters are Remote-Ready. They feature a REMOTE connection port, located on the front panel. The optional remote starting systems connect to this port. With the optional remote starting systems, the Ramsond SunRay inverter can be turned on or off from distances up to 100 feet (30+ meters) away.
  • Page 12 The front panel of the SunRay inverter is equipped with a USB port. This 5 Volt USB port can be used to charge electronic devices with USB charging capability. Rear Panel (SunRay 1500) Rear Panel (SunRay 3000) © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 11.
  • Page 13 SunRay 1500 is equipped with three high speed cooling fans. SunRay 3000 is equipped with a single, large diameter high speed cooling fan. Negative DC (−) and Positive DC (+) Input Terminals DC input terminals are used to connect the inverter to heavy duty cables from the battery or battery bank.
  • Page 14 The battery ends or fuse ends need to have ring terminals crimped onto the bare cable ends. 6) Connect the Negative (−) cable ring terminal to the Negative (−) Battery Terminal. © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 13.
  • Page 15 This protection mechanism is not 100% fail-safe. Reverse polarity, even if inadvertent, will void the warranty of the inverter. © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 14.
  • Page 16 Charge level of the batteries (between use, chargers have to be  able to fully charge the batteries). Temperature of the batteries (colder batteries provide fewer  amps). © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 15.
  • Page 17 It is always a safe bet to oversize the battery bank as the battery capacity is likely to reduce with time. © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 16.
  • Page 18 These batteries are “flooded” type; they freely vent hydrogen and oxygen while under charging and heavy discharge. They must be vented to outside air to prevent accumulation of explosive gases. © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 17.

  • Page 19: Troubleshooting

    Debris may be caught in fan debris from the fan system. Use a vacuum cleaner to clean dust and debris from the fan inlet. © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 18.

  • Page 20: Limited Warranty

    LIMITED WARRANTY Applicable Products: Ramsond SunRay 1500 and 3000 Pure Sine Wave Inverters All Ramsond Corporation products are warranted to the original purchaser of the product only. Ramsond Corporation warrants the above referenced products to be free from defect or workmanship for a period of one (1) year from the original date of purchase date, subject to the limitations contained herein.
  • Page 21 4051 Haggerty Road West Bloomfield, Michigan 48323 Tel: (866) 777-7071 Fax: (248) 363-7834 Email: www.ramsond.com For accessories and parts, please visit Ramsond’s store at www.Ramsond.com © Ramsond Corporation. All right reserved. Ramsond and Sunray are trademarks of Ramsond Corp. Page 20.
