FASTRAX ll KEYBOARD CONTROLLER
Instruction Manual
Please read this manual thoroughly before use and keep it handy for future reference.
Rev.040130

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the II KEYBOARD CONTROLLER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fastrax II KEYBOARD CONTROLLER

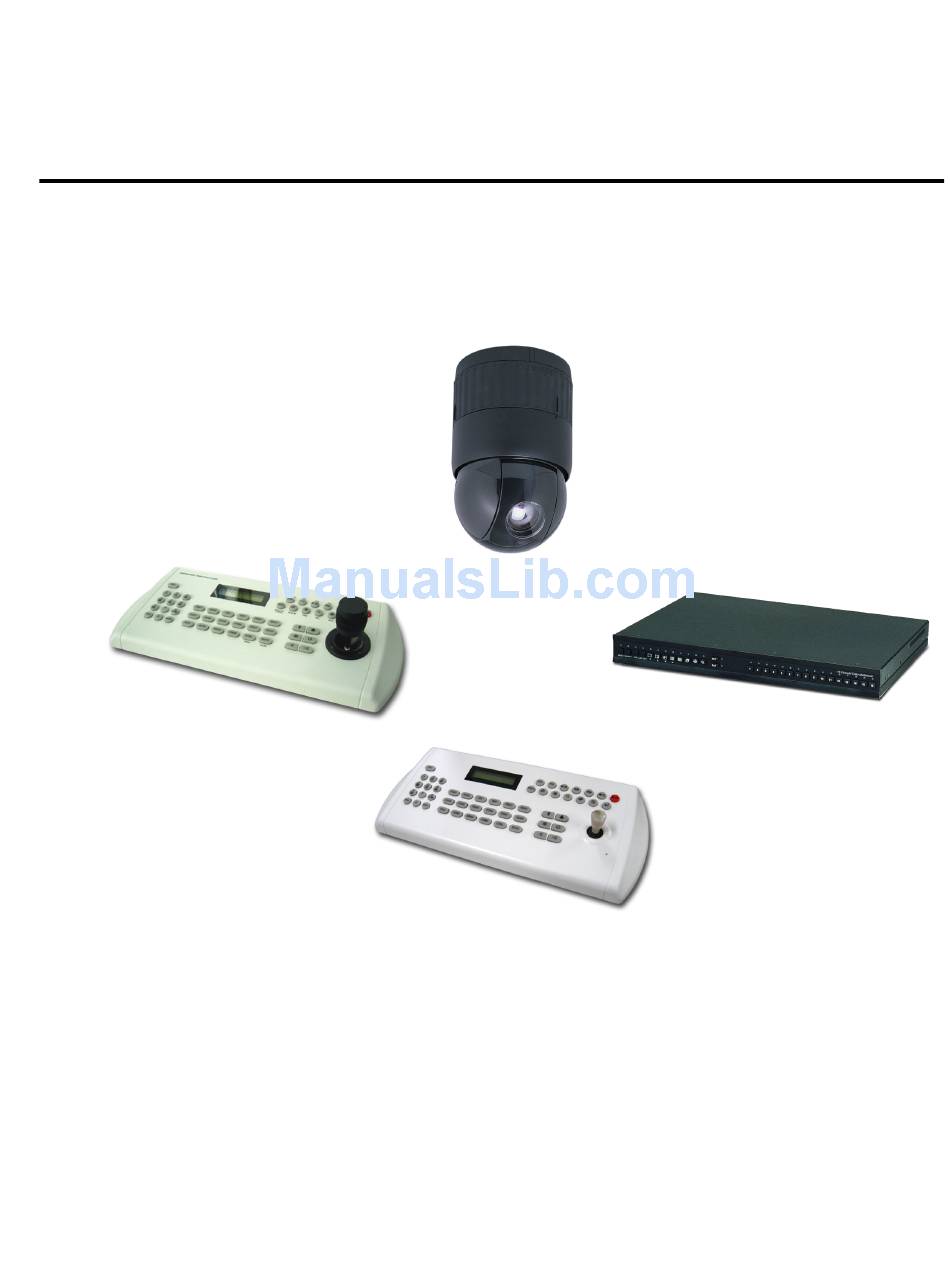

  • Page 1 FASTRAX ll KEYBOARD CONTROLLER Instruction Manual Please read this manual thoroughly before use and keep it handy for future reference. Rev.040130...

  • Page 2: Explanation Of Graphical Symbols

    WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1. INTRODUCTION 1.1 Features 1.2 Unpacking Chapter 2. INSTALLATION 2.1 Connection Diagram 2.2 Termination & Dip Switch Setting 2.3 Multiplexer Control 2.4 Keyboard Setup 2.5 Master & Slave Keyboard Setting 2.6 Install with ADR series 2.7 Install with SDR series 2.8 Install with IDR series Chapter 3.

  • Page 6: Chapter 1. Introduction

    Chapter 1 INTRODUCITON 1.1 Features This keyboard controller is capable to control 32 Fastrax II dome cameras and remote control functions for variety of external switching devices like Multiplexer(max 255), Digital Video Recorder(max 99) etc… The keyboard controller features: The capability of control a camera’s panning and tilting movement with variable speed from 0.5 °/sec •...

  • Page 7: Unpacking

    1.2 Unpacking Unpack the equipment and make sure all listed items are included in the box. Contents of Keyboard box Keyboard controller ------------------------------- 1 Junction box --------------------------------------- 1 3m cable -------------------------------------------- 2 M4 Self tapping screws ------------------------- 4 Instruction manual --------------------------------- 1 12VDC SMPS -------------------------------------- 1...

  • Page 8: Chapter 2. Installation

    Chapter 2 INSTALLATION 2.1 Connection Diagram 2.1.1 Basic Installation Diagram POWER AC 24V AWG # 24 SIREN POWER AC 24V RS-485 HALF DUPLEX MODE : TX+,TX- LIGHT ALARM OUTPUT SENSOR UP TO 4 ALARM INPUT UP TO 8 ALARM INPUT ALARM INPUT ALARM OUTPUT ALARM OUTPUT...
  • Page 9 2.1.2 Single Multiplexer POWER POWER POWER AC 24V AC 24V AC 24V AWG # 24 (RS-422) SPOT MONITOR MAIN MONITOR MULTIPLEXER RS-485(+) PIN No.4 RS-485(-) PIN No.5 Figure 3 – Single Multiplexer...
  • Page 10 2.1.3 Single User with Two Multiplexer POWER POWER POWER AC 24V AC 24V AC 24V AWG # 24 (RS-422) 1ST MAIN MONITOR SPOT MONITOR 2ND MAIN MONITOR 1ST MULTIPLEXER 2ND MULTIPLEXER RS-485(+) PIN No.4 RS-485(-) PIN No.5 Spot output of the first multiplexer to be connected to 16 input of the second multiplexer.
  • Page 11 2.1.4 Two Multiplexer with Slave Keyboard Controller POWER POWER POWER AC 24V AC 24V AC 24V AWG # 24 (RS-422) SPOT MONITOR SPOT MONITOR 1ST MAIN MONITOR FOR SLAVE K/B FOR MASTER K/B 1ST MULTIPLEXER 2ND MULTIPLEXER RS-485(+) PIN No.4 RS-485(-) PIN No.5 Spot output 1 of the first multiplexer to be connected to 16 input of the second multiplexer.
  • Page 12 2.1.5 Two Multiplexer with Slave Keyboard Controller(method 2) POWER POWER POWER AC 24V AC 24V AC 24V AWG # 24 (RS-422) SPOT MONITOR SPOT MONITOR 1ST MAIN MONITOR FOR SLAVE K/B FOR MASTER K/B 2ND MAIN MONITOR 1ST MULTIPLEXER 2ND MULTIPLEXER RS-485(+) PIN No.4 RS-485(-) PIN No.5 Figure 5 –...

  • Page 13: Termination & Dip Switch Setting

    2.2 Termination & Dip Switch Setting The first and last devices in an installation (dome and keyboard controller) must have the data line terminated by setting the DIP switch. Without proper termination, there is potential for control signal errors. Total length of the cable for communication should not exceed 1 mile. Refer to Figure 7 for setting the dome camera and keyboard controller termination.

  • Page 14: Multiplexer Control

    Table 1 - S1 Switch Setting 2.3 Multiplexer Control  Duplex setup: NOTE: Multiplexers require a new ROM version to be controlled by the keyboard controller. The new multiplexer ROM accepts control instructions from the keyboard controller. If your multiplexer’s serial number is M104xxxx or higher, then it is ready to accept control instructions.
  • Page 15 Configuration Network Data Bank Alarm Exit Configuration - Key Beep : ON - enable key beep sound, OFF - Disable beep sound. - Key-Lock : OFF~60Min - After elapsed setup time, keyboard lock automatically. OFF - Disable Auto Key-Lock function. User needs login password to operate Keyboard again.

  • Page 16: Master & Slave Keyboard Setting

    S2 “ON”. 2. If you setup all connection correctly (See Figure 4) and turn on slave keyboard, you can see following screen. FASTRAX-2L Vxxx ←Current Device ID = 1 Slave ID = 1 ←Default setting is 9999 for administrator 1111 for user Input Password : xxxx ←000 means that controller is not connected to master keyboard...

  • Page 17: Install With Adr Series

    Slave ID = 1 ←A : HID2404CLx or HID2404CZx , B : HID2404CDx Slave Node : A/B 2.6 Install with ADR series 22 AWG UTP CABLE WIRE CONNECTION DOME JUNCTION BOX R(T)X+ DOME1 + R(T)X- DOME1 - JUNCTION BOX DOME2 + DOME2 - Remote Control J-BOX(FRONT)
  • Page 18 Set Baud Rate Dome 9600 9600 DVR485 : 9600 DVR232 : 9600 Com Port Dome Dome None DVR485 : AUX IN DVR232 : ADR 4) How to setup ADR Switch the ADR on. Press the Menu button. Input password according to the instruction. (Factory setting is 4321) If the below screen is appeared, set “Quick Setup”...
  • Page 19 Select “Camera” on the Device menu. Unit ID should be 1 up to 99. Unit ID is not allowed number “0”. Set “PTZ Device” and “ID” of the dome camera. Select RS232/RS485 after PTZ is installed, and then set-up as below table. RS232/RS485 Baud Rate Parity...

  • Page 20: Install With Sdr Series

    RS232 9600 None Remote Control RS485 9600 None PTZ Control 5) After setting Unit ID, Camera, and RS232/RS485, installing dome camera is basically completed. Please refer to the manual of ADR for the other installation. 6) Press the related number of the controller which is correspondent to unit ID of ADR. Then press DVR button and adjust unit ID of the controller Make sure if any change is appeared on screen when you press button of the controller for...
  • Page 21 Set Baud Rate Dome 9600 9600 DVR485 : 9600 DVR232 : 9600 Com Ports Dome Dome None DVR485 : AUX IN DVR232 : SDR 4) How to setup SDR Switch the SDR on. Press the Menu button. Input password according to the instruction. (Factory setting is 4321) If the below screen is appeared, set “Quick Setup”...
  • Page 22 PTZ set up on the above Setup menu Select TEXT IN/PTZ after PTZ is installed, and then set-up as below RS232/TEXT IN Baud Rate Parity Data Stop Usage RS232 9600 None Remote Control TEXT IN/PTZ 9600 None PTZ Control 1) After installing Camera, and RS232 & TEXT IN/PTZ setup, the installation with dome camera is basically completed.

  • Page 23: Install With Idr Series

    2.8 Install with IDR series 22 AWG UTP CABLE WIRE CONNECTION DOME JUNCTION BOX R(T)X+ DOME1 + R(T)X- DOME1 - JUNCTION BOX CONVERTER TX+(RS-485) DOME2 + TX-(RS-485) DOME2 - J-BOX(FRONT) J-BOX(REAR) RS-232 CABLE IDR SERIES DATA2 DATA1 RS-232C to RS-485 CONVERTER Figure 11 –...
  • Page 24 If press setup button on the above screen, the below screen will be appeared. Select camera input number that dome camera connected. Then install as below to select set-up PTZ after checking PTZ box. Port : COM2 RX Device : Fastrax…. Baud Rate : 9600 Data : 8 Parity : None...
  • Page 25 If PTZ is not necessary for IDR, cable and installation here is not needed. (IDR is able to be controlled remotely and there’s no PTZ function) 8) How to IDR Remote setup - If selects Setup on main menu, the below screen will be appeared. After selecting System and checking Remote control box, please install as below to select Setup remote control.

  • Page 26: Chapter 3. Operation

    Chapter 3 OPERATION 3.1 Keyboard Lock/Unlock (Hidden command) When the user leaves the control desk, he may wish to lock the keyboard controller to prevent unauthorized use. Pressing 777 + Enter will lock the keyboard controller. Pressing 777 + Enter while the keyboard is locked will open the password screen.
  • Page 27 Select cameras 1 to 16 by pressing the camera number and then Main. The selected camera will appear in the full screen mode and is under control if it was dome camera. Even if no camera is connected to the multiplexer input, the screen will show the camera input (see following example).

  • Page 28: Summary Of Keyboard Control

    3.3 Summary of Keyboard Controls MULTIPLEXER DVR CONTROL Cam:001E ZOOM WIDE ZOOM TELE IRIS CLOSE IRIS OPEN IDR CONTROL MULTIPLEXER FOCUS NEAR FOCUS FAR Figure 12 – Keyboard Key map Figure 13 – J-box Front & Rear Key operation example Ctrl + Menu : Press and hold down Ctrl Key and press Menu Key 1 + Cam...
  • Page 29 3.3.1 Keys for Dome camera Function Key Label Descriptions Camera selection with Cam key. 1,2, ... 9,0 1,2, ... 9,0 Function number selection with function keys. (e.g., 1+Cam, 3+Tour, 5+Scan, 6+Prst) Displays the selected camera on the spot out of the multiplexer and allows the Camera camera to be controlled by the keyboard controller, if the selected camera is a dome camera.
  • Page 30 3.3.2 Keys for Multiplexer Function Key Label Descriptions Picture-in-Picture mode Displays view of four cameras. The remaining cameras can be sequenced in the 2 by 2 Display lower-right window. Displays view of nine cameras. The remaining cameras can be sequenced in the 3 by 3 Display lower-right window.
  • Page 31 Play video forward at high speed. Pressing the button again toggles the Fast Forward playback speed from Stop/Preset Save During Playback mode returns the DVR to the Live Monitoring mode. Record/Preset Call Set the DVR so that it is ready to record video. Enter the Quick Setup screen.

  • Page 32: Appendix A Trouble Shooting

    Economic Joystick : 380x168x70 (HID2404CLx) Weight Professional Joystick : 1.2kg Economic Joystick : 1.1kg Communication Dome Connection : Max 32 Multiplexer Connection : Max 255 DVR Connection : Max 99 (Design and Product specifications subject to change without notice) FASTRAX ll KEYBOARD CONTROLLER 50301815A...
