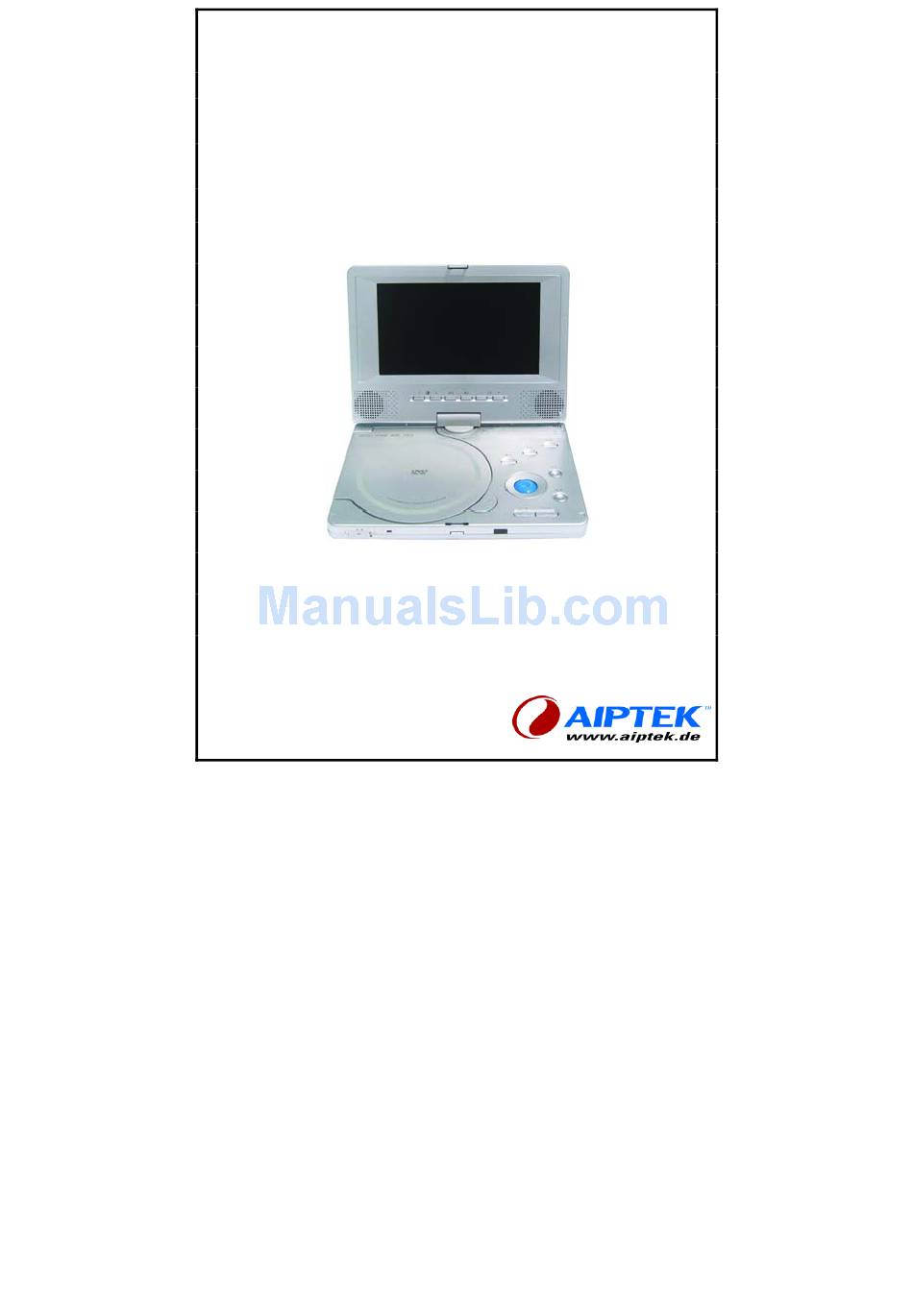

Page 1 7” Portable DVD Player PDV-919 Operation Manual...
Page 2: Table Of Contents
Contents Important Safety Instruction -------------------------------------------- Precautions with Moisture --------------------------------------------- Function Features ------------------------------------------------------ Parts Introduction -------------------------------------------------------- Remote Control ----------------------------------------------------------- Connections --------------------------------------------------------------- Playback Preparations -------------------------------------------------- Usage of Remote Control ----------------------------------------- ■ Disc Formats Supported by this player ------------------------ ■ Usage of Power Switching Adapter ---------------------------- ■...
Page 3: Important Safety Instruction
Important Safety Instruction WARNING: To reduce the risk of fire or electric shock, DO NOT expose this product to rain or moisture. The lighting flash with arrowhead symbol,within an triangle, alerts the user to “dangerous voltage” which could cause electric shock. The exclamation point within a triangle indicates to the user to read important operating and maintenance instructions in the manual.
Page 4: Precautions With Moisture
Precautions with Moisture Under the following circumferences, moisture may appear on the lens of the product, which is the most sensitive part of the DVD player. The DVD player is suddenly moved from a cold place to a warm place. A room is heated while the DVD player starts operating, or the DVD is placed near an air-conditioner.
Page 5: Function Features
Function Features 1. EXCELLENT SOUND Dolby digital delivers great sound. 8. ON-SCREEN DISPLAY 2. HIGH RESOLUTION On-screen displays in your choice of MPEG2 decoding format achieves English, French or other language. more than 500 lines of horizontal 9. AUDIO OUT resolution.
Page 6: Parts Introduction
Parts Introduction DVD Player 1. Power switch 15. Speaker 2. Disc cover -For enjoying high quality stereo music. 3. Open 16. Mode button 4. Remote sensor -The player is with TFT display mode: 5. OK button normal screen (4：3) or wide screen 6.
Page 7 Parts Introduction Right Side Of The Panel 1. Earphone volume adjusting knob -Used to adjust the earphone and speaker volume. 2. Earphone jack -HI-FI earphone output, when connecting this jack, speaker volume is turned off. 3. Audio/output/input and optical digital output jack 4.
Page 8: Remote Control
Remote Control 1. PWR button 5. ENTER button -Press to enter standby mode. -Press to confirm the items or 2. INFO button setting. -Press for detailed information on 6. SETUP button the disc playing. -Press to access the DVD player’s -Keep pressing remove...
Page 9 Remote Control NEXT SKIP button -Press to go to next chapter. 17. STOP button 10. SUBT button -Press once to stop playback and -When a DVD is playing, press to then press PLAY button to resume select a subtitle language or to turn normal playback.
Page 10: Connections
Connections Connecting to a TV Audio/video connections 1. Always ensure that the DVD player, TV and any other electrical equipment you are connecting the DVD player to is switched off and unplugged from the power supply. 2. The easiest way to connect the DVD player to a television is via the supplied Audio/Video connections.
Page 11: Playback Preparations
Playback Preparations Usage of Remote Control Refer to the drawing, take the back cover off of the remote control and remove the empty battery receptacle. Prior to shipping, a separating film was applied to the battery. Remove this film. Insert the battery into the receptacle and insert the receptacle into the remote. For best results, aim the remote directly at the player’s receiving window within the range of 15 feet, and angles of 60 degrees.
Page 12: Disc Formats Supported By This Player
Playback Preparations D isc Formats Supported by this Player T he unit can play discs bearing any of the following logos: PLAYBACK TIME/ DISC LOGO DIAMETER PLAYABLE SIDES 1 3 3 m i n ( S S - S L ) 2 4 2 m i n ( S S - D L ) 12cm 2 6 6 m i n ( D S - S L )
Page 13: Usage Of Power Switching Adapter
Playback Preparations Usage of Power Switching Adapter The player is supplied with a power switching adapter. 1. Connect AC adaptor to the power jack marked “DC 12V IN” on the side of the DVD player. 2. Connect the rabbit joint end of the AC adaptor to the power cord. 3.
Page 14: Power Supply
Power Supply Using and Charging the Battery Pack Charge the Battery Pack before using it the first time. Charging time is normally about 4 hours. When fully charged, the Battery Pack delivers 2.5 hours of continuous power. Battery Pack should be fully charged before initial use! 1.
Page 15: Detaching Battery Pack
Detaching Battery Pack Detaching Battery Pack from the unit: If the player is not going to be used for a long period of time, we recommend that you detach the Battery Pack. Even if the unit is powered down, the unit is still consuming some power in STANDBY mode.
Page 16: Using Headphones
Using Headphones Using Headphones while you are in a quiet area: Connecting Headphone Connector into right side of the unit’s Headphone Jack: Quick Tips Excessive loud usage of headphones could damage your hearing. Turn down the Volume before you connect the headphones, and then raise the volume to suit your level.
Page 17 Battery Working Conditions Your portable DVD player comes with a lithium ion rechargeable battery that attaches to the bottom of the player. 1. If the battery is not used it will automatically discharge gradually within one month. 2. If you don’t plan on using the battery for an extended period of time, discharge the battery and keep it in a dry and cool place.
Page 18: Play Operation
Play Operation Please read these instructions carefully before using your DVD player for the first time. Turn on the player’s power by switching the POWER switch on the side of the player to “ON”. Press OPEN button on front panel to open the disc cover. Load disc with the label facing up to prevent damage to the player or disc.
Page 19 Play Operation Stop During playback, press the STOP button once on the remote control to stop playing. Press the PLAY button, and then the player will play from the point where it stopped. Mode During playback, press the MODE button on the control panel to change the aspect ratio on the screen.
Page 20: System Setup
System Setup GENERAL SET-UP You can change the default settings to customize performance to your own preference. 1. Remove the disc from the DVD drive and press the ‘SETUP’ button on the remote control, the settings menu will appear. It includes General Setup, Speaker Setup, Dolby Digital Setup, Video Setup and Preference setup.
Page 21: System Setup
System Setup 4. SPDIF Output This item is used to set the format of digital audio. ‘SPDIF OFF’ turns off the digital audio; ‘SPDIF/RAW’ outputs the original. For example, if the disc being played is Dolby Digital, then the digital audio output is also Dolby Digital. Select ‘SPDIF/PCM’...
Page 22 System Setup Preference Page 1. TV Type Different country or area has different TV system. You can select relevant video system depending on the TV system in your area. If your TV is with multi-system, then it is suggested to set to be “MULTI” which means the video system will be the same as the disc system.
Page 23: Playback Functions
Playback Functions Fast Forward & Rewind Press the buttons to active fast forward or rewind. Slow Forward & Rewind Press the SLOW button to slow forward or rewind. Repeat 1. Repeat a title, chapter or track. Press the REPEAT button on the remote control.
Page 24: Playback Functions
Playback Functions Search by time You can use the GOTO button to search by time, namely to play from a specific time. During DVD playback, press the GOTO button once and TV screen will display the title or chapter, then you can use number buttons to select any one of them.
Page 25 Playback Functions Playing a JPEG JPEG is a common picture format that has few bytes and low loss rate of picture. Hundreds of pictures can be stored in a disc in this format. OPERATION 1. Normal Playback Load a JPEG disc in. After reading the disc, OSD will display the menu. Use the direction buttons and ENTER button to choose items.
Page 26: Care Of Discs
Care of Discs How to hold discs Cleaning Care When loading or removing discs, try not Use a soft, dry cloth for cleaning. For to touch their playing surfaces. stubborn dirt, soak the cloth in a detergent solution; ring well first and wipe.
Page 27 Special Features Of Revolving TFT LCD Screen The revolving TFT LCD screen is one of the outstanding features about this product. You are suggested to take the following steps for proper operation. 1. Open the screen cover to position (A) as shown in left figure at which the screen is vertical to the operation panel.
Page 28 5. Your Portable DVD Player includes a sturdy carrying bag/mount for the ultimate in portable convenience! The bag/mount is easy to attach on fits on nearly any car or truck headrest. - 28 -...
Page 29: Troubleshooting
Troubleshooting Symptom What To Check - Make sure the disc cover is closed. - Make sure a disc is loaded. - Make sure the disc isn’t loaded upside down. - Disc should be clean, not dirty or warped. The player cannot play. - Player’s region code should be the same as region code of DVD disc.
Page 30: Specifications
Specifications TFT screen size 7 inches Laser Wavelength Wavelength: 780/650nm Video System PAL/NTSC/MULTI Frequency Response 20Hz～20KHz ±2.5dB Audio Signal-to-noise Rate ≥ 85 dB Audio distortion + noise ≤ -70dB （1KHz） Channel Separation ≥ 70dB （1KHz） Dynamic Range ≥ 80dB （1KHz） Analog Audio Out Out Level: 2V±...
Page 31 Important Information For Your Battery Pack 1. Normal charge time is between 4 hours. 2. Do not charge for more than 8 hours! 3 . Unnecessary charging of the battery will reduce battery service life. ATTENTION! Charging your battery for more than 8 hours in a single charge will reduce service life! - 31 -...
