Summary of Contents for DBFX Dancebox Pro Edition

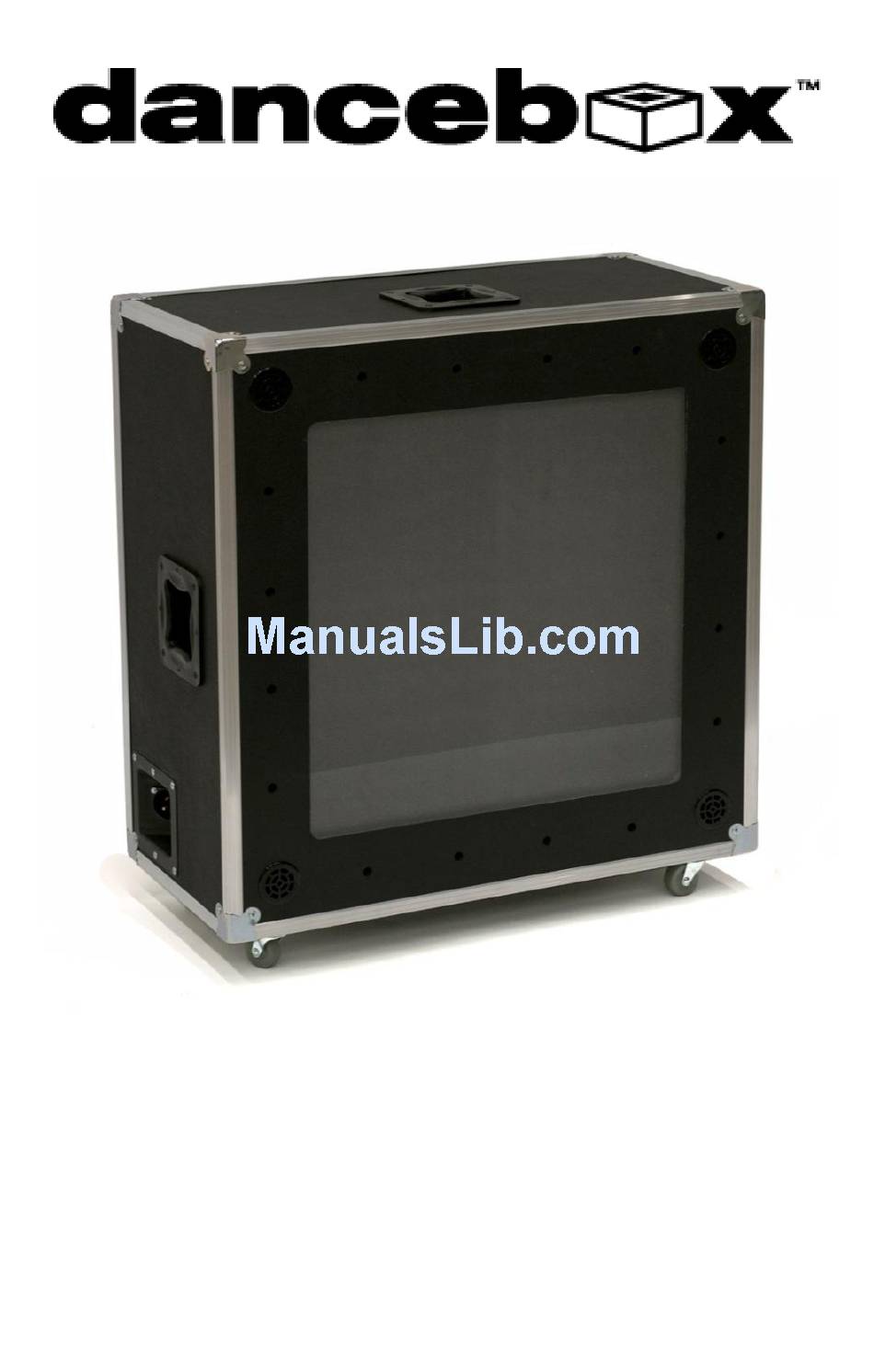

- Page 1 Dancebox Pro Edition ™ User Manual...
-
Page 2: Table Of Contents
Contents Safety Warning ......................3 Unpacking & Introduction ..................3 Check List ........................3 Standard Effects Package ....................4 Features ......................... 4 Product Overview ......................5 Initial Setup ......................6 Initial Setup Quick List ....................6 DMX Mode ........................6 Stand-Alone Mode (Non-DMX) ..................6 Installing Fixtures ...................... -
Page 3: Safety Warning
Safety Warning This product is designed to be used by lighting, staging or DJ professionals. It is also intended for use by persons that are sober. This product should not be used to dance, stand, jump, sit, or interact with in any way under the influence of alcohol or any other product or drug that impairs the senses or judgment of mind in any way, including common household drugs. -
Page 4: Standard Effects Package
Standard Effects Package The following is the dancebox™ Pro edition standard effects package. ..(1) American DJ Fog Storm 1200 HD ..(1) American DJ FS-DMXT (DMX Timer for the Fog Storm) ..(1) American DJ O-Clamp ..(1) Chauvet ColorPalette Please make sure everything looks good, works properly, and hasn’t been ruined by the ever-so careful shipping companies. -
Page 5: Product Overview
Product Overview Here are some pictures with arrows to help you figures things out. DMX Connectors Power Switch 3-Prong Power Receptacle The Edge of this Picture Access Panel Fog Ports and Holes Handle Blower Intake Grill Connector Dish Removable Casters Dancebox™... -
Page 6: Initial Setup
Initial Setup Now that you’ve had a look at everything, you’re ready for the initial setup. The first thing that needs to be done BEFORE installing your equipment is to determine how you plan to use the dancebox™ unit (whether in DMX or stand-alone mode). Initial Setup Quick List ... - Page 7 1. Place the dancebox™ in normal operating position (on feet). 2. Ensure the power switch is in the off position. 3. Remove the access panel by unsnapping the four latches holding it in place; set aside. 4. Remove the internal blower by loosening the connecting bolt (see graphic on next page) and pulling the blower in the direction of blower nozzle a few inches.
-
Page 8: Installing Fogger
Installing Fogger The dancebox™ can be used with or without a fog machine. The internal blower provides the pressure necessary to force the fog through the fog ports and holes on the top of the unit. Because the fog machine has a container that holds liquid fog juice, the fog machine should only be placed into the unit immediately prior to use, and only when the dancebox™... -
Page 9: Setup Quick List
Setup Quick List Roll the unit to the desired location on the event floor. Place down in normal operating position. Remove casters, store inside unit. If using a fogger, install it (see “Installing Fogger”). Attach power and DMX cables. ... -
Page 10: Lighting Equipment
Lighting Equipment You may notice that the lighting equipment gets a little “fogged up” from the fog machine constantly shooting fog on them. Just use a mild glass cleaner to wipe down your lighting fixtures once every few uses. Acrylic The acrylic can be cleaned with a glass cleaner or mild degreasing agent. -
Page 11: Technical Specifications
Visit our website for all your support needs, including returns and warranty questions. http://danceboxme.com/support. If you’re antsy and just want to fire off an email to us, you can at support@danceboxme.com. Contact DBFX, LLC 1719 S 400 W Orem, UT, 84058 678-995-5519 http://danceboxme.com...
