- Page 1 By Firstech LLC Version 1.0 www.firstechllc.com www.nustart.ca FCC ID : O44JR5120AMSH IC ID : 7087A-R5120AM Toll Free : 888-820-3690 21911 68 Ave S Kent, WA 98032...
-
Page 2: Quick Reference

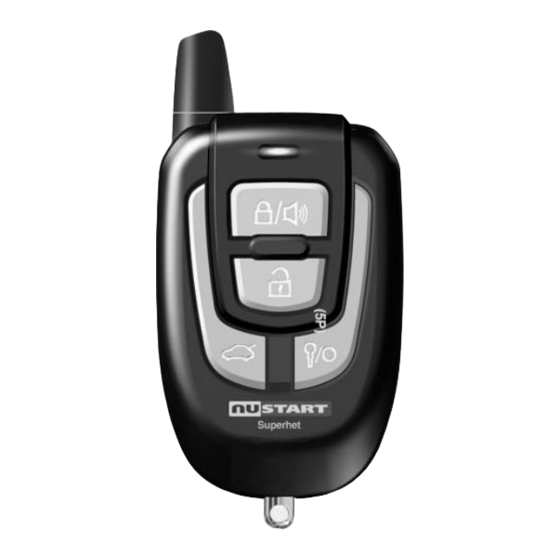

Quick Reference When servicing or loaning your vehicle to others, the NuStart system should be placed in Valet mode. Valet mode prevents the system from remote starting and disables all alarm functions. IMPORTANT : While in Valet mode the NuStart will still lock and unlock power lock systems. The system can be put into valet one of three ways;... - Page 3 Quick Reference Quick Reference The only regular maintenance this system requires is remote control battery replacement. No programming is required when replacing the battery. Button Duration Additional Programming Function / Description Required One-Way Remote: Model NU 1500R (US Style) 0.5 seconds no Locks doors and/or arms alarm.
-
Page 4: General System Functions
Quick Reference General System Functions The remote transmitter functions have been predetermined and programmed from the factory. The four button configuration allows for many functions to be performed through a series of tapping, holding and / or multiple presses of buttons. Although NuStart remotes have numerous button functions and capabilities, please keep in mind that the most common functions are performed in one simple step. -
Page 5: Activating Reservation Mode
General System Functions General System Functions Press the button for 2.5 seconds to remote start an automatic transmission vehicle. If you are in range and if the vehicle is ready to remote In order to remote start a manual transmission vehicle, the system must first be set in Reservation Mode. Reservation Mode must be set each and start, the parking lights will flash once and/or siren chirp once to indicate that the remote start command has been successfully transmitted. -
Page 6: Cancelling Reservation Mode
General System Functions General System Functions Cancelling Reservation Mode Reservation mode will be cancelled for the following reasons; You did not activate the parking brake prior to turning off the ignition. You pressed the foot brake after the key was removed from the ignition. Your system is equipped with two additional outputs that can be configured to control windows, open power sliding doors, open a power sliding You released the parking brake after the key was removed from the ignition. -
Page 7: Advanced System Functions
General System Functions Advanced System Functions The following section reviews advanced system functions. Many of these functions require multiple steps or additional programming by your local authorized NuStart dealer to be active. Hold buttons simultaneously for 2.5 seconds to turn the shock sensor on and off. The vehicle’s parking lights will flash once and/or siren chirp once to confirm the shock sensor is off. - Page 8 Advanced System Functions Advanced System Functions The optional Secure Valet Switch prevents the alarm from being put into valet mode through cycling the ignition on/off five times. The Secure Valet The built in turbo timer keeps the vehicle’s engine running for either 1, 2, or 4 minutes (programmable from dealer with Option 2-2) Switch is more secure than traditional toggle / valet switches because it requires a two digit code.
-
Page 9: Remote Coding / Programming Routine (S)
Remote Coding / Programming Routine (S) Remote Start Error Diagnostic If the remote start fails to start the vehicle, the parking lights will flash three times immediately. Following those three flashes the parking lights will IMPORTANT : Every NuStart remote must be coded to the system prior to performing any operations. All remotes must be coded at the same time. flash again corresponding to the error table. -
Page 10: Alarm Diagnostic
Alarm Diagnostic Limited Lifetime Warranty While the alarm is armed, the LED will blink slowly. While the siren is going off, the LED will indicate the specific zone that was triggered. Firstech, LLC Warrants to the original purchaser that this product shall be free of defects in material and workmanship under normal use and circumstances for Priority Situation LED On Duty... - Page 11 Notes Notes By Firstech, LLC By Firstech, LLC...
- Page 12 Notes Notes By Firstech, LLC 23 By Firstech, LLC...
