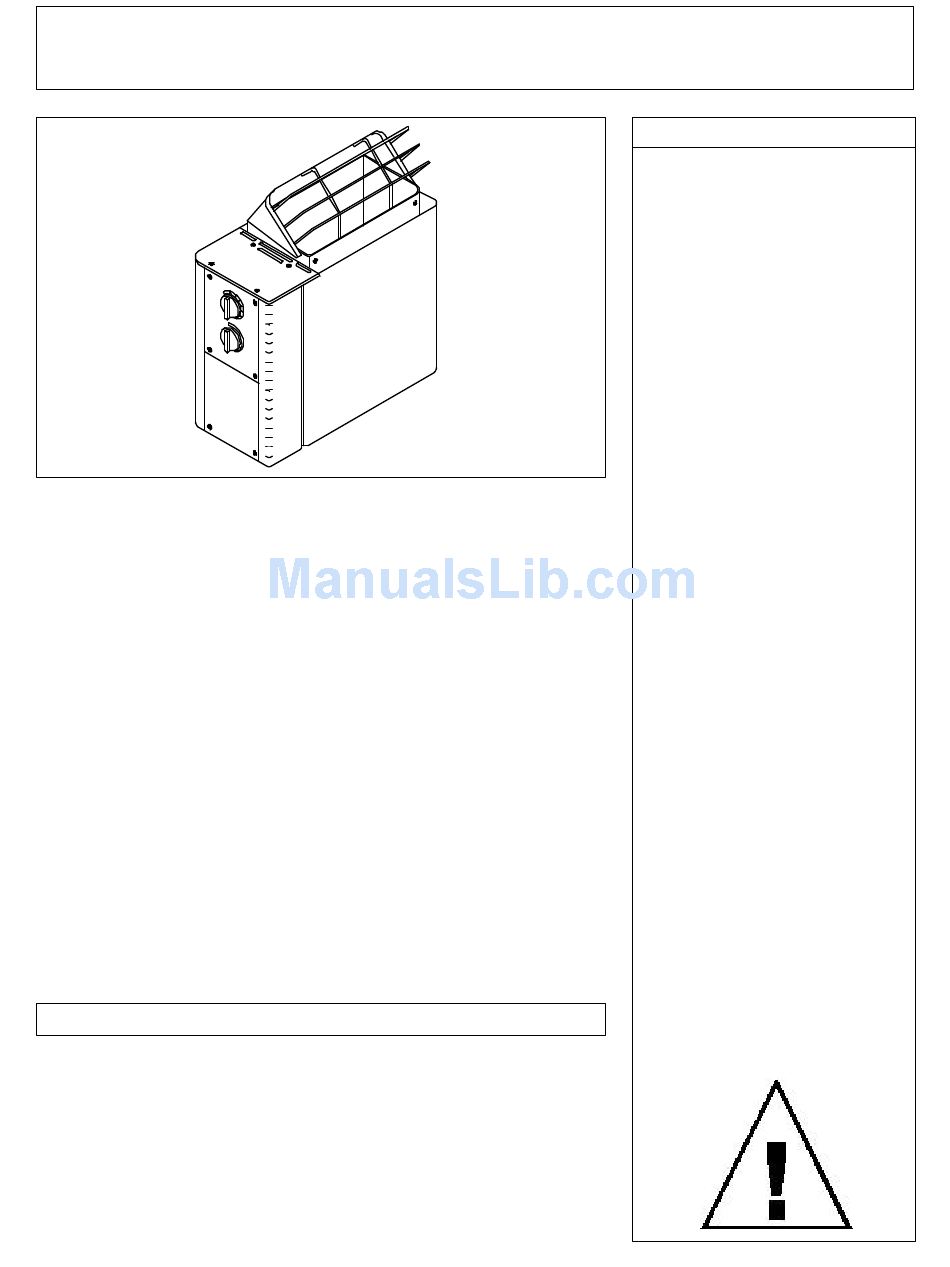

"Mini Finn" Heater Installation & Operation Instructions
"MINI FINN" SERIES SAUNA HEATERS
MODELS FU21 & FU30 (With built-in control)
Read all instructions carefully before installation. Please
leave all instructions and warranty with the owner.
WARNING
Prolonged exposure to elevated temperatures is capable of inducing
hyperthermia. Hyperthermia occurs when the internal temperature of
the body reaches several degrees above the normal body temperature
of 98.6°F. The symptoms of hyperthermia include an increase in the
normal temperature of the body, dizziness, lethargy, drowsiness, and
fainting. The effects of the hyperthermia include failure to perceive
heat, failure to recognize the need to exit the room, unawareness of
impending hazard, fetal damage in pregnant women, physical inability
to exit the room and unconsciousness.
WARNING
The use of alcohol, drugs, or medication is capable of greatly
increasing the risk of fatal hyperthermia.

SECTION 1: GENERAL INFORMATION

These heaters are UL approved for permanent installations and
electrical connections.
conducting parts are protected against water. All wiring must be
performed in accordance with local codes. See Diagram 3 for wire and
room size requirements.
These heaters are wall mounted, 15"W x 7"D x 17"H, with built in
controls.
02-4211-200 05/09/01
Built with splash proof construction, the
WARNING
Do not take a sauna if using
alcohol, drugs or
medications.
Pregnant women or persons
with poor health should
consult their physician
before using any sauna.
Caution fire hazard: Do not
use the sauna room for
drying clothes, bathing
suits, etc. Do not hang
towels above heater or place
any object, other than the
rocks supplied, on the
heater. If any darkening of
the wall around the heater
is noticed discontinue
sauna use immediately.
Inspect sauna regularly for
required maintenance to
heater, control and
benches. Replace wood
surfaces which show any
signs of deterioration.
The heater gets extremely
hot during operation and
should not be touched or
burns may result.
Minors should be
adequately supervised
whenever near a hot or
warming sauna.
7014228
314 SKMB 27 B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FU21 and is the answer not in the manual?

Questions and answers

Summary of Contents for Finnleo FU21

  • Page 1: Section 1: General Information

    "MINI FINN" SERIES SAUNA HEATERS rocks supplied, on the heater. If any darkening of MODELS FU21 & FU30 (With built-in control) the wall around the heater Read all instructions carefully before installation. Please is noticed discontinue leave all instructions and warranty with the owner.
  • Page 2 MODEL Ceiling Volume Ceiling Volume WIRE Product Number Floor Area Height Cu.Ft. Height Cu.Ft. PHASE AMPS SIZE FU21 8 sq. ft. 75" 84" 17.5 12-2 W/G 1202-21-17 FU30 8 sq. ft. 75" 84" 10-2 W/G 1202-30-17 FU30 8 sq. ft.
  • Page 3: Section 2: Mounting Of Sauna Heater

    "Mini Finn" Heater Installation & Operation Instructions Page 3 WARNING SECTION 2: MOUNTING OF SAUNA HEATER Fire sprinkler systems used Using the heater mounting bracket as a guide, drill four 1/8" holes to inside any sauna room fasten the bracket to the wall. Attach the bracket with the ¼" x 1 ½" should be properly rated for screws supplied with the heater.
  • Page 4 "Mini Finn" Heater Installation & Operation Instructions Page 4 DIAGRAM 4 DIAGRAM 5 ONE HOUR OPERATING ZONE FOR 9 HOUR RESERVED FOR FUTURE USE DELAY TIMER This area from "OFF" to "ON" is the operating zone. This is the only time the heater is on. DELAY ZONE This area from "9"...
  • Page 5: Section 5: Heater Screen (Guard Rail)

    "Mini Finn" Heater Installation & Operation Instructions Page 5 WARNING SECTION 5: HEATER SCREEN (GUARD RAIL) Install a wooden heater guard to prevent the sauna bather from Do not locate benches over accidentally touching the sauna heater. Install the heater guard with heater.
  • Page 6 "Mini Finn" Heater Installation & Operation Instructions Page 6 DIAGRAM 6 1 x 2100W 120V 1 x 1700W 120V 2 x 1500W 120V 4.7K min. 3.5W 1 x 2100W Timer 240V 1h+9h preset 2100W or 3000W 1 2 3 4 5 6 L Gr 120V AC 3000W...
  • Page 7: Section 8: How To Take A Sauna

    "Mini Finn" Heater Installation & Operation Instructions Page 7 SECTION 8: HOW TO TAKE A SAUNA • When taking a sauna, allow time to relax completely. • Remove clothing and jewelry. • After 10 minutes or when perspiration begins, leave sauna and relax in dressing area...follow with a cool shower.
  • Page 8 "Mini Finn" Heater Installation & Operation Instructions Page 8 DIAGRAM 7 DIAGRAM 8 TYPICAL PRE-CUT WALL CONSTRUCTION VENTILATION 1/2" wallboard 2x4" framing fiberglass insulation foil vapor barrier T&G soft wood Locate vent under the top bench 1/2" wallboard 02-4211-200 05/09/01 7014228 314 SKMB 27 B...
  • Page 9: Section 9: Warning Placards

    "Mini Finn" Heater Installation & Operation Instructions Page 9 WARNING SECTION 9: WARNING PLACARDS Two metal placards are included in the Installation Instruction The "CAUTION" and Envelope packaged with every Amerec Sauna Heater. The CAUTION "WARNING" placards placard must be attached to the interior wall of the sauna room directly must be mounted in above the heater where it is visible to the bather.
  • Page 10: Section 11: Ventilation

    "Mini Finn" Heater Installation & Operation Instructions Page 10 SECTION 11: VENTILATION VENTILATION should be changed about 6 times an hour. This can be achieved by making a vent opening (fresh air inlet) in the sauna wall directly below the heater. The air outlet must be lower than the upper benches, as far as possible from the heater and about two feet higher than the fresh air inlet vent, See Diagram 8.
