Summary of Contents for Yunca Gas PIAZZA

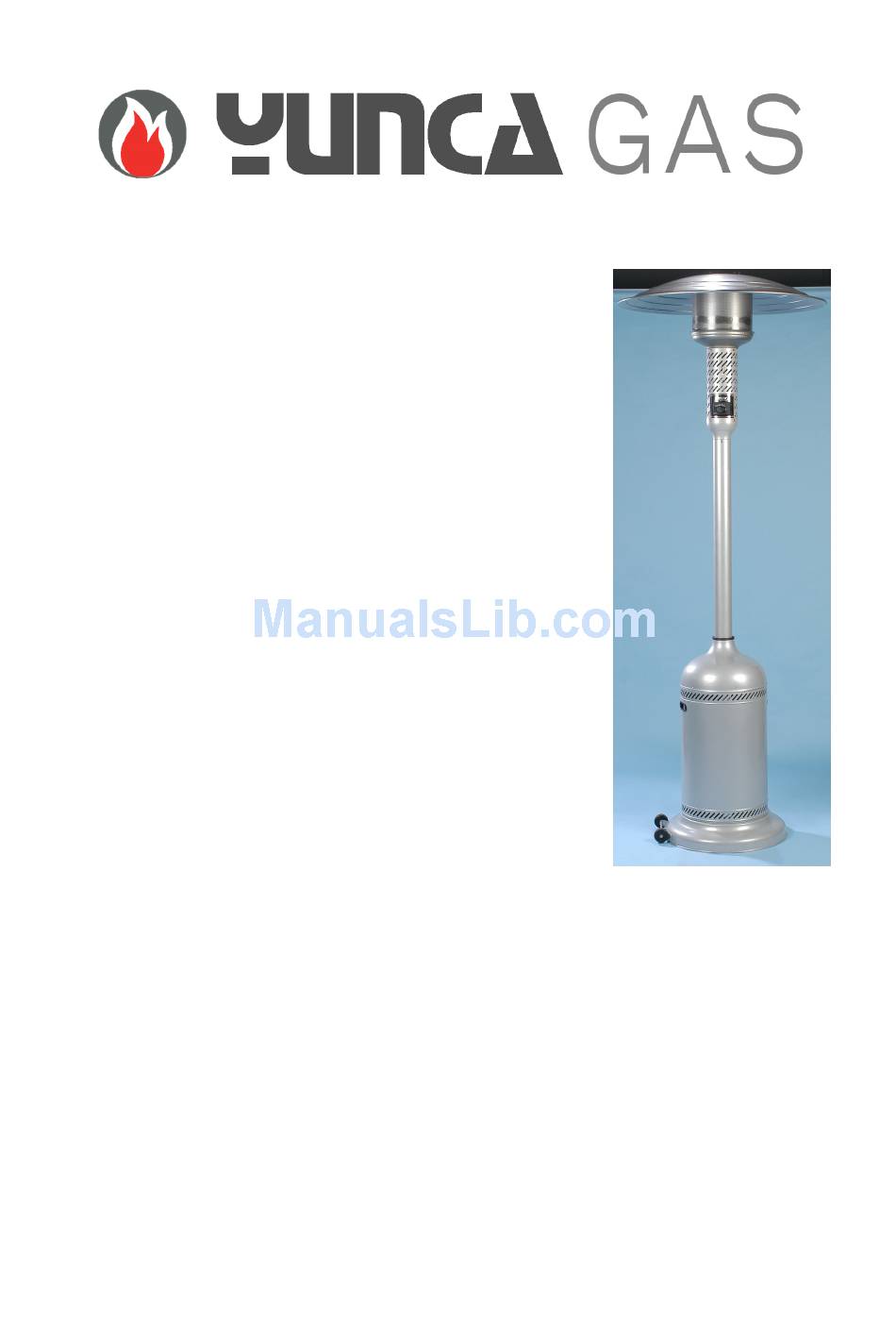

- Page 1 PIAZZA All SEASONS PATIO HEATER AUGUST 2010 OPERATIONS, MAINTENANCE & WARRANTY INFORMATION PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE. Page 1 of 9 PIAZZA PATIO HEATER 29/10/10...
-
Page 2: Table Of Contents
Warranty Registration Pg. 9 INTRODUCTION Congratulations on purchasing your YUNCA PIAZZA ALL SEASONS PATIO HEATER. Please fill out the warranty registration card and return it promptly. This instruction manual should stay with the appliance, and is for the reference of the user and service person. -
Page 3: Assembly Of Heater
SECURE POLE INTO POSITION USING LOCK NUT FASTEN BOTTLE SUPPORT LEG USING WINGNUT BOLT DOME ONTO TOP SECTION Leg and Column Gas Pipe Support Column Lock nut Washer Wing Nut Hose Connection. Bottle Support Leg Bracket Base Plate Page 3 of 9 PIAZZA PATIO HEATER 29/10/10... -
Page 4: Installation
INSTALLATION and SAFE OPERATION WARNING: As the Yunca PIAZZA All Seasons Patio Heater is an unflued appliance, adequate ventilation must always be provided. The heater will function well outside, but should only be used when wind speeds are below 8km/h when heater is turned down or 16km/h when heater is on full. - Page 5 Each Yunca PIAZZA All Seasons Patio Heater is factory set to the appropriate operating pressure for the gas type with which it was factory equipped. If gas pressure requires adjustment, or a gas type conversion is required, the operating pressure can be tested at the test nipple on the side of the BM 733 control.
-
Page 6: Operating Instructions
If at any time the Patio Heater exhibits any problem or abnormal noise it should be immediately turned off. The Patio heater should be checked and tested by authorised service technician before being used. Page 6 of 9 PIAZZA PATIO HEATER 29/10/10... -
Page 7: Servicing
- Clean main burner venturi as insects and dirt may gather there. - Inspect flexible gas hose - Brush any soot etc. that may have gathered on stainless steel mesh. Please fill out the warranty card (page 9) and return it to Yunca. Page 7 of 9 PIAZZA PATIO HEATER 29/10/10... -
Page 8: Warranty Information
ASSY 0022 M8 SPRING WASHERS (X9) 0004 M8 NUTS (X 9) 0036C M6X26MM ALLOY FLAT WASHER DOME x6 0007D M6 STAINLESS HEX NUTS (X 3) REGULATOR NATURAL GAS KIT DATE: SIGNED:___ ____________ Page 8 of 9 PIAZZA PATIO HEATER 29/10/10... -
Page 9: Warranty Registration
CUSTOMER COPY YUNCA PIAZZA All Seasons Patio Heater WARRANTY REGISTRATION: Serial No. Gas type: Purchase Date: Purchasers’ Name: Purchasers’ Address: City: PostCode: Telephone: (0 Where Purchased: Installed By (If permanent installation) Date Manufactured in Dunedin by Yunca Gas PO Box 500...
