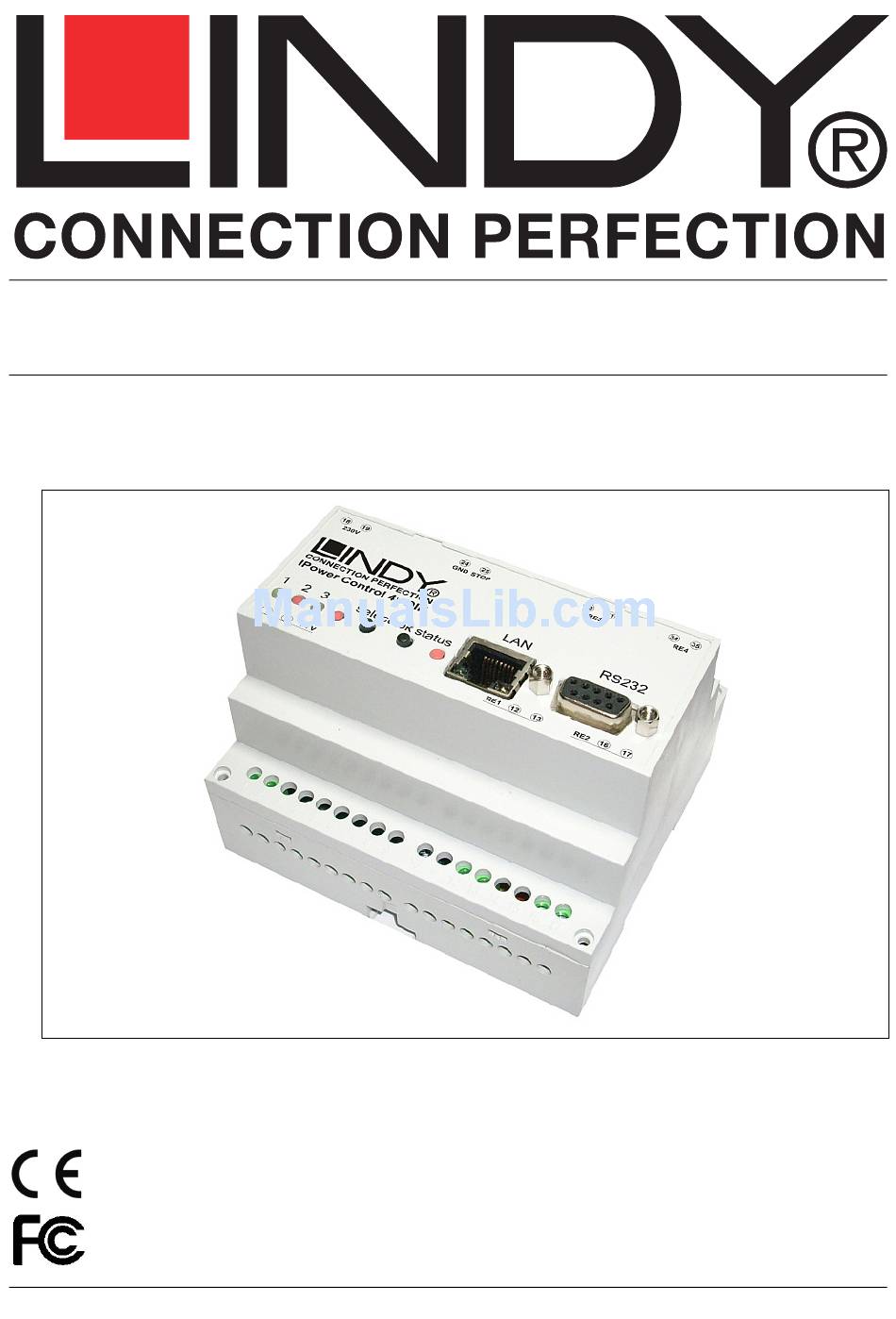

- Page 1 IPower Control 4xDIN User Manual English LINDY No. 32655 www.LINDY.com For Home and Office Use Tested to Comply with FCC Standards © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH FIRST EDITION (FEB 2010)
-
Page 2: Table Of Contents
English Manual English 2 Security Advise ........................3 Description ..........................3 Hardware ..........................4 Connections ........................4 Package Content ....................... 5 Installation ......................... 5 Status LED ........................5 Configuration ........................6 DHCP ..........................6 Network settings with GBL_Conf ..................6 Configuration via webinterface .................... -
Page 3: English Manual English
Description With LINDY IPower Control 4x DIN electrical devices can be switched via a TCP/IPwork. There are only two steps necessary for installation: The connection to an electric circuit and a TCP/IPwork and the configuration of the IP settings. Afterwards LINDY IPower Control 4x DIN... -
Page 4: Hardware
English Manual English 4 Hardware Connections 1) Power Port LEDs 2) Power supply 24 V DC (Pins 1 and 2) 3) Button "select" 4) Button "ok" 5) status LED 6) Relais 1 (Pins 12 and 13) 7) Relais 2 (Pins 16 and 17) 8) Connector serial Interface (RS232) 9) Connector Ethernet (RJ45) 10)Relais 4 (Pins 34 and 35) -
Page 5: Package Content
2.) Plug the Ethernet cable into the connector on the front side of LINDY IPower Control 4x DIN and connect it to your Ethernet. 3.) Connect the clients to the Power Ports of LINDY IPower Control. Status LED The Status LED shows different states of the device: •... -
Page 6: Configuration
After switch-on LINDY IPower Control looks for a DHCP server and requests an available IP address (for deactivation of that feature see 2.2). Please check the IP adress allocated to LINDY IPower Control in the DHCP server settings to make sure that the same address is used at every reboot. -
Page 7: Configuration Via Webinterface
English Manual English 7 Configuration via webinterface Login Go to the website of LINDY IPower Control. Enter the IP address of LINDY IPower Control into the address line of your internet browser: http://”IP address of LINDY IPower Control”/ and press LOGIN. To enter the configuration menu, click on „Configuration“... -
Page 8: Configuration - Ip Address
Adjusts, whether LINDY IPower Control gets its TCP/ IP settings directly from your DHCP server. If DHCP is activated, LINDY IPower Control proves, whether a DHCP server is active within your LAN. Then LINDY IPower Control requests TCP/IP settings from this server. If there is no DHCP server present inwork, we recommend to deactivate this option. -
Page 9: Configuration - Http
Users are authorized to switch all ports but are not allowed to modify the settings of neither LINDY IPower Control nor the ports. The username of the user is “user”. If you have forgotten your password, activate the bootloader mode of LINDY IPower Control, start GBL-Conf.exe and deactivate the password request. -
Page 10: Configuration - Snmp
Community public Determine the SNMP public community here. Enable SNMP-set Activate SNMP-set protocol of LINDY IPower Controlwith this option. Community private Determine the SNMP private community here. Download SNMP MIB The MIBs of LINDY IPower Control may be downloaded here. -
Page 11: Configuration - Syslog
Please use these options only if yourwork is configured for SNMP! Enable Traps Activates SNMP-traps. if enabled, LINDY IPower Control will dispatch SNMP-traps to all receivers listed. Receivers have to be listed as follows: IP address (and, if necessary the HTTP port), e.g.: 192.168.0.2:8000... -
Page 12: Ip Access Control List
English 12 IP Access Control List IP Access Control List (IP ACL) acts as an IP filter for your LINDY IPower Control. When is active, hosts and subnets can only contact LINDY IPower Control, if their IP adresses are stated in this IP ACL. e.g.: „http://192.168.0.1“ or „http://192.168.0.1/24“. If you locked yourself out by accident, please activate the bootloader mode of LINDY IPower Control, start Gbl_Conf. -
Page 13: Syslog
Syslog messages are simple text messages transmitted to a syslog server using UDP. Linux OS regularly have a syslog daemon installed, e.g. syslog-ng. For Windows there are some freeware tools available. On following events, LINDY IPower Control will send a syslog message: • Booting up •... -
Page 14: Batchmode
English Manual English 14 Batchmode Each Power Port of LINDY IPower Control can be switched on or off with a selectable delay (1- 30 sec. or 1-30 min.). After the chosen delay the selected port will be switched off/on again automatically. -
Page 15: Features
Features Bootloader mode To activate the bootloader mode of LINDY IPower Control the select button must be pushed while restarting the device. In bootloader mode it is possible to disable the password protection, to update the firmware and to restore the default settings by running the program GBL_Conf.exe. - Page 16 Dieses Produkt entspricht den einschlägigen EMV Richtlinien der EU und darf nur zusammen mit abgeschirmten Kabeln verwendet werden. LINDY Herstellergarantie LINDY gewährt für dieses Produkt über die gesetzliche Regelung hinaus eine zweijährige Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.
