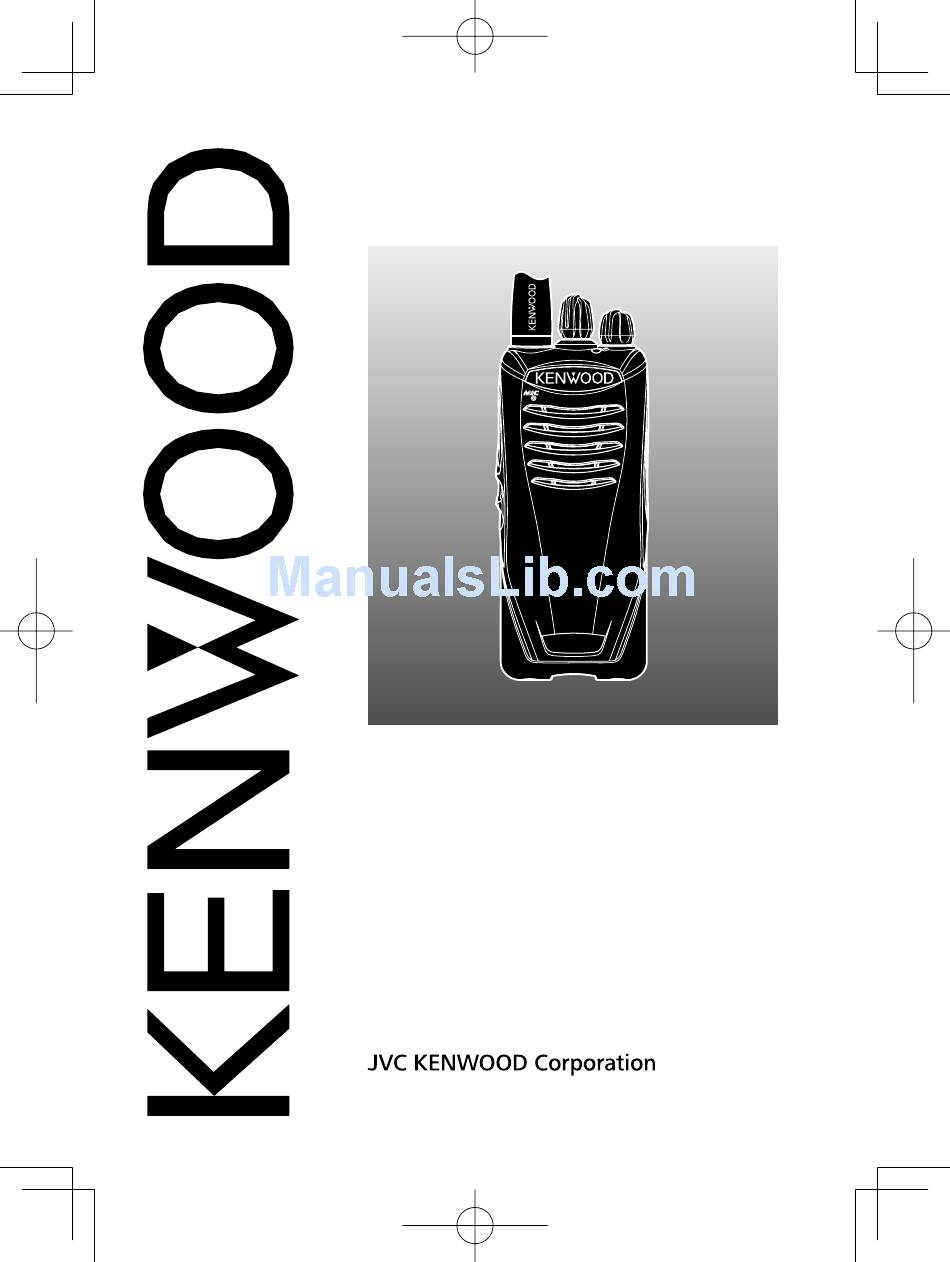

Page 1: Instruction Manual
TK-2402 TK-2402V TK-3402 TK-3402U VHF FM TRANSCEIVER UHF FM TRANSCEIVER INSTRUCTION MANUAL ÉMETTEUR-RÉCEPTEUR FM VHF ÉMETTEUR-RÉCEPTEUR FM UHF MODE D’EMPLOI TRANSCEPTOR FM VHF TRANSCEPTOR FM UHF MANUAL DE INSTRUCCIONES © B62-2479-00 (K, P) 09 08 07 06 05 04 03 02 01 00... - Page 2 For information on Li-ion battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources.
- Page 3 THANK YOU We are grateful you have chosen KENWOOD for your land mobile radio applications. NOTICES TO THE USER ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆ Illegal operation is punishable by fine and/or imprisonment.
- Page 4 One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
- Page 5 Ensure that there are no metallic items located between the transceiver and the battery pack. • Do not use options not specified by KENWOOD. • If the die-cast chassis or other transceiver part is damaged, do not touch the damaged parts.
- Page 6 • If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power off immediately, remove the battery pack from the transceiver, and contact your KENWOOD dealer. • Use of the transceiver while you are driving may be against traffic laws.
- Page 7 Information concerning the battery pack: The battery pack includes flammable objects such as organic solvent. Mishandling may cause the battery to rupture producing flames or extreme heat, deteriorate, or cause other forms of damage to the battery. Please observe the following prohibitive matters.
- Page 8 • Use only the specified charger and observe charging requirements! If the battery is charged in unspecified conditions (under high temperature over the regulated value, excessive high voltage or current over regulated value, or with a remodeled charger), it may overcharge or an abnormal chemical reaction may occur.
- Page 9 • Do not touch a ruptured and leaking battery! If the electrolyte liquid from the battery gets into your eyes, wash your eyes with fresh water as soon as possible, without rubbing your eyes. Go to the hospital immediately. If left untreated, it may cause eye-problems.
-
Page 10: Unpacking And Checking Equipment
CONTENTS UNPACKING AND CHECKING EQUIPMENT ......1 PREPARATION ............2 ORIENTATION ............6 PROGRAMMABLE AUXILIARY FUNCTIONS......7 BASIC OPERATIONS ..........10 VOICE OPERATED TRANSMISSION (VOX) ....... 11 BACKGROUND OPERATIONS ........12 UNPACKING AND CHECKING EQUIPMENT Carefully unpack the transceiver. If any of the items listed below are missing or damaged, file a claim with the carrier immediately. - Page 11 PREPARATION INSTALLING/ REMOVING THE BATTERY PACK ◆ Do not short the battery terminals or dispose of the battery by fire. ◆ Never attempt to remove the casing from the battery pack. 1 Align the battery pack with the back of the transceiver, then press the battery pack and transceiver firmly together until the release latch on the base of...
- Page 12 1 Plug the AC adapter cable into the jack located on the rear of the charger. 2 Plug the AC adapter into an AC outlet. 3 Slide a battery pack or a transceiver equipped with a battery pack into the charging slot of the charger. •...
- Page 13 INSTALLING THE ANTENNA Screw the antenna into the connector Antenna on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. Note: The antenna is neither a handle, a key ring retainer, nor a speaker/ microphone attachment point.
- Page 14 1 Place the cap over the jacks so that the locking tabs insert into the transceiver grooves. 2 While holding the cap in place, push it towards the bottom of the transceiver until the tabs on the cap click into place. •...
- Page 15 ORIENTATION Antenna Battery pack Channel selector Rotate to change the operating channel. • Channel Annunciation: When changing channels, the transceiver will announce the newly selected channel number. (This can be deactivated by your dealer.) LED indicator For the LED indicator status, refer to page 10. Power switch/ Volume control Turn clockwise to switch ON the transceiver.
-
Page 16: Programmable Auxiliary Functions
PROGRAMMABLE AUXILIARY FUNCTIONS Your dealer can program the Side 1 and Side 2 keys each with one of the following functions. Note: The duration of pressing a key to activate a function is dependent on your dealer setting. Your dealer may have set some keys to be held down for a short duration instead of being momentarily pressed. - Page 17 ■ Key Lock with Status Memory This operates the same as Key Lock except that when the transceiver power is turned OFF and then ON again, the keys remain locked. Without Status Memory, when the transceiver power is turned OFF and then ON again, the Key Lock function will be cancelled.
- Page 18 ■ Scan Press this key to start scanning the transceiver channels. ■ Scan Temporary Delete Press this key to start scanning the transceiver channels. When Scan pauses at an undesired channel, you can remove that channel from the scanning sequence by holding down this key for 3 seconds.
-
Page 19: Basic Operations
BASIC OPERATIONS 1 Turn the Power switch/ Volume control clockwise to switch the transceiver power ON. • A beep sounds if enabled by your dealer. 2 Press the key programmed with the [Monitor] or [Squelch Off] function to hear background noise, then rotate the Power switch/ Volume control to adjust the volume. - Page 20 VOICE OPERATED TRANSMISSION (VOX) VOX can be activated or deactivated by your dealer. VOX operation allows you to transmit hands-free. To activate VOX and set the VOX Gain level: 1 With the transceiver power OFF, press and hold the Side 1 key while turning the transceiver power ON.
-
Page 21: Background Operations
BACKGROUND OPERATIONS TIME-OUT TIMER (TOT) The Time-out Timer prevents callers from using a channel for an extended duration. If you continuously transmit for the duration programmed by your dealer (default is 1 minute), transmission will stop and an alert tone will sound. To stop the tone, release the PTT switch. - Page 22 The DTMF decode capabilities include Selective Call ID, Transpond with ID, and “Wild Card” Group Calling. ■ FleetSync Utilizing JVC KENWOOD’s FleetSync digital signaling protocol, this transceiver has PTT ID and Selective Calling capabilities for managed dispatch operations. For hazardous/hostile duty environments, a Side1 or Side 2 key can be programmed for Emergency status to alert the dispatcher and/or operator in distress.
- Page 23 Use only Kenwood authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a Kenwood recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled...
