4. The outside unit needs a 3" to 4" cutout in the barrier.The rubber
gaskets prevent slippage and protect the barrier surface.
Refer to Fig 2:
Remove the four (4) 6-32 assembly screws.
Remove the four (4) 8-32 mounting nuts from the mounting rods.
Separate the faceplate and housing. Hold the faceplate over the
partition opening. Take care to center the faceplate and align the
lettering horizontally. Masking tape can be used temporarily to
secure the faceplate to the outside of the partition.
On the inside of the partition mount the housing over the four (4)
8-32 mounting rods. Be certain to position the housing so that the
threaded hole is positioned properly. If using tubing, orient the hole
in the direction, which the tubing is to exit (left, right, top, and
bottom). If tubing is not being used, place the plugged hole at the
bottom.

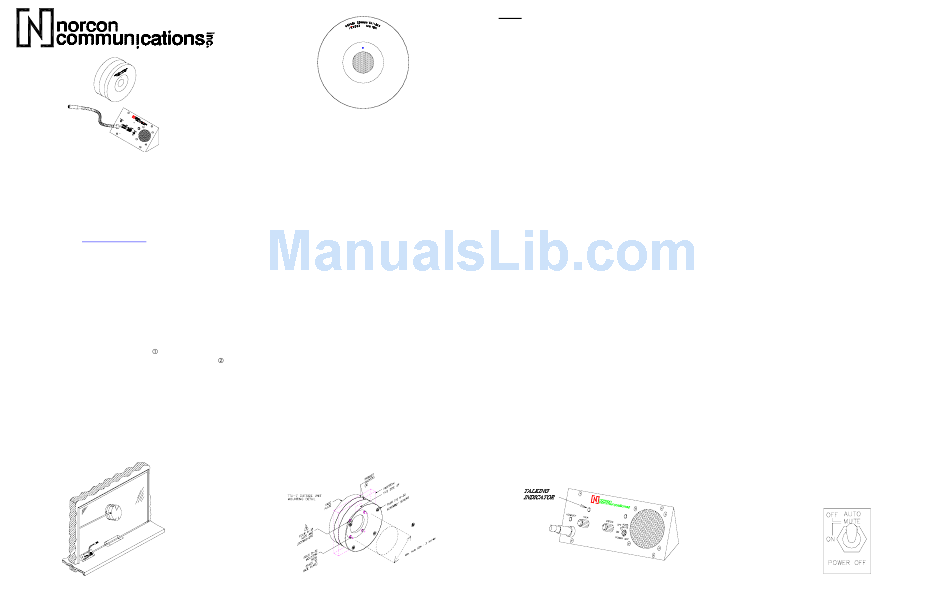

Fig. 1
3
TTU-7 Outside Unit
•
Introduction .................................... 1
•
How It Works .................................... 2
•
How To Install .................................... 2
•
How To Use The Talk-Thru Communicator ... 5
•
Operation Hints ... .............................. 6
•
Specifications ........................................ 7
•
Accessories and Options for TTU 7................8
•
Wireless Headset (Option) ..........................9
•
Handset with Hook-switch ( Option) ............10
•
Norcon TTU-3 Series ..............................11
•
Introducing TTU-1 Series ........................ 12
• Troubleshooting ....................................13
•
Warranty .............................................14
5. Route the two pair cable (with connector on one end) FROM the
inside unit TO the outside unit. Make sure the connector is in the
inside unit. Attach the cable to the terminal block on the outside
unit, color to color. Connect shield to black wire. Join the
connector with the wire harness from the printed circuit board so
the colors line up.
6. For power connection, route one pair cable (with the connector on
one end) FROM the inside unit TO the location of the PS-1 Power
supply. Connect the conductors to the power supply
(RED to +, BLACK to -). Plug the connector to its mate from the
printed circuit board.
7. The sound absorbing material in the housing may be
removed during installation but should be replaced for
normal operation.
8. For best result separate inside and outside units as far
as possible.
Fig. 2
4
TTU-7 Series
2-Way Talk-Thru
Electronic Communication System
A voice communications system for High-Security and
Isolation Booth Situations
Today's security and isolation booths are often the best step
you can take to protect your employees. But do they protect or
help maintain your very important good will? Not if clerks and
customers have to shout and growl and repeat themselves to be
heard or understood.
Norcon's Patented TTU-7 Talk-Thru Communicator is a 2-
way, hands-free audio system that provides high-quality personal
communication between people separated by security or isolation
barriers.
FEATURES
•
Clear 2-way hands-free voice communication.
•
Quality electronic design and engineering.
•
Avoids shouting, repetition, and misunderstanding.
•
Special made for the window with slide down gate.
•
Rugged, tamper-resistant materials. Anodized aluminum
•
Units available for ADA applications.
•
Headset jack equipped on all models for using the optional
headset.
•
Export models available.
1
HOW TO USE THE TALK-THRU COMMUNICATOR
1. With power switch off, turn Talk and Listen controls
completely counter clockwise.
2. Turn the unit ON by switching AUTO MUTE switch to the
center position. In this position the unit also in the auto mute
mode. Adjust the TALK volume control until the attendant is
clearly heard by the person outside the window when the
attendant is speaking 2" to 4" from the gooseneck microphone at
a normal speaking level. The green LED should go on when
attendant starts talking and go off when the attendant stops
talking. If the green LED stays lit constantly, it indicates either
the TALK volume setting or the ambient noise is too high.
4. Adjust the LISTEN control until the person outside
the window is clearly heard when speaking at a normal level.
In most situations, both the TALK and LISTEN volume are
normally set to 11 to 12 o'clock position.
5
HOW IT WORKS ...
The Norcon TTU system permits hands-free, 2-way
communication between the booth attendant and the customer.
Unique circuitry facilitates ongoing, clear, 2-way conversation at all
times – as if the two parties were together in the same room.
The TTU-7 Talk-Thru Communicator now incorporates circuitry to
automatically attenuate the outside channel. If the gooseneck
microphone is not used for a period of 30 seconds, the outside
channel volume will be reduced approximately 70%. Normal
operation is restored as soon as the attendant speaks into the
gooseneck microphone. The automatic volume attenuation circuit
prevents outside noise from bothering the attendant.
The TTU-7 provides clear communication even in environments
with high ambient noise by shaping the sound for maximum
intelligibility. Its compression circuitry decreases loud, annoying
sounds.
HOW TO INSTALL ...
Mount the TTU unit using the method shown in figure (1).
1.
2. Remove the control panel from the prism-shaped housing
The "Inside" unit houses the circuit board for the system,
the gooseneck microphone, volume control, power switch,
power indicator LED and speaker.
3. Use holes on the housing where required for installation
2
Operation Hints
1. Increasing the talk volume control allows the attendant to
speak further from the gooseneck microphone as well as
increasing the talk channel volume. The optimum
distance from the gooseneck microphone should be
maintained at approximately 3" or conversations not
directed to customers may be heard outside the booth.
2. Install a headset into the headset jack will allow
communications from the headset and disconnect the
gooseneck microphone
3.The unit will decrease the incoming volume level by
approximately 70% in about 30 seconds after the attendant
speaking into the gooseneck microphone. The purpose of this
feature is to decrease the amount of extraneous noise entering
the booth when no one is at the booth. Normal volume level is
restored when the attendant speaks into the gooseneck
microphone. The muting function can be defeated by
switching the AUTO MUTE switch to AUTO MUTE OFF
position.
6 TTU-7 P.1
.
