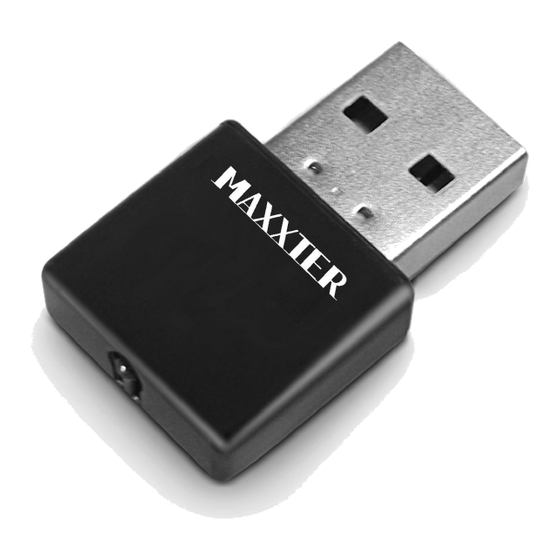

MAXXTER ACT-WNP-UA-05 User Manual

Min usb wif adapter, 300 mbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
ACT-WNP-UA-005
HANDBUCH
MINI USB WIFI ADAPTER, 300 MBPS
HANDLEIDING
MANUEL DESCRIPTIF
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
КЕРІВНИЦТВО КОРИСТУВАЧА
ACT-WNP-UA-005
MINI USB WIFI ADAPTER, 300 MBPS
MINI USB WIFI-ADAPTER, 300 MBPS
MINI USB WIFI ONTVANGER, 300 MBPS
ADAPTATEUR WIFI USB, 300 MBPS FORMAT DE POCHE
1
39
МИНИАТЮРНЫЙ USB WIFI АДАПТЕР, 300 МБИТ/СЕК
/
All brands and logos are registered trademarks of their respective owners
МІНІАТЮРНИЙ USB WIFI АДАПТЕР, 300 МБИТ/СЕК

Advertisement

Table of Contents
loading

Summary of Contents for MAXXTER ACT-WNP-UA-05

  • Page 1 USER MANUAL ACT-WNP-UA-005 HANDBUCH MINI USB WIFI ADAPTER, 300 MBPS HANDLEIDING MANUEL DESCRIPTIF РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ КЕРІВНИЦТВО КОРИСТУВАЧА ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS MINI USB WIFI-ADAPTER, 300 MBPS MINI USB WIFI ONTVANGER, 300 MBPS ADAPTATEUR WIFI USB, 300 MBPS FORMAT DE POCHE МИНИАТЮРНЫЙ...

  • Page 2: Table Of Contents

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS C H A P T E R 1 : F e a t u r e s a n d S p e c i f i c a t i o n s … . … … … … … . 3 C H A P T E R 2 : Qu i c k In s t a l l a t i o n Gu i d e …...

  • Page 3: Chapter 2: Quick Installation Guide

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Chapter 1. Product features and specifications Features  Mini USB WiFi adapter, 802.11b+g+n  The 11N technology provides more speed over larger distances  Speeds up to 300 Mbps: watch online movies and stream music with ease ...
  • Page 4 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS 2.1.2 The following message will appear on your computer, click ‘Cancel / Close’. Under Windows XP Under Windows Vista and Windows 7 2.1.3 Insert the driver CD into your CD-ROM. You can see autorun screen below.
  • Page 5 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Click ‘Install Driver’ to start the installation procedure 2.1.4 Installation descriptions shown. Click ‘Next’ to continue 2.1.5 Once the installation is finished the computer will be asked to reboot. you can click ‘Finish’ and reboot the computer to finish All brands and logos are registered trademarks of their respective owners...
  • Page 6 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS the installation of driver files. 2.1.6 A new icon will appear near the clock of system tray: Left-click the icon will launch wireless network configuration utility, and you can right-click the icon to show the quick menu of configuration utility.

  • Page 7: Connect To Wireless Access Point

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS For detailed instructions of wireless network configuration utility, please see next chapter. 2.2 Connect to Wireless Access Point To use wireless network, you have to connect to a wireless access point first. You can either use Client utility (comes with network card driver), or Windows Zero Config utility (comes with Windows operating system).
  • Page 8 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS If the wireless access point you wish to connect does not appear here, you can click ‘Refresh’ button to scan for wireless access points again; if the wireless access point you’re looking for still not appear, try to move the computer closer. When the access point you’re looking for is on the list, left-click it and then double click it or click ‘Add to Profile’.
  • Page 9 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS All options in this page will be filled automatically according to the access point you wish to add to profile. However, you can still modify any of them to meet your requirement. Profile name You can give a name to this profile, so you can remember its purpose easily.
  • Page 10 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Data encryption Select the data encryption type from drop- down menu. This setting must be identical with the setting of wireless access point you with to connect. ASCII / When the encryption type is ‘WEP’, it’s PASSPHRASE required to input a set of ‘passphrase’...

  • Page 11: Using Windows Zero Configuration

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS NOTE: If you connected to an access point but the connection has been dropped soon, please check security settings and re- check password spelling. 2.2.2 Using Windows Zero Configuration Windows XP and Vista has a built-in wireless network configuration utility, called as ‘Windows Zero Configuration’...
  • Page 12 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS A message indicating that you’ve been switched to Windows Zero. NOTE: To return to use Client utility, uncheck ‘Windows Zero Config’ box. Click ‘Start’ button (should be located at the bottom-left corner of windows desktop), click ‘Control Panel’, then click ‘Network and Internet Connections’...
  • Page 13 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Double click ‘Network Connections’. Right-click ‘Wireless Network Connection’ (it may have a All brands and logos are registered trademarks of their respective owners...
  • Page 14 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS number as suffix if you have more than one wireless network card, please make sure you right-click the Wireless LAN 802.11n USB Network Adapter), then select ‘View Available Wireless Networks’. All wireless access points in proximity will be displayed here. If the access point you want to use is not displayed here, please try to move your computer closer to the access point, or you can click ‘Refresh network list’...
  • Page 15 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS If the access point is protected by encryption, you have to input its security key or passphrase here. It must match the encryption setting on the access point. If the access point you selected does not use encryption, you’ll not be prompted for security key or passphrase.

  • Page 16: Ch A Pt E R 3: Cl I E N T Ut I Li T

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS CHAPTER 3: Client Utility 3.1 Connection Profile Management If you need to connect to different wireless access points at different time, like of access point of your home, office, cybercafe, or public wireless service, you can store the connection parameters (encryption, passphrase, security etc, etc.) as a profile for every access point, so you don’t have to input...
  • Page 17 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS If you want to create a new profile, click ‘Profile’ menu, then click ‘Add’ button. You’ll be prompted to input connection parameters for the wireless access point you wish to connect: Required parameters are: Profile name You can give a name to this profile, so you can remember its purpose easily.
  • Page 18 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS any phrase to help you remember. Network Name The SSID (Service Set IDentifier, i.e. access (SSID) point’s name). This must be identical with the SSID of the access point you wish to connect. This is a computer- Check this box if you wish to connect to to-computer (ad...

  • Page 19: Remove An Existing Profile

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Password Certificate If certification is required to authenticate with 802.1x authentication server, please select a local certificate from dropdown list. Check this box and PAC (Privilege Access Certificate) will be automatically selected. When all required parameters are set, click ‘OK’ to create and save a new profile.

  • Page 20: Make A Copy Of Existing Profile

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS 3.1.4 Make a copy of existing profile If you need to make a copy of a specific profile, you can use this function. This function is very convenient when you need to build a new profile which parameters are similar to any existing profile.

  • Page 21: Set As Default Profile

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS You’ll be prompted to input a profile name, please use an identical name that does not exist in profile list. 3.1.5 Set as default profile If you wish to use a specific profile as default connection, you can select a profile in the list, and click ‘Set Default’.

  • Page 22: Status

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS All general information like signal strength and link quality will be displayed here. This information is very useful when you encounter some problem on connecting to access point. If you wish to get a new IP address from DHCP server, you can click ‘ReNew IP’...

  • Page 23: Miscellaneous Settings

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS All connection-related statistics is displayed here. You can click ‘Reset’ button, to reset the statistics of all items back to 0. 3.3 Miscellaneous Settings There are few functions provided by Client configuration utility, you can access these functions from the bottom of configuration menu: The descriptions of these functions are listed as follow:...

  • Page 24: Establish Secure Connection With Ap By Wps

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Show Tray Icon Check this box to show an icon on system tray. Uncheck this box to hide it. Radio Off Switch wireless radio off. Wireless network functionalities are disabled. Disable Adapter Disable wireless network adapter. All functionalities of configuration menu will disappear.
  • Page 25 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Please follow the following instructions to setup WPS: Right-click Client configuration utility icon, and click ‘Open Config Utility’. Click ‘Wi-Fi Protect Setup’ menu. You can use PIN code or Push-Button configuration, and WPS- compatible wireless access point must use the same type of WPS.

  • Page 26: Pin Code

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS 3.4.1 PIN Code To use PIN Code, please click ‘Pin Input Config (PIN)’ button: You’ll be prompted to select an access point you wish to connect. If you know its SSID, click ‘Yes’, otherwise click ‘No’. If you select ‘Yes’, a list of all WPS-compatible AP nearby will be displayed;...

  • Page 27: Push Button

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS AP and click ‘Select’ button. If you select ‘No’, wireless network card will prompt you to enter 8-digit PIN code into your AP, without selecting an AP in advance. After you select ‘Yes’ or ‘No’ in previous step, network card will attempt to connect to WPS-compatible AP, and an 8-digit number will...

  • Page 28: Chapter 4 Soft-Ap Function

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS After you click “Push Button Config(PBC)”, a message box will appear: Please activate Push-Button function on wireless access point now, and wireless network card will establish secure connection with access point within one minute. CHAPTER 4 Soft-AP Function Excepting become a wireless client of other wireless access points, this wireless adapter can act as a wireless service...

  • Page 29: Switch To Ap Mode And Station Mode

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS 4.1 Switch to AP Mode and Station Mode The operating mode of the wireless card is ‘Station Mode’ (becoming a client of other wireless access points) by default. Please follow the following instructions to switch to AP mode: Right-click Client configuration utility icon, and click ‘Open Config Utility’.

  • Page 30: Configure Ssid And Channel

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Client mode icon: Software AP icon: 4.1.1 Configure SSID and Channel To configure software AP, click ‘Config’ button: The ‘Wireless Network Properties’ is displayed. All brands and logos are registered trademarks of their respective owners...

  • Page 31: Setup Soft-Ap Security

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Please note that Ad-Hoc mode is not available when network card is in AP mode. The description of major setup items are listed below: Network Name Please input the SSID (the name used to (SSID) identify this wireless access point) here.
  • Page 32 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS The description of setup items about wireless security are listed below: Network Select network authentication mode from Authentication dropdown menu. Data Encryption Select data encryption method from dropdown menu. ASCII / If the encryption method is WEP, check either PASSPHRASE ‘ASCII’...

  • Page 33: Advanced Settings

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS To save changes, click ‘OK’; otherwise click ‘Cancel’ to leave this menu and keep settings untouched. 4.2 Advanced Settings If you want to setup advanced settings of software access point, select ‘Advanced’ menu. If you don’t know the meaning and affects of these settings, keep them untouched.

  • Page 34: Wireless Statistics

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS 4.3 Wireless Statistics Select ‘Statistics’ menu and the data statistics about software access point will be displayed. Click ‘Reset’ to reset the value of every item back to ‘0’. 4.4 Internet Connection Sharing (ICS) In this page, you can assign a network card on your computer as the path for all wireless clients to get connected to Internet.

  • Page 35: Chapter 5: Troubleshooting

    ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Click ‘Apply’ to save changes (‘Apply’ is grayed out when no changes are made in this page). CHAPTER 5: Troubleshooting If you encounter any problem when you’re using this wireless network card, don’t panic! Before you call your dealer of purchase for help, please check this troubleshooting table, the solution of your problem could be very simple, and you can solve the problem by yourself!
  • Page 36 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS Nothing happens 1. Please make sure the wireless network card when I click is inserted into your computer’s USB port. ‘Open Config 2. Reboot the computer and try again. Utility’ 3. Remove the card and insert it into another USB port.
  • Page 37 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS This product is tested and complies with the essential requirements of the laws of member states concerning R&TTE(1999/5/EC). The CE declaration can be found under www.gembird.eu Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie R&TTE(1999/5/EC) überein.
  • Page 38 1358CD Almere, The Netherlands www.maxxter.biz/service www.gembird.nl/support support@maxxter.biz gembird@letmerepair.fr Tel: 0900-MAXXTER +33(0) 251 404849 (€ 0,25 p/m binnen Nederland, exclusief mobiele Prix d'appel depuis telephone fixe Pays-Bas : 0.15 euro / min telefoonkosten) Prix d'appel depuis telephone mobile / autre pays - selon...
  • Page 39 ACT-WNP-UA-005 MINI USB WIFI ADAPTER, 300 MBPS ГАРАНТИЙНЫЙ ТАЛОН УМОВИ ГАРАНТІЙНОГО ОБСЛУГОВУВАННЯ 1. Гарантийное обслуживание предоставляется в течение срока 1. Гарантійне обслуговування надається протягом терміну гарантии, при наличии правильно и четко заполненного гарантії, при наявності Гарантійного талону, заповненого гарантийного талона, и изделия в полной комплектации. належним...
