Summary of Contents for Dish TV satBox-mini S7030PVR

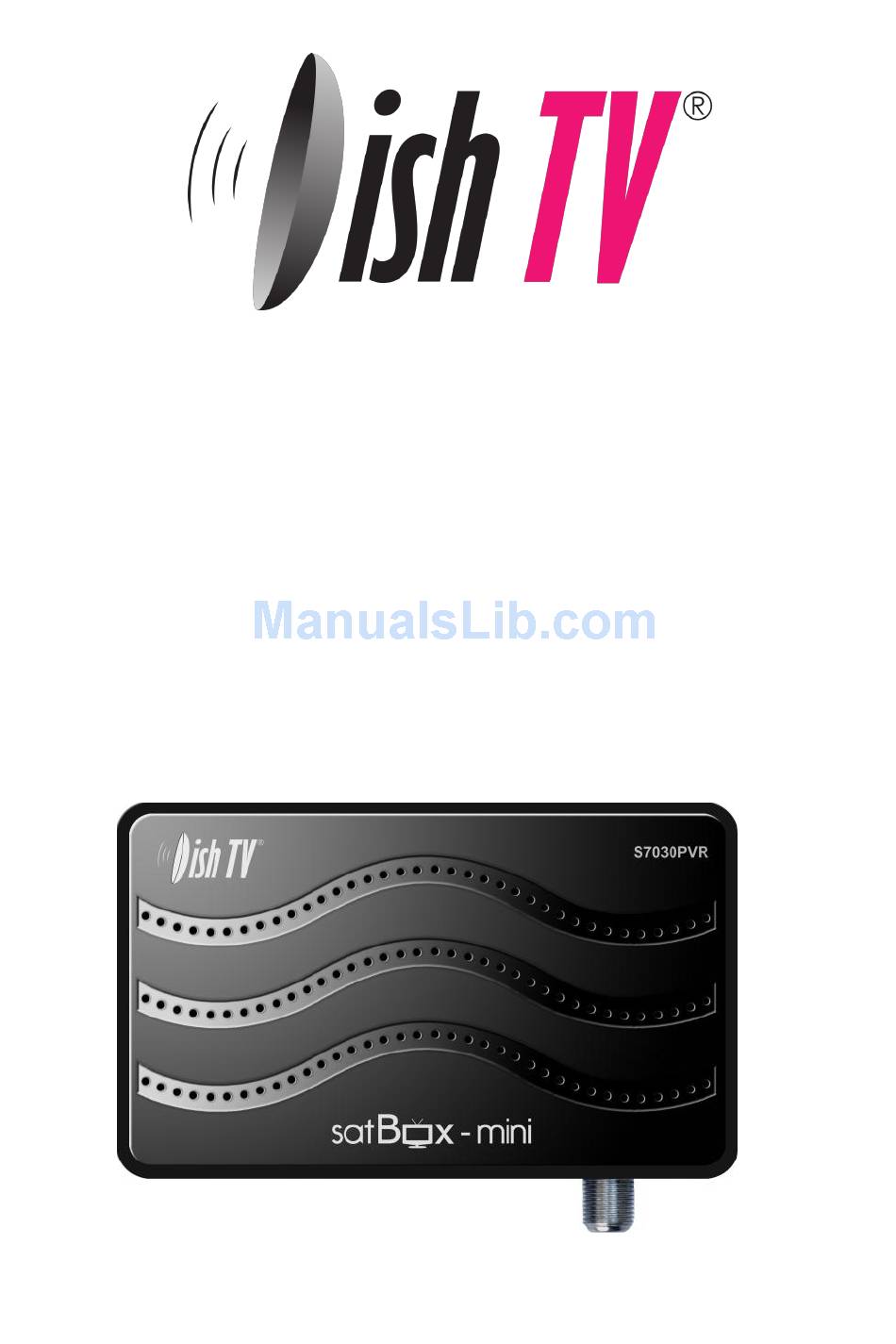

- Page 1 S7030PVR User Manual...
- Page 2 Important Safety Instructions Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings, install in accordance with the instructions. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized plug.
- Page 3 This symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.
-
Page 4: Table Of Contents
Table of contents 1 Front and Rear Panel ........ 2 2 Remote Control .......... 3 2.1 Key introduce ........3 2.2 Installing the Batteries ......4 2.3 Using the Remote Control....4 3 Connections ..........4 4 First Time Installation ......... 5 4.1 Program Manager Settings .... -
Page 5: Front And Rear Panel
Front and Rear Panel 1 USB JACK: Used to connect to an external USB 2.0 device. 2. LNB IN: Used to connect the LNB to receive the signal 3. RS232：For data transport. 4. IR: Used to connect the remote Sensor 5. -
Page 6: Remote Control
Remote Control 2.1 Key introduce MUTE: Mute or Unmute Audio Output. TV/RADIO: Selects TV or Radio. FAV: Turns on Favourite Menu. RECALL: Used to switch between the last two viewed channels. EXIT: Exits the current Menu or returns to the previous Menu. OK: Confirms an entry or selection. -
Page 7: Installing The Batteries
2.2 Installing the Batteries Remove the battery cover from the remote control and put 2xAAA size batteries inside the compartment. The diagram inside the battery compartment shows the correct way to install the batteries. 2.3 Using the Remote Control To use the remote control, point it towards the front of the infrared sensor. The remote control has a range of up to 7 meters from the infrared sensor at an angle of up to 60 degrees. -
Page 8: First Time Installation
Note: When connecting the receiver to other equipment, e.g., TV, VCR and amplifier, make sure to refer to relevant user manuals for instruction. Also, make sure you disconnect all the equipment from the mains supply before the connection is made 4 First Time Installation After all connections have been made properly, switch on TV and make sure the receiver is... -
Page 9: Program Edit
4.1.1 Program Edit To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This menu requires a password to access. Enter the default password '000000' Set Favourite Program You can create a short list of favourite programs that you can easily access. -
Page 10: Epg (Electronic Program Guide)
Lock Program You can lock selected programs for restricted view. 1. Select the preferred program then press the YELLOW button. A lock shaped symbol is displayed. The program is now marked as locked. 2. Repeat the previous step to select more programs. 3. -
Page 11: Resolution
4.2.2 Resolution If the video does not appear correctly, change the setting. This setting is to match the most common setting for HDMI. [480i]: for NTSC system TV. [480P]: for NTSC system TV. [576i] for PAL system TV. [576P]: for PAL system TV. [720P]: for NTSC or PAL system TV. - Page 12 DiSEqC1.2: Move the motor to a right position to lock the signal. DiSEqC1.3: Move the motor according to the local and satellite positions. Move Auto: Press LEFT/RIGHT to start to move West/East. It will be stopped automatically when the signal is locked. Move Continue: Press LEFT/RIGHT to start to move West/East.
-
Page 13: Transponder
Channel Search Scan the satellites or Transponders according the configurations. Blind Scan First scan the band to get the transponders which can be locked. After gathering all Transponders, Scan the transponders one by one to get the programs. 4.3.2 Transponder Press SAT to switch the list to show transponders of the selected satellite. -
Page 14: Time Setting
4.4 Time Setting To access this Menu, press MENU then select [Time]. The Menu provides options to adjust the time settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the settings. Press EXIT to exit the menu. (1) Time Auto: updates the time automatically from satellite (2) Time Zone: Select the Time Zone Offset. -
Page 15: Restore Factory Default
confirmed, press EXIT to exit the Menu. 4.6.2 Restore Factory Default Reset your Set Top Box to the Default Factory Settings. In Main Menu select [Restore Factory Default] and press OK or RIGHT to select. Enter your password or the default password '000000' and press OK to confirm. This option will delete all preset channels and settings. -
Page 16: Photo Configure
4.7.2 Photo configure: -Slide Time: adjust slide show interval to 1~8 seconds -Slide Mode: adjust slide show effect as mode 0~59 or random. -Aspect Ratio: Keep - displays the picture as its original aspect; Discard - displays the picture in full screen mode. -
Page 17: Troubleshooting
5. Troubleshooting Problem Potential Reasons What to do No picture Power isn't connected Connect the power The power switch is not on Switch on the power Screen shows Not connect DVB-S cable Plug in the DVB-S cable No Signal Incorrect setting Set up correct parameter No sound from No or incorrect connection... -
Page 18: Technical Specifications
6. Technical Specifications Item Specification Tuner Frequency Range 950MHz to 2150MHz Input Impedance 75Ohms unbalanced Signal Input Level -65 ~ -25dBm Symbol Rate 2-45Mbps LNB Power 13/18V,Max 350mA Demodulation Demodulator QPSK/8PSK 1/2,2/3,3/4,5/6,7/8,8/9,9/10 Connections LNB IN F connector USB 2.0 IR Extender Receive the signal for the RC HDMI Connects to HDMI in device.
